Cavatorta Panoplax Fencing
PANOPLAX FENCING
PANOPLAX FENCING
Hot dipped galvanized and PVC coated welded mesh in panels.
To give strength and security the panels are manufactured with reinforcing crimps and barbs protecting the top of the panel.
INFORMATION
BRAND
Cavatorta
PRODUCT TYPE
Fencing
REINFORCEMENT RIBS
Horizontal Wires
MESH
Electro Welded Panels
CAPS

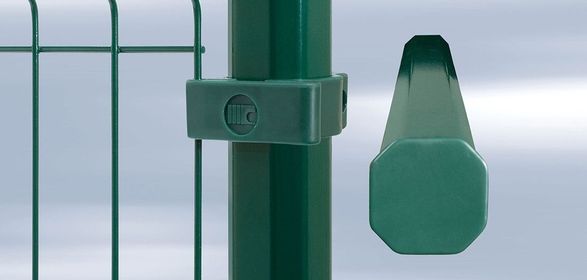

Posts are completed with black plastic finishing caps.
COLLECTION
Panoplax
PRODUCTION
Made in Italy
APPLICATIONS
Fence for residential areas and gardens
PANEL LENGTH
200 mm
COATING
Zinc and PVC
COATING
To complete the fence, installation kit (screws and collars) is provided. The posts are PVC coated galvanized steel, strengthened with a “T” pattern reinforcing rib.
PVC COATED
- Green
- Anthracite Grey
WIRES DIAMETER
4.00 mm
COLOR
Bright alps green
BUNDLES
Panoplax panels are supplied in 60 pcs. packs and posts in 6 pcs. bundles.
ACCESSORIES

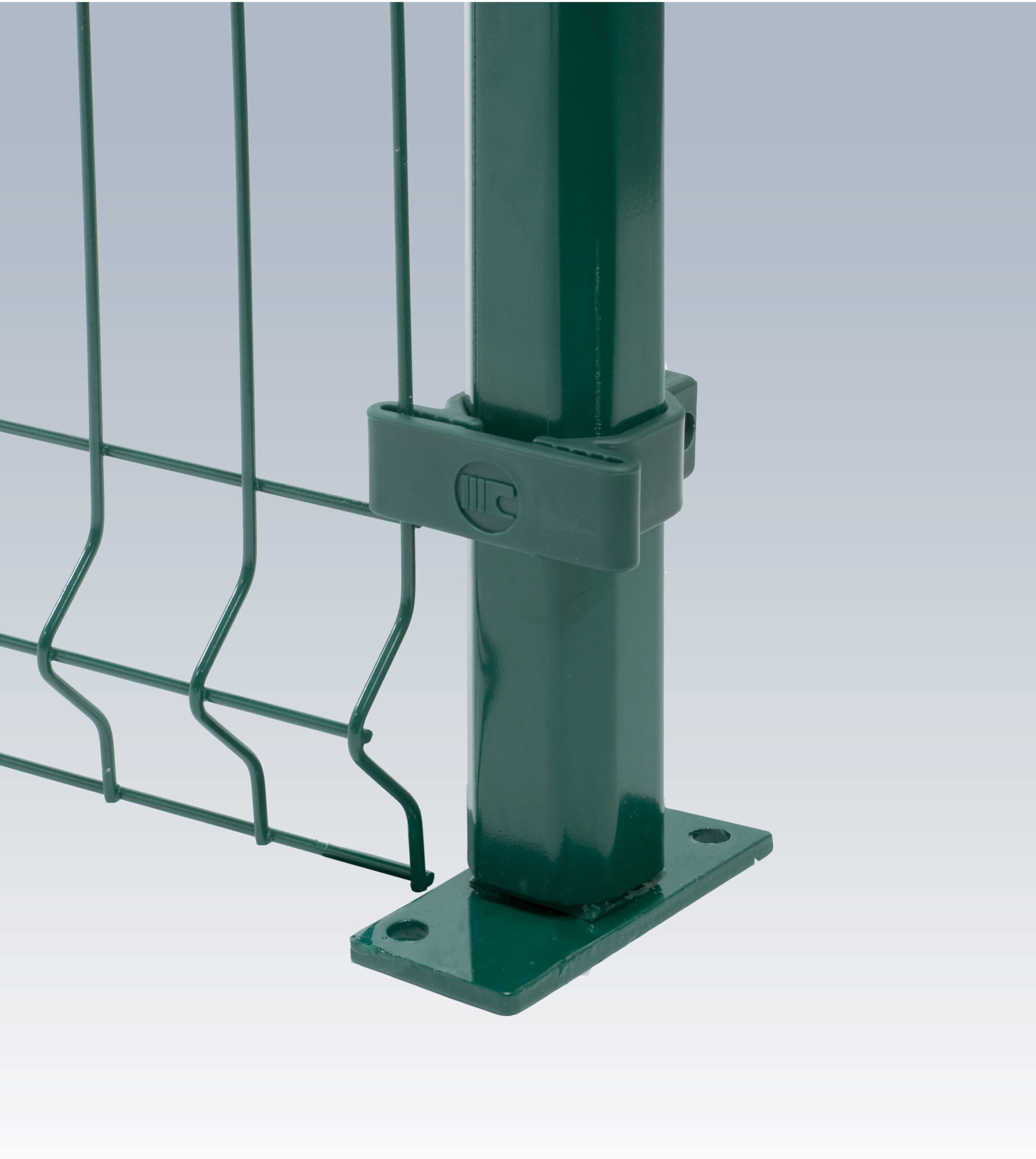

-Installation kit (include 10 x screws with plastic cap and 10 x plastic collars) -Steel posts plates to fix posts onto walls and pavements
HOOK SYSTEM

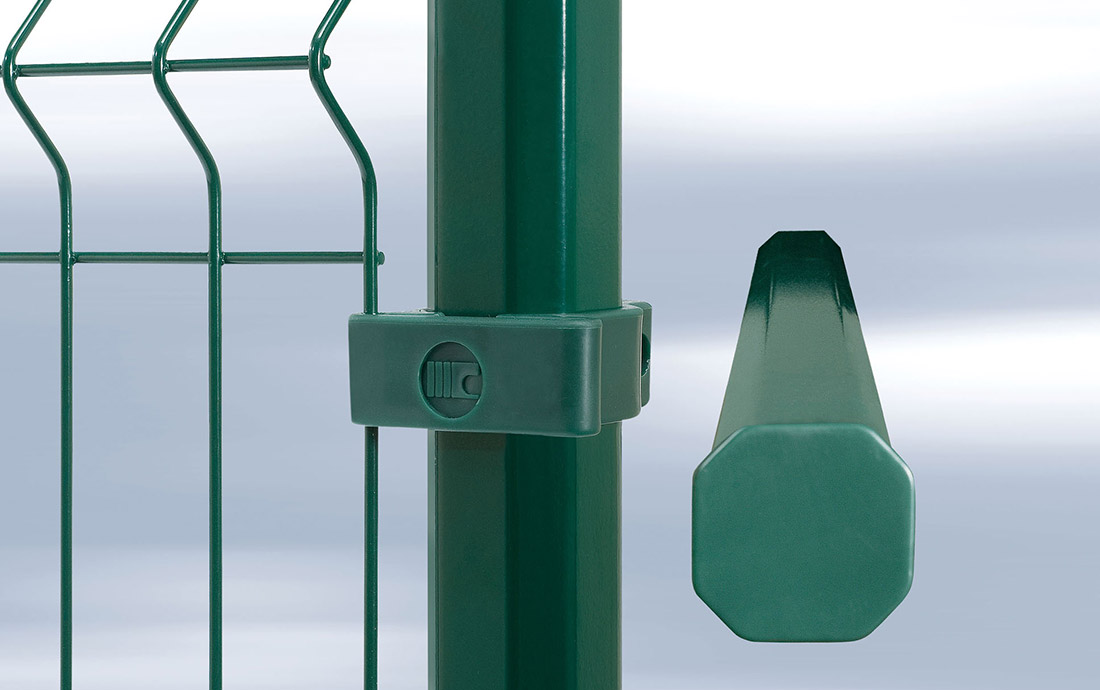

The posts are made with a hook system which along with securing collars make an easy and strong panel fixing.
DOWNLOAD
↓ Data Sheet
SHAPE
Rectangular
INSTALL

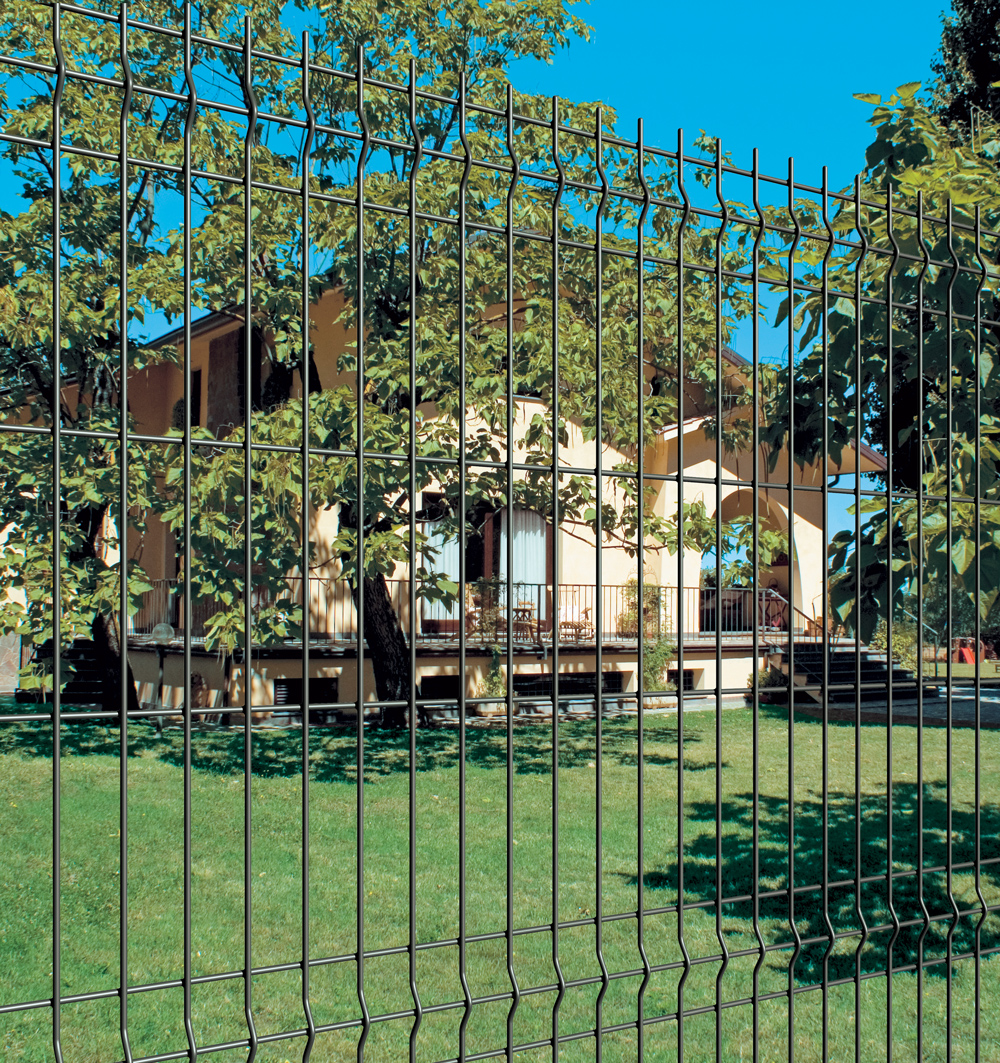

Panoplax is a highly competitive, strong, elegant long lasting fencing system which is easy to install and is recommended as a residential or light security fencing solution.
DETAIL
Modular electro welded panels in galvanized steel wire, pvc coated in green, anthracite grey and other colours upon request, with a rectangular-shaped mesh, horizontal reinforcement ribs and spikes at the top.
REINFORCEMENT RIBS
horizontal
ANTI-CLIMBING SPIKES
On Every Model
TECHNICAL DATA
PANELS
| HEIGHT CM | LENGTH CM | MESH SIZE MM | KG EACH | KG/M2 | HORIZONTAL BENDS N DEGREE | PACKAGE KG EACH | PVC WIRE MM | H BARBS MM |
|---|---|---|---|---|---|---|---|---|
| 63 | 200 | 200x50 | 3.8 | 3.00 | 2 | 252 | 4.0 | 26.0 |
| 103 | 200 | 200x50 | 5.6 | 2.70 | 2 | 396 | 4.0 | 26.0 |
| 123 | 200 | 200x50 | 6.4 | 2.60 | 2 | 468 | 4.0 | 26.0 |
| 153 | 200 | 200x50 | 7.8 | 2.50 | 3 | 576 | 4.0 | 26.0 |
| 173 | 200 | 200x50 | 8.9 | 2.60 | 3 | 648 | 4.0 | 26.0 |
| 203 | 200 | 200x50 | 11.2 | 2.70 | 4 | 756 | 4.0 | 26.0 |
POSTS
| HEIGHT CM | CROSS SECTION MM | THICKNESS MM | KG EACH | PCS/BUNDLE N DEGREE |
|---|---|---|---|---|
| 63 | 50 | 1.2 | 1.3 | 6 |
| 103 | 50 | 1.2 | 2.0 | 6 |
| 123 | 50 | 1.2 | 2.3 | 6 |
| 153 | 50 | 1.2 | 3.0 | 6 |
| 173 | 50 | 1.2 | 3.3 | 6 |
| 203 | 50 | 1.2 | 3.7 | 6 |
| 230 | 50 | 1.2 | 4.4 | 6 |
| 250 | 50 | 1.2 | 4.7 | 6 |
