MINIMAL SLIDING INSULATED SYSTEM SMARTIA M630 PHOS
MINIMAL SLIDING INSULATED SYSTEM SMARTIA M630 PHOS
The sliding system SMARTIA M630 PHOS offers a minimal touch in contemporary residences combining minimal design with high thermal performance.
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Thermal Insulation
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
Concealed profiles
WINDOW TYPE
Sliding
THERMAL INSULATION
Yes
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
44 mm
WIND LOAD RESISTANCE
C5
PRODUCTION
Made in Greece
EASE ACCESS
Ease of access ideal for children, the elders and people with special needs
PERFORMANCE
High energy saving thanks to the exceptional thermal performance
EXTERIOR SHAPE
Flat
MAXIMUM GLAZING THICKNESS
Up to 32 mm
DOWNLOADS
↓ Preq Ifs
↓ Smartia Brochure
↓ Technical Brochure
↓ Smartia M630 Phos Leaflet 1
↓ Smartia M630 Phos Leaflet 2
↓ Pre-qualification Smartia
↓ Pre-qualification Smartia M630
ADVANTAGES
- Wide variety of typologies
- Exceptional sound insulation
- Maximum ease of use and high functionality
- Exceptional quality with certified performance
- Elegant coziness full of natural light thanks to the system's minimal design and the wide glazing surfaces
GLAZING TYPE
Double - Triple
DEPTH
Basic system depth 63 mm.
SASH WEIGHT
Up to 250 Kg
UF
1.43 W/m2K
SURFACE TREATMENTS
- Wood sublimation
- Anodizing colors, all powder coating
DETAIL
- High thermal insulation with U,, = 1,43 W/m2K for a double sash typology 3,0 x 2,2 m and U,= 1,0 W/m2K.
- Maximum natural light with only 44 mm of visible aluminium face width at the interlocking profile
- Smooth sliding and maximum functionality, with high resistance to corrosion using stainless steel rollers.
SEALING METHOD
Perimetrical with tri-fin brushes
TYPE OF THERMAL INSULATION
Polyamides, Thermoplastic
TYPES OF TYPOLOGY
- Meeting stile
- Horizontal sliding sashes
- Combinations with fixed ligths
WATER TIGHTNESS
Class 7A
AIR PERMEABILITY
Class 4
SAFETY
All aluminium profiles can be hidden into the wall providing a total sense of comfort with top functionality and enhanced safety.
SECTIONS & TYPOLOGIES

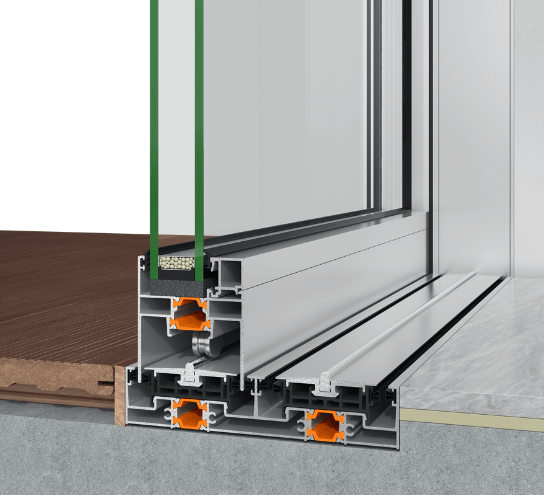

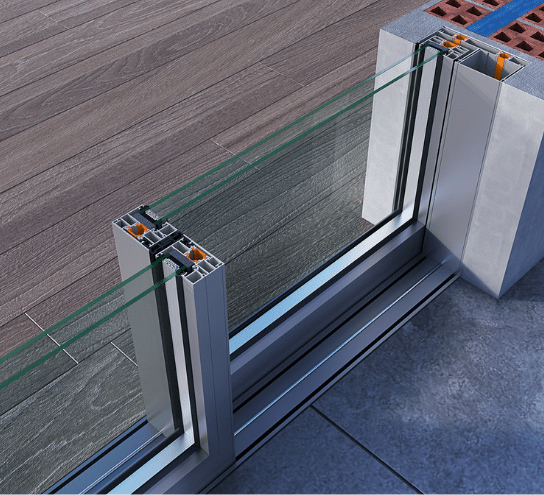

SECTONS

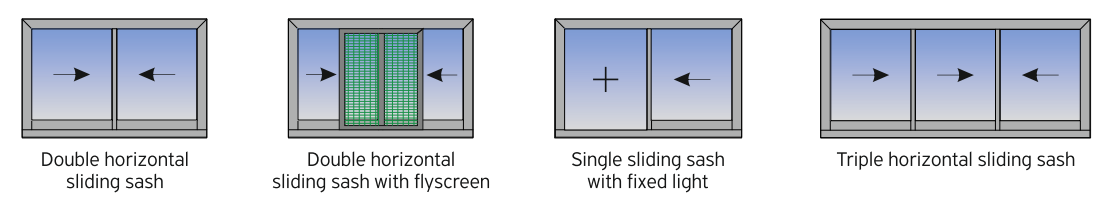

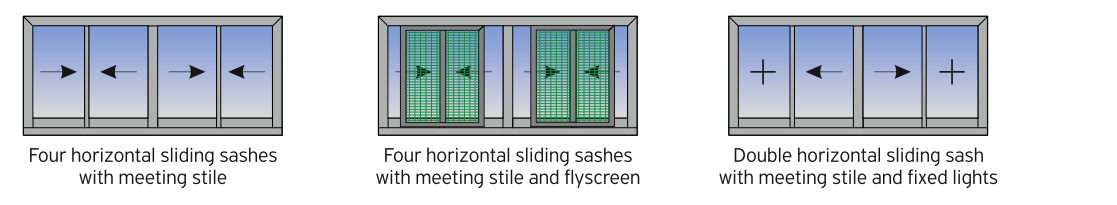

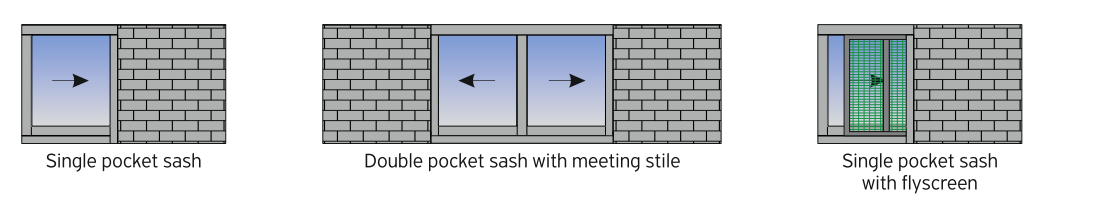

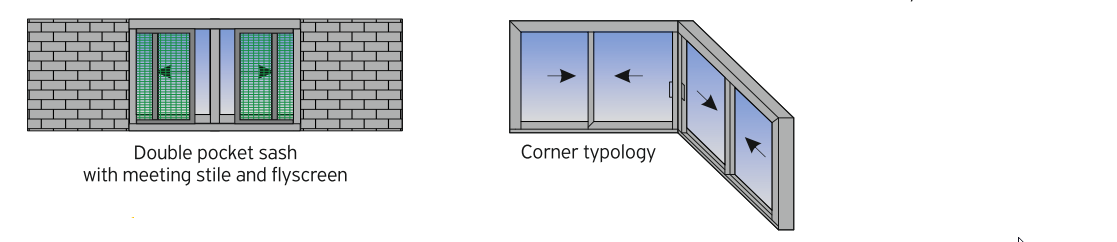

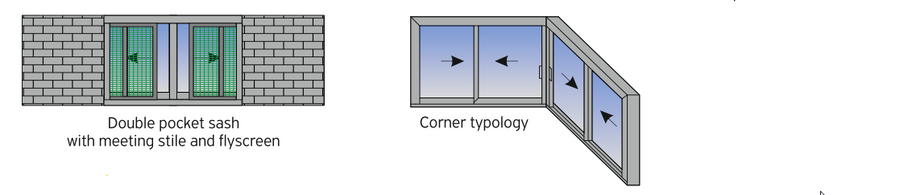

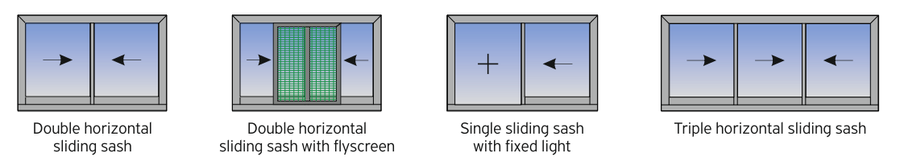

TYPOLOGIES
