Nupi Eloweb Pipe & Fitting System
ELOWEB PIPE & FITTING SYSTEM
ELOWEB PIPE & FITTING SYSTEM
Pipe and Fitting System for Radiant Floor Heating and Cooling
Eloweb is the complete system proposed by nupi industrie italiane s.P.A. For efficient and alternative panel heating and cooling installations.
The validity of radiant systems for heating and cooling of civil or industrial environments is well known, appreciated and recommended not only by experts in heating and energy saving, but also by building designers and interior decorators that enhance its simplicity, functionality and aesthetics.
INFORMATION
BRAND
Nupi
PRODUCT TYPE
Pipe & Fitting System
PIPES

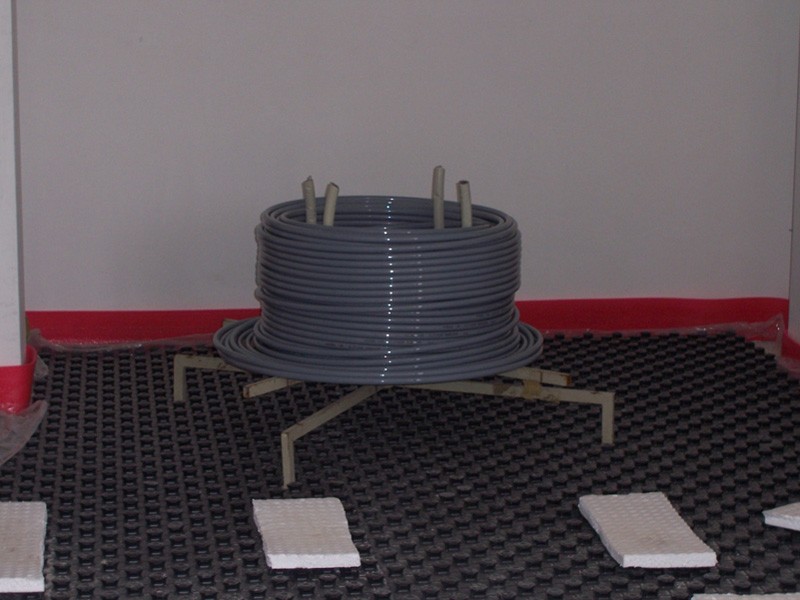

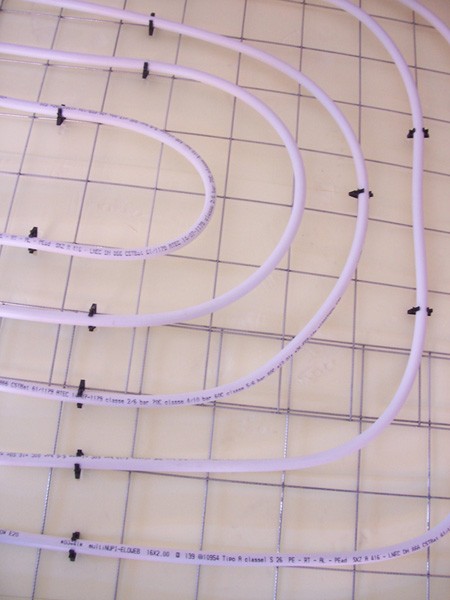

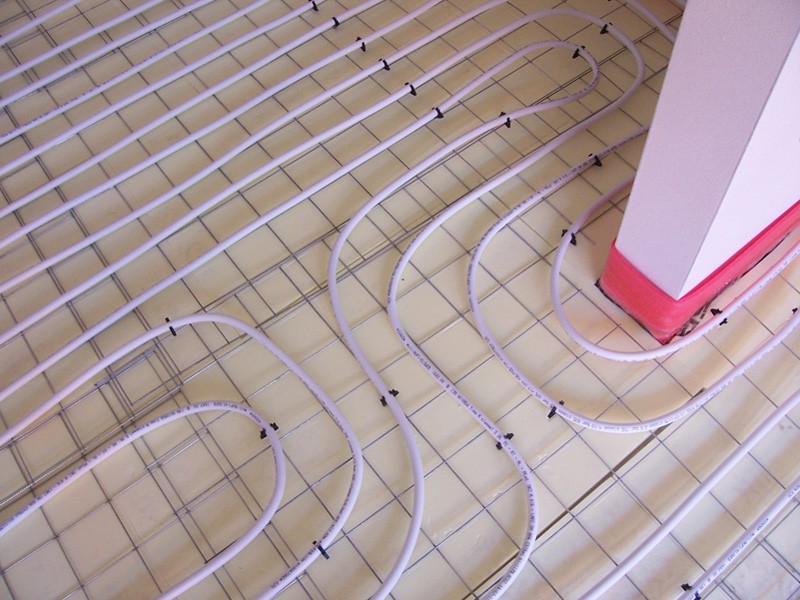

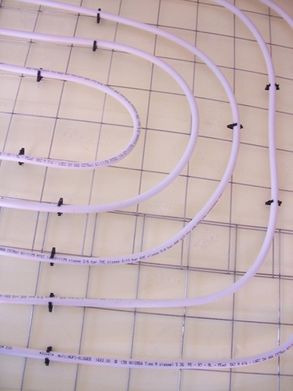

The pipes, by following a serpentine or winding course, release heat by conduction to the screeds and the floor covering that then RADIATE heat throughout the room, eliminating the convective movements of air that leads to the circulation of dust and pollen.
COLLECTION
Eloweb
PRODUCTION
Made in Italy
MECHANICAL CHARACTERISTICS - PIPE SYSTEM
- Tensile resistance : >22 N/mm2
- Elongation at break : >550 %
- Modulus of elasticity at 20ºC : >800 N/mm2
- Internal pressure resistance s=4.8 Mpa, 95ºC : >1 Hours
- Internal pressure resistance s=4.7 Mpa, 95ºC : >22 Hours
- Internal pressure resistance s=4.6 Mpa, 95ºC : >165 Hours
- Internal pressure resistance s=4.4 Mpa, 95ºC : >1000 Hours
- Internal pressure resistance s=2.5 Mpa, 110ºC : >1 Year
PHYSICAL CHARACTERISTICS - PIPE SYSTEM
- Density : 951 Kg/m3
- Roughness : 0.007 mm
- Crosslinking degree : >75 %
STANDARD DIAMETER
17.00 – 17.30 mm
STANDARD THICKNESS
2.00 -2.30 mm
DESIGN AND INSTALLATION
The design and installation of these plants need, as well as qualified assistance, also a range of products able to provide adequate solutions to the achievement of technical and regulatory standards. Uni en 1264 is the italian national standard that defines and regulates the design and installation of floor heating systems
TECHNICAL SOLUTIONS
In order to offer maximum installation flexibility and a wide range of technical solutions, eloweb system is mainly composed of :
- Settings (fixed point, climatic control, etc.)

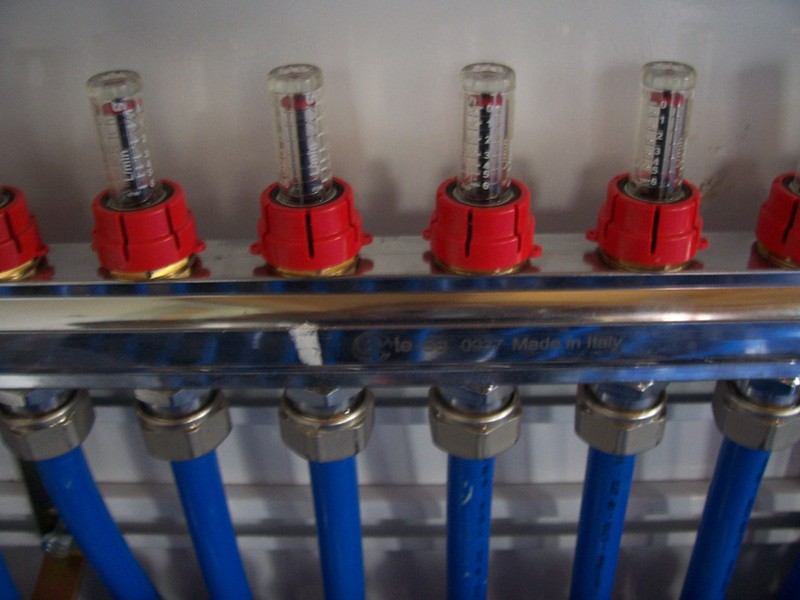

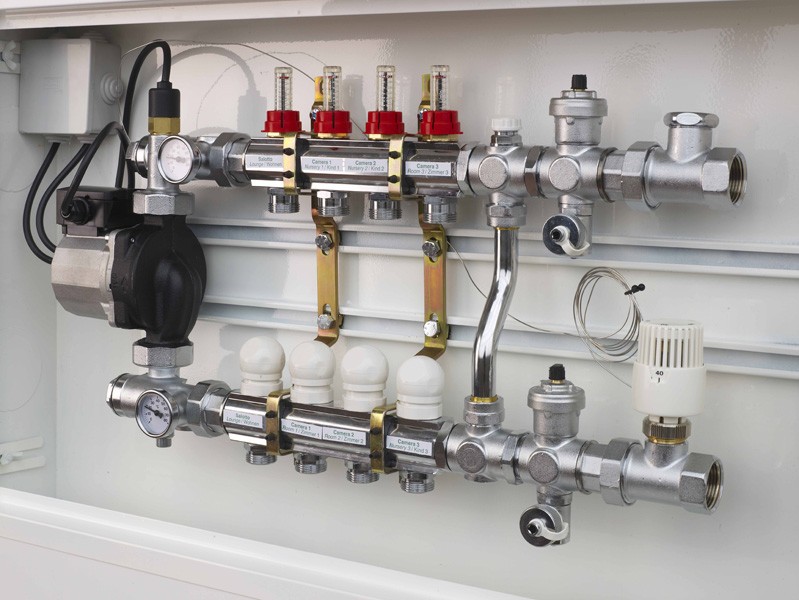

- Distribution manifolds and their metal boxes

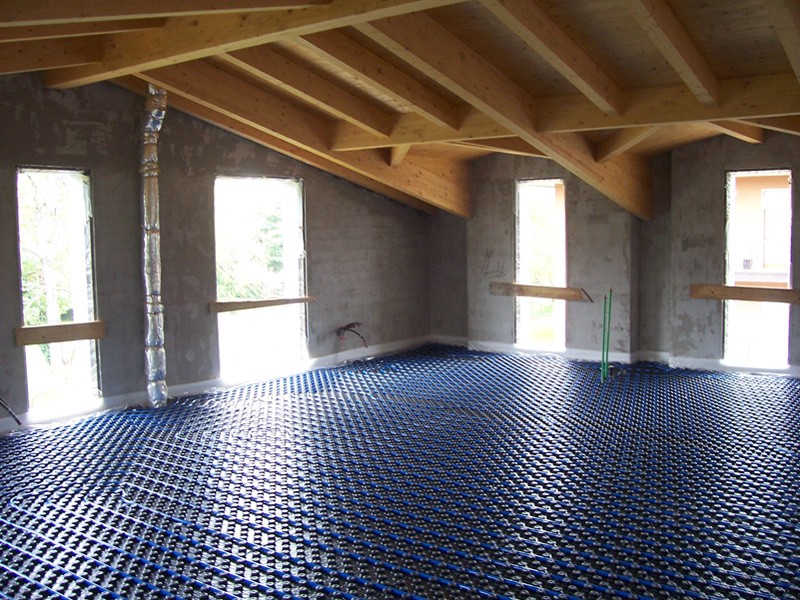

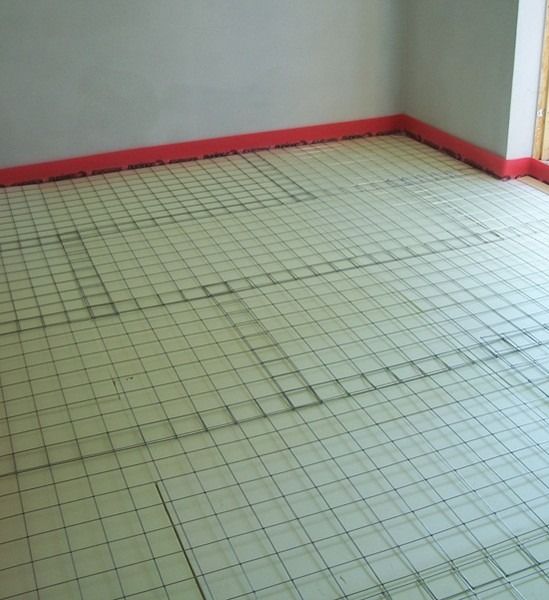

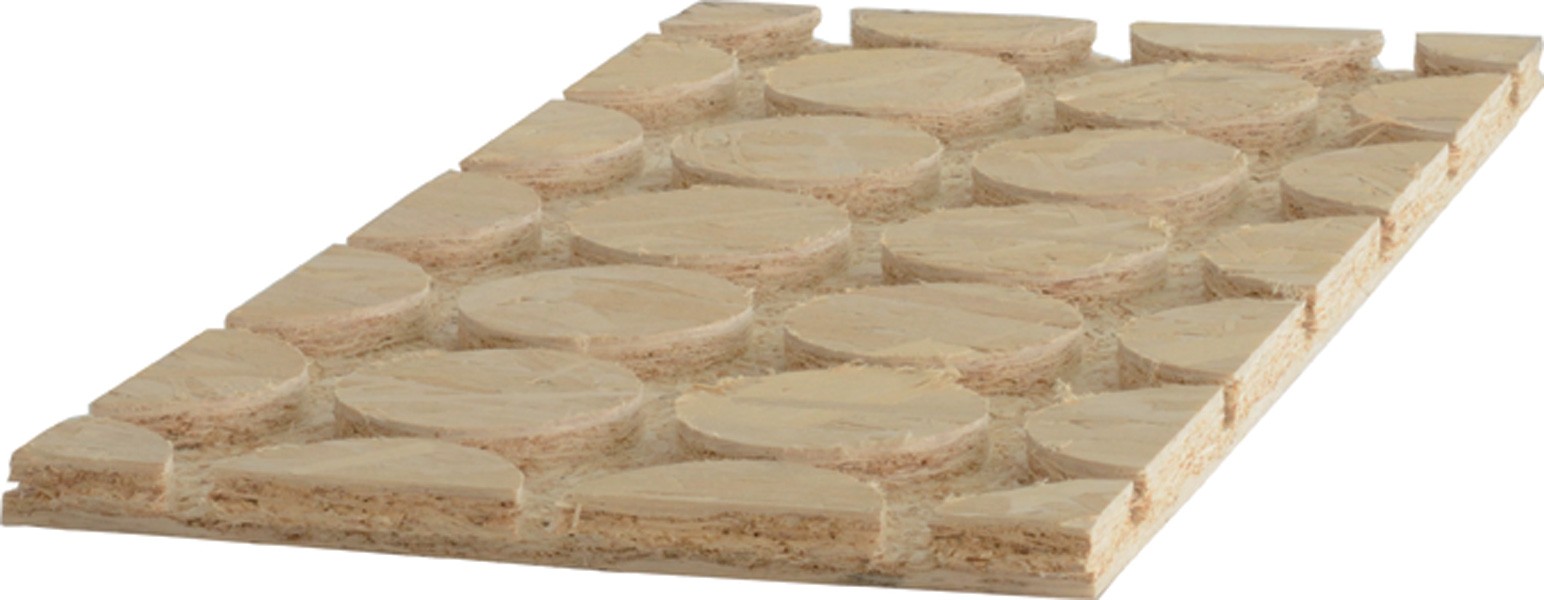

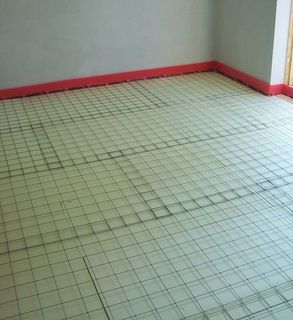

- Insulation panels of different thickness (ashlar, flatbed, dry, etc.)

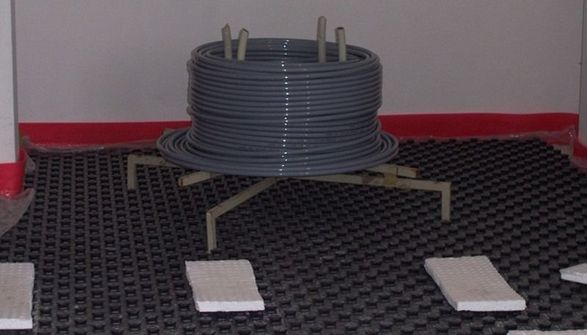

- Thermoplastic or metal / plastic piping (PEX-A, PE-RT, PB and multilayer)
- Fixing clips and accessories to complete the range (perimeter strip, anti-condensation sheet, etc.)
SERVICES
The eloweb system also offers the following services :
- Turnkey contracts
- Customized estimate
- Drawing of installation project
- Pre- and post-sales assistance
OVALITY
<0.9 mm
SAMPLING
300 m
PIPE
17 x 2.0 mm
THERMAL CHARACTERISTICS - PIPE SYSTEM
- Specific heat at 23ºC : 2.3 KJ/kg·K
- VICAT temperature : 130 - 132 ºC
- Maximum high temperature : 110 ºC
- Maximum service temperature : 95 ºC
- Heat reversion 120ºC heat; 1 hour : <2.5 %
- Thermal conductivity : 0.35 – 0.38 W/ m·K
- Permeability O2 at 40ºC : <0.01g/m3d g/m3d
- Lineal extension coefficient : 0.026 mm/mºK
ADVANTAGES
Construction costs are comparable to those for a traditional high-temperature system, but with the following advantages :
- Energy savings
- Improved air quality
- Uniform distribution of heat
- Improved hygiene and cleanliness
- Differentiated regulation room by room
- Air conditioning both for heating and cooling
- More aesthetically appealing and compatible with any furnishing choice
