QUICK SYSTEM - Mobile Tower
QUICK SYSTEM
Flexible, Stable And Easy-to-assemble Aluminum Mobile Tower
The quick system (qs) system of mobile towers on wheels is the most performing and the excellent solutions for simplifying operations at the job site, working safely andsaving time and money.
QS has not been designed only as a mobile tower, but also as a mobile scaffolding system which, with only a few elements, allows creating complex structures and special configurations, perfectly fitting every customer’s needs.
Versatile and safe, it is manufactured using high quality aluminium alloys tested and certified to guarantee high structural and lasting performance. QS towers are lightweight equipment, extremely quick and intuitive to assemble even by one person, thanks to the QUICK SYSTEM connection hook.
INFORMATION
BRAND
Pilosio
PRODCUT TYPE
Aluminum Mobile Tower
FLEXIBILITY
Stringers at 25 cm or 50 cm steps allows flexibility in the positioning of work platforms
CERTIFIED
Fixed, swivel or adjustable wheels certified according to the European standard EN 1004
COLLECTION
Quick
STRUCTURAL
Structural aluminum alloy
TUBES
Standards, transoms, ledgers, diagonals and guardrails made of structural `aluminum tubes with a diameter of 48 mm
OPTIMIZING TURNAROUND TIMES
The QS (Quick System) mobile tower system efficiently meets the need to simplify operations on site in total safety while optimizing turnaround times and labor costs.
PRODUCTION
Made in Italy
FLEXIBLE PIN
012 mm galvanized flexible pin
ADVANTAGES
- Stable and extremely safe mobile tower system
- Quick and easy assembly thanks to special hooking system
- The system can be assembled in a wide range of special configurations
- Flexibility for the positioning of working platforms every 25 cm or 50 cm
CAPACITY
200 kg/m2
STRUCTURE
Extremely light structure
ASSEMBLY
Telescopic guardrail for assembly to ensure maximum safety during set up without the use of restraining PPE
OPTIONS
Stairway Options
WORK SURFACES
comfortable stairs to access the work surfaces
CONFIGURATIONS
Three ladder widths 80 cm, 110 cm, 140 cm and three lengths 180 cm, 240 cm, 300 cm to create a variety of configurations and special structures
CHARACTERISTICS

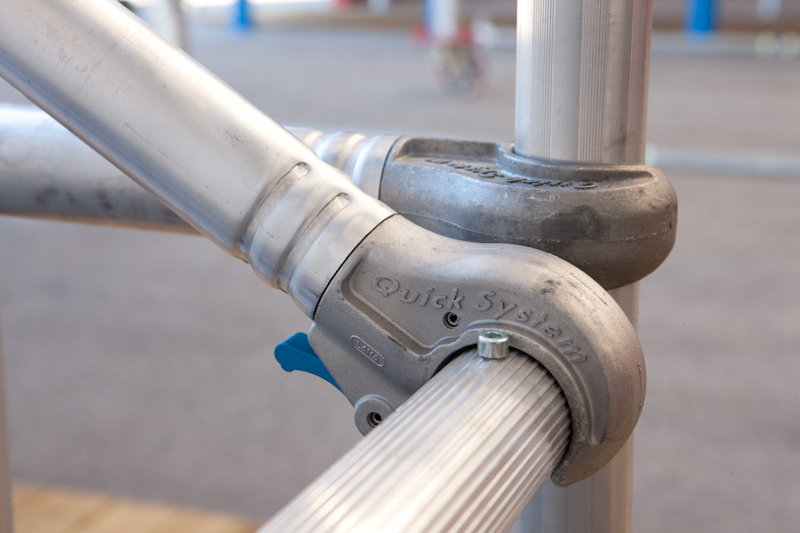

- The QS tower is a lightweight system making it extremely fast and intuitive for even a person on their own to assemble, thanks to the QUICK SYSTEM connection hooks made to an exclusive Pilosio design.
- All this makes QS the perfect scaffolding system for general industrial maintenance, painting and plant engineering, whether indoors or outdoors.
DOWNLOAD
↓ Product Catalogue
MARKETED
The QS system is marketed under the Lama brand.

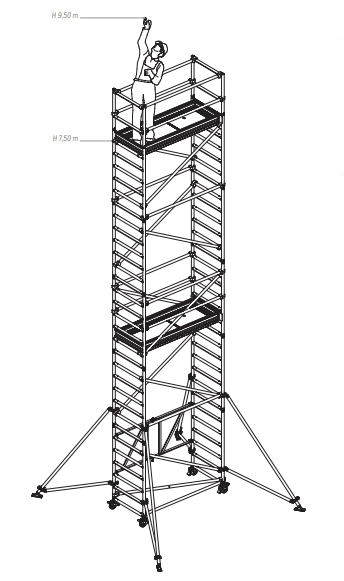

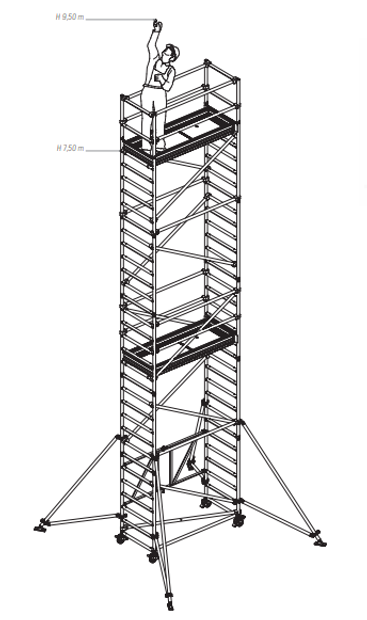

TECHNICAL DRAWINGS
HARACTERISTICS OF QUICK SYSTEM TOWERS
HARACTERISTICS OF QUICK SYSTEM TOWERS WITH MINIMUM AND MAXIMUM HEIGHT
| TORRI QUICK QUICK SYSTEM TOWERS SYSTEM | BASE DIMENSIONS M | LAST WORK SURFACE HEIGHT MIN. M | LAST WORK SURFACE HEIGHT MAX. | WEIGHT H MIN KG | WEIGHT H MAX KG | LOAD CAPACITY KG/ M2 |
|---|---|---|---|---|---|---|
| QS COMPACT APRIBILE | 0,80x1,80 | 0,75 | 7,60 | 55 | 227 | 150 |
| 80x180 | 0,80x1,80 | 2.15 | 8,15 | 91 | 222 | 200 |
| 80x240 | 0,80x2,40 | 2.15 | 11,15 | 101 | 358 | 200 |
| 80x300 | 0,80x3,00 | 2.15 | 11,15 | 110 | 388 | 200 |
| 110x180 | 1,10x1,80 | 2.15 | 12,15 | 103 | 374 | 200 |
| 110x240 | 1,10x2,40 | 2.15 | 12,15 | 116 | 415 | 200 |
| 110x30 | 1,10x3,00 | 2.15 | 12,15 | 128 | 453 | 200 |
| 140x180 | 1,40x1,80 | 2.15 | 12,15 | 115 | 416 | 200 |
| 140x180 scala a rampa | 1,40x1,80 | 2.40 | 11,40 | 147 | 519 | 200 |
| 140x240 | 1,40x2,40 | 2.15 | 12,15 | 130 | 462 | 200 |
| 140x240 scala a rampa | 1,40x2,40 | 2.40 | 11,40 | 168 | 601 | 200 |
| 140x300 | 1,40x3,00 | 2,15 | 12,15 | 144 | 507 | 200 |
| 180x180 apribile | 1,80x1,80 | 1.15 | 8,15 | 104 | 439 | 200 |
| 240x240 | 2,40x2,40 | 2.15 | 8,15 | 196 | 408 | 200 |
| 240x240 scala a rampa | 2,40x2,40 | 2.40 | 8,40 | 230 | 555 | 200 |

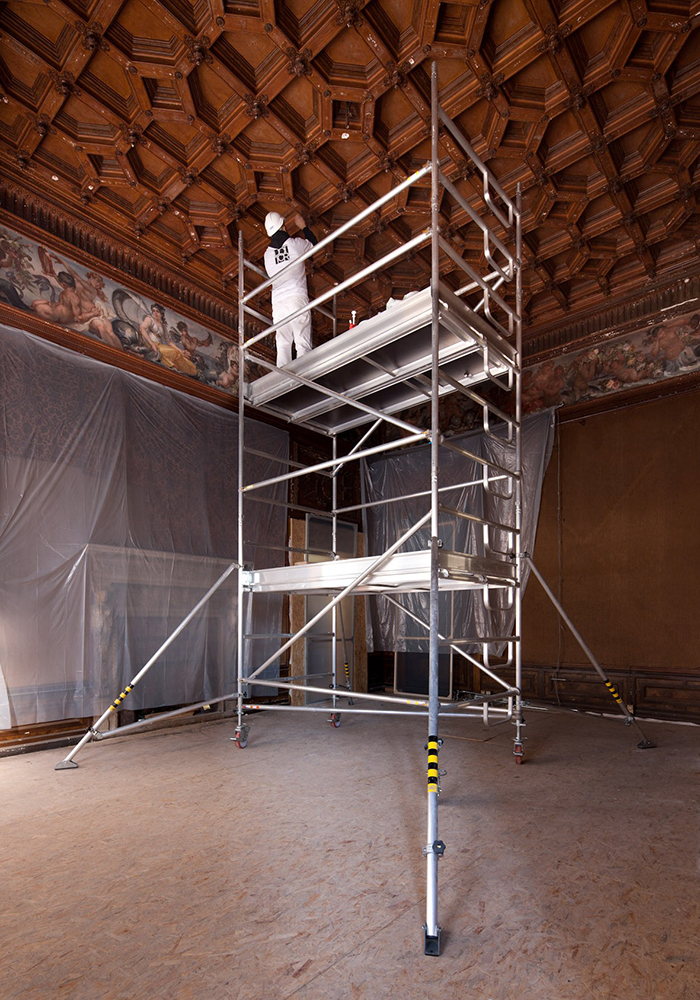

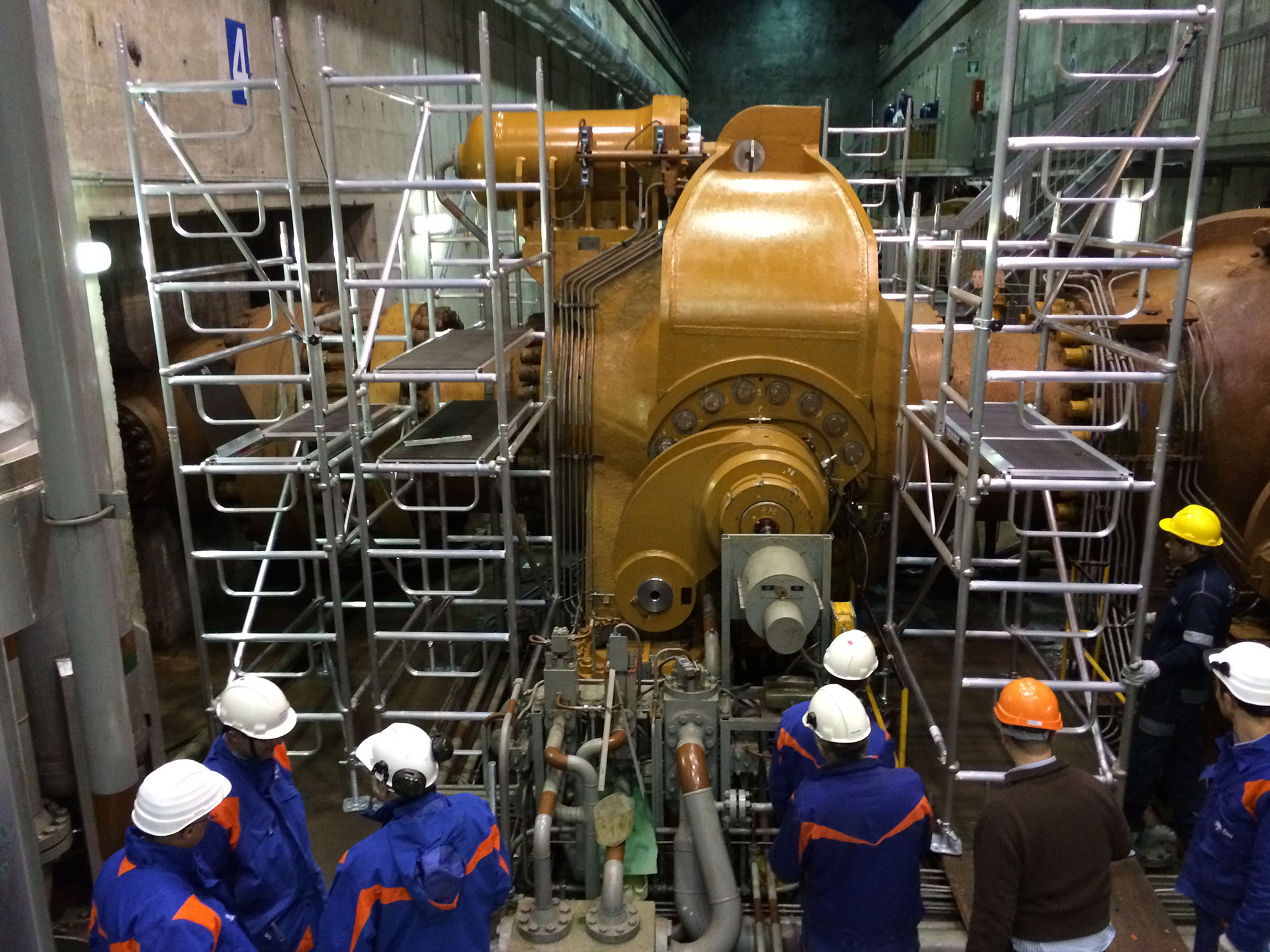

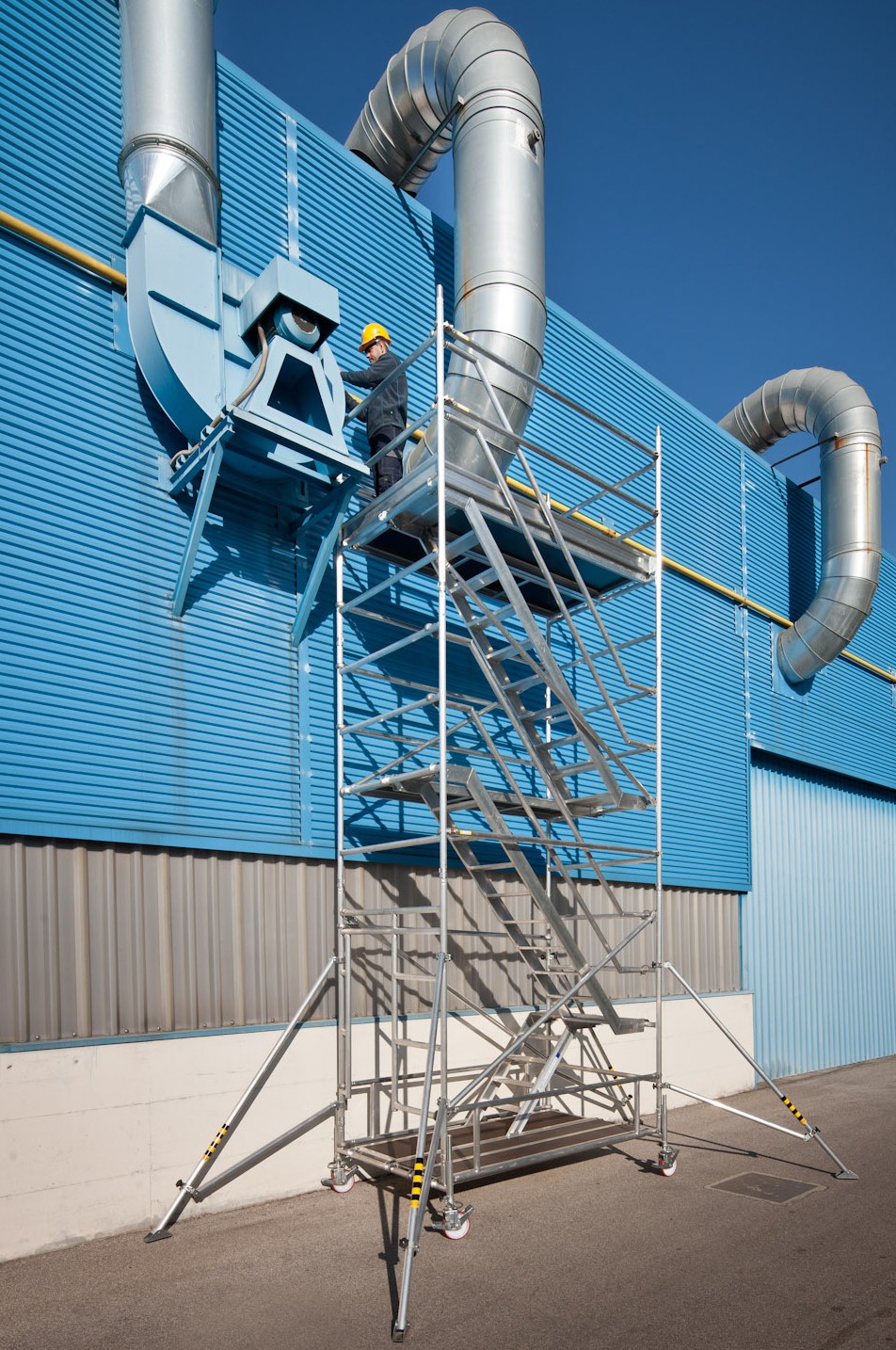

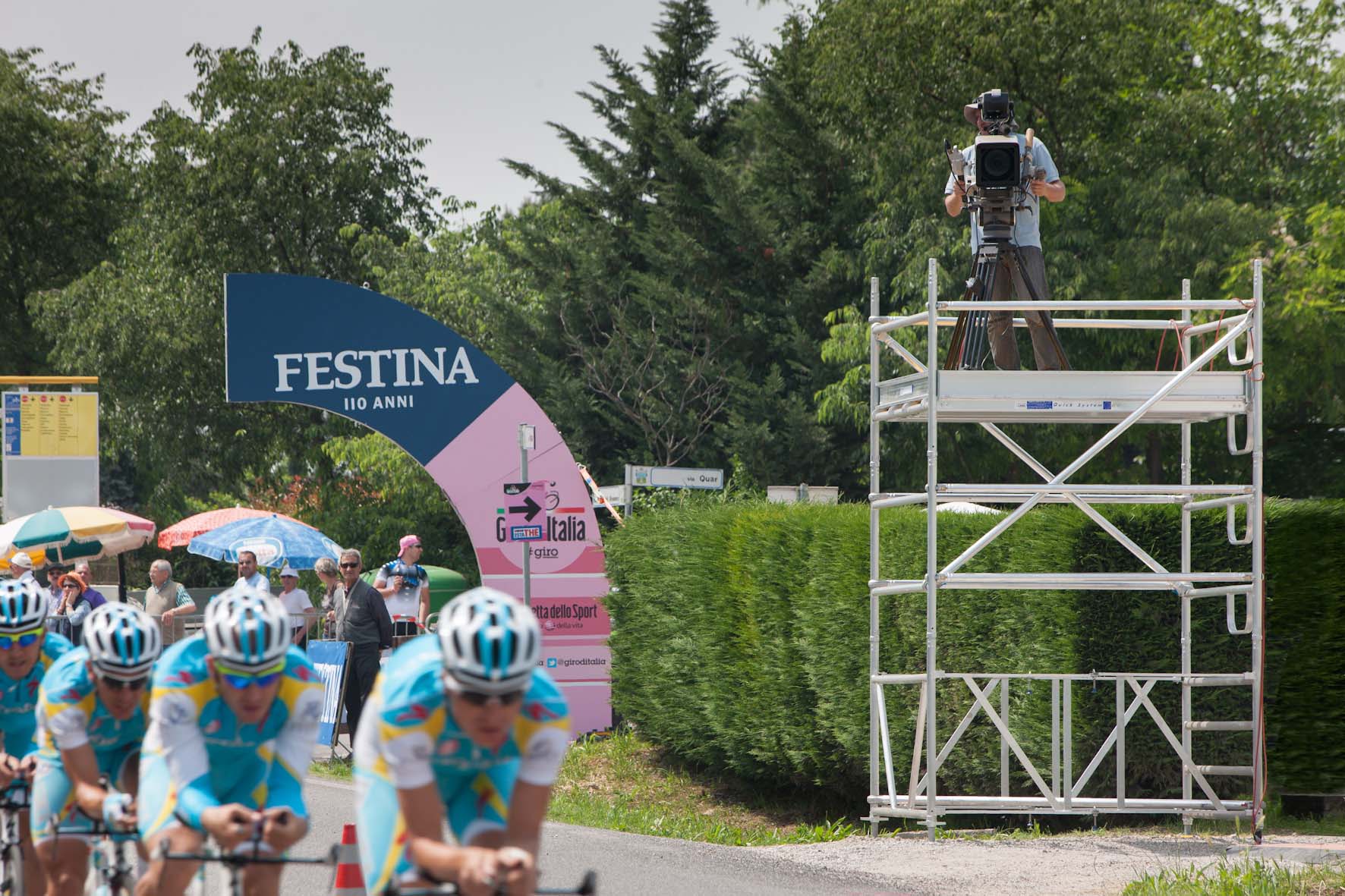

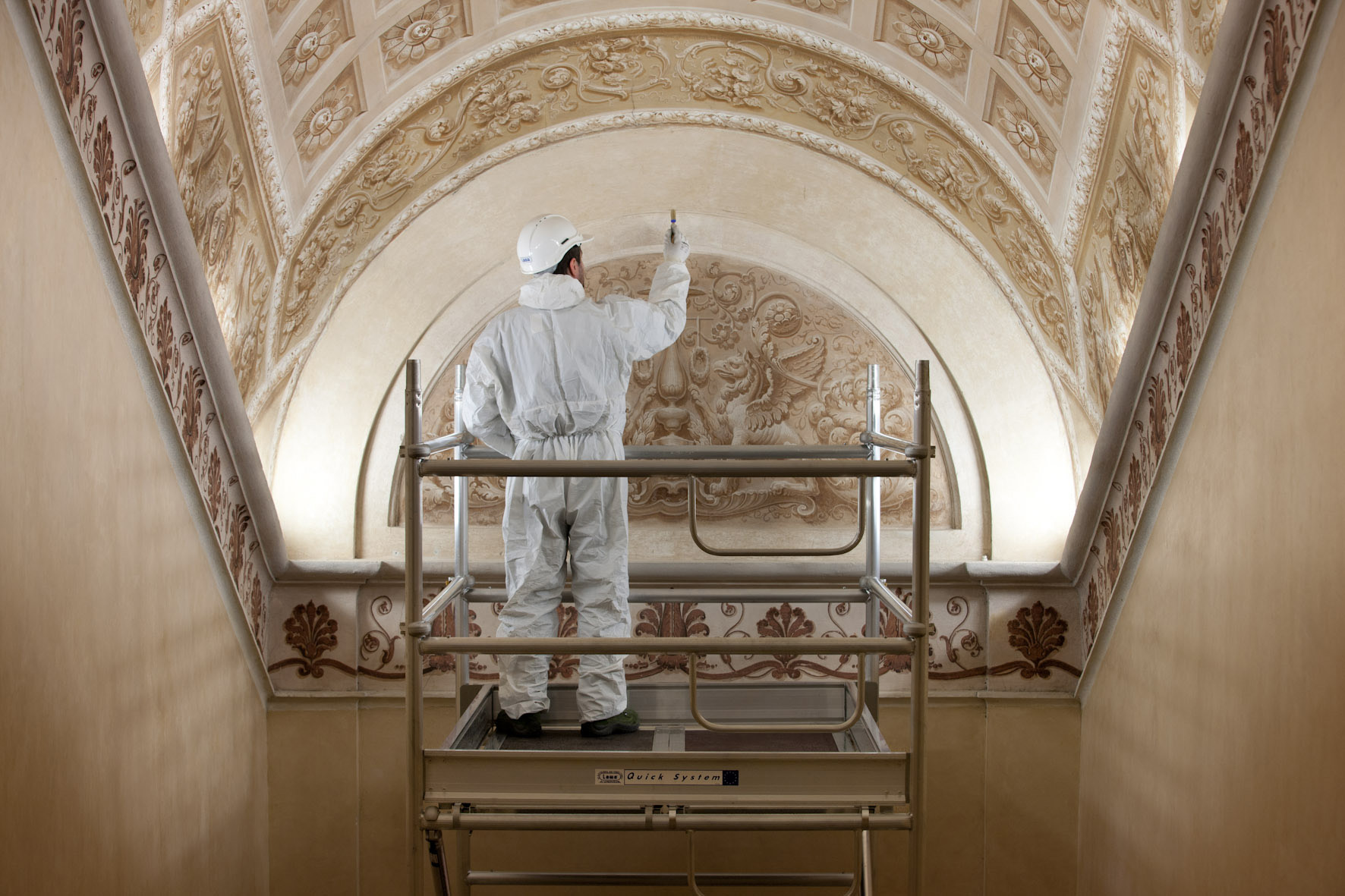

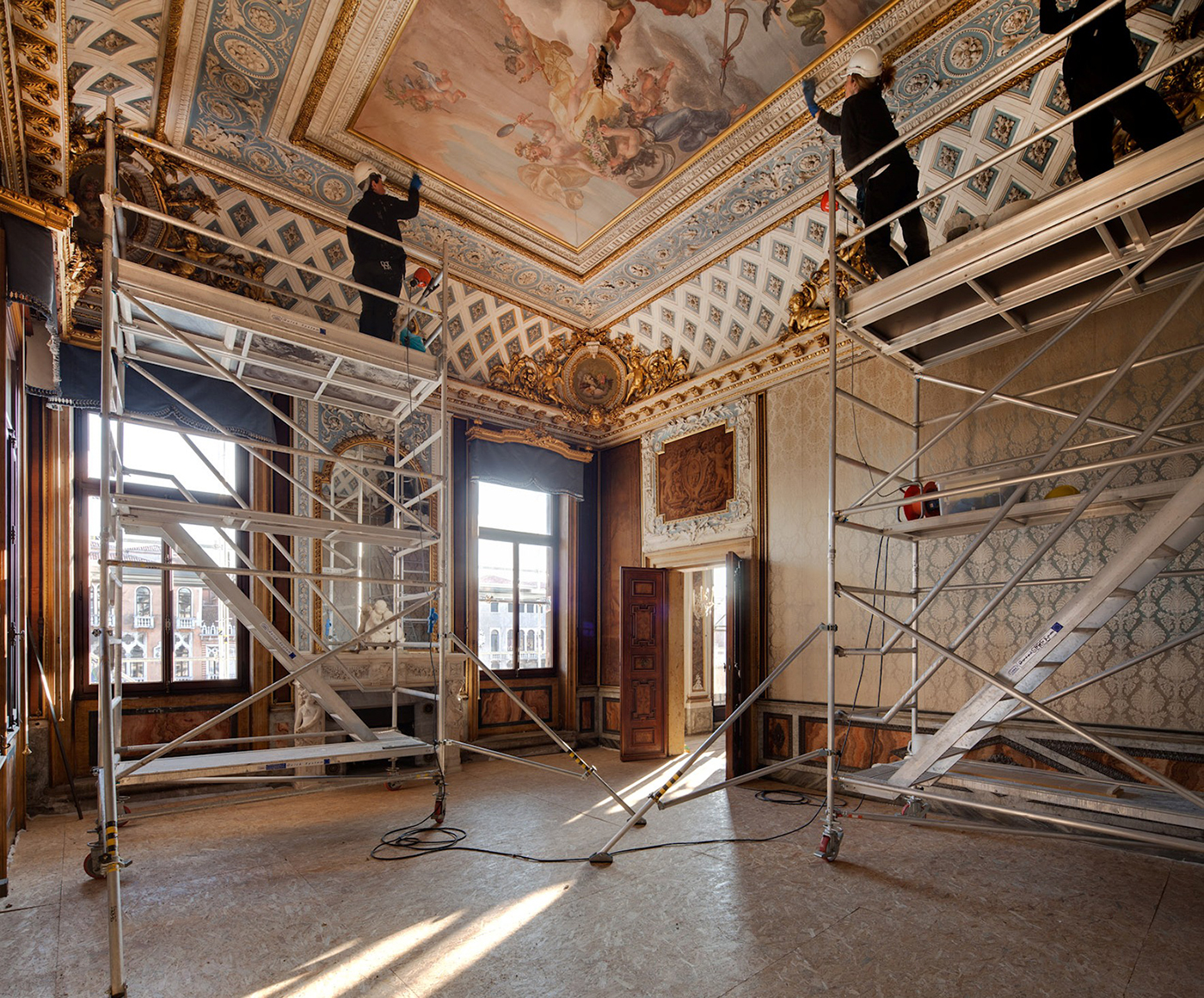

APPLICATIONS
