Salice Progressa Smove Kitchen Drawer
PROGRESSA SMOVE KITCHEN DRAWER
PROGRESSA SMOVE KITCHEN DRAWER
Full-extension
High-performance, under-mount drawer runners that redefine precision and durability
INFORMATION
BRAND
Salice
PRODUCT TYPE
Kitchen Drawer
MECHANISM
Full extension with a synchronized mechanism
DIMENSIONS
- Height : + 2.5 mm
- Depth : +/- 3 mm
CLIPS
Steel
PRODUCTION
Made in Itay
FINISH
Bright Zinc-plated
OPTIONAL TOOL FREE TILT ADJUSTMENT
+3 mm
FEATURES
- Enhanced smooth soft closing action
- Compatible with Lineabox Easy drawers
DRAWER
Adjustable clips allow for easy drawer insertion and removal
HOLES
Elongated holes for depth and height adjustment
FIXING CLIP OPTIONS
A full range of fixing clip options, ranging from stamped steel 6-way adjustable clips with intuitive side, depth and height adjustments to 2-way adjustable locking devices for more competitive markets.
Progressa slides are available in Soft Close version for an enhanced smooth closing action.
DYNAMIC LOAD CAPACITY
45 Kg
TOOL FREE SIDE ADJUSTMENTS
+/- 1.5 mm
EDGES

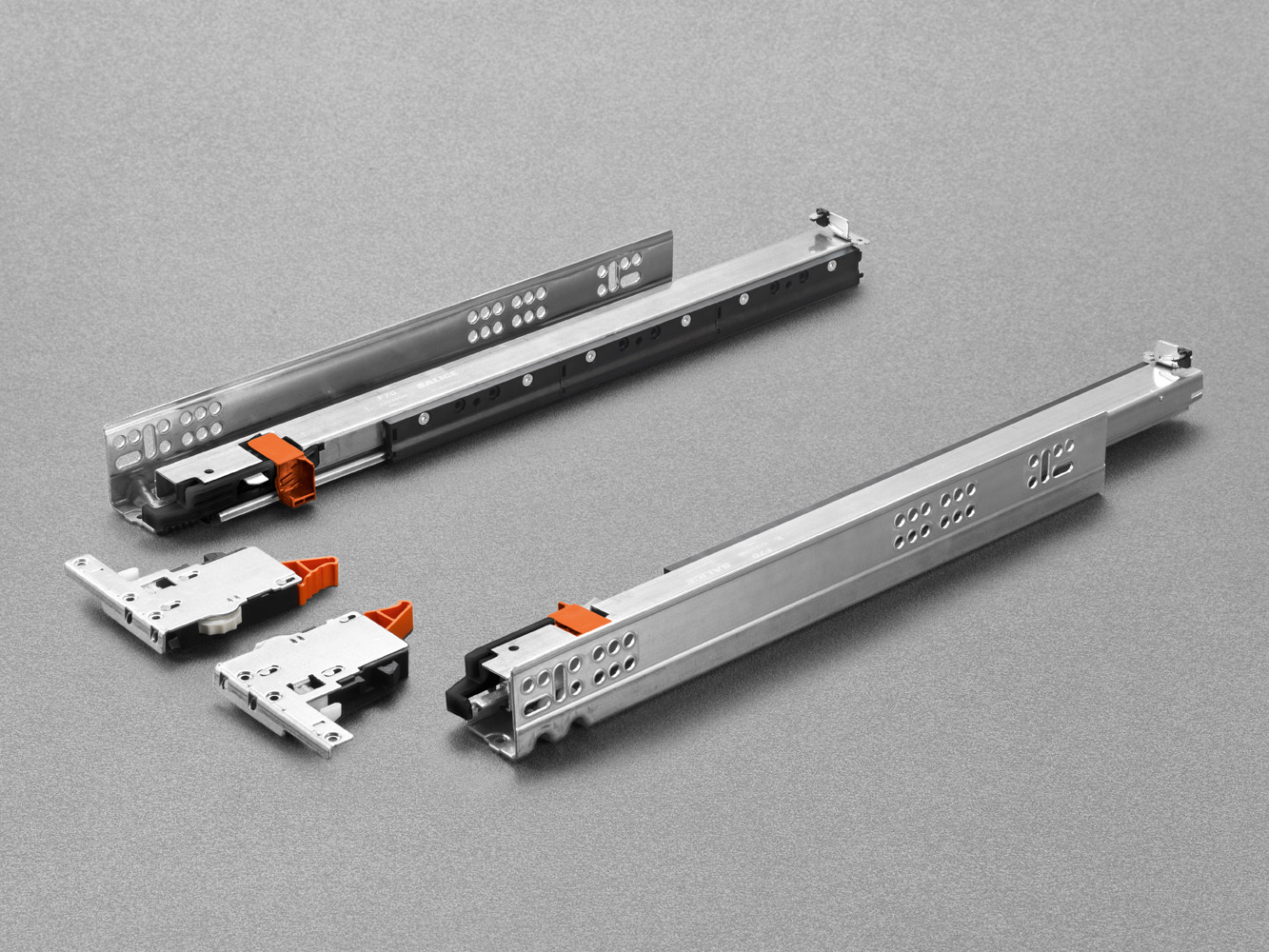

A cutting-edge generation of high-performance, full extension undermount slides
Crafted using state-of-the-art technology, Progressa slides feature our “S-Drive” progressive module, ensuring an unparalleled level of functionality. The rack and pinion guarantees impeccable synchronization, silent movement and optimal stability for a seamless user experience.
COMPONENTS

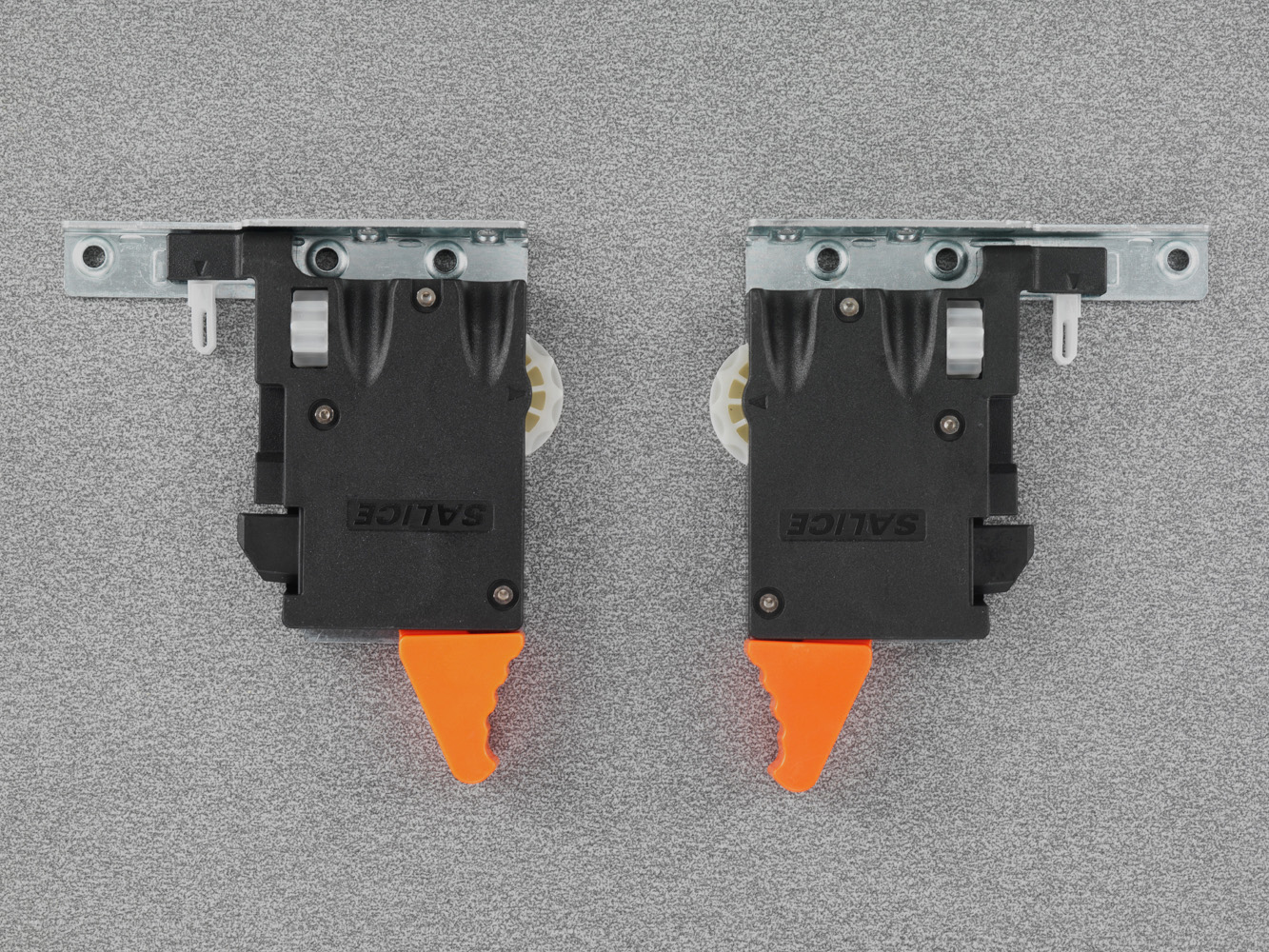

AFCGXX3B
Right and left clip with integrated adjustments
- Dual steel/fiber glass-nylon construction
- Compatible with all Progressa runners
- Tool free lateral and depth adjustments
- Pre-drilling recommended ø 2.5 mm
- For all Progressa, Progressa+ and Progressa+ Shelf runners

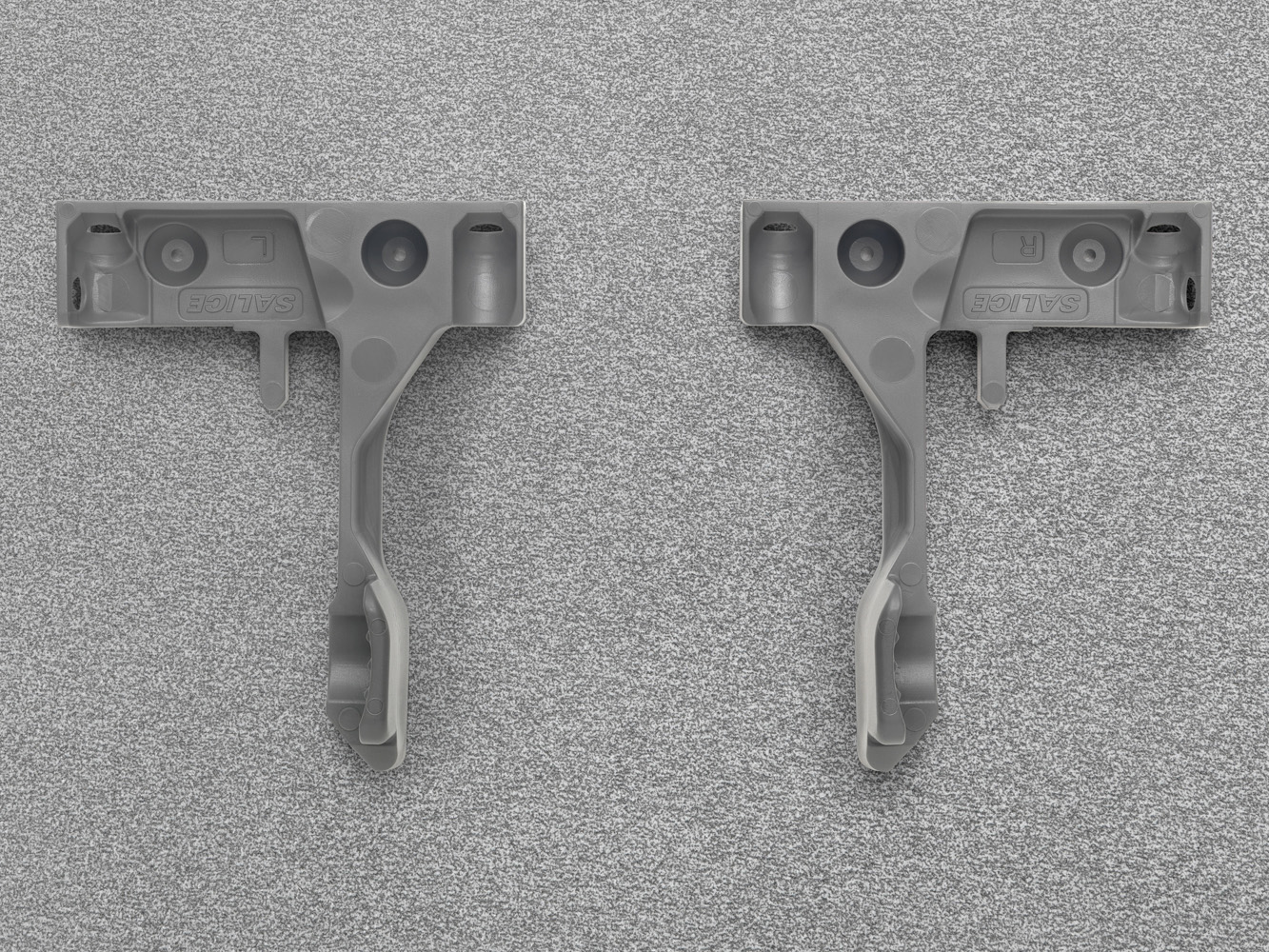

AFCEX56B
Front and side fixing
- Side fixing option
- Engineered thermoplastics
- Pre-drilling recommended ø 2.5 mm
- Minimum inside drawer width 130 mm
- Minimum inside cabinet width 172 mm
- Compatible with all Progressa runners
- For all Progressa, Progressa+ and Progressa+ Shelf runners
VERSIONS
VERSION - G5E6S250XXF6
Full extension runner for 13 mm to 16 mm drawer material thickness
- Runner length (LN) : 250 mm
- Min. depth of the cabinet (PM) : 267 mm
VERSION - G5E6S300XXF6
Full extension runner for 13 mm to 16 mm drawer material thickness
- Runner length (LN) : 300 mm
- Min. depth of the cabinet (PM) : 310 mm
VERSION - G5E6S350XXF6
Full extension runner for 13 mm to 16 mm drawer material thickness
- Runner length (LN) : 350 mm
- Min. depth of the cabinet (PM) : 360 mm
VERSION - G5E6S400XXF6
Full extension runner for 13 mm to 16 mm drawer material thickness
- Runner length (LN) : 400 mm
- Min. depth of the cabinet (PM) : 410 mm
VERSION - G5E6S450XXF6
Full extension runner for 13 mm to 16 mm drawer material thickness
- Runner length (LN) : 450 mm
- Min. depth of the cabinet (PM) : 460 mm
VERSION - G5E6S500XXF6
Full extension runner for 13 mm to 16 mm drawer material thickness
- Runner length (LN) : 500 mm
- Min. depth of the cabinet (PM) : 510 mm
VERSION - G5E6S550XXF6
Full extension runner for 13 mm to 16 mm drawer material thickness
- Runner length (LN) : 550 mm
- Min. depth of the cabinet (PM) : 560 mm
VERSION - G5E9S350XXF6
Full extension runner for 13 mm to 16 mm drawer material thickness
- Runner length (LN) : 350 mm
- Min. depth of the cabinet (PM) : 360 mm
VERSION - G5E9S400XXF6
Full extension runner for 13 mm to 16 mm drawer material thickness
- Runner length (LN) : 400 mm
- Min. depth of the cabinet (PM) : 410 mm
VERSION - G5E9S450XXF6
Full extension runner for 13 mm to 16 mm drawer material thickness
- Runner length (LN) : 450 mm
- Min. depth of the cabinet (PM) : 460 mm
VERSION - G5E9S500XXF6
Full extension runner for 13 mm to 16 mm drawer material thickness
- Runner length (LN) : 500 mm
- Min. depth of the cabinet (PM) : 510 mm
VERSION - G5E9S550XXF6
Full extension runner for 13 mm to 16 mm drawer material thickness
- Runner length (LN) : 550 mm
- Min. depth of the cabinet (PM) : 560 mm
