Mgs Vela Ld Hand Shower
VELA LD HAND SHOWER
VELA LD HAND SHOWER
Semi professional faucet with dual spray hand held.
The kitchen collections by MGS are designed to last over time and adapt to various interior styles, combining functionality and cutting-edge design.
information
BRAND
Mgs
PRODUCT TYPE
Hand Shower
OUTLET
Convenient dual spray outlet
PREMIUM
Multiple premium PVD finishes
MATERIAL
Made of Marine Grade Stainless steel AISI316L, it is the ideal choice both indoor and outdoor
COLLECTION
Vela
PRODUCTION
Made in United Kingdom
EASILY FILL UP LARGE
The hand shower has great reach, which makes it ideal for large sinks and to easily fill up large pots.

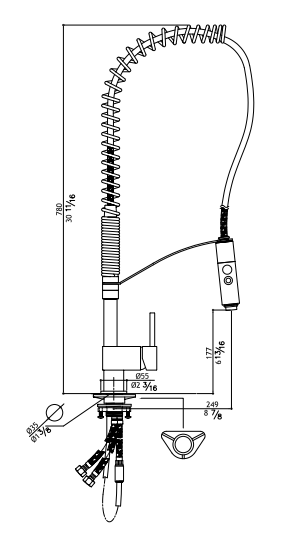

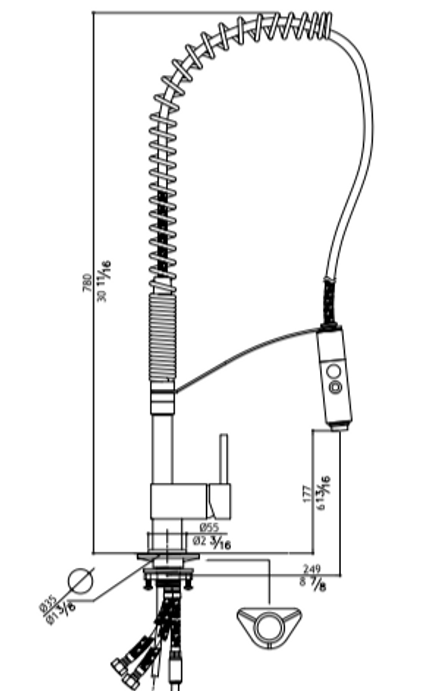

DIMENSIONS
- Total height : 780 mm (30 11/16″)
- Horizontal reach : 249 mm (8 7/8″)
- Control unit height : 175 mm (6 7/8″)
- Hose connection size : Ø9 mm (Ø3/8″)
- Base diameter : Ø55 mm (Ø2 3/16″)
- Mounting hole diameter : Ø48 mm (Ø1 7/8″)
FLOW RATE EU
8,5 L/Min at 3 Bar.
HOT WATER TEMPERATURE
Max. 85°C
RECOMMENDED HOT WATER TEMPERATURE
65°C
REQUIREMENTS
Flow rate US: 1.75 GPM at 45 PSI in conformity with CalGreen and WaterSense requirements
AVAILABLE COLORS
3
OPERATING PRESSURE
Max. 10 bar
TAP
Impressive, sturdy and beautiful this tap will be the center of attention, the final touch to complete the look of your heavenly kitchen.
OVERALL DESIGN
The vela ld and its high stainless steel spring will enhance the overall design exclusivity of the most beautiful kitchens.
LARGE
Ideal for large sinks
RECOMMENDED OPERATING PRESSURE
1-5 bar
DETAIL
Available in matte stainless steel, polished stainless steel and in the exclusive Black Steel, Titanium, Bronze and Light Gold finishes, all obtained with PVD process. Made of Marine Grade Stainless steel AISI316L, it is the ideal choice both indoor and outdoor
CONTROL
Rotating spout water control
DESIGN
Enhances exclusive kitchen design
CONVENIENT
The dual spray outlet is very convenient to use and to insert in its holder. When in position it can freely turn to direct the water flow like a regular spout.
SCREWS
There are no visible set screws, a feature that allows to install it with the handle in the front, on the right or on the left and that makes it the best choice for an island.
COLORS
ASSEMBLY
- Flush through the supply pipes.
- Screw flexible hose "E" to flexible hose "F" after positioning gasket "G".
- Fix counterweights "H" to flexible hose "F" as per attached instructions.
- Remove counternut "A" and washer "B". 3. Place the mixer on the sink.
- Connect flexible hoses "I" and "L" to the mains (red for hot water and blue for cold water).
- We recommend to install between the mains and the faucet a water filter which should regularly be cleaned.
- After positioning reinforcement plate "C" and washer "B", fully hand screw nut "A" against washer "B" and tighten with the 2 screws "D".
WARRANTY
MGS products are covered by a warranty of 5 years from purchasing date on all stainless steel parts and of 2 years on all other components. During this period, parts with construction defects in materials or workmanship will be replaced free of charge. This warranty will not respond in the case of faults caused by unsuitable or improper use, wrong installation, natural wear, improper or careless treatment, wrong usage of cleaning or maintenance products.
Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to MGS for all warranty claims. The warranty is not transferable and is extended solely to the original purchaser of the product. MGS will not assume liability for labour expended, freight cost or damages accruing from the use of the material purchased from us. If material is defective, the limit of damage is the price of the defective material.
