ECLIPSE® XS WATER TAP
ECLIPSE® XS WATER TAP

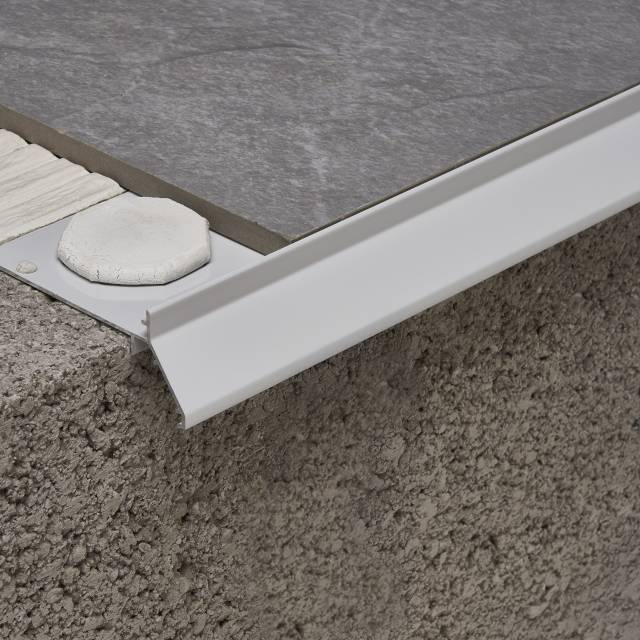

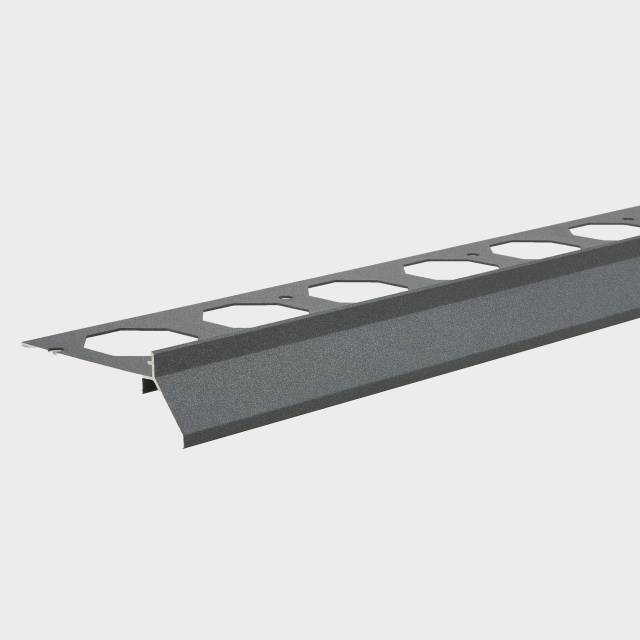

The most compact lacquered aluminum profile in the EMAC® range offers a minimalist aesthetic without compromising functionality.
The unique EMAC® drip edge design , grooved along the profile, effectively channels rainwater, preventing runs down the facade.
The system integrates a double housing (interior/exterior) for waterproofing, tested to ensure watertightness even if the exterior silicone sealant deteriorates.
INFORMATION
BRAND
Emac
PRODUCT TYPE
Edges
PRODUCTION
Made in Italy
COLLECTION
Eclipse
LENGTH
2.5 m.l.
PACKAGING
12 units/box
MATERIAL
Lacquered Aluminum
MATERIALS
Novovierteaguas Eclipse® XS is a profile manufactured by extruding aluminum. Its finishes are lacquered, resulting in a homogeneous, high-quality surface. The lacquer has the Qualicoat quality seal, guaranteeing the quality of the process and the final products. Aluminum is a material with excellent chemical and physical-mechanical properties. It is lightweight, tough, ductile, malleable, and highly durable.
SOLIDITY IN THE LIGHT
Excellent
USE
Interior
ABRASION RESISTANCE
Very good
FIRE RESISTANCE
M0 (UNE 23-727-90)
APPLICATIONS
CLEANING AND MAINTENANCE
This product is located outdoors and exposed to the elements. Rainwater alone acts as a natural cleaner. If you still wish to clean it to improve its appearance, always use water with mild soap and a soft cloth free of any particles that could damage the surface.
LEAK TEST
221.I.2506.710.ES.01
APPEARANCE AND COLOR
EN 12373-1

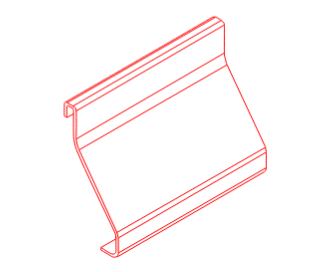

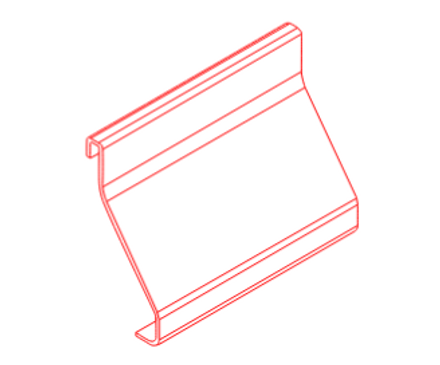

COMPLEMENTARY PARTS

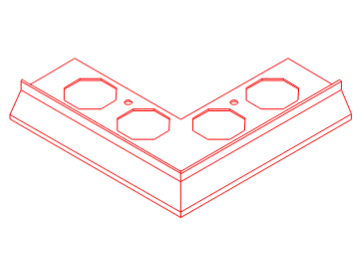

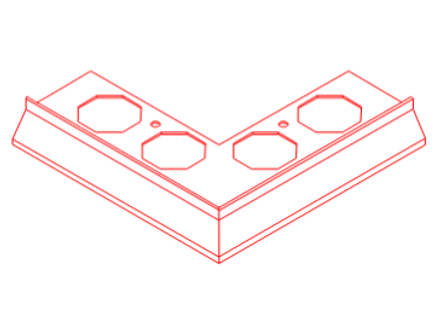

Novovierteaguas Eclipse® XS dispone de ángulo exterior de terminación y tapa de unión para completar la instalación.
INSTALLATION
This system has proven optimal results in installations with 10 mm and 12 mm thick cladding, without requiring a flush fit. It can also be adapted to other cladding thicknesses.
EDGES

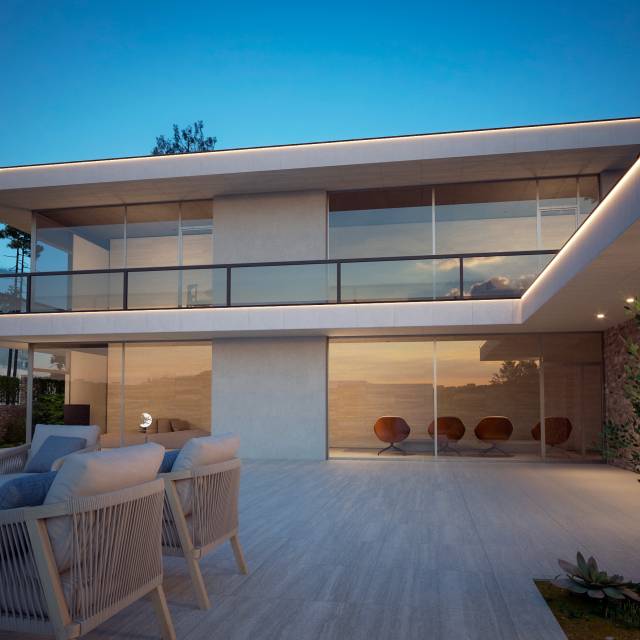

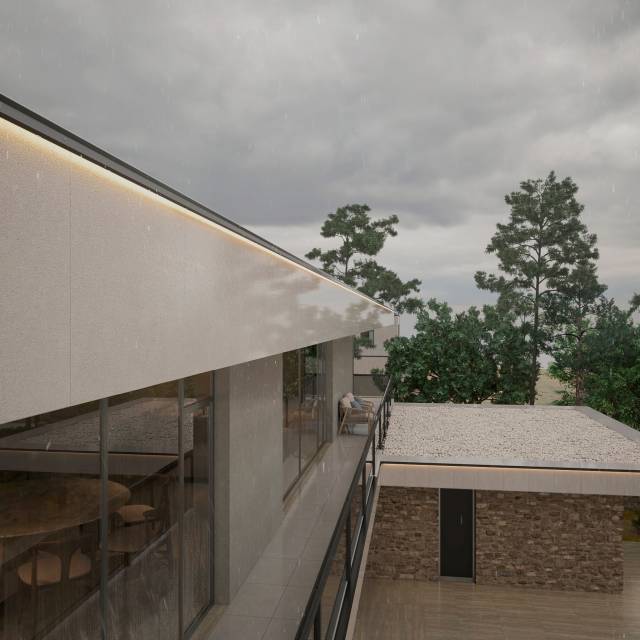

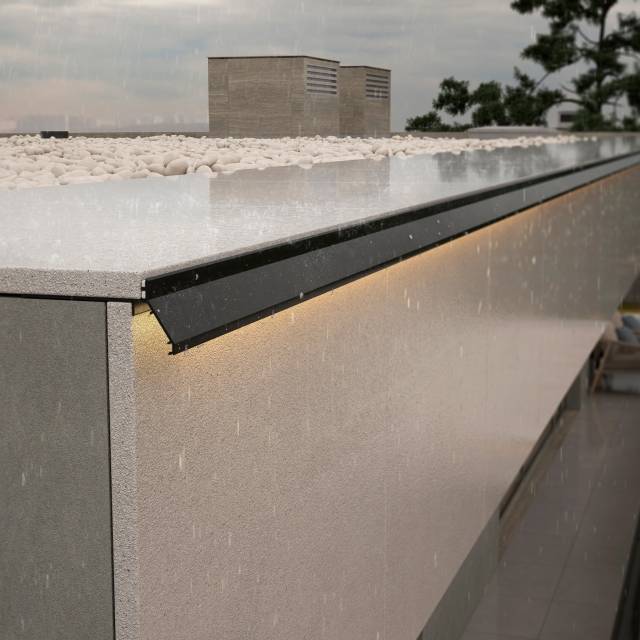

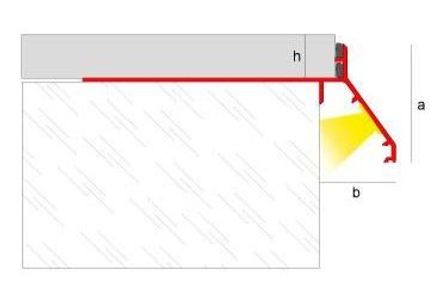

The Eclipse® XS drip edge can accommodate an optional LED strip, ideal for creating indirect lighting; it also includes a positioning stop for precise installation. Available in three lacquered finishes, it is complemented by joining and corner accessories for a flawless finish.
DESIGN

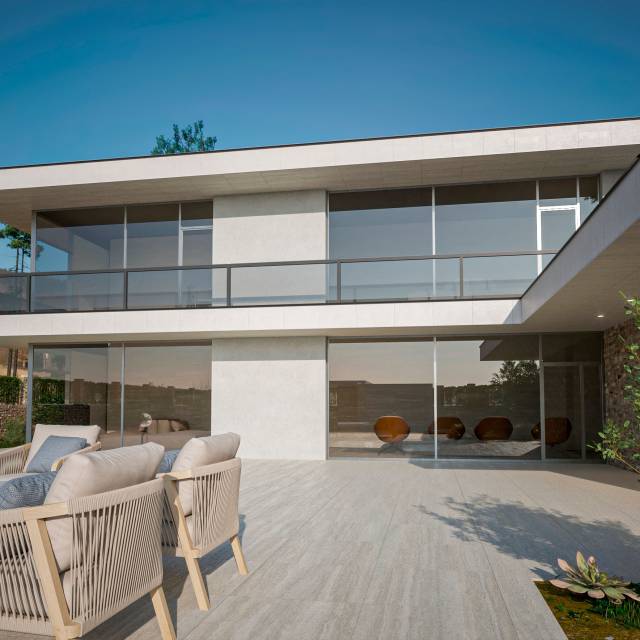

Novovierteaguas Eclipse® XS redefines discretion: compact design, total protection and precise installation at the service of your facades without sacrificing the Eclipse® aesthetics of EMAC®.

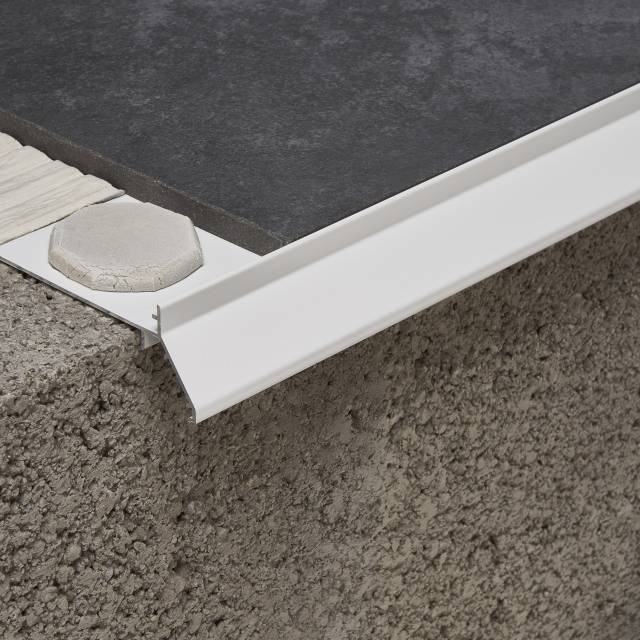

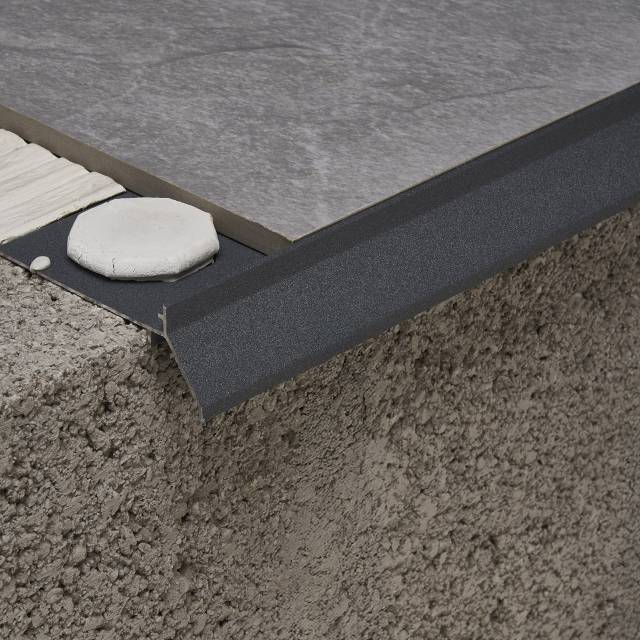

FINISHES

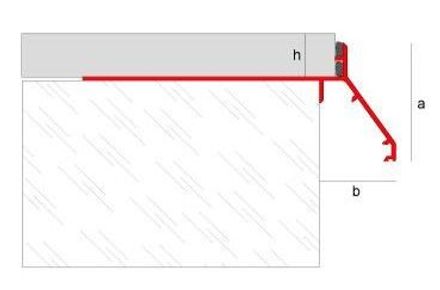

DIMENSIONS
| Material | Reference | to | b | h | Finishes | Length | Packaging |
|---|---|---|---|---|---|---|---|
| Aluminum | NVECALXSBLR | 35 mm | 22.5 mm | 10/12 mm | Matte white - 142 | 2.5 m | 12 units |
| Aluminum | NVECALXSOG | 35 mm | 22.5 mm | 10/12 mm | Gray oxide - 147 | 2.5 m | 12 units |
| Aluminum | NVECALXSGC | 35 mm | 22.5 mm | 10/12 mm | Light gray - 156 | 2.5 m | 12 units |
