SECUR-BLIND WORKSITE PROTECTION
SECUR-BLIND WORKSITE PROTECTION

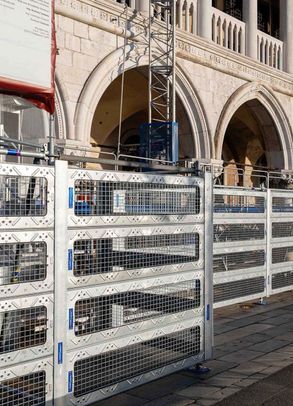

It is a construction site protection created by Pilosio: safe and easy to use, it can be hooked onto scaffolding or a tubular structure, it replaces construction site fencing and greatly improves the aesthetics of the construction site.
It is a clever system that uses components that are light and quick to assemble, and elements designed specifically to meet the needs of each client. Thanks to its nice aesthetics, it greatly improves the visual impact of the construction site especially in historical centers.
It is possible to obtain hermetic or fireproof and soundproof protection with components provided with gasket and insulating slabs. On request, panels of any size can be made according to the specific needs of the construction site.
INFORMATION
BRAND
Pilosio
PRODCUT TYPE
Scaffolding System
TOOL
Easy and fast assembly and disassembly without tools.
HIGH PROTECTION
High protection from dust and processing waste
COLLECTION
Secur
CLAMP
Galvanised pincer clamp
ASSEMBLE
It is a tailor-made protection that is extremely easy to assemble.
PANEL SIZES
- 50×100 cm
- 50×150 cm
- 50×180 cm
- 50×200 cm
- 50×250 cm
PRODUCTION
Made in Italy
FLEXIBLE PIN
012 mm galvanized flexible pin
ADVANTAGES
- Adapts to any site requirement
- Can be used with any type of scaffolding
- Offers greater protection against intrusion than building site nets
- On request, panels can be produced in other dimensions
- Airtight panels with sound-proof PL sheets available
DIMENSIONS DOUBLE-LEAF
- Height : 200 cm
- Length : 180,200 cm

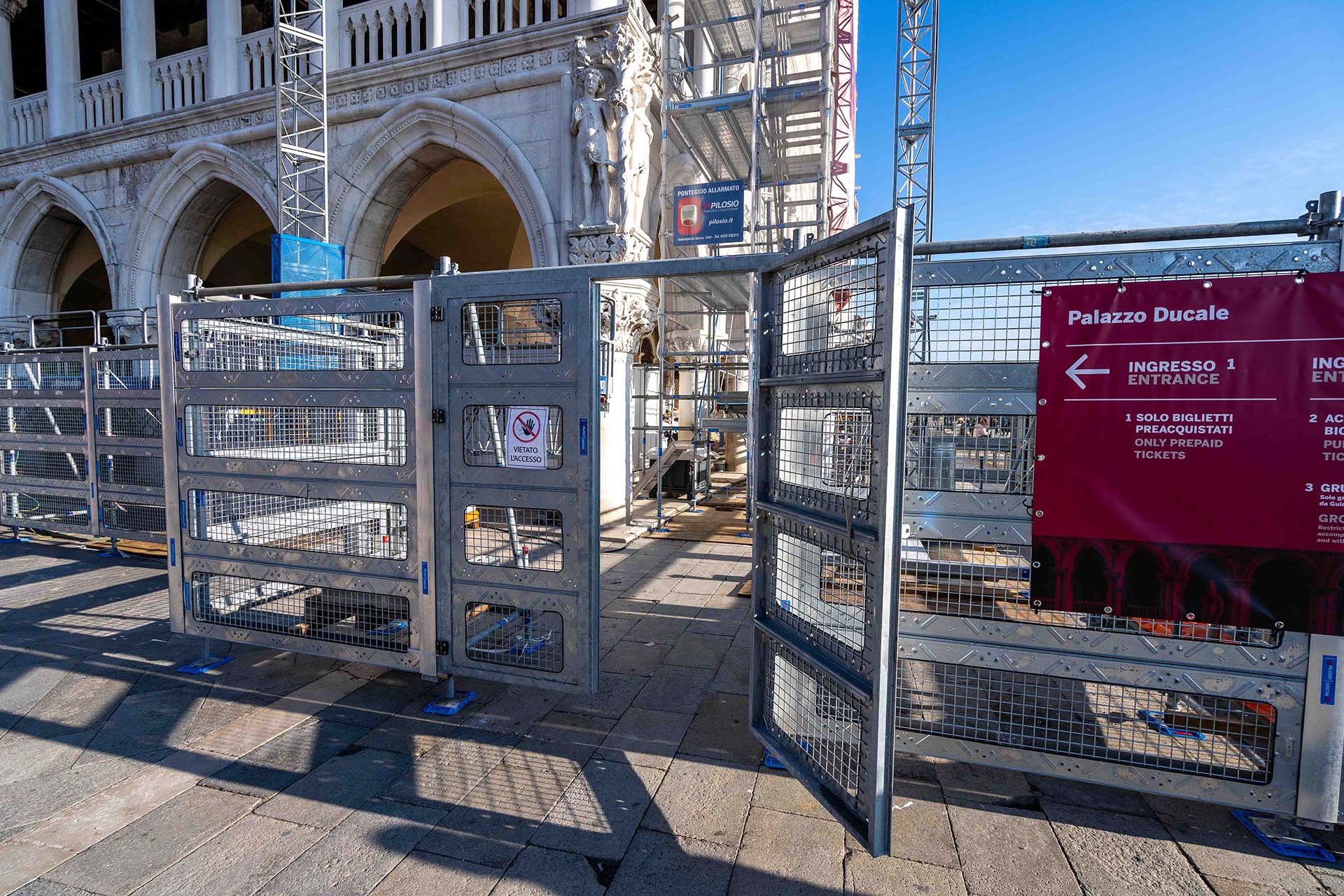

DIMENSIONS SINGLE-LEAF ENTRANCE DOOR
- Height : 200 cm
- Length : 100,115,150 cm
STRUCTURES

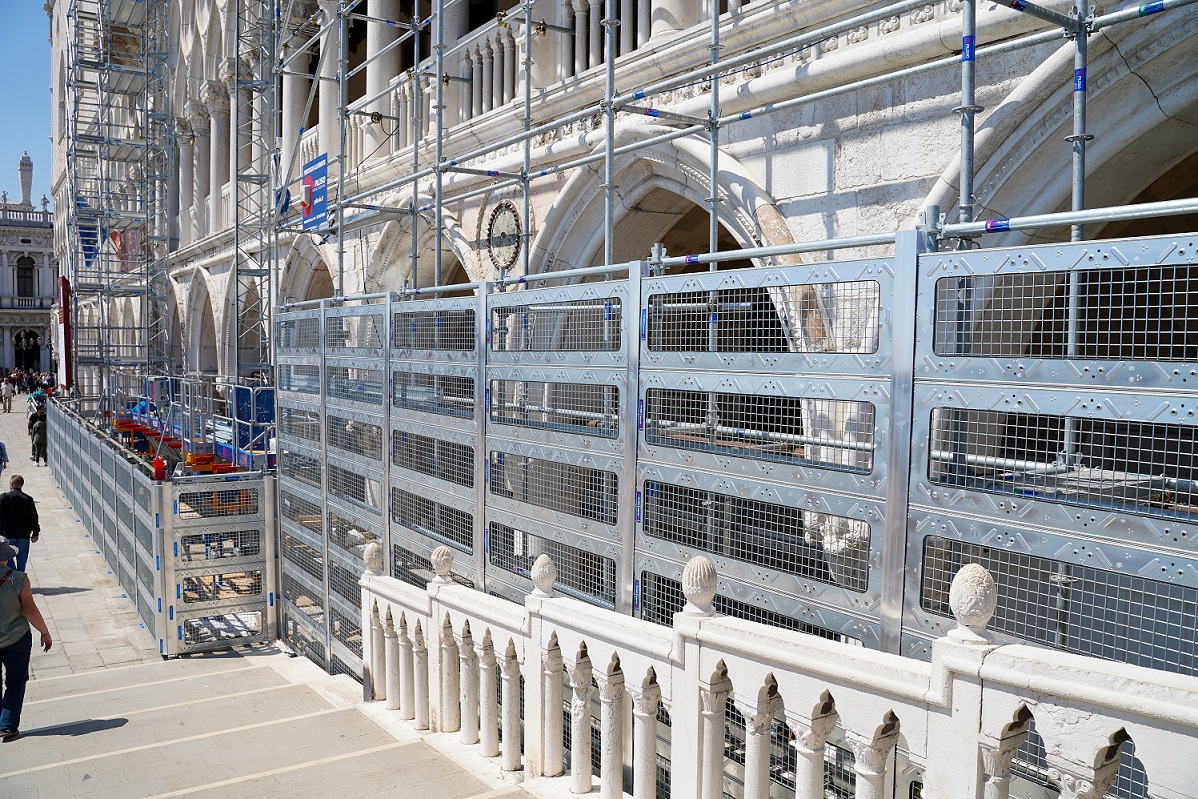

Hooks onto scaffolding structures
CONSTRUCTION SITE
Safe, easy construction site protection.
COMPONENTS EQUIPPED
It is possible to obtain hermetic or ermetic and soundproof protection with components equipped with a gasket and insulating sheets.
ALUMINIUM UPRIGHTS
Aluminium uprights and airtight uprights H=200 cm
PANELS
Galvanised steel foot per support for blocking panels
SHEET

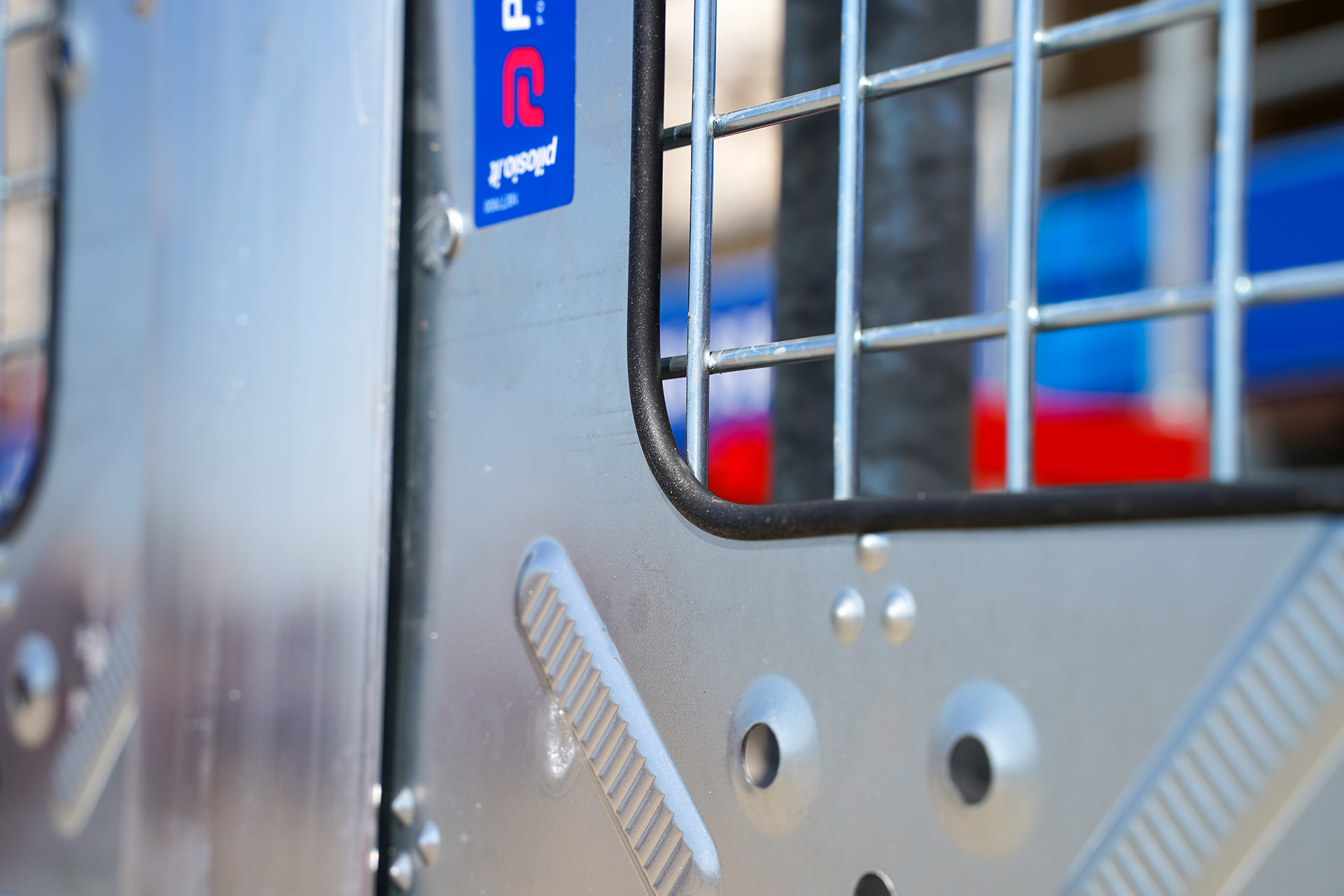

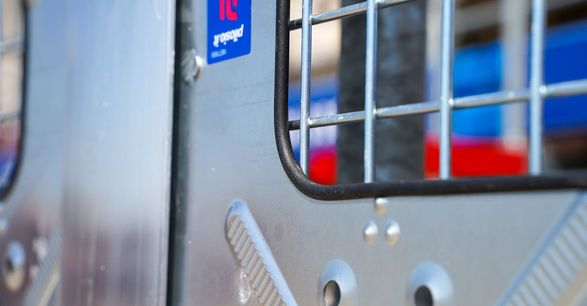

Galvanised steel panels in solid sheet or with grid, or fire-retardant and sound-absorbing hermetic
DETAIL

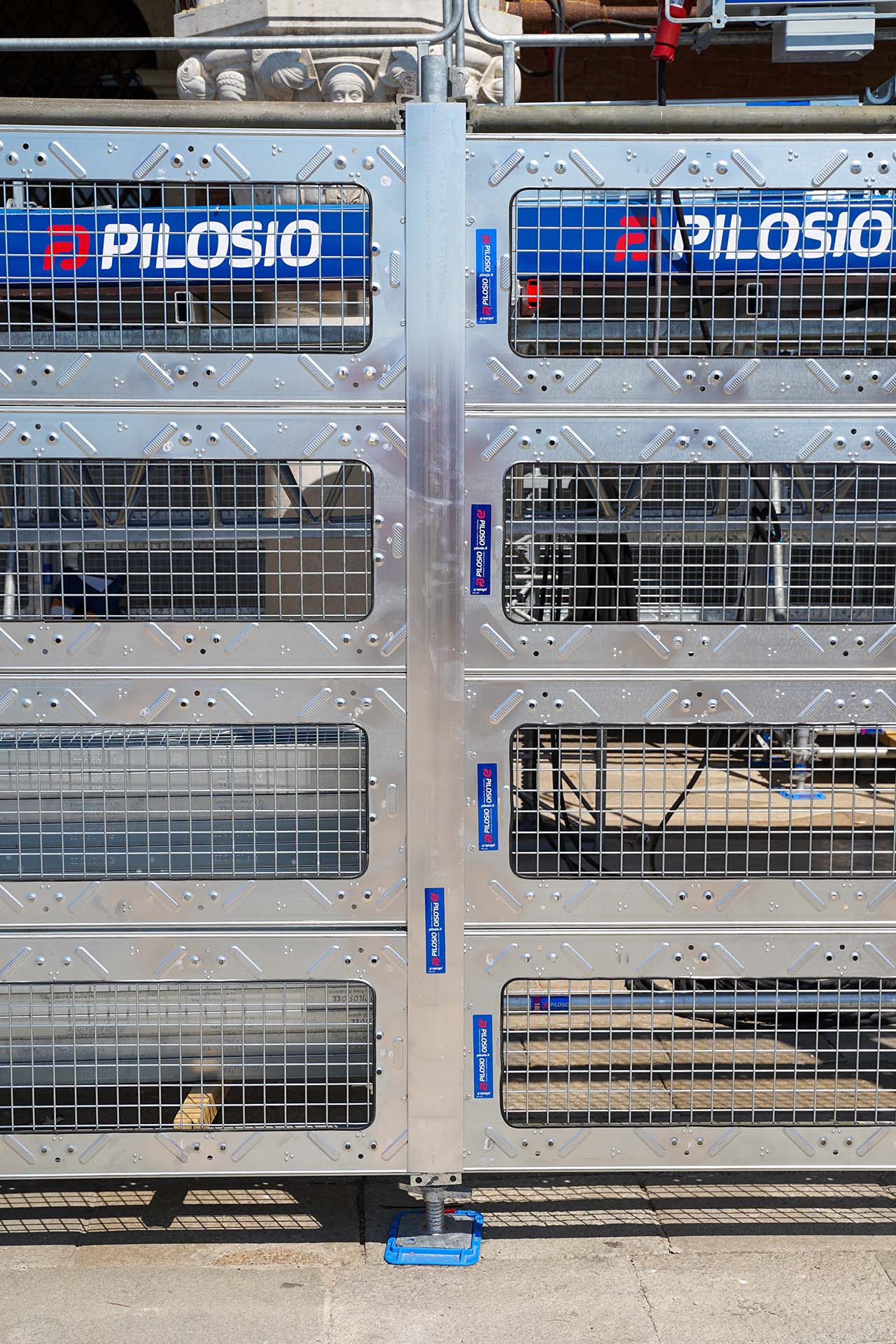

SECUR-BLIND consists of panels inserted inside aluminum rails fastened in a quick and easy manner with a pincer clamp on the 48.3 mm pipes of the scaffold or any other structure. Fixed and variable angle bars and access gates complete the system.
DOWNLOAD
↓ Product Catalogue
CORNER PIECE
External and variable galvanised steel corner pieces H=49 cm
ENVIRONMENT

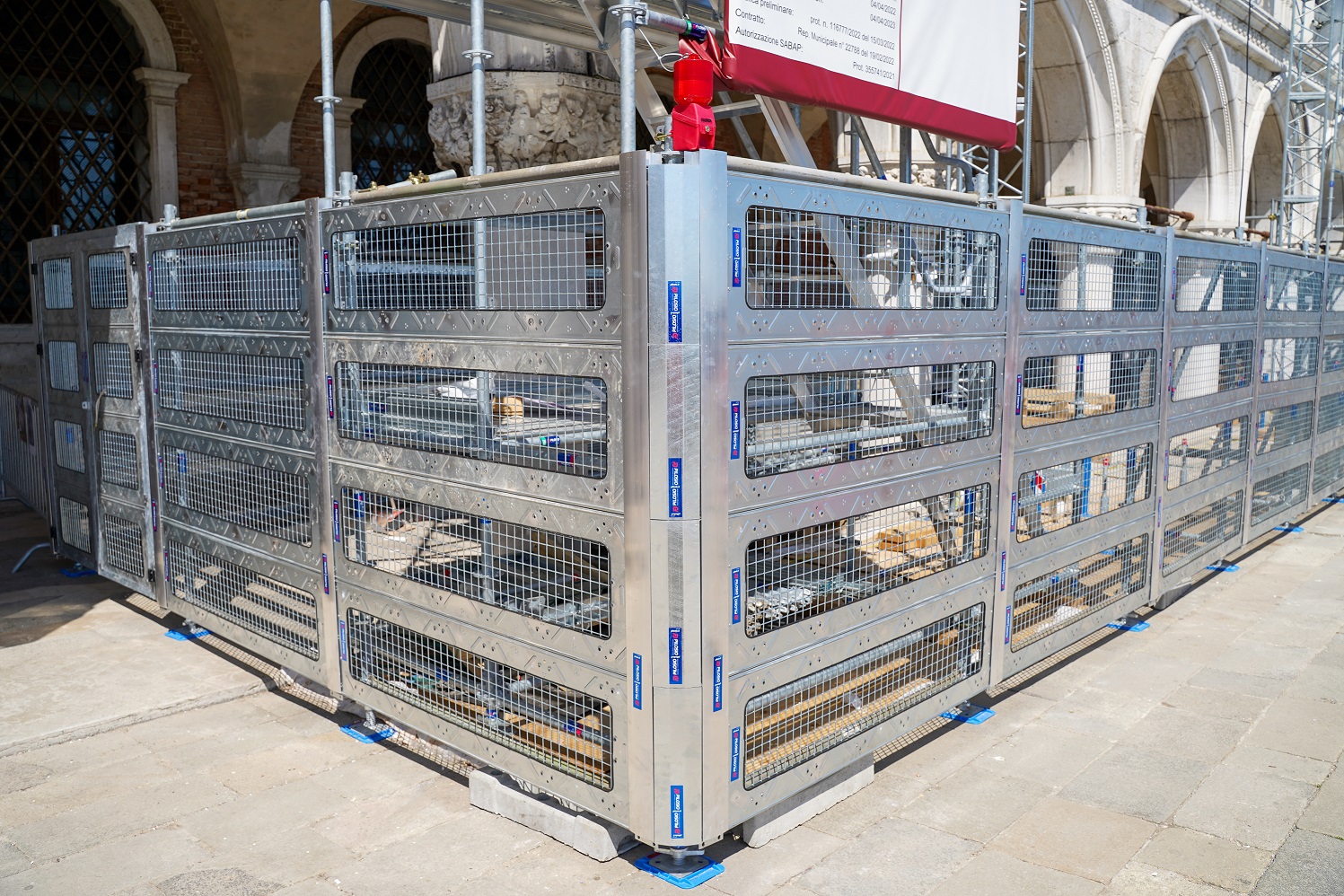

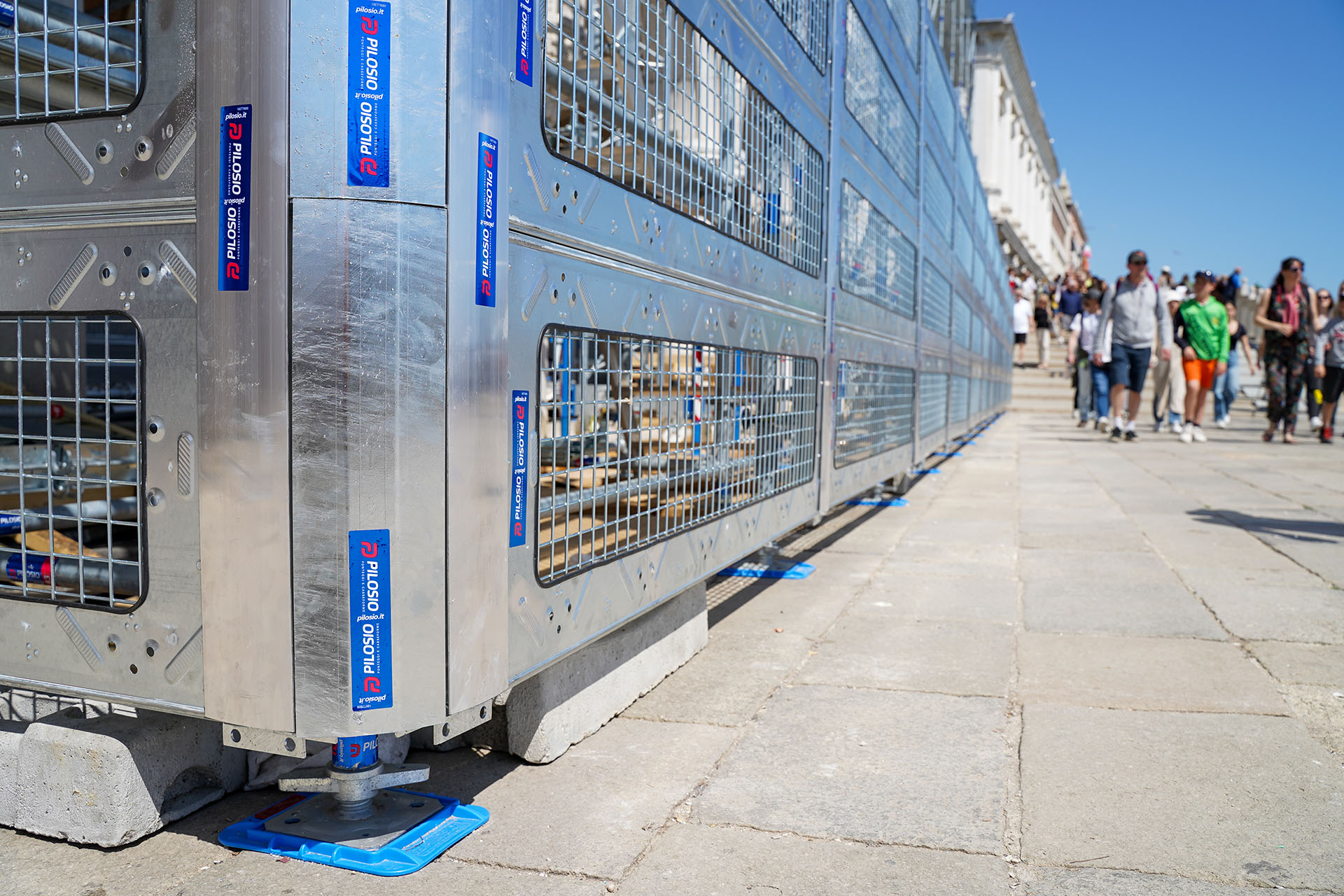

It is used as a construction site fence at the base of the scaffold, as a shield to protect the environment from any slag or dust produced by special work such as asbestos abatement, and offers greater security against the entry of non-workers.
SUITABLY
It consists of scaffold planks that have been suitably modified to be inserted vertically inside two rails that are quickly and easily attached to the scaffold’s ɸ 48.3 mm tubes using a pincer clamp.
APPLICATIONS

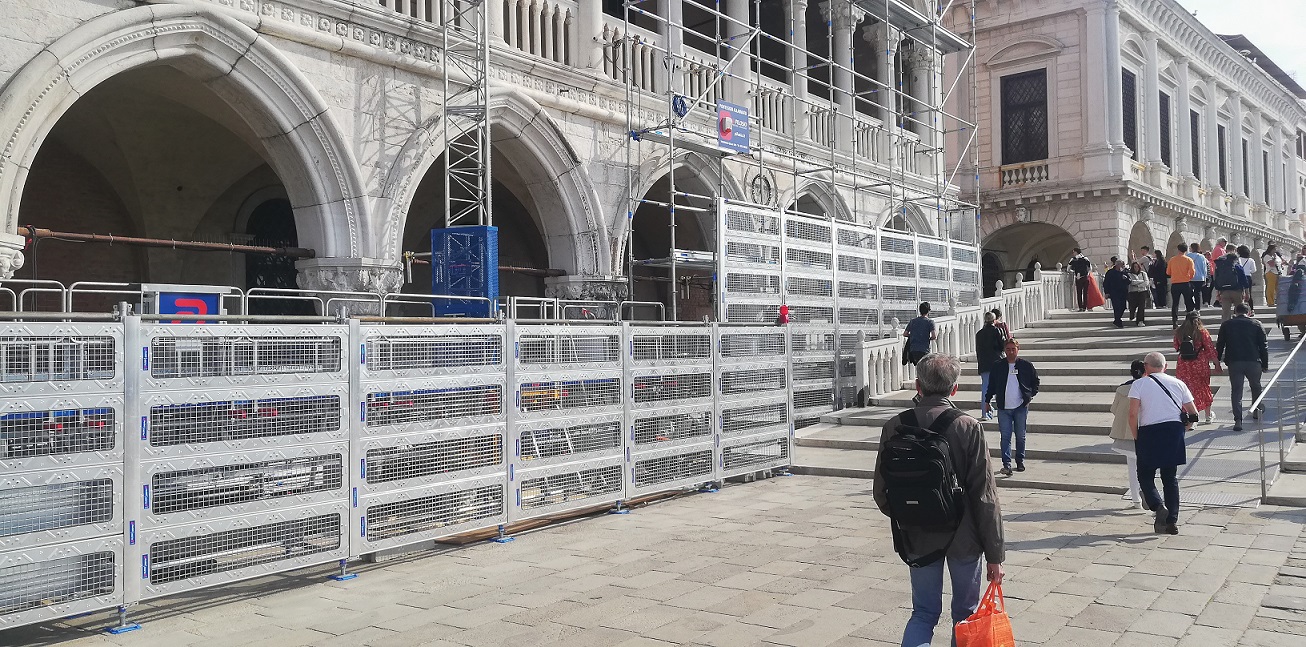

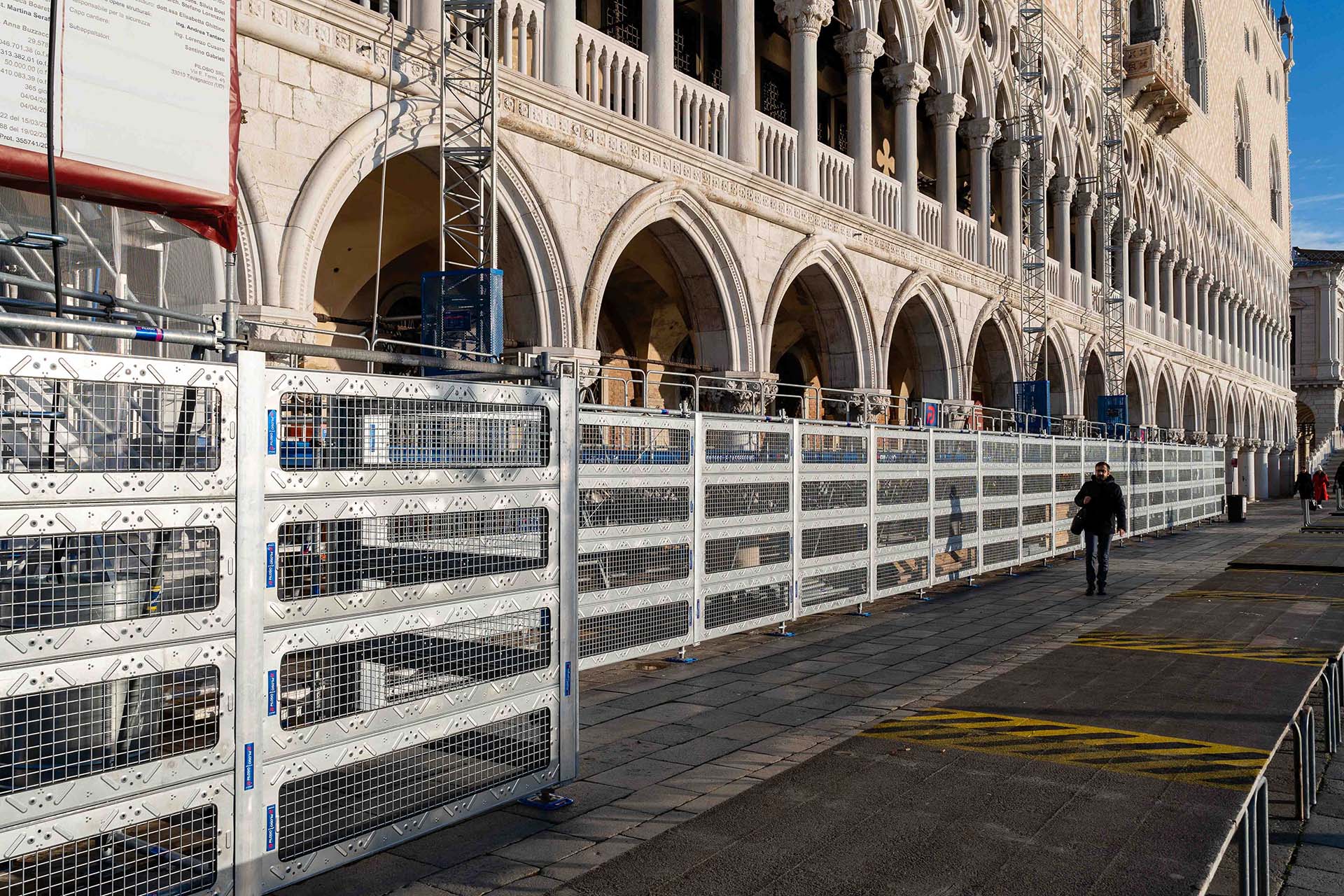

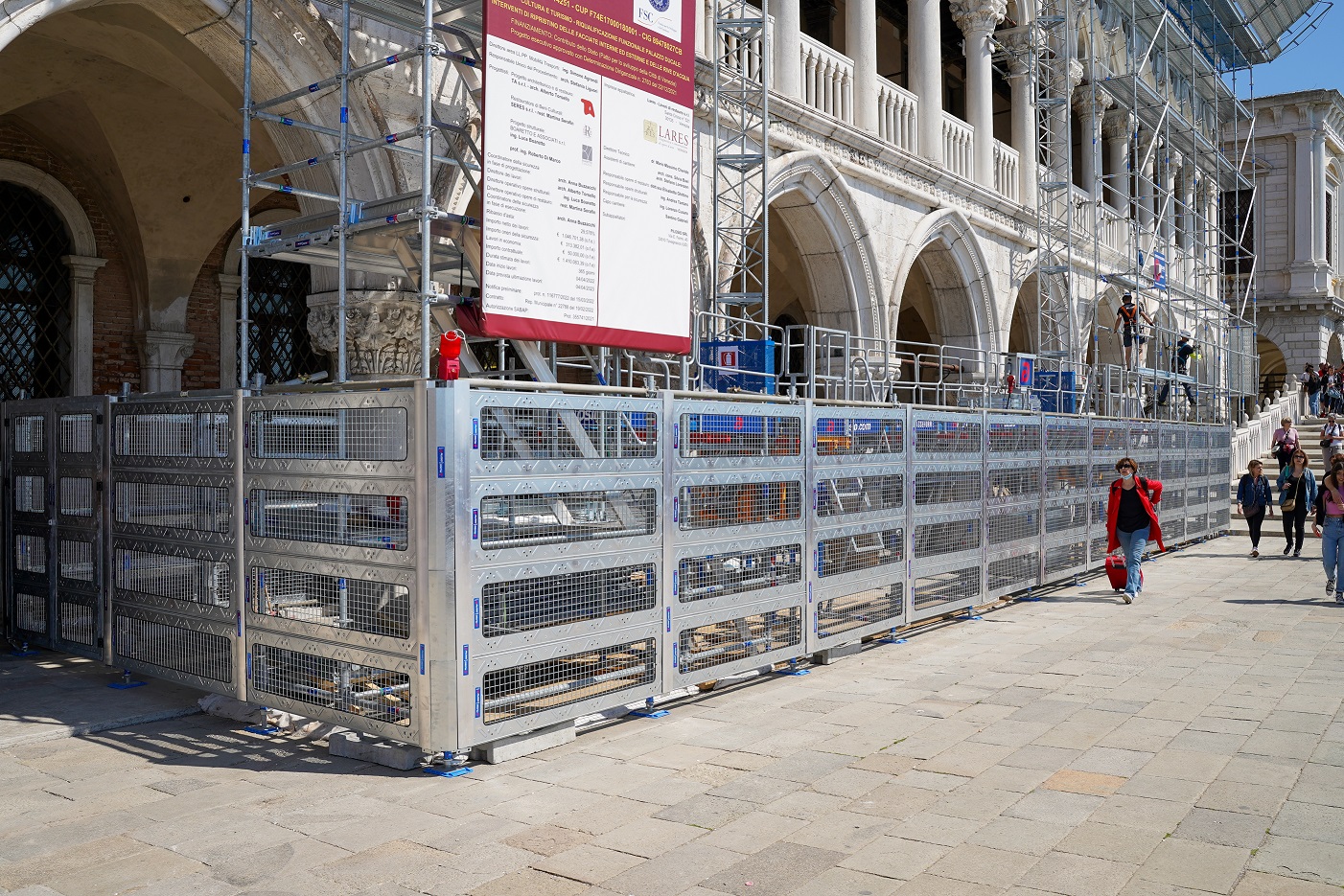

- Construction site perimeter fencing and protection
- Building, renovation and industrial maintenance construction sites
- Shielding for environmental protection from slags produced by special processing
APPLICATIONS
APPLICATIONS
-Skyscrapers -Excavations -Events -Naval -Oil & gas -Residential Constructions -Bridge Maintenance -Bridge Construction -Industrial Construction
