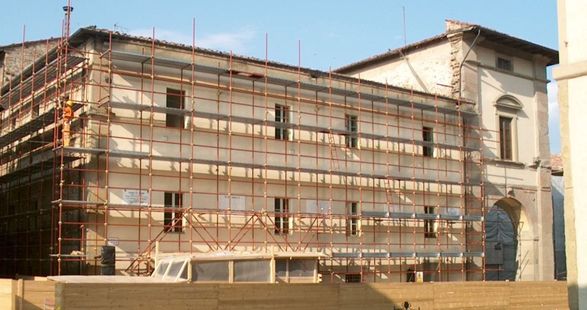

Pilosio T&c Easy And Versatile Traditional Scaffolding
T&C EASY AND VERSATILE TRADITIONAL SCAFFOLDING
T&C EASY AND VERSATILE TRADITIONAL SCAFFOLDING
The tube and coupler scaffolding system is the precursor of all steel scaffolding and is extremely flexible.
The different types of couplers used to connect the tubes through rigid and orthogonal or swiveling connections allow the execution of any type of structure..
The standard Pilosio’s Tube and Coupler scaffolding comply with the Italian Standards, owning its own approval for both maintenance and construction works.
INFORMATION
BRAND
Pilosio
PRODCUT TYPE
Scaffolding System
SUITABLE
Suitable for any structure
TUBE
Hot dip galvanizing for tube
COLLECTION
T&c
STANDARD
EN 74-1 couplers and standard couplers
STRUCTURE
Well suited to form anchors and connections between scaffolds, towers or any other structures
DYNAMIC WORKSITES
Total versatility make it ideal for complex and dynamic worksites
PRODUCTION
Made in Italy
DESIGN LOAD MAINTENANCE
150 kg/m2
ADVANTAGES
- Can be used as stand-alone system as well as combined with other scaffolding systems
- Estremamente utile per la realizzazione di ancoraggio e collegamenti tra altri sistemi di sostegno
- Structural requirements are easy to achieve, as technical evaluations can be made to allow horizontal tubes and steel planks to be placed at almost any height, and vertical tubes placed at any distance
PILOSIO RANGE
The most labor-intensive type among Pilosio range of scaffolds
DETAIL

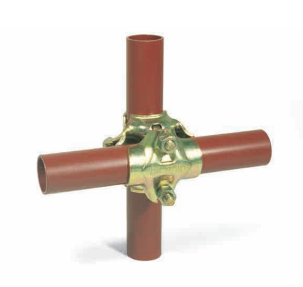

Wide range of couplers: orthogonal, swivel and draw couplers
LENGTHS
Between 60 cm and 600 cm
DESIGN LOAD CONSTRUCTIONCE
300 kg/m2
VERSATILE TYPE
The oldest, most versatile type of scaffolding used both as scaffolding and as the foundation for other Pilosio scaffolding systems.
HIGHLY FLEXIBLE
Highly flexible scaffolding system
CONNECTION
Multiple coupler connection types
FULL VERSATILITY
Full versatility that is most useful for complex and variable works
INDUSTRIAL WET PAINTING
Industrial wet painting or hot dip galvanizing for tubes
STEEL TUBES
Steel tubes ø 48.3 mm with wall thickness 3.2 mm with different available lengths between 60cm and 600cm
CHARACTERISTICS
With only a few base components, the range of couplers enables the connection of tubes to form an endless variation of structures.
DOWNLOAD
↓ Product Catalogue
CERTIFIED
Certified for construction maintenance

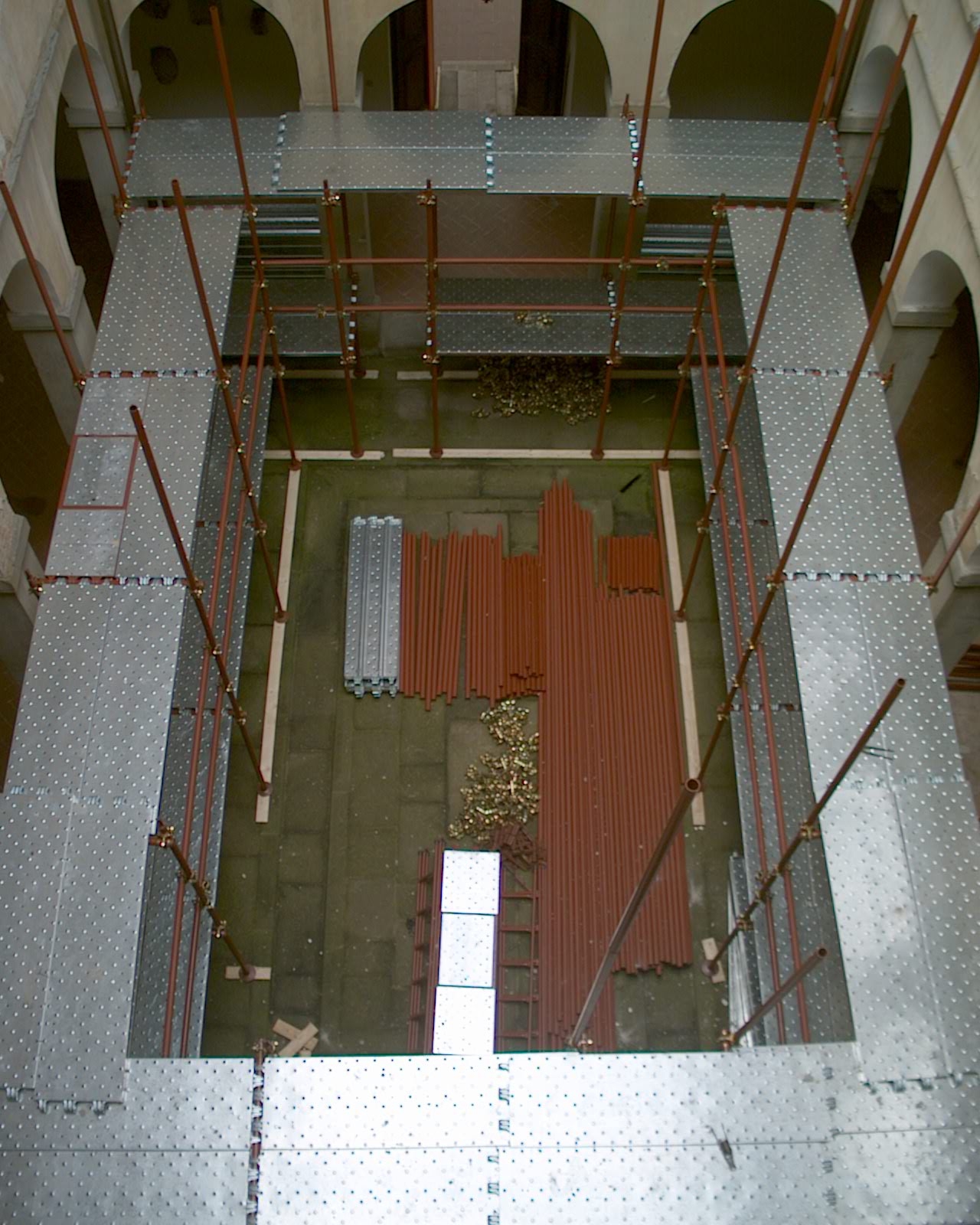

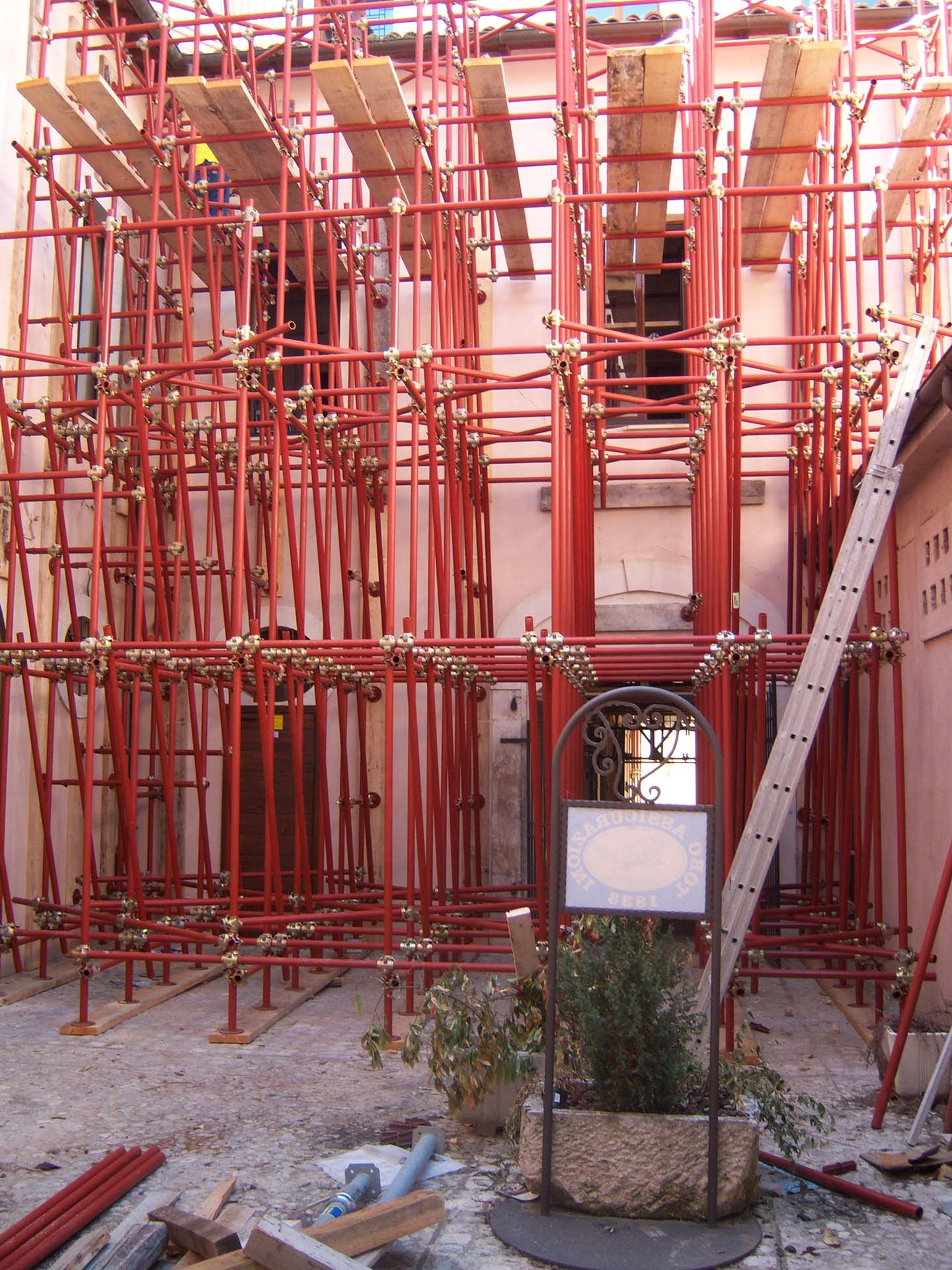

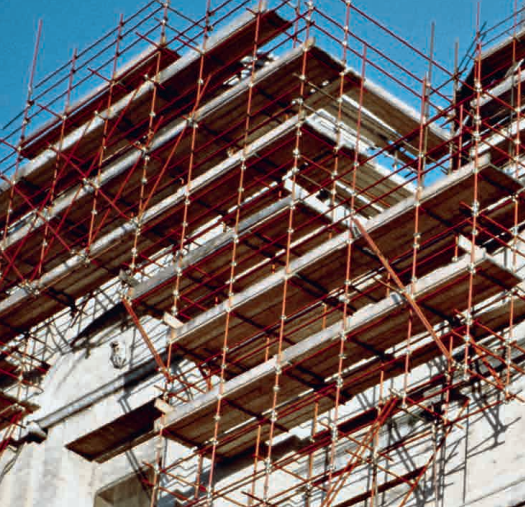

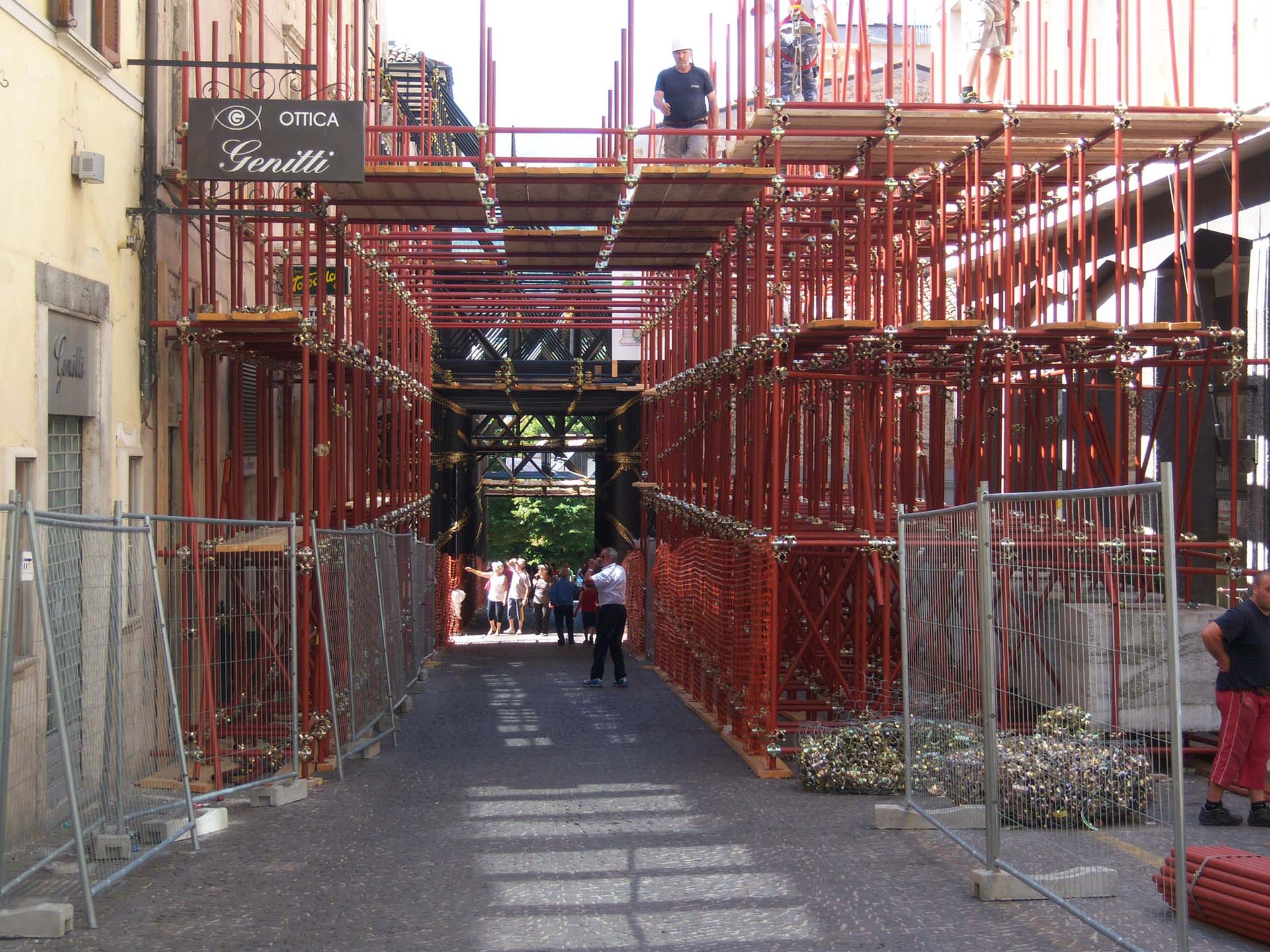

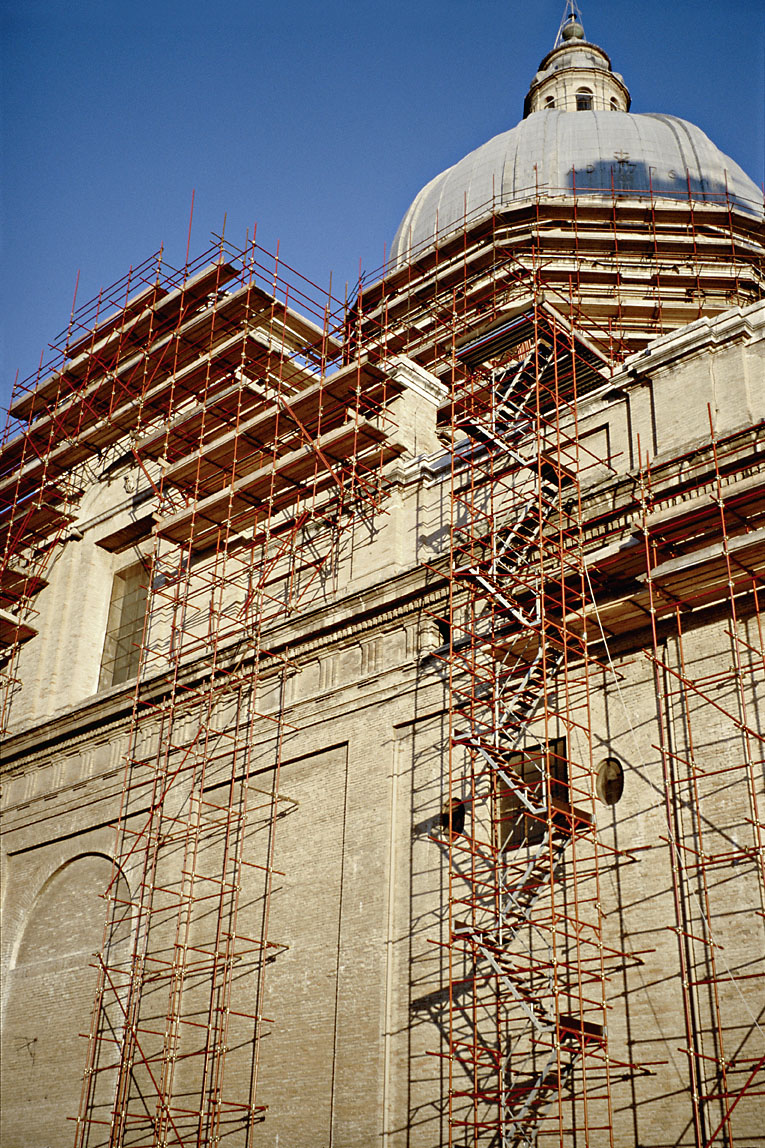

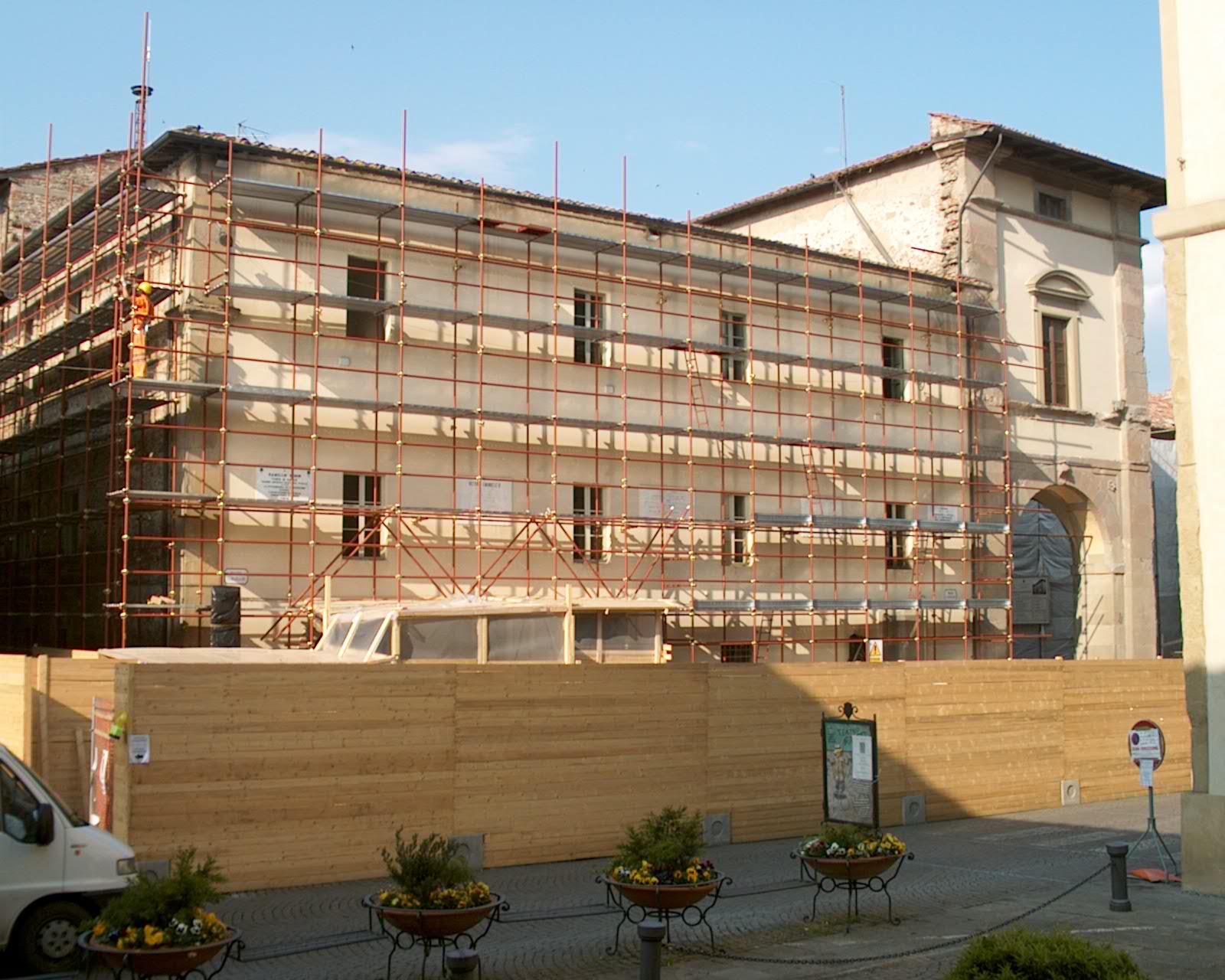

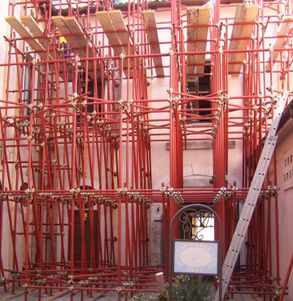

APPLICATIONS
