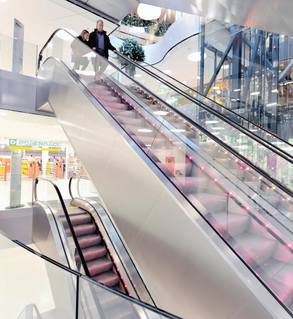

Schindler Schindler 9300 Escalator
SCHINDLER 9300 ESCALATOR
SCHINDLER 9300 ESCALATOR
The escalator for commercial & public spaces
With enhanced safety features, energy efficiency, and space savings, the Schindler 9300 escalator defines state-of-the-art mobility for commercial buildings and public spaces.
FEATURES
ENHANCED BEAUTY
Contemporary aesthetics complement your architectural needs. Timeless design combined with a range of unique decorative options can distinctively enhance your building environment.
ENLARGE AND COMPOSE
New compact design for more building space. More space at entry and exit areas, reduced overall width, and 3D automatic planning tools enable efficient escalator positioning and provide more rental space in your building.
RESPECT AND OPTIMIZE
Reduced energy with increased efficiency. Our efficient drive system, combined with three ECO operating modes, offers a high-performance mobility solution.
ADVANCED HYGIENE PROTECTION FOR PASSENGERS
The Schindler handrail Ultra UV device is a practical solution to maximize hygiene and safety for escalators.
>>Read More
SAFETY AND QUALITY
The Schindler 9300 offers state-of-the-art safety solutions to protect your passengers. All Schindler equipment passes a rigorous safety check from an independent team before being turned over to you.
>>Read More
INFORMATION
BRAND
Schindler
PRODUCT TYPE
Escalator
CLEANMOBILITY SOLUTIONS
Explore our Ultra UV and Ultra UV Pro solutions that help keep escalator handrails sanitary and safe.
ESCALATOR UPGRADES
Schindler offers upgrades in all different areas in order to make your escalators run smoother, safer, and more reliably.
PRODUCTION
Made in United States
MATERIAL
Steel & Aluminium
ENERGY EFFICIENCY
Choose our optional premium power package for optimized energy efficiency with IE3 motor and high-efficiency gear

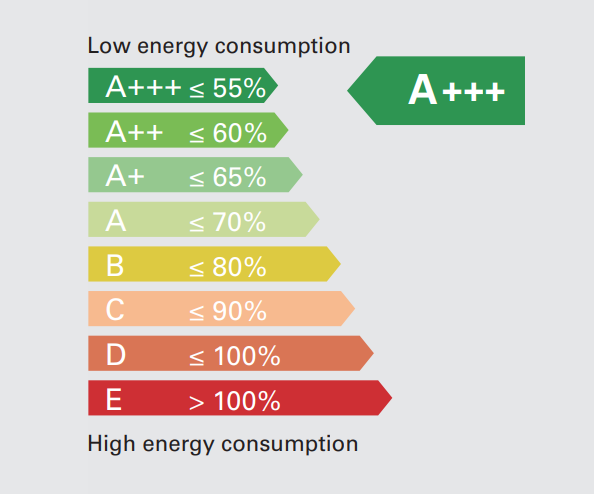

The Schindler 9300, with its IE31 motor and highefficiency gear, has an energy efficiency class (measured by the ISO 25745-1/3 standard) of A+++2.
A NEW STANDARD FOR MOBILITY
Thanks to enhanced safety features, increased energy efficiency, and maximum space savings, the Schindler 9300 escalator transforms any building into a modern space while making each journey from floor to floor safe, smooth, and comfortable.

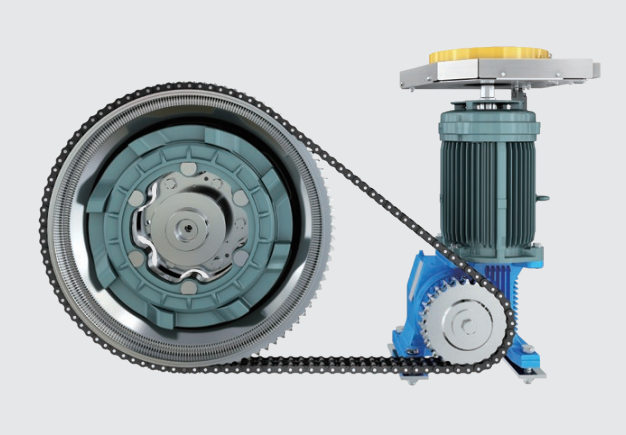

TOTAL DRIVE EFFICIENCY IN EVERY DETAIL
Each individual drive component (gearbox, motor, brake, flywheel, and drive chain) is designed to save energy.
INNOVATIVE DRIVE SYSTEM DESIGN
The drive system family of Schindler 9300 enables higher vertical rises and helps ensure a longer service life, at the same power level.
DIGITAL SERVICES
Our digital services complement your maintenance contract by adding connectivity and monitoring options to your equipment.
MODERNIZATION
Our modernization solutions ensure that your escalator continues to function safely, comfortably, and in compliance with the latest regulations.
ADVANCED SAFETY SOLUTIONS
SAFETY SOLUTIONS
Schindler escalators are designed to meet the most stringent safety requirements over their entire product life cycles — from production through installation to maintenance. The new Schindler 9300 escalator provides enhanced safety features to help protect your passengers.
ADDITIONAL SAFETY FEATURES
- Fire contact
- Motor protection
- Smoke detector
- Water level contact
- Floor cover contact
- Brake lining monitor
CODE COMPLIANCE
Schindler 9300 escalators comply with all applicable local and international safety standards, including ASME A17.1/CSA B44.
INTELLIGENT BRAKING SYSTEM
With the brake torque adapted to the direction of travel, Schindler’s unique braking system helps reduce the risk of passengers falling during emergency stops.
BUILT-IN SYSTEM SAFETY
The miconic f escalator controller double-checks each safety device in real time. Speed and direction are monitored on the motor shaft 1 , step band 2 , and handrail 3 . By monitoring three separate components, an anti-reversal check is ensured.

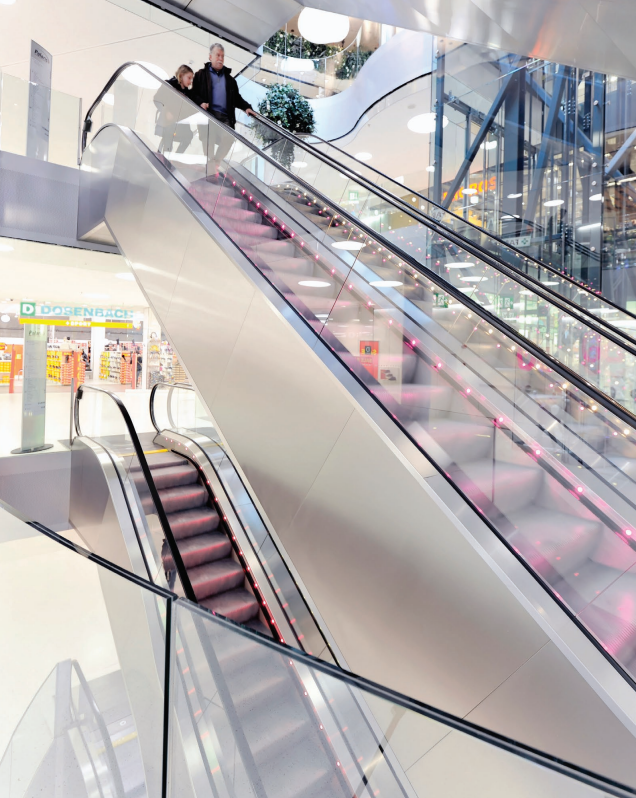

PASSENGER GUIDANCE

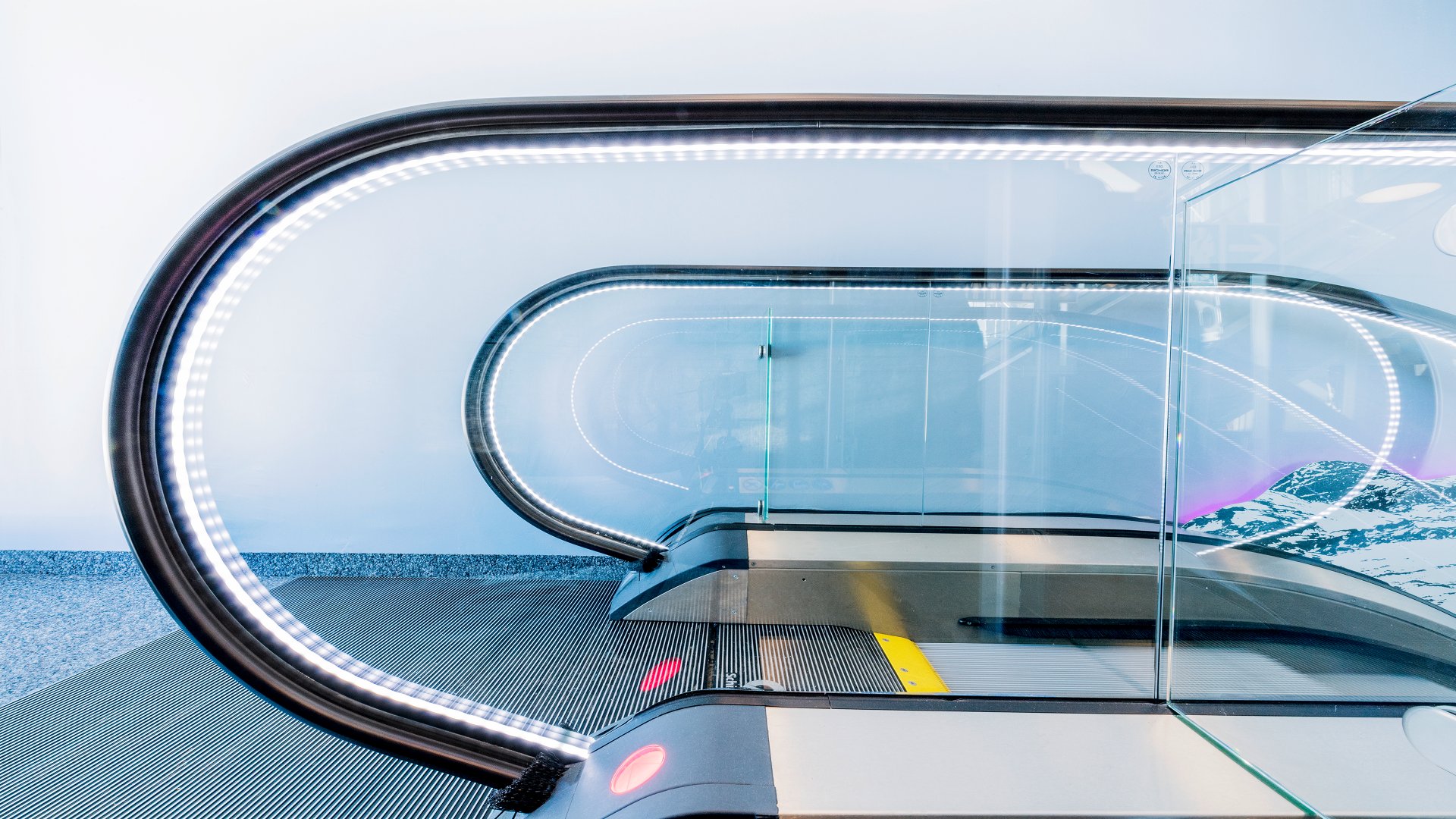

Schindler 9300 is designed to guide passengers safely on their way to the next floor. Full visual guidance is provided by moving LED direction indicators* 1 , fire-resistant step demarcations 2 , yellow signal combs 3 , and LED step gap lighting 4 .

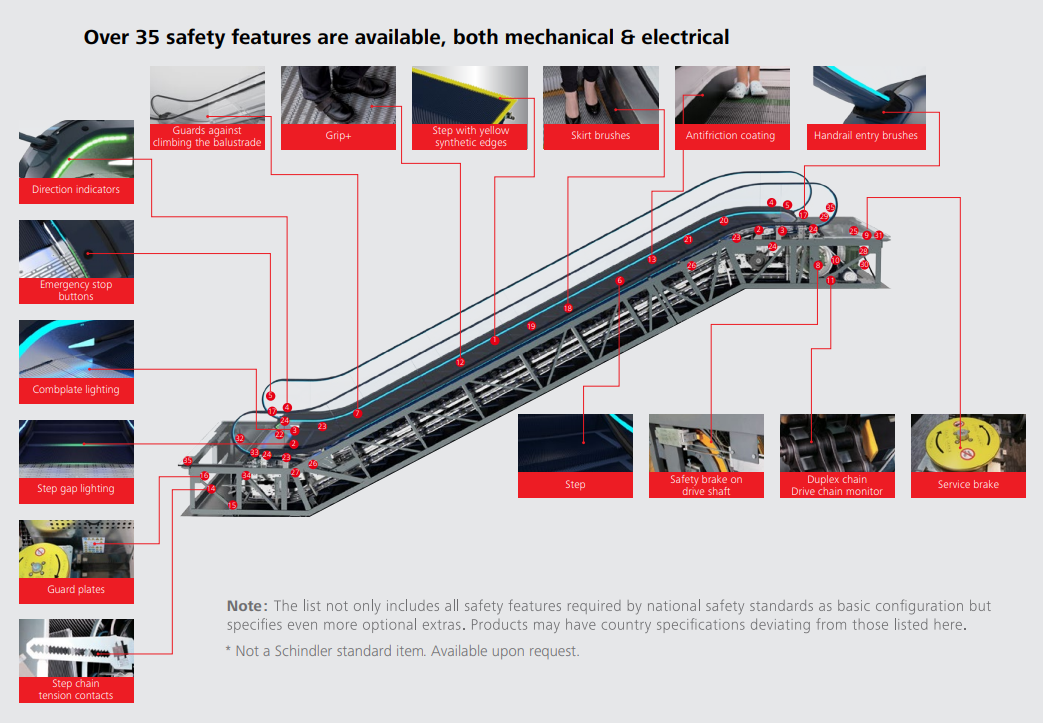

SAFETY COMPONENTS
- Step
- Grip+
- Service brake
- Duplex chain
- Countertrack
- Guard plates
- Drive chain monitor
- Antifriction coating
- Safety brake on drive shaft
- Step chain tension contacts
- Guards against climbing the balustrade
SAFETY INDICATORS
- Step gap lighting
- Combplate lighting
- Direction indicators
- Emergency stop buttons
- Step with yellow/blue synthetic edges
PREVENTION OF INADVERTENT REVERSING
- Speed monitor
- Step monitor
- Handrail monitor
- Phase monitoring relay
- Electric anti- reversing device
ANTI-ENTRAPMENT
- Skirt brushes
- Skirt contacts
- Combplate contacts
- Handrail entry brushes
- Handrail entry contacts
- Upthrust contact Step level
- Step upthrust device contact
STRONG & DURABLE COMPONENTS
COMPONENTS
Schindler 9300 components are selected to secure high reliability and long service life. It is the key components that make the difference.
IMPROVED COMPACT AND REINFORCED TRUSS
The new truss design with open profiles provides long-lasting corrosion resistance. The vibration-isolated end supports helps eliminate sound transmission to the building.
ERGONOMIC HANDRAIL WITH INCREASED BREAKING LOAD
Even small hands can comfortably hold the new ergonomic handrail. The new design combines high flexibility with strength and ensures a long service life.

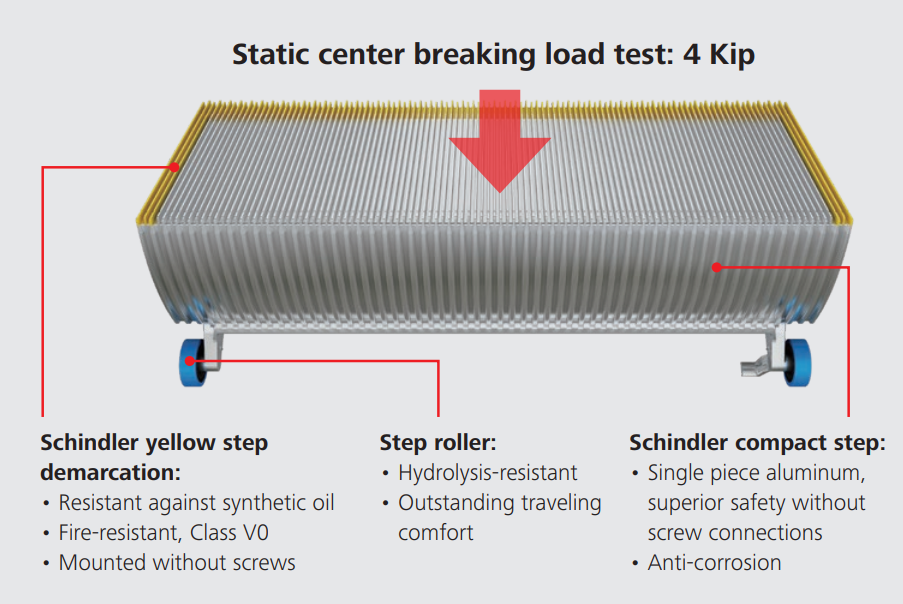

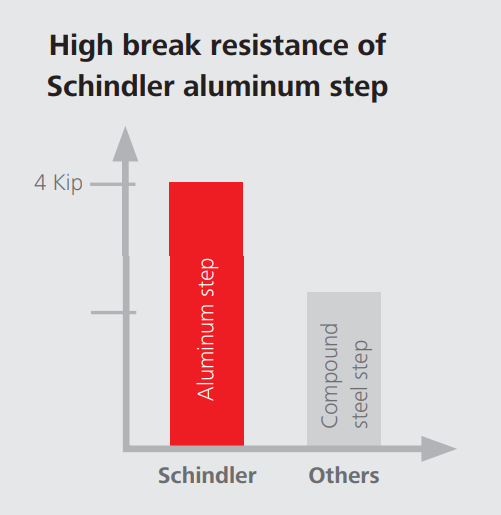

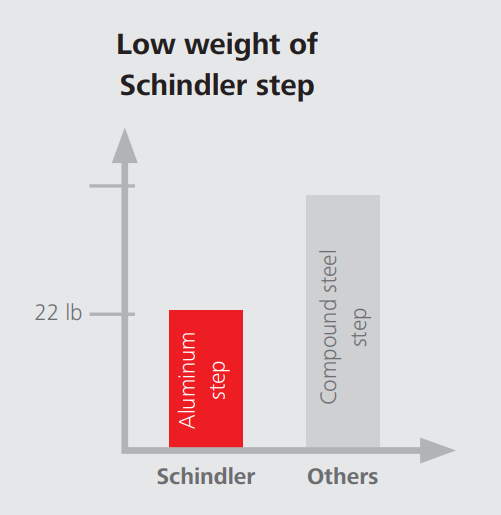

BREAK-RESISTANT ALUMINUM COMPACT STEPS
Steps are a very important safety component. The Schindler monoblock step provides significantly higher break resistance at substantially lower step weight compared to multipart compound steel steps.
DURABLE DRIVE AND STEP CHAINS
Schindler drive and step chains comply with national and international standards. The lubrication system is controlled by MICONIC F, which ensures a long service life and high operational efficiency.

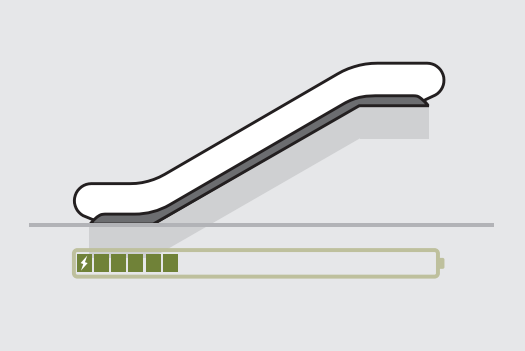

ENERGY-SAVING OPTIONS
ECO PREMIUM - GFU C
- Less product complexity
- Minimal Top Truss Extensions needed
- Energy savings up to 32% at an effective cost
- Regenerative capabilities for units running loaded in the down
ECO PREMIUM - REGENERATIVE
- IECC - 2015 Compliant
- Electric braking available
- Regenerative capabilities via Variable Frequency Drive
MOTOR RUNNING MODE
-Motor running in delta mode during times of high traffic -Motor running in star mode during times with no traffic

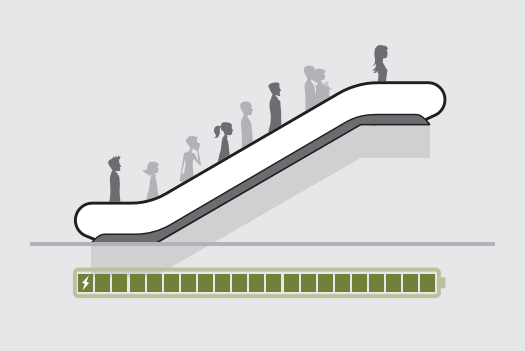

SCHINDLER’S ECO SYSTEM FOR SMART POWER SAVINGS
Load determination is optimized by constantly checking the load of passengers on the escalator. As a result, the motor operates according to the load, i.e., the number of passengers, in an efficient power window.
SCHINDLER ECOLINE1 POWER MANAGEMENT PACKAGES
Innovative eco-options for low-cost operation
In addition to the standard ECO savings system, stand-by speed operation is also available to gain extra energy savings by usage of variable frequency drives.
