Isolgomma Mustwall 10g Insulation Accessories
MUSTWALL 10G INSULATION ACCESSORIES
MUSTWALL 10G INSULATION ACCESSORIES
Airborne noise acoustic insulation consisting of panels composed of rubber granules 10 mm thickness.
INFORMATION
BRAND
Isolgomma
PRODUCT TYPE
Insulation Accessories
INSTALLATION
- Dry
- Glue
HIGH RESISTANCE
High resistance to dampness and condensate build-up
DIMENSIONS
- Length : 1.20 m
- Width : 1.00 m
COLLECTION
Mustwall
PRODUCTION
Made in Italy
TO BE USED WITH
Coupled plasterboard, decoupling solution on different types of structures
SOUND INSULATION
High sound insulation performance in reduced thickness
USE
Walll
REACTION TO FIRE
E
EASY
Easy installation
THICKNESS
10-20 mm
FLEXIBILITY
Product realized to be coupled with plasterboard, thanks to its flexibility it can adapt to the construction site needs
CERTIFIED ACOUSTIC IMPROVEMENT
Product with high acoustic performances, mechanical resistance and dimensional accuracy
APPLICATION

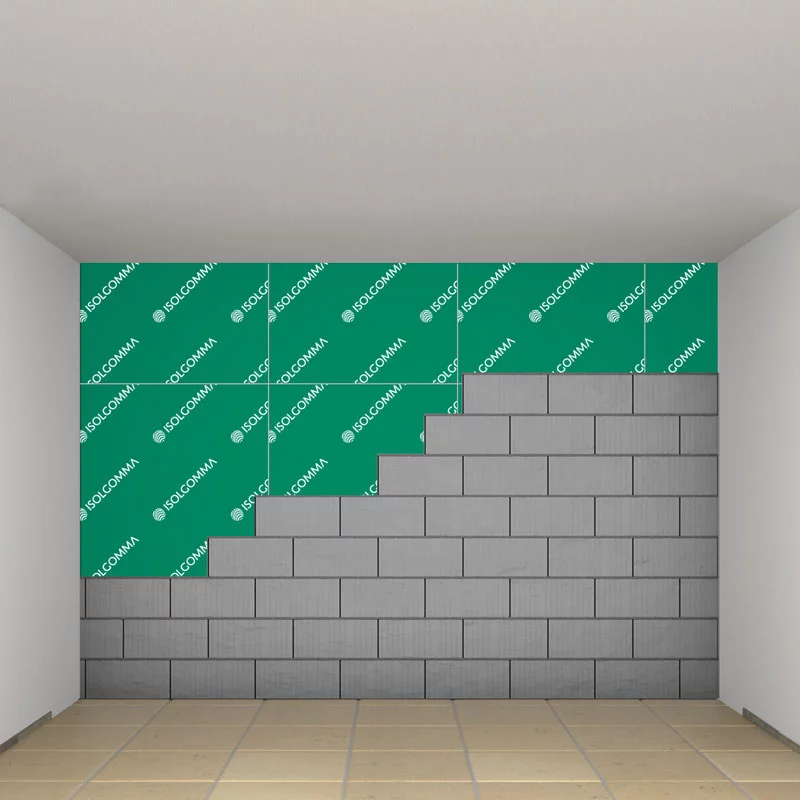

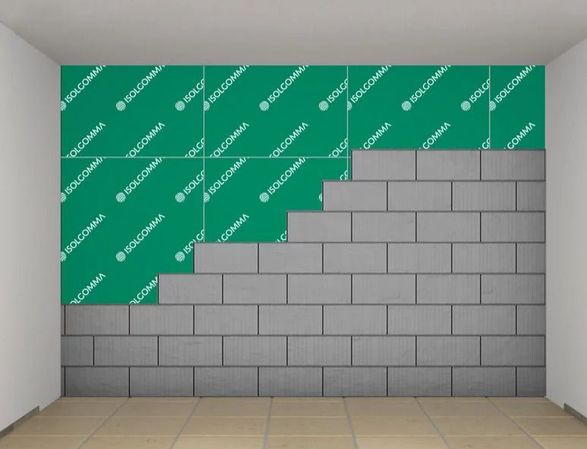

Double wall
WALL COMPOSITION
175 mm thickness
ACOUSTIC INSULATION

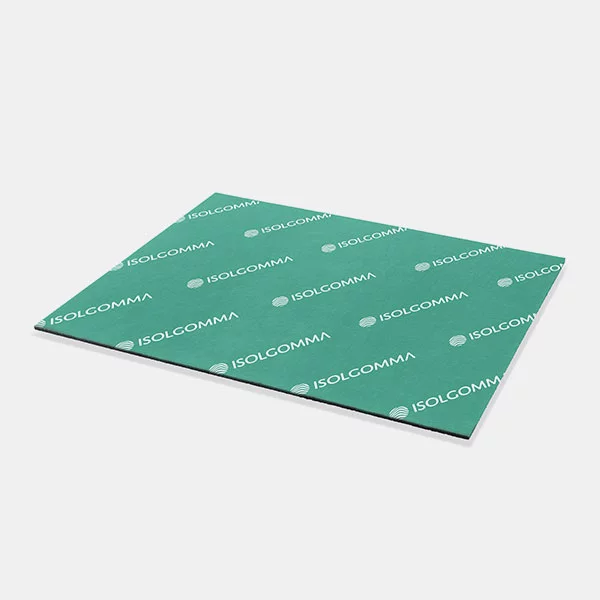

10 mm acoustic insulation panels, made of rubber granules from End-of-Life Tyres (ELTs)and EPDM rubber granules compacted using a polyurethane binder in a hot process. A black non-woven backing, non-stretch synthetic is applied on one side for added protection. The panels dimensions are 1,2 m lenght and 1 m width with a density of 700 kg/m³.
LAYING COSTS REDUCTION
The porosity of the surface facilitates the action of the glues ensuring speed and simplicity of execution
SUPERFICIAL WEIGHT
7.00 (kg/m²)
THERMAL CONDUCTIVITY COEFFICIENT Λ
0.120 W/m K
COATING
Coating made with Mustwall 20G and 12,5 mm double layer of plasterboard on 100 mm light aerated concrete block with plaster on both side
DENSITY
700 kg/m³
WALL ACOUSTIC PERFORMANCE RW (DB)
≥ 56 dB
DETAIL
INSTALLATION TEST
Acoustic performances of the intervention can be tested on site by a competent technician
ACOUSTIC CERTIFICATE
Product acoustic certificates are available and allow to comply with the limits imposed by law
ACOUSTIC REPORT
Our technical staff is able to give you the proper support in all the project phases, supporting you in the identification of materials
LAYING ASSISTANCE
Thanks to our extensive commercial technicians network, we are at your disposal for the coordination of the first laying phases on site
ACCESSORIES
ACCESSORIES

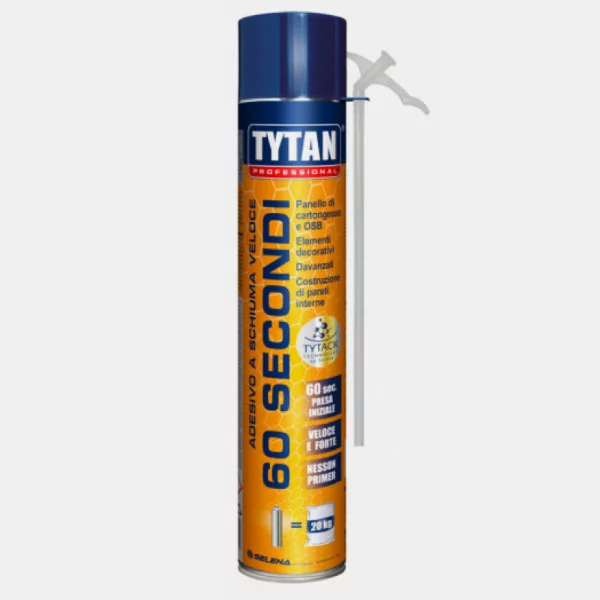

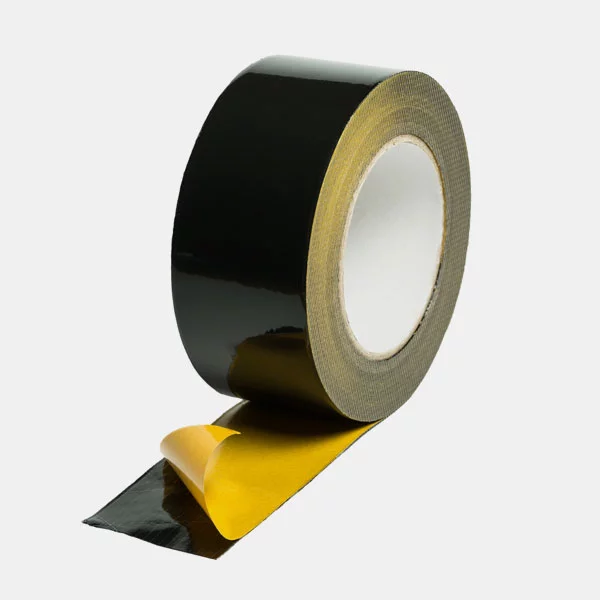

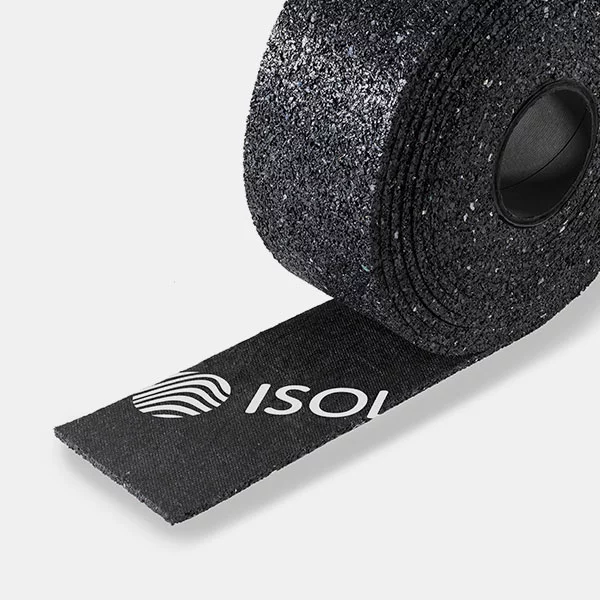

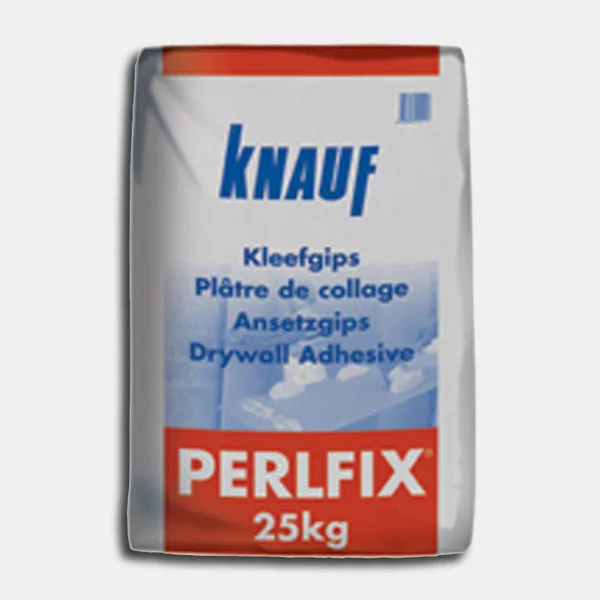

-Stywall Ad Pro -Stywall S -Glue Selena Tytan 60s -Glue Perlfix K465 -Stik Hd -Fixing Elements
