Isolgomma Rewall 33b Acoustic Insulation For Walls
REWALL 33B ACOUSTIC INSULATION FOR WALLS
REWALL 33B ACOUSTIC INSULATION FOR WALLS
High performance acoustic and thermal insulation panel composed of polyester fibre and plasterboard layer.
INFORMATION
BRAND
Isolgomma
PRODUCT TYPE
Insulation Accessories
INSTALLATION
- Dry
- Glue
USE
- Wall
- Ceiling
DIMENSIONS
- Length : 2 m
- Width : 1.20 m
COLLECTION
Rewall
PRODUCTION
Made in Italy
APPLICATION
- Ceiling
- CLT wall
- Single Wall
COATING
Coating made with Rewall 33B + 12.5 mm plasterboard on 120 mm brick wall
PRODUCT STANDARD
EN 14190:2014
REACTION TO FIRE
E
EASY
Easy installation
THICKNESS
33 mm
FLEXIBILITY
Rewall 33B can be applied to any wall with acoustic and vibration-damping functions. High performances in little space. Resistant to moisture
CERTIFIED ACOUSTIC IMPROVEMENT
Product for sound insulation with CE mark, Rewall 33B provides maximum acoustic performance in residential and commercial environments
MASS PER UNIT AREA
10.5 kg/m²
HIGH RESISTANCE
High resistance to dampness and condensate build-up
ACOUSTIC INSULATION
Airborne noise wall insulation in 33 mm-thick pre-assembled panels, made of a 20 mm-thick polyester fiber panel, density of 100 kg/m³ and a 12.5 mm-thick plasterboard slab. The panels dimensions are 1.20 m width x 2.00 m lenght.
TO BE USED WITH
In renovations to improve the acoustic performance of existing walls, thanks to its low thickness and comfortable dry laying. Elevator compartments
SUPERFICIAL WEIGHT
11.50 (kg/m²)
THERMAL RESISTANCE R
0,688 m² K/W
LAYING COSTS REDUCTION
Supplied already coupled to a plasterboard layer, Rewall 33B ensures rapid and minimally invasive interventions in terms of dirt and dust production in environments

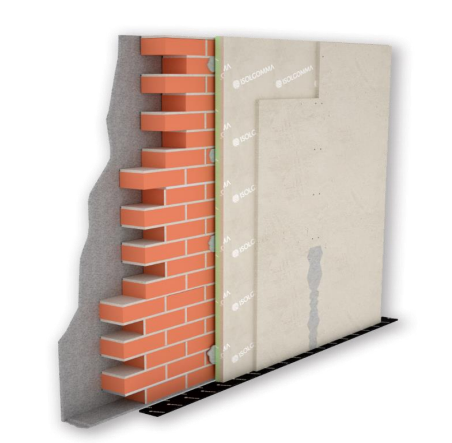

WALL COMPOSITION
165 mm thickness
WALL ACOUSTIC PERFORMANCE RW (DB)
≥ 56 dB
DETAIL
INSTALLATION TEST
Acoustic performances of the intervention can be tested on site by a competent technician
ACOUSTIC CERTIFICATE
Product acoustic certificates are available and allow to comply with the limits imposed by law
ACOUSTIC REPORT
Our technical staff is able to give you the proper support in all the project phases, supporting you in the identification of materials
LAYING ASSISTANCE
Thanks to our extensive commercial technicians network, we are at your disposal for the coordination of the first laying phases on site
INSTALLATION INSTRUCTIONS FOR ACOUSTIC
WALL STRIPE

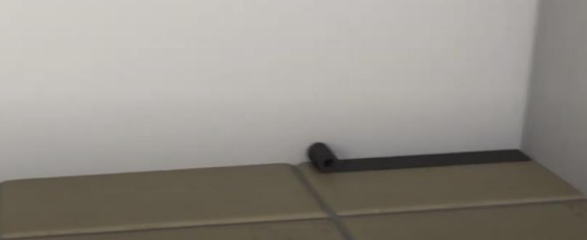

Lay the under wall stripe
GLUE THE PANEL

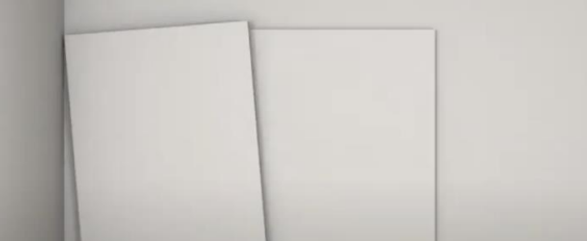

Glue the panel to the wall pressing lightly
TWO SAFETY PLUGS

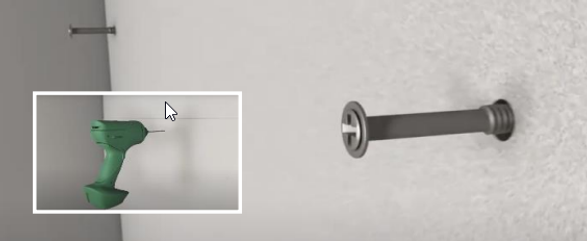

Attach two safety plugs to the top of the panel
SCREWS
Fix the second gypsum board with the glue and/or appropriate screws
GROUND PANEL

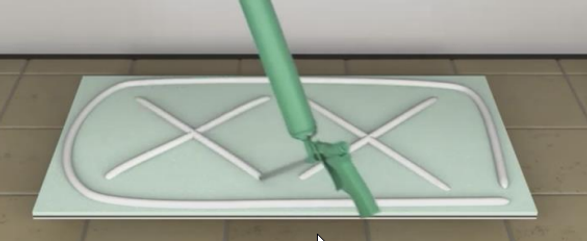

Lay points of a gypsum-based glue on the ground panel or use a low-expansion polyurethane glue
GROUTING
Apply the plastic mesh tape in the gypsum boards jointing lines. Grouting
