Sergeferrari Soltis 86 Color, Alu Solar Shading
SOLTIS 86 COLOR, ALU SOLAR SHADING
SOLTIS 86 COLOR, ALU SOLAR SHADING
Exterior solar protection, interior solar protection
INFORMATION
BRAND
Sergeferrari
PRODUCT TYPE
Solar Shading
TENSILE STRENGTH (WARP/WEFT) EN ISO 1421
230/160 daN/5 cm (517/360 lbs/2 in)
OPTIMISED NATURAL LIGHT CONTRIBUTION
Soltis 86 promotes natural light intake. This is beneficial in terms of:
- Energy savings by reducing the use of artificial lighting
- The well-being, health and productivity of people in a professional or private environment.
COLLECTION
Soltis
WARRANTY
5 years
TRANSPARENCY
A range dedicated to transparency
Thanks to Soltis 86, you can achieve remarkable transparency and improve the amount of natural light while maintaining good thermal protection.
AVERAGE VALUE
A +/-5% Tolerance
WEIGHT EN ISO 2286-2
380 g/m² (11.2 oz/sq. yd)
CLEAN
Easy-to-clean smooth surface ensuring compactness and easy rolling
MANAGEMENT SYSTEMS
- Quality : ISO 9001
- Environment : ISO 14001
- Energy : ISO 50001
WIDTH
180 cm (70.9 in)
WEIGHT EN ISO 2286-2
590 g/m² (17.4 oz/sq. yd)
DURABILITY
Structural Durability
EUROCLASS EN 13501-1
B-s2,d0
ROLL LENGTH
- In 177 cm (69.7 in width) : 50 lm (54.68 yd)
- In 267 cm (105.1 in width) : 40 lm (43.74 yd)
HARMONISED RANGES
All the colors of Soltis 86 are coordinated with Soltis 92 to:
- Harmonise all the facades of a building
- Meet visual comfort needs according to each facade’s orientation
- Adjust thermal protection to save energy
CARBON IMPACT EN 15804 + A1
2.22 kg CO2 eq/m²
WIDTH
177 cm - 267 cm (69.7 in - 105.1 in)
EXCELLENT TRANSPARENCY
Soltis 86 provides excellent outward visual contact to enjoy the view even when the awning is lowered. It proves its efficiency by blocking up to 93% of the heat in outdoor use.
THICKNESS
0.45 mm (450 microns)
TEAR STRENGTH (WARP/WEFT) DIN 53.363
45/20 daN (101/45 lbs)
FIRE RESISTANCE
- BS 7837
- B1/DIN 4102-1
- M1/UNE 23.727-90
- VKF 5.3/SN 198898
- Class 1/UNI 9177-87
- Schwerbrennbar-Q1-Tr1/ONORM A 3800-1
- BS 5867-2
- CSFM T19
- CAN ULCS109
- Class A/ASTM E84
- G1/GOST 30244-94
- AS/NZS 1530.2 & 1530.3
- NFPA 701 Method 1 & Method 2
OPENNESS FACTOR
14%
DOWNLOADS
↓ Brochure
↓ Maintenance Guide
ADVANTAGES
Preserved
APPLICATIONS
APPLICATIONS

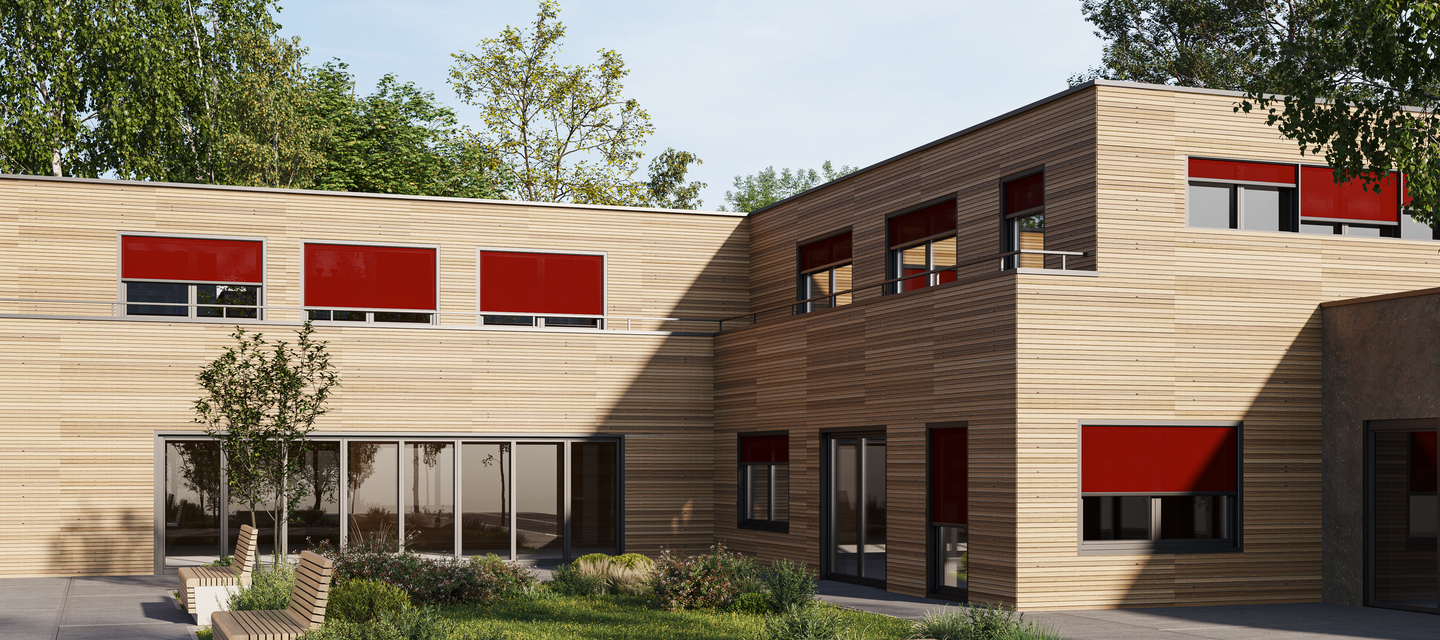

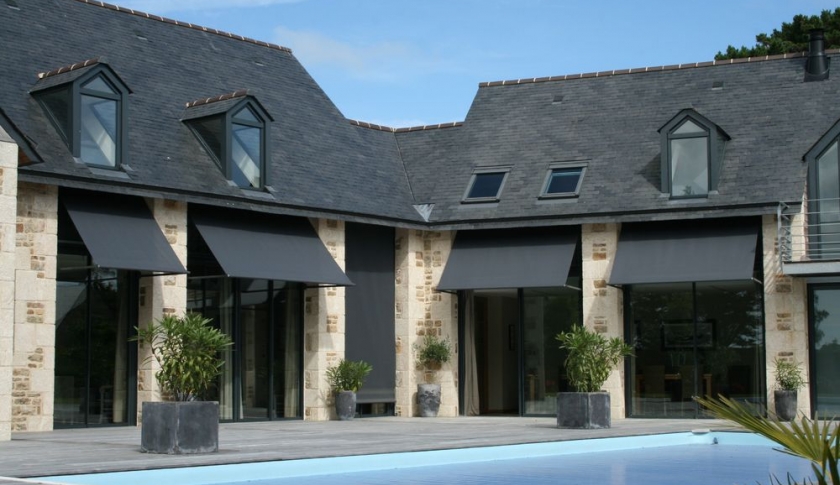

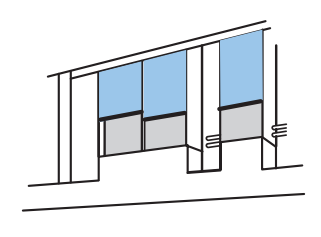

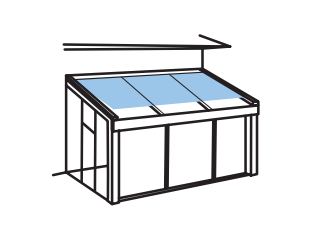

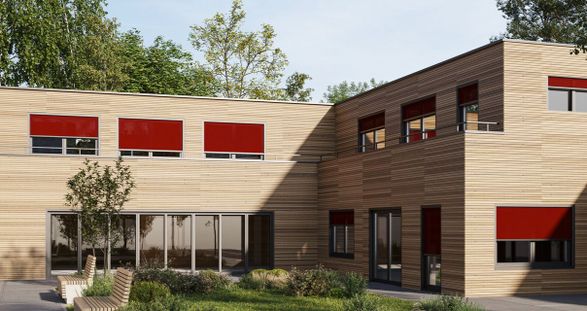

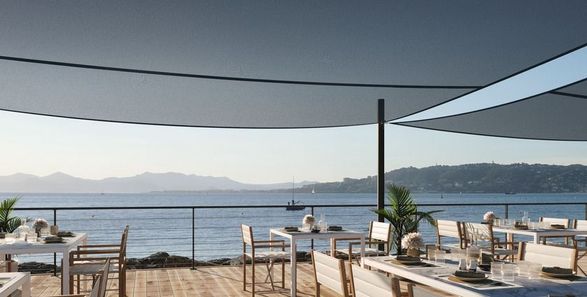

-Facade Blind -Projection Awning -Wintergarden Blind

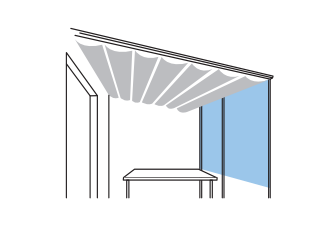

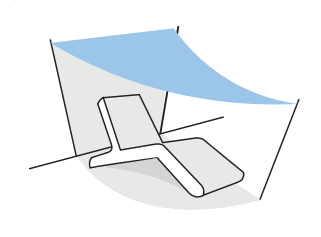

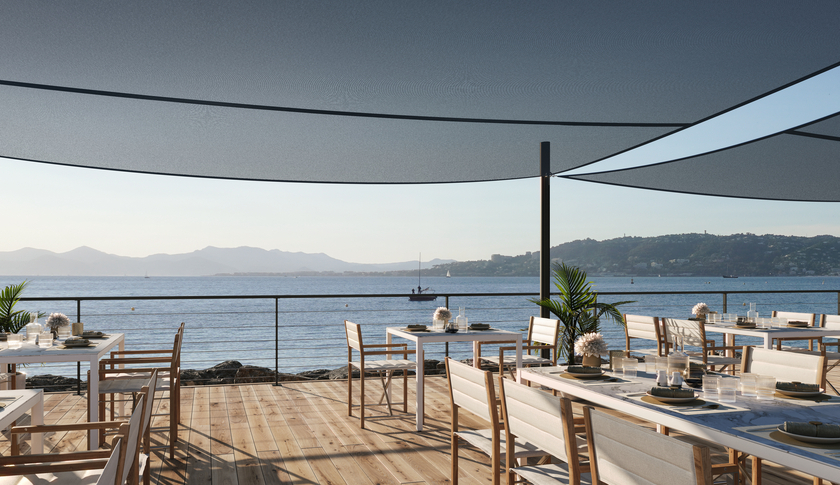

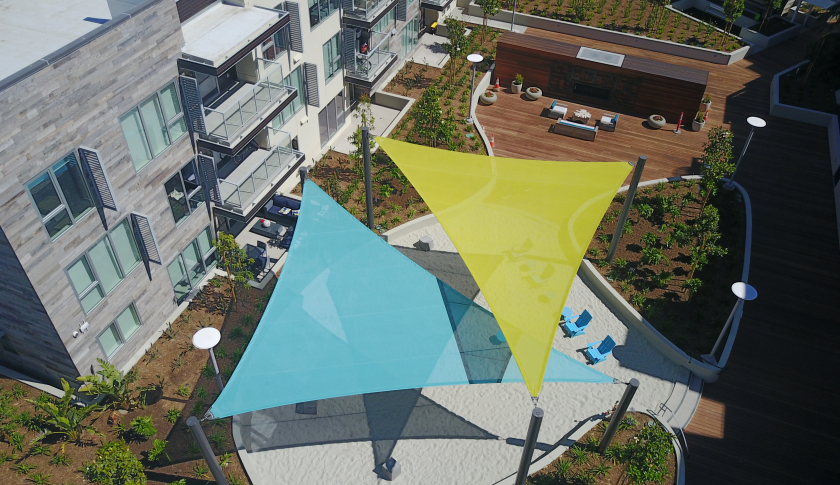

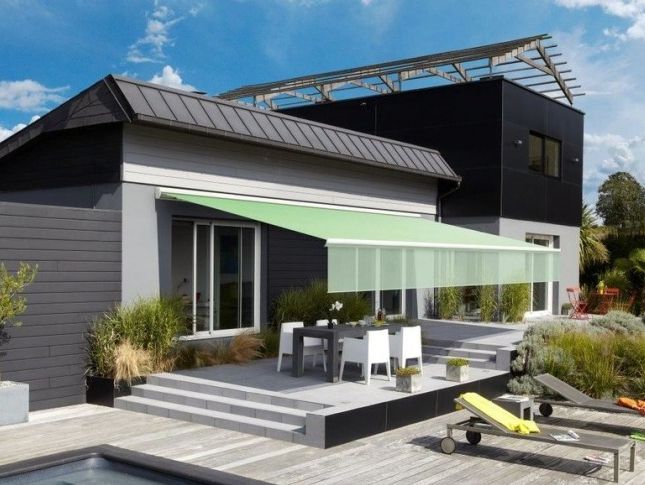

-Fixed Pergola Roof -Rollable Pergola Roof -Retractable Pergola Roof -Lateral Pergola Blind -Retractable Arm Awning -Wind Shield -Shade-sail

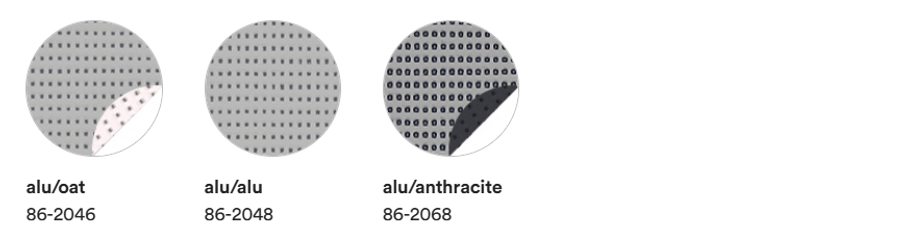

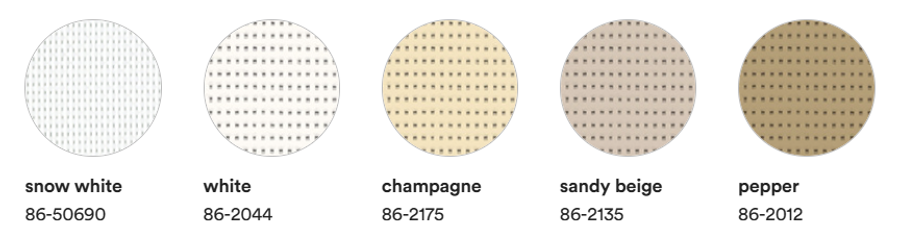

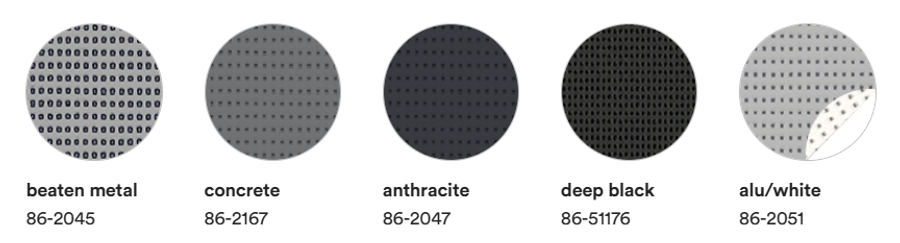

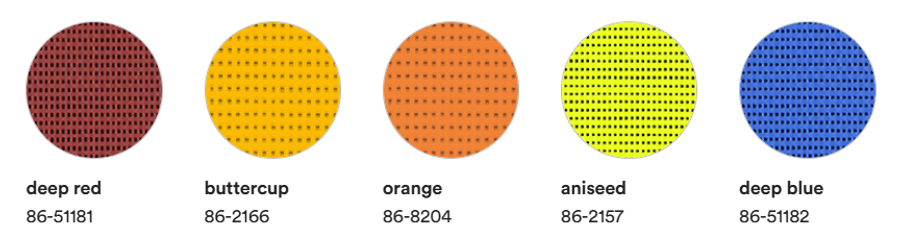

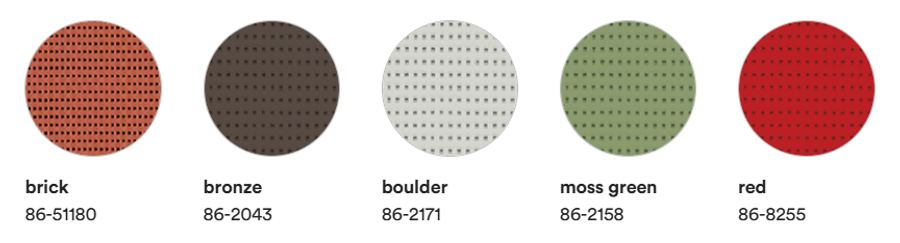

COLOURS
