ARE Zen-0 Electric Lift
ZEN-0 ELECTRIC LIFT
ZEN-0 ELECTRIC LIFT

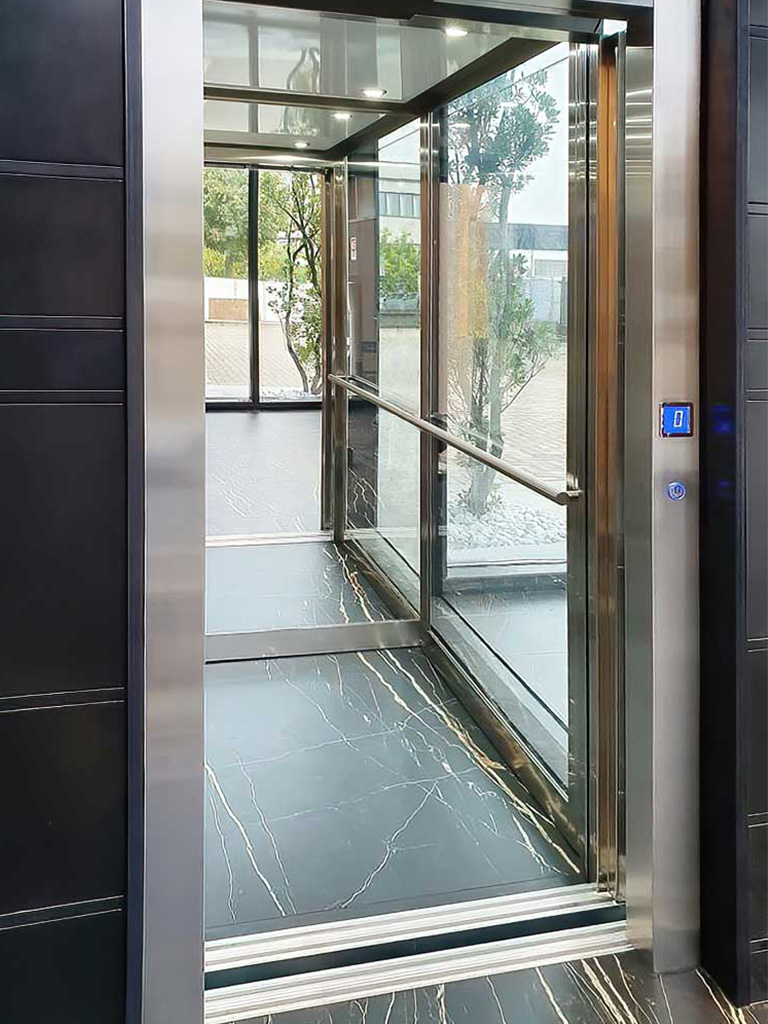

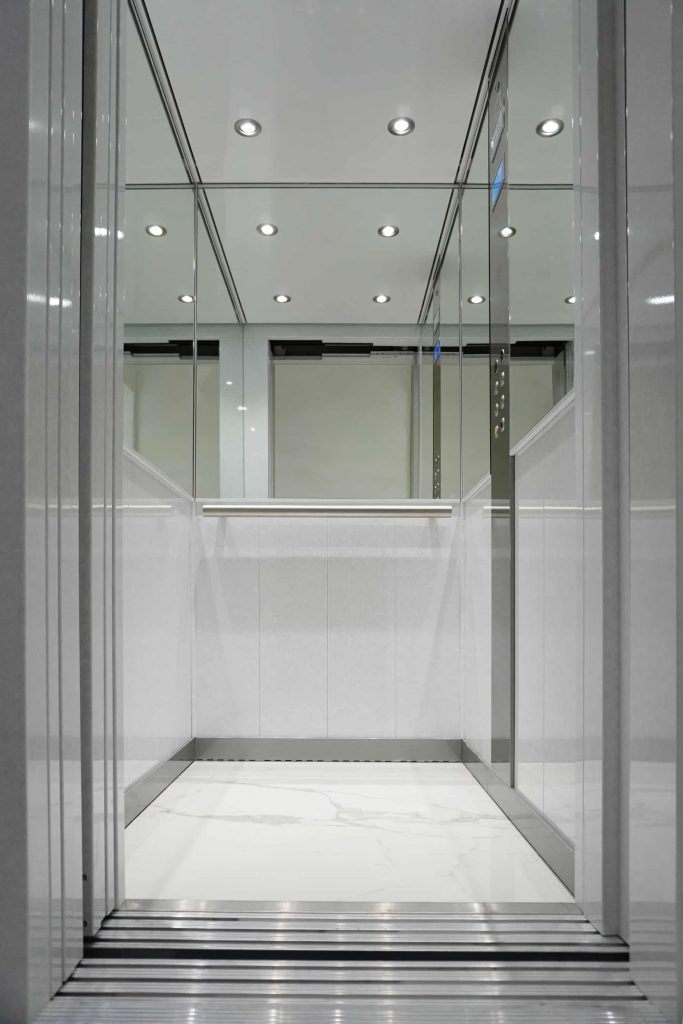

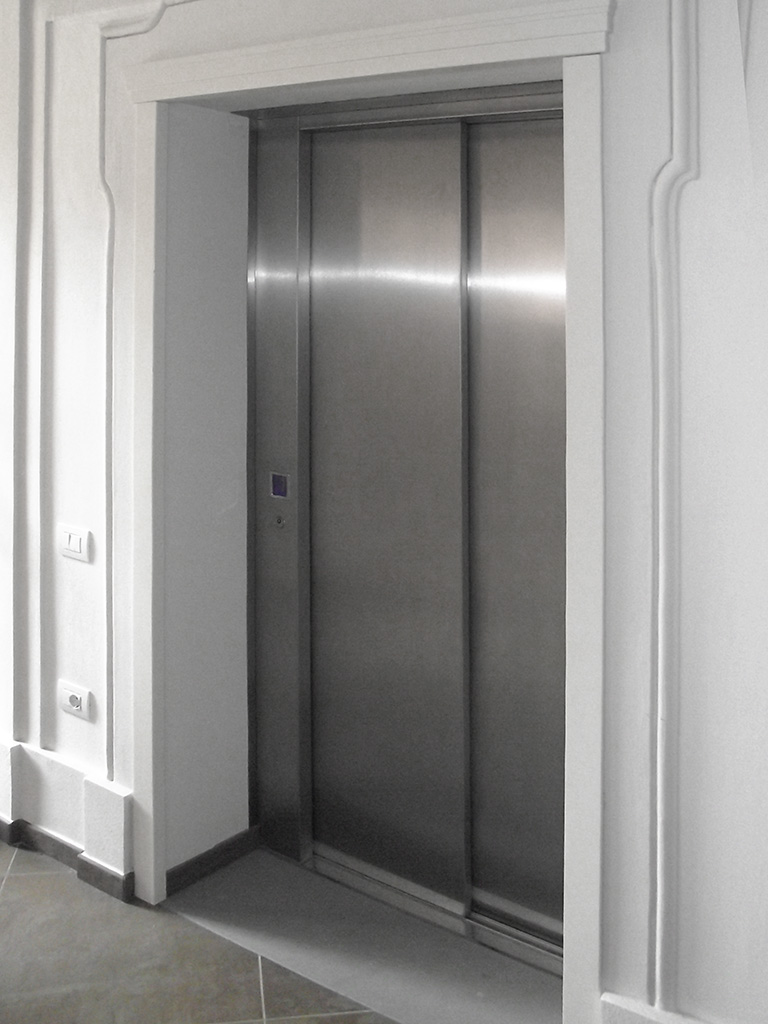

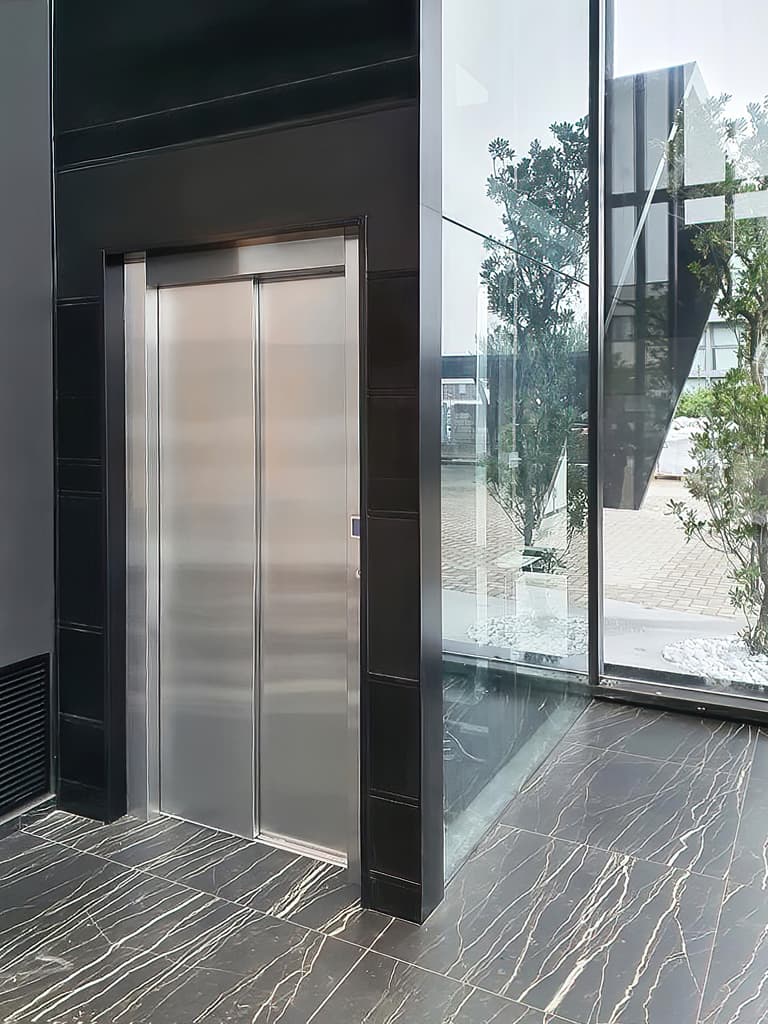

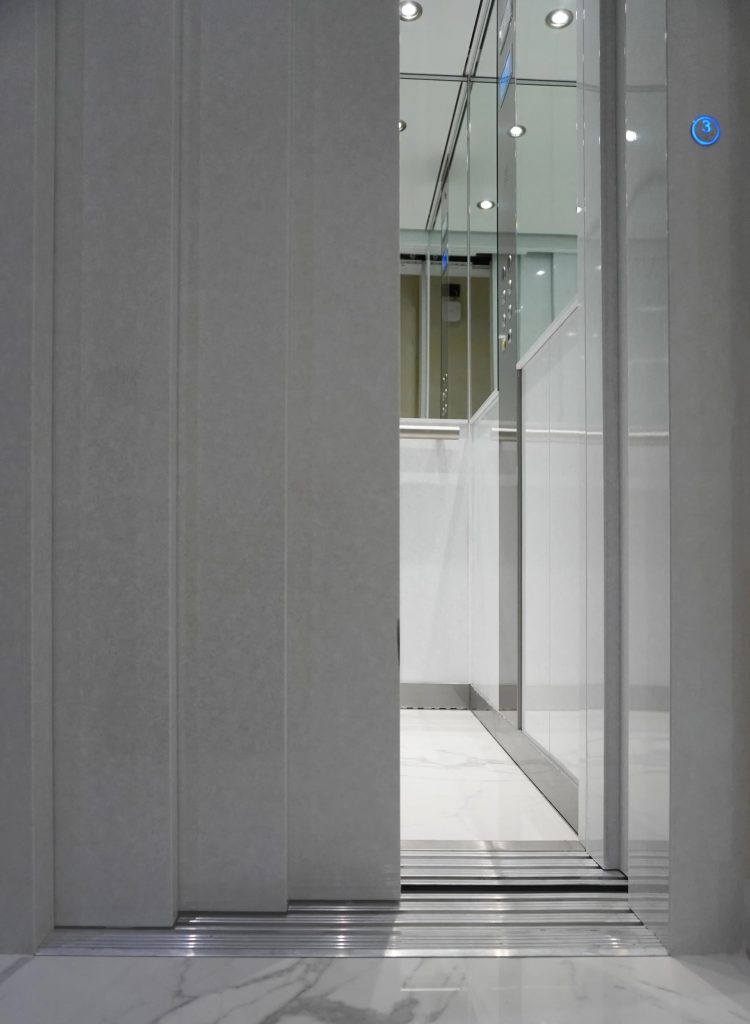

Launched in 2020, ZEN-0 is an innovative electric lift that is unique in its sector and ideal for domestic and public environments, apartment blocks and offices.
Thanks to its patented ARE SMART-POWER system, ZEN-0 requires minimal resources to operate. In fact, the power used is only 300 Watts.
FEATURES
REDUCED INSTALLATION SPACE
The ZEN-0 can be installed even in spaces where it is impossible to fit a traditional lift.
NO MACHINE ROOM
The absence of a dedicated machine room allows the system to also be used in buildings with limited space.
GEARLESS MOTOR
The use of a gearless motor guarantees high efficiency, reduced dimensions and low maintenance costs (no lubricating oils are required).
SWITCH MODE
When the charge level of the batteries goes under a preset threshold, ZEN-0 automatically activates the SWITCH mode. In this mode ZEN-0 uses the grid to power the motor and it moves at a reduced speed to remain within the installed electricity meter’s parameters.
INFORMATION
BRAND
ARE
PRODUCT TYPE
Electric Lift
MOVEMENT SPEED
0.8 m/s
HOURLY INSERTIONS
90
PRODUCTION
Made in Italy
POWER SUPPLY
Battery-powered
MAXIMUN NUMBER OF STOPS
8
MAX POWER DEMAND
0.3 kw
HEADROOM
3400 mm
CHARGING
With Battery
DETAIL
To operate the ZEN-0, it simply needs to be plugged into a standard power socket, like a normal household appliance. This achieves maximum performance in terms of energy efficiency.
POWER CONSUMPTION
300W
TRAVEL
30000 mm
PIT
1050 mm
YEAR OF PRODUCTION
2020
IN THE SWITCH MODE DURING FAST CHARGING
1.5
MIN. INTERFLOOR
Automatic
BATTERY CHARGING
Using Solar Energy
DISPLAY SMART
Our Display Smart allows you to monitor in real-time all the information about the energy generated by the electric lift during use and the level of battery charge.
Additional functions include warnings regarding overloads in the cabin, low battery charge and no mains voltage.
AMOUNT OF POWER (KW) IN THE SWITCH MODE 1
1.2 kw
MAXIMUM TRAVELS IN CASE OF BLACKOUT 2
40
INRUSH ABSORPTION FROM THE NETWORK
2.2 A
CAPACITY
- Max Capacity People : 8 kg
- Max Capacity Product : 630 kg
ENERGY
The energy generated by ZEN-0 during use (with the cabin empty going up and the cabin full going down), is not wasted as heat, but stored in batteries for use in subsequent runs. Self-powering guarantees a real reduction in consumption which means lower running costs.
USE
Indoor
DOWNLOAD
↓ Brochure
ANTI-BLACKOUT SYSTEM
-Remaining trapped due to an unexpected power outage is a problem that nearly all new lifts have overcome. -But being able to continue using the lift as if the power were still on is a feature very few lifts offer. ARE has perfected this technology right from the beginning and includes it on all its lifts. -ZEN-0 is no exception. It ensures functionality and constant accessibility for everyone, even during prolonged power outages.
BENEFITS
CONFORT & SILENCE
The silence achieved by our new are smart-power technology gives zen-0 lift passengers a pleasant sensation of comfort during travel.
ECO-FRIENDLY & CLEAN
ZEN-0 respects the environment because it does not use any kind of oil, even as a lubricant for the guides.
MACHINE ROOM LESS
With ZEN-0, no space is required to house hydraulic control units and manoeuvring switchboards. The motor unit is located inside the lift well and the manoeuvring switchboard can be incorporated into a floor door.
TECHNOLOGY
DISCOVER ARE SMART-POWER TECHNOLOGY
Are smart-power is the name given to the innovative, patented technology with numerous energy efficiency benefits we use to power our lifts.
LOW ENERGY CONSUMPTION, MAXIMUM POWER
Like a household appliance

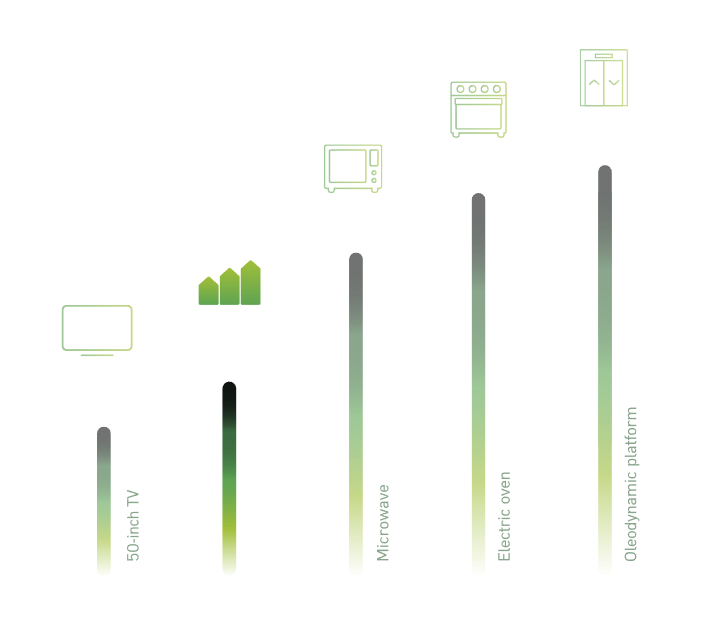

Thanks to the technology developed by A.R.E, the maximum power used by the ZEN-0 Elevator is only 0.3 kW, comparable to that of a common household appliance.
RECHARGING FROM SOL-ARE PHOTOVOLTAIC PANELS
Renewable energy Zero consumption
SOL-ARE is ARE's new patented technological innovation that is designed to optimise lift battery recharging using solar energy produced by photovoltaic panels.

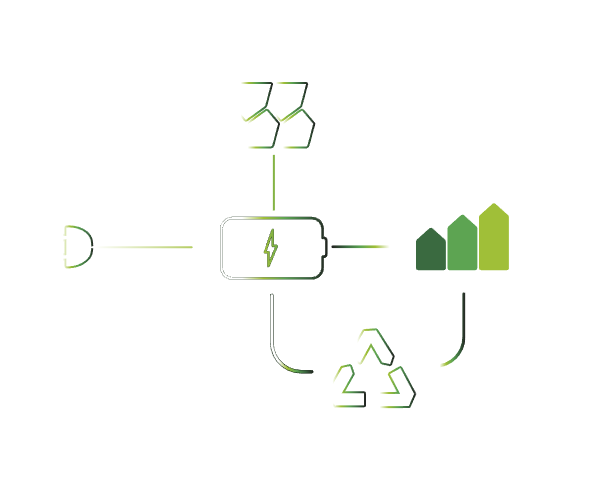

ENERGY RECOVERY
The more you use it, the more energy you store
The energy produced during the normal use of our lifts is not wasted as heat, but stored in batteries for use in subsequent runs. This reduces national power grid consumption costs.
ANTI-BLACKOUT SYATEM
Always working, always safe.
Batteries are the main power supply system used on our lifts. This allows our lift to continue to operate even in the event of a sudden power failure, so accessibility and safety are guaranteed at all times. With charged batteries and under optimal usage conditions, up to 60 runs can be made with the Mangusta and Miniwatt lifts and up to 40 runs with the ZEN-0 lift.
