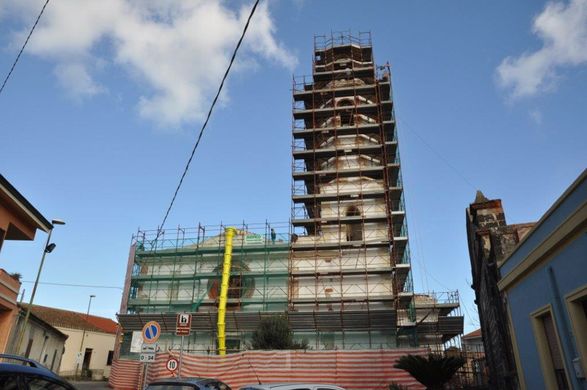

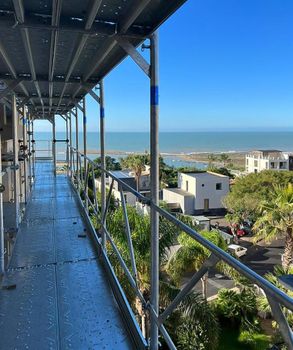

Pilosio K 105-180 Pin frame scaffolding
K 105-180 PIN FRAME SCAFFOLDING
K 105-180 PIN FRAME SCAFFOLDING
K-KZ is a frame scaffolding system featured with locking pins, welded to the frames.
Such pins allow to connect ledgers, braces and accessories to the frames securing them without using any special tools.
This scaffold, easy and fast to assemble is particularly recommended for façade works.
INFORMATION
BRAND
Pilosio
PRODUCTION
Made in Italy
INSTALLATION
Easy Installation, With A Temporary Aluminium Guardrail Available For Collective Fall Protection During The Scaffolding Erection And Dismantling
COLLECTION
K 105-180
PRODUCT TYPE
Scaffolding
FRAME UPRIGHT
Frame upright tubes ø 48.3 mm with 2.9 mm thickness
ENVIRONMENT
Outdoor
FINISH
Hot-dip Galvanized Steel
ADVANTAGES
- Modular frame scaffolding suitable for facade work and more
- Simple, logical and quick to assemble and disassemble thanks to just a few elements
- Maximum load capacity of 300 kg/m2 with standard dimensions of 105cm wide and 180cm long spans
USE
Manufacturing
RAILING
Double
FRAME SCAFFOLDING MEASURING
- Width : 105cm
- Height : 200cm
SUITABLE FOR
Building Construction And Restoration
FRAME
K version with parapet frame
TUBES
Tubes for currents and diagonals ø 26.9 mm with thickness 2.3 mm
CHARACTERISTICS
- The double railings make assembly simple and safe.
- K is a steel frame scaffolding with pins that is very easy and quick to assemble, particularly suitable for traditional facade work.
- The connecting pins, welded onto the frames, make it extremely easy to assemble the parapet frames (K version), without using any special tools.
APPLICATIONS
ALL APPLICATIONS
- Naval
- Bridge Construction
- Bridge Maintenance
- Residential Constructions
- Industrial Construction
- Renovation & Restoration

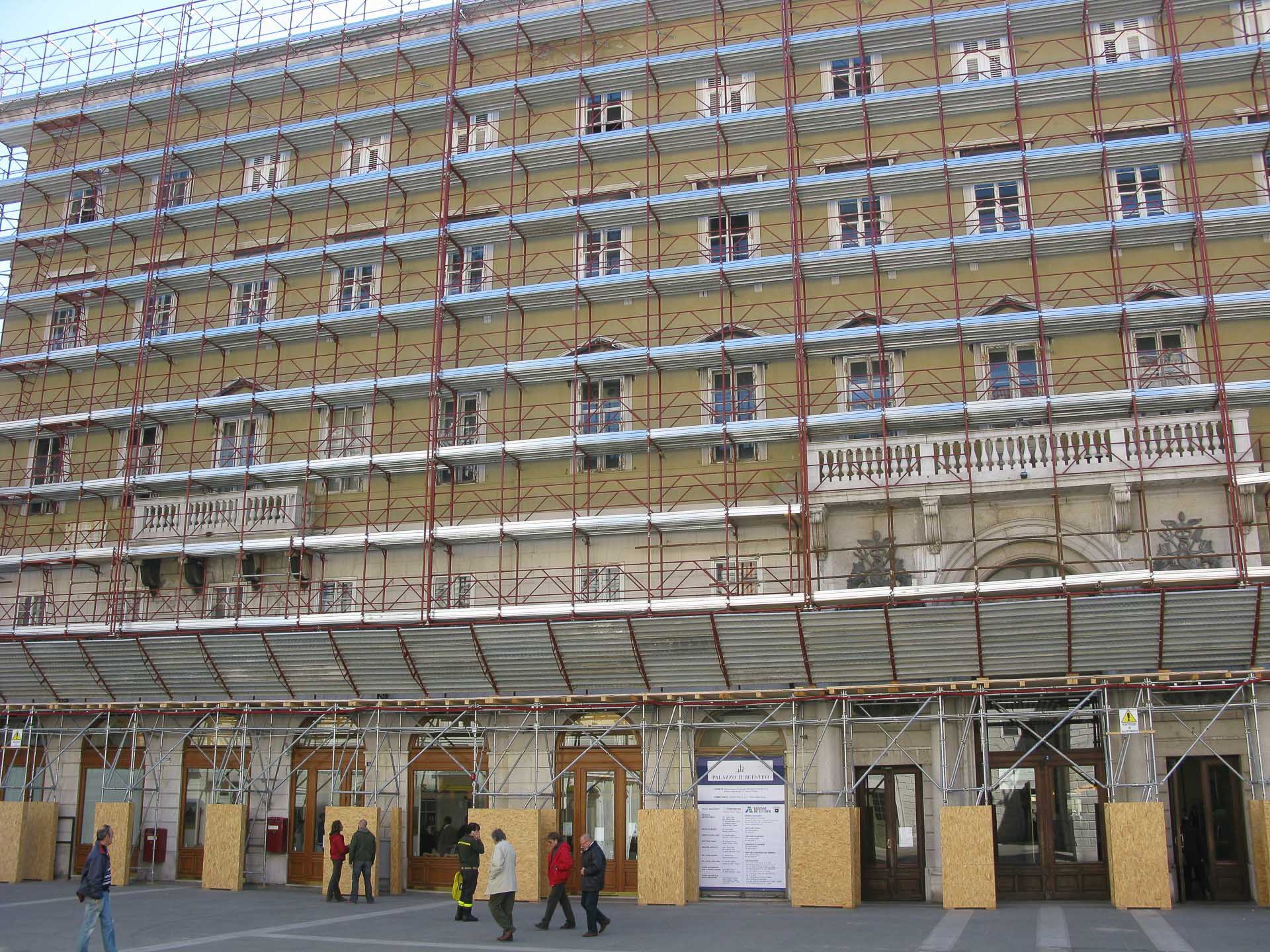

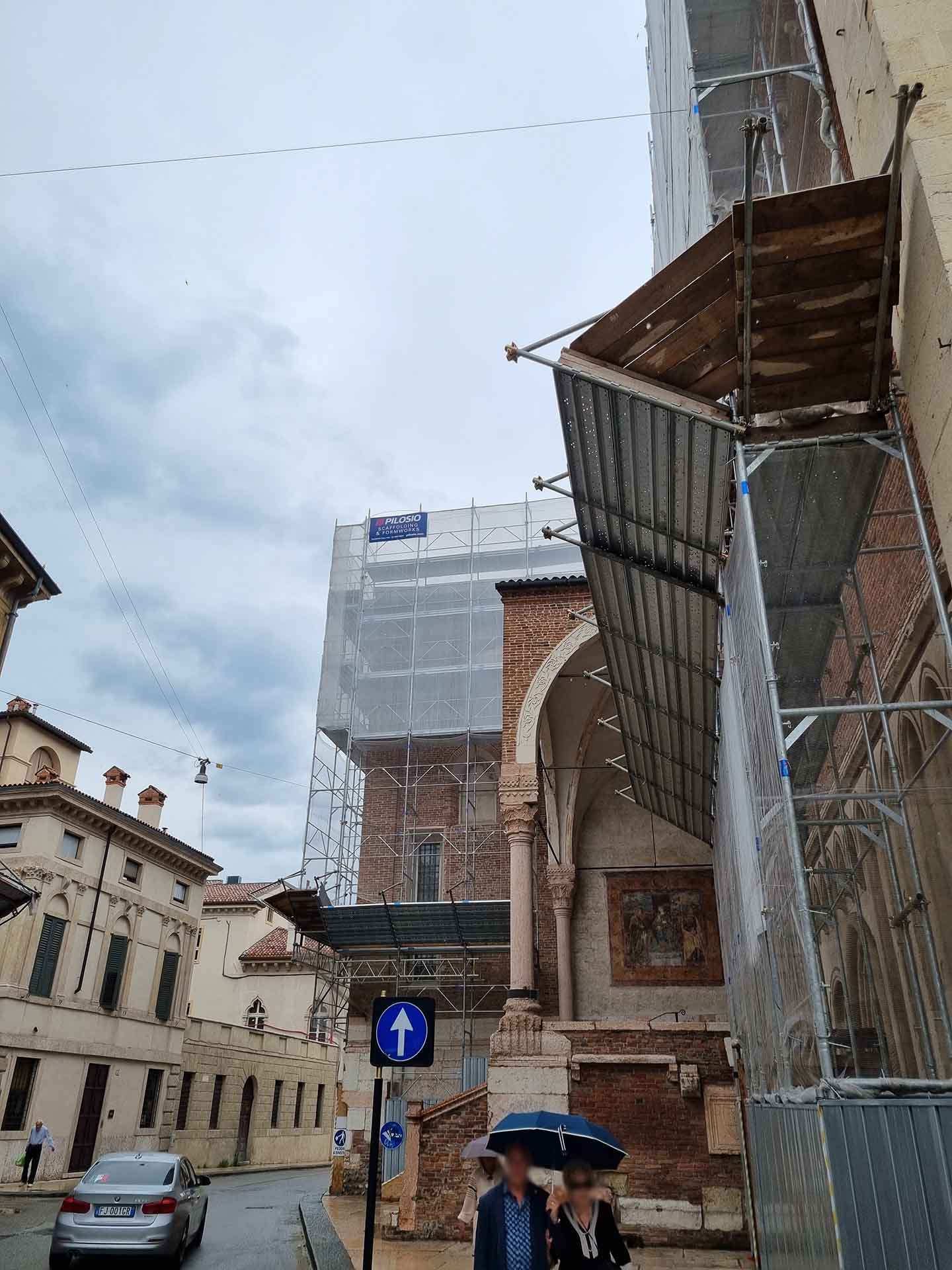

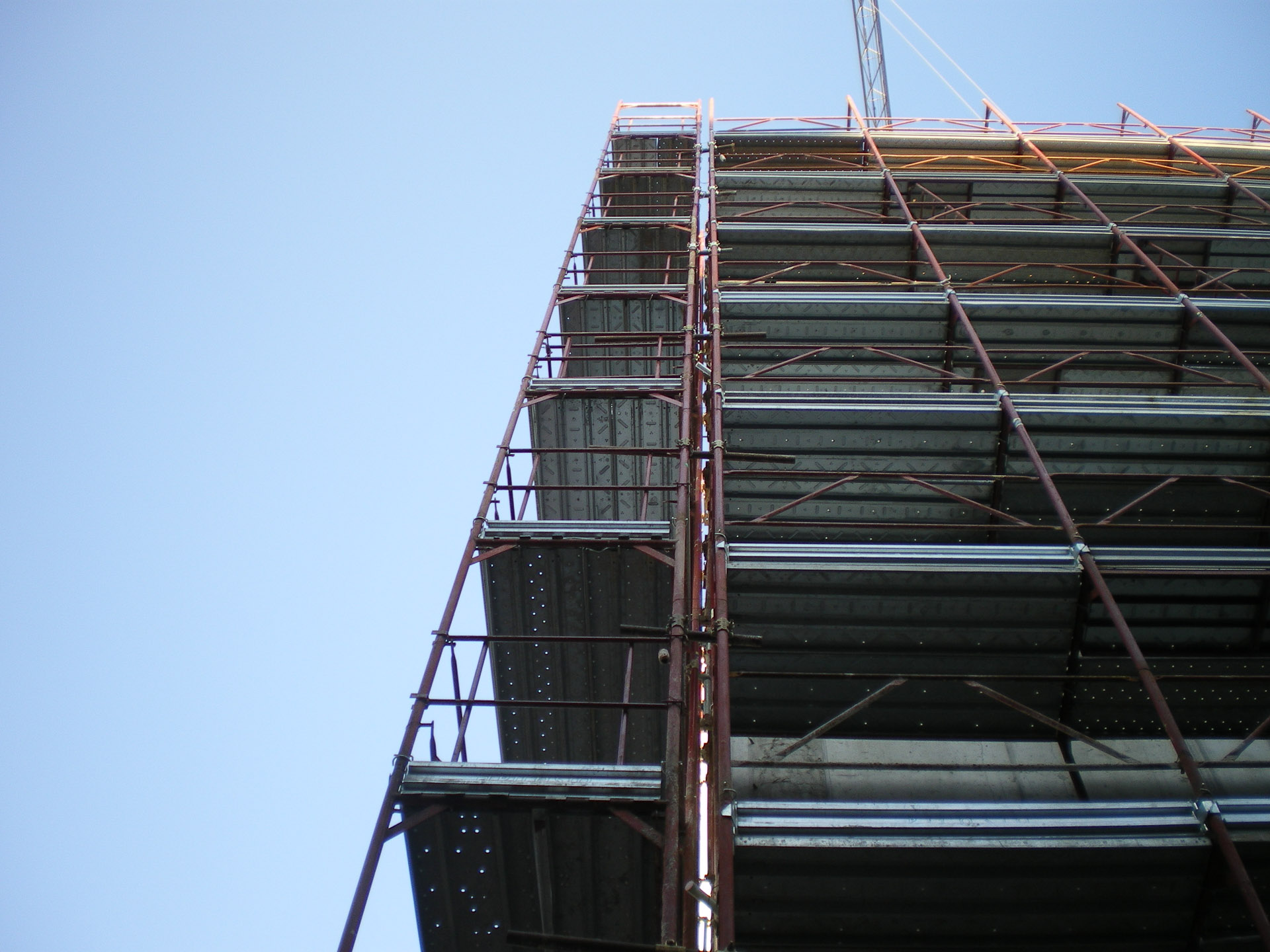

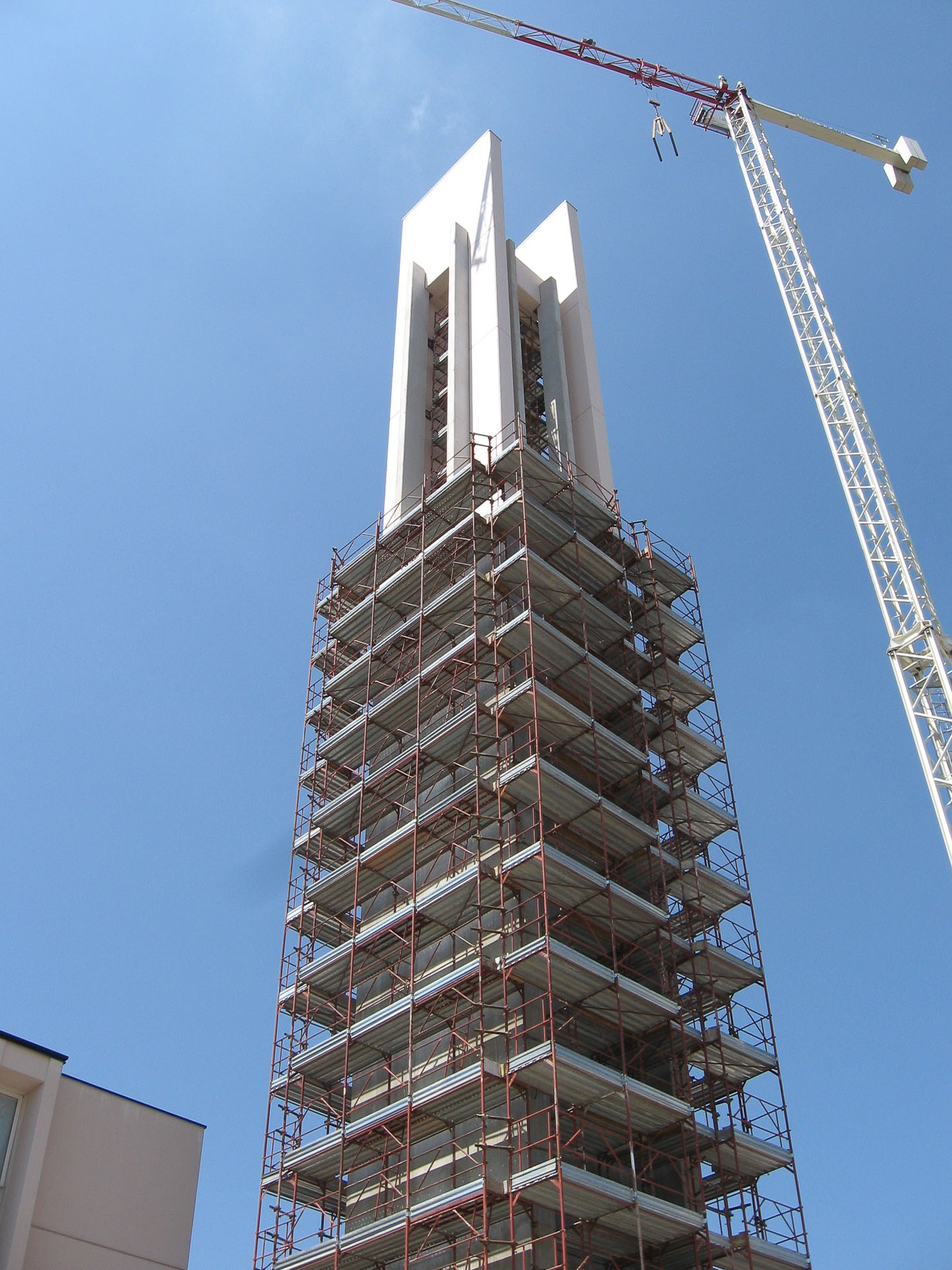

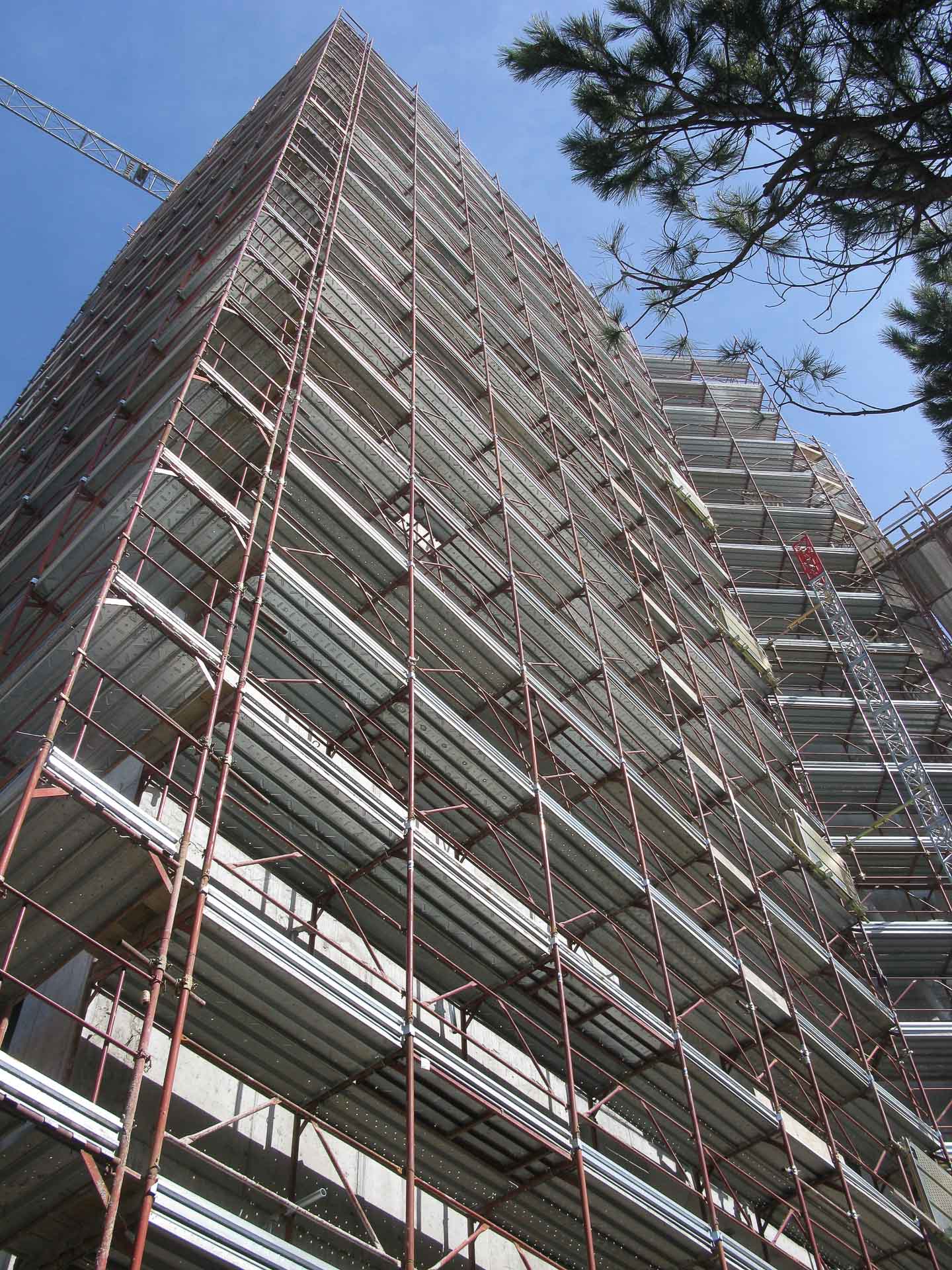

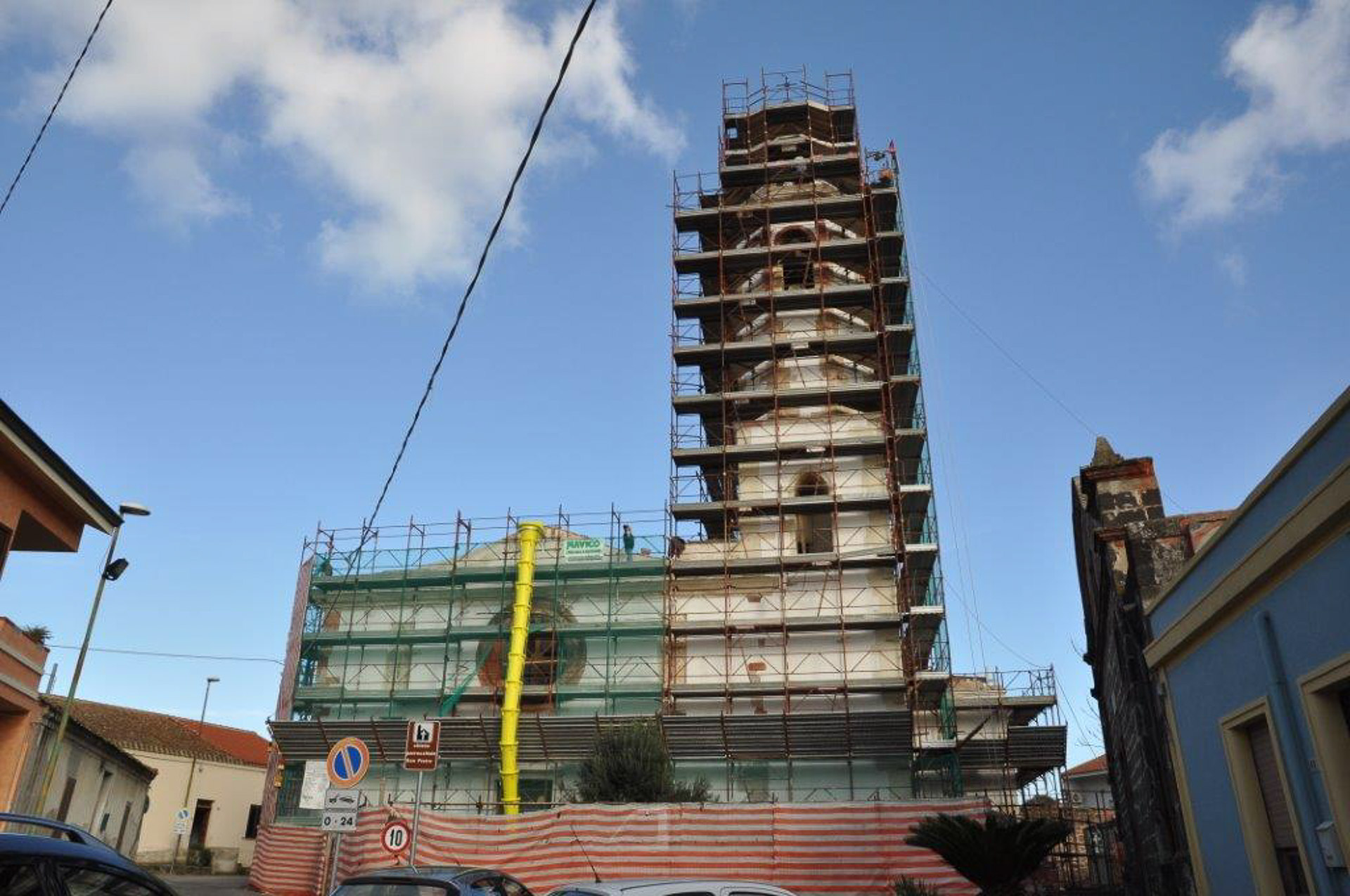

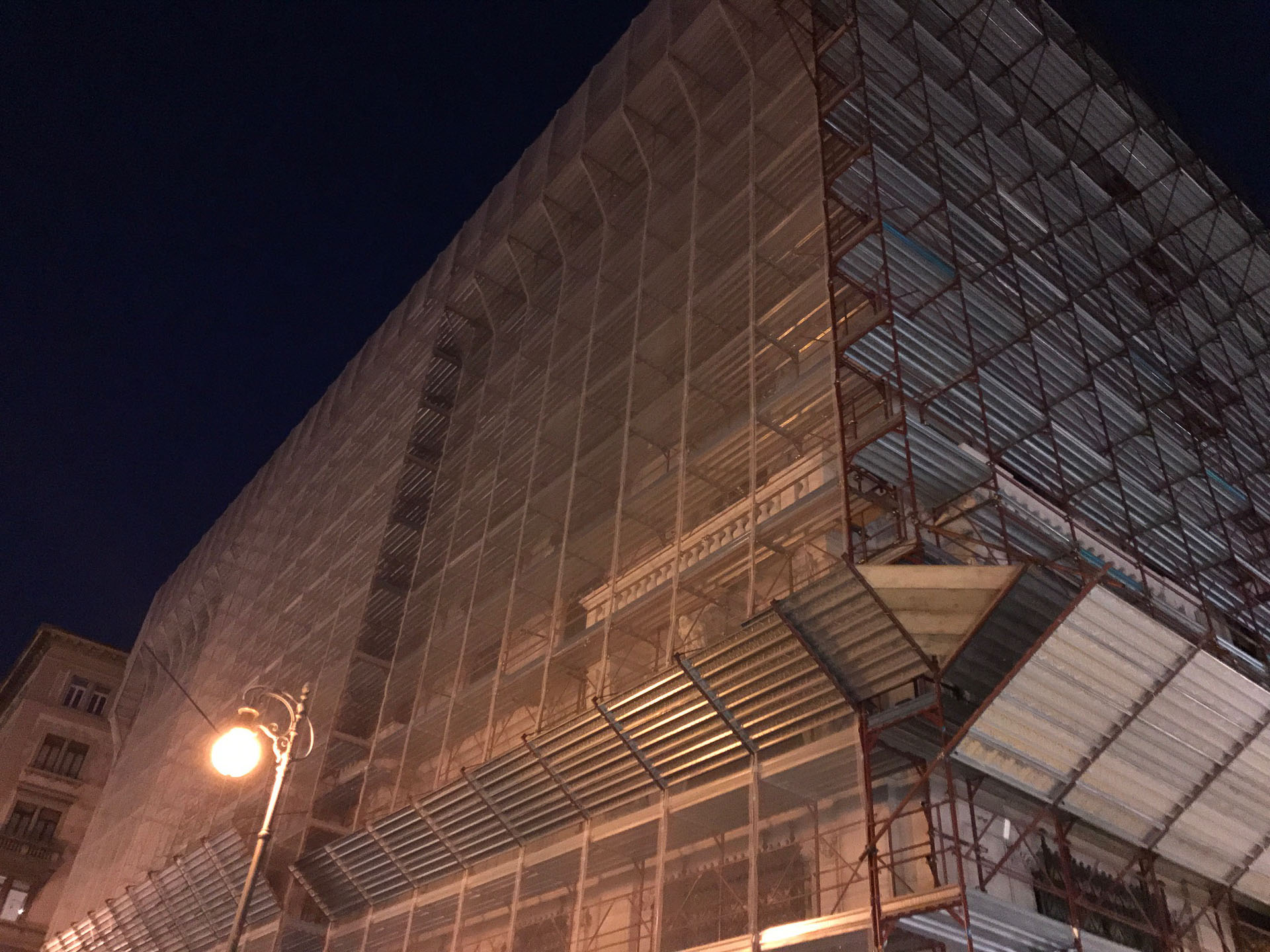

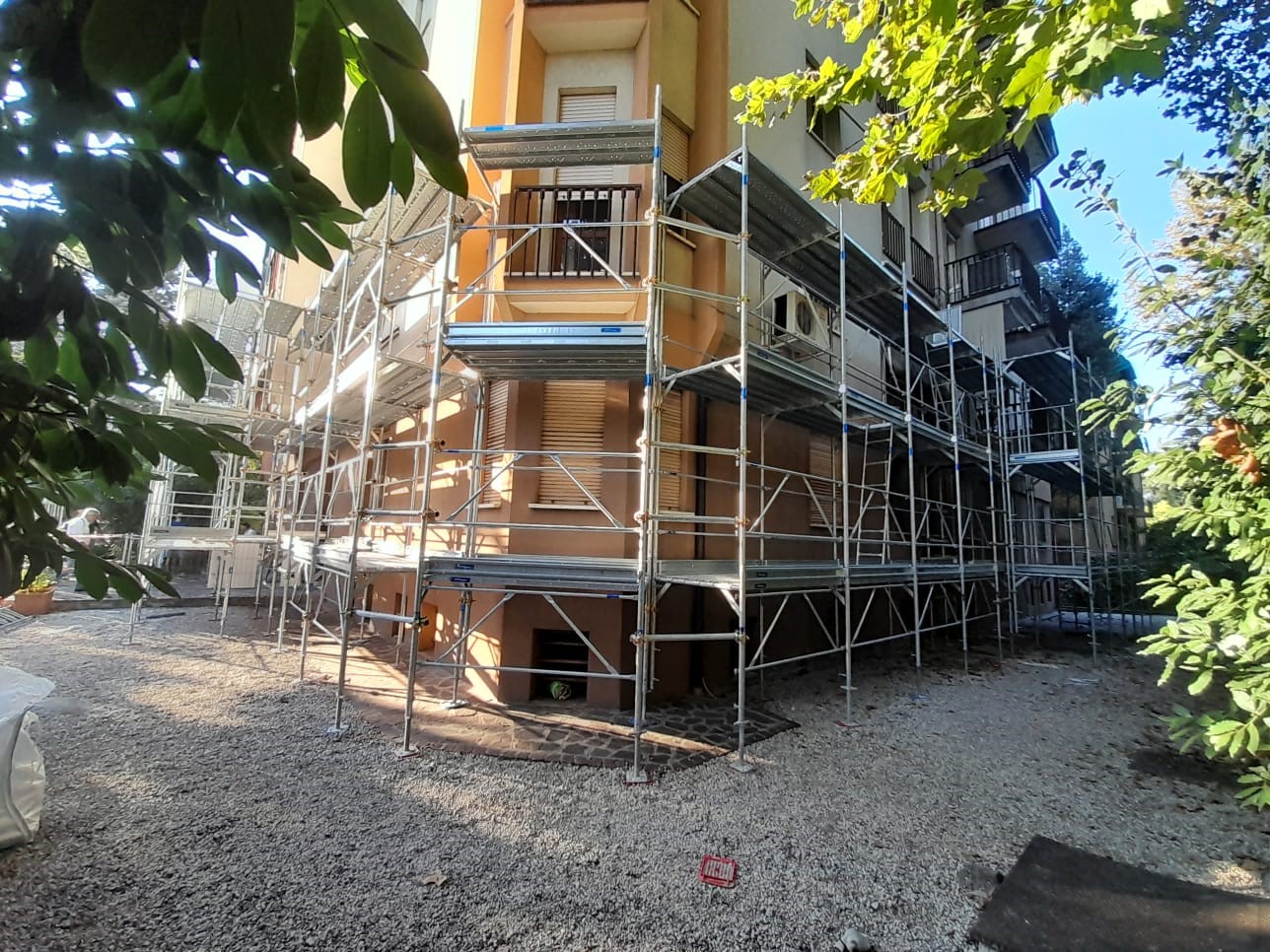

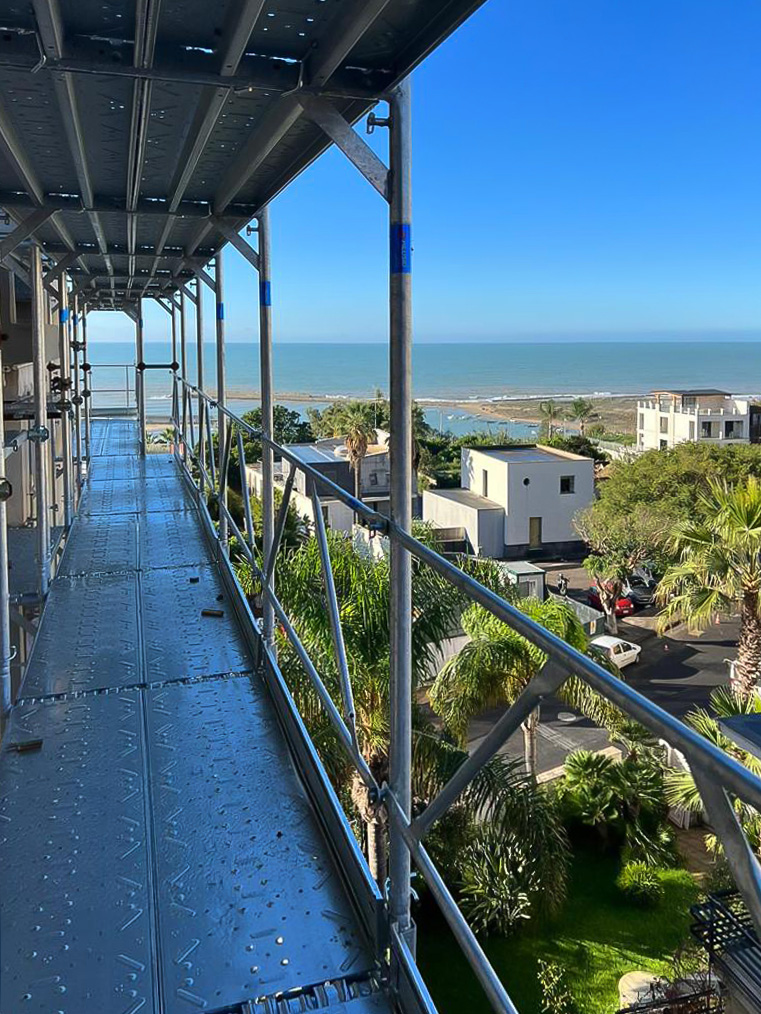

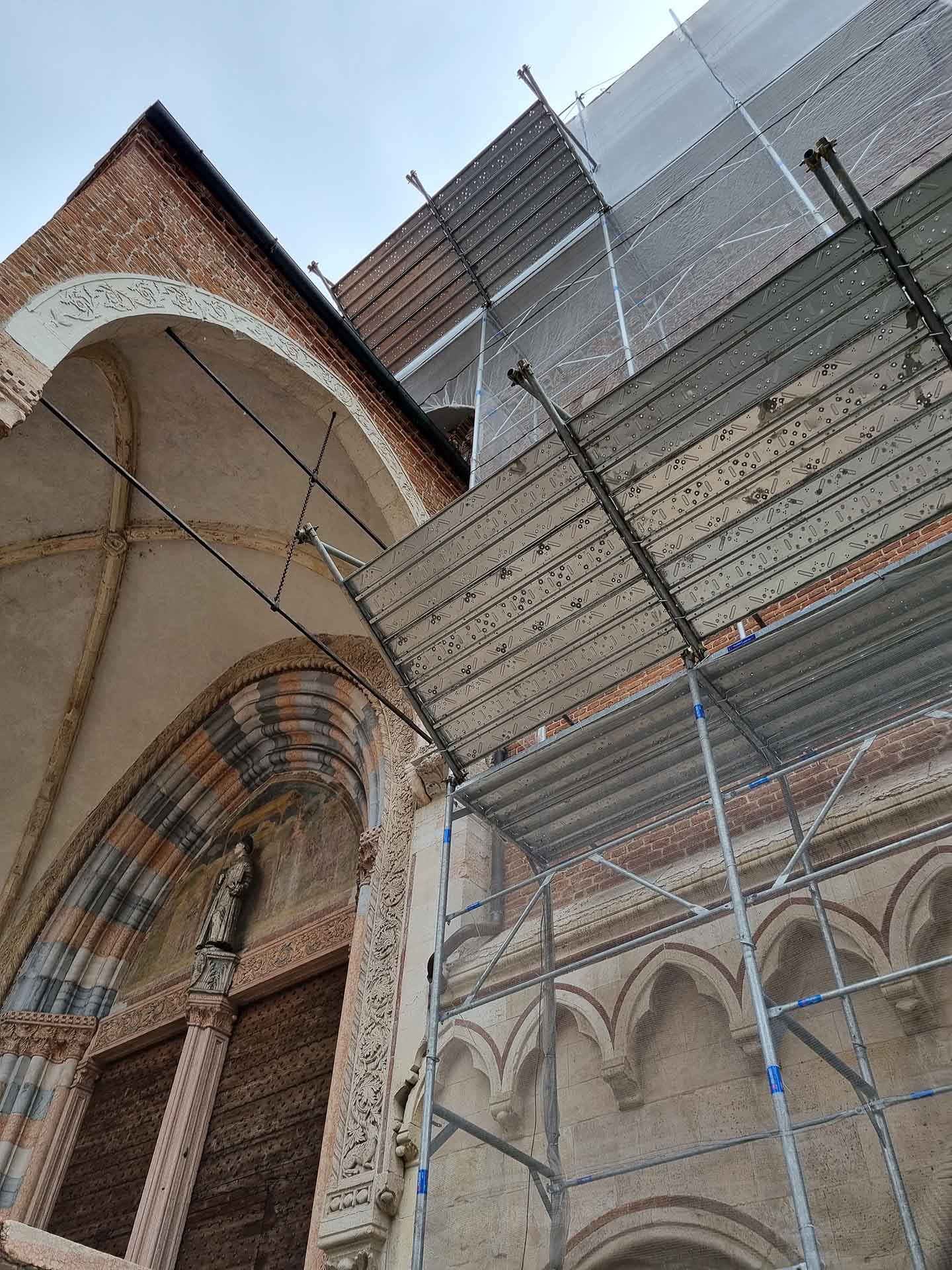

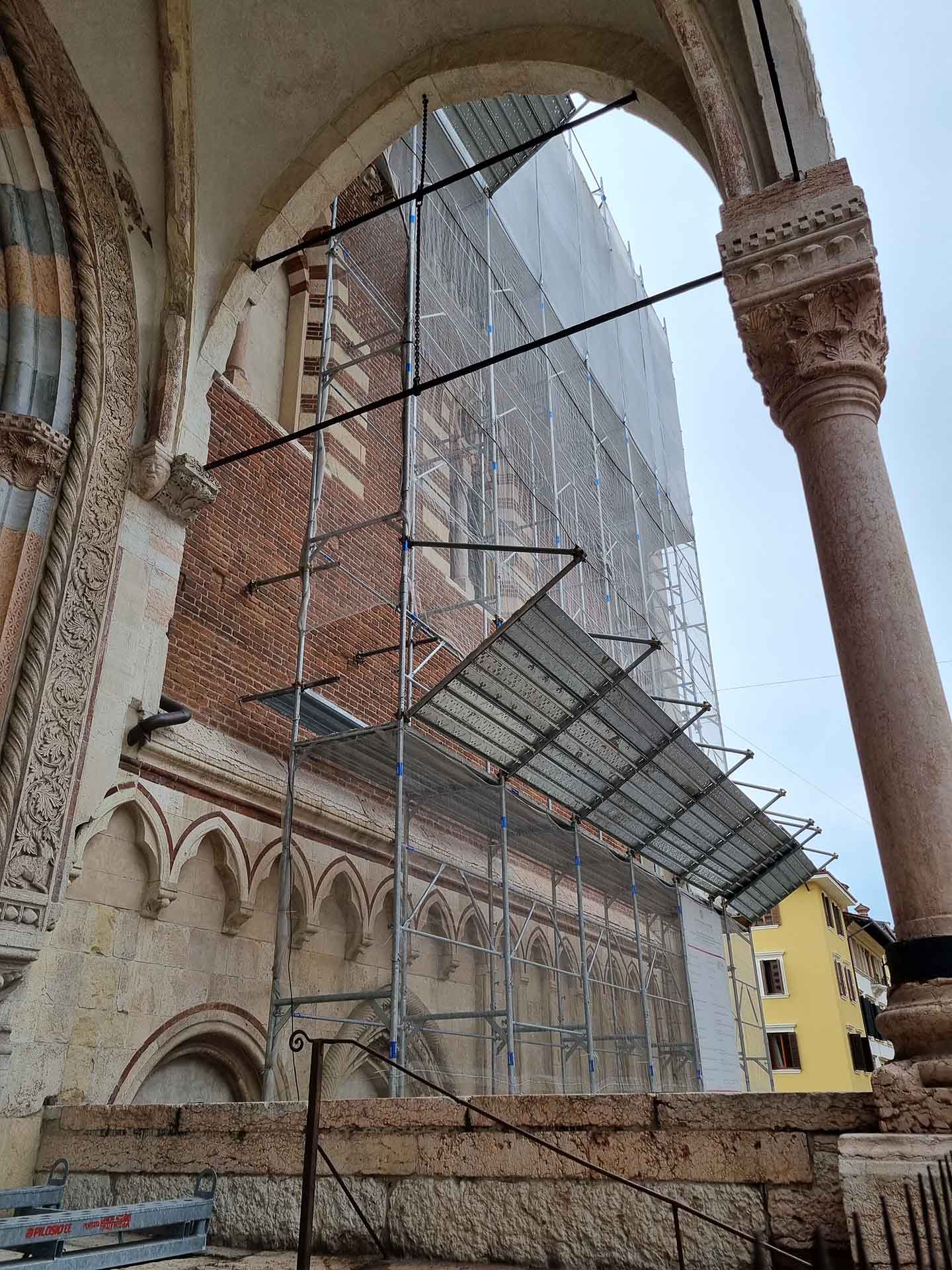

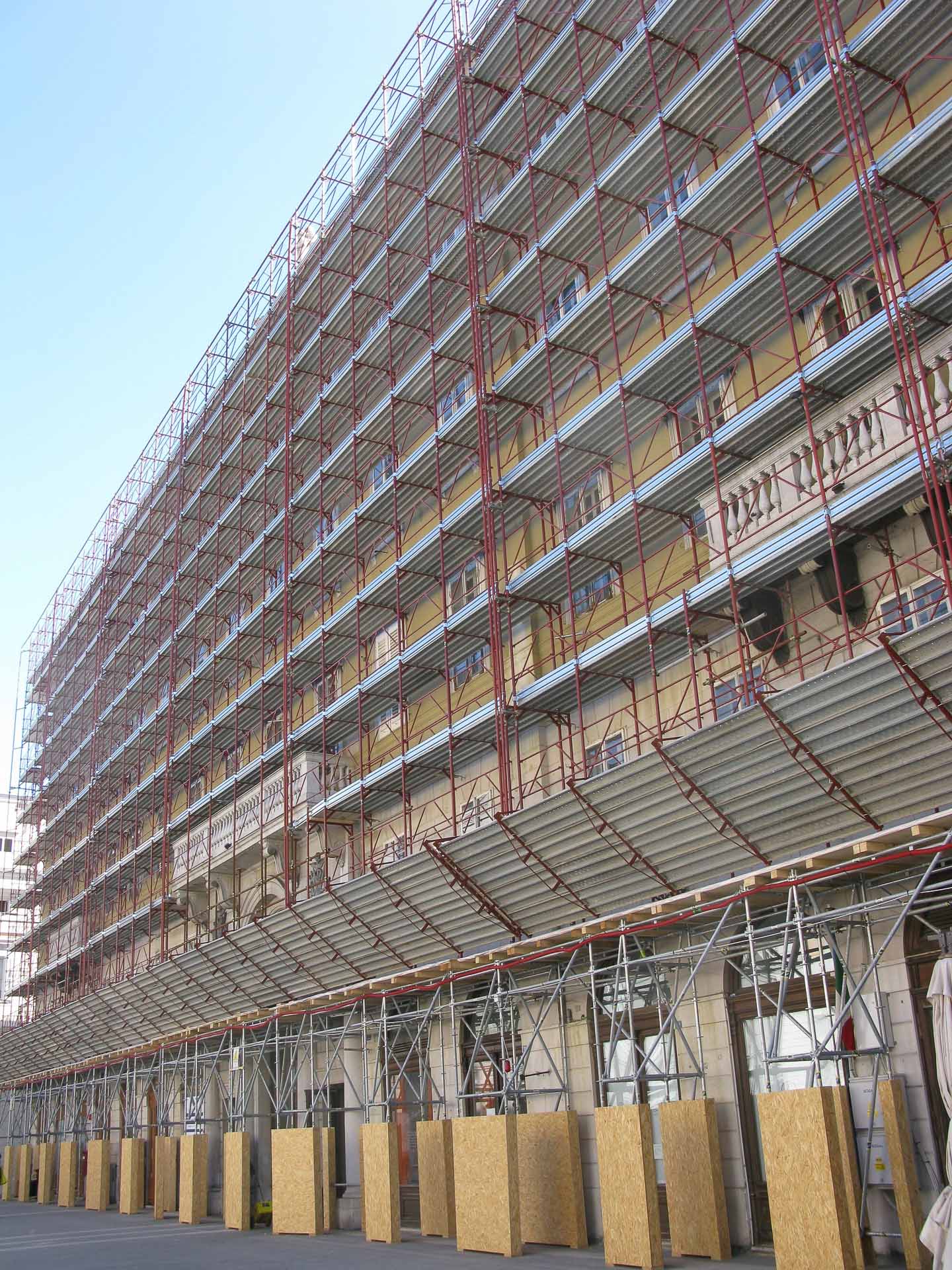

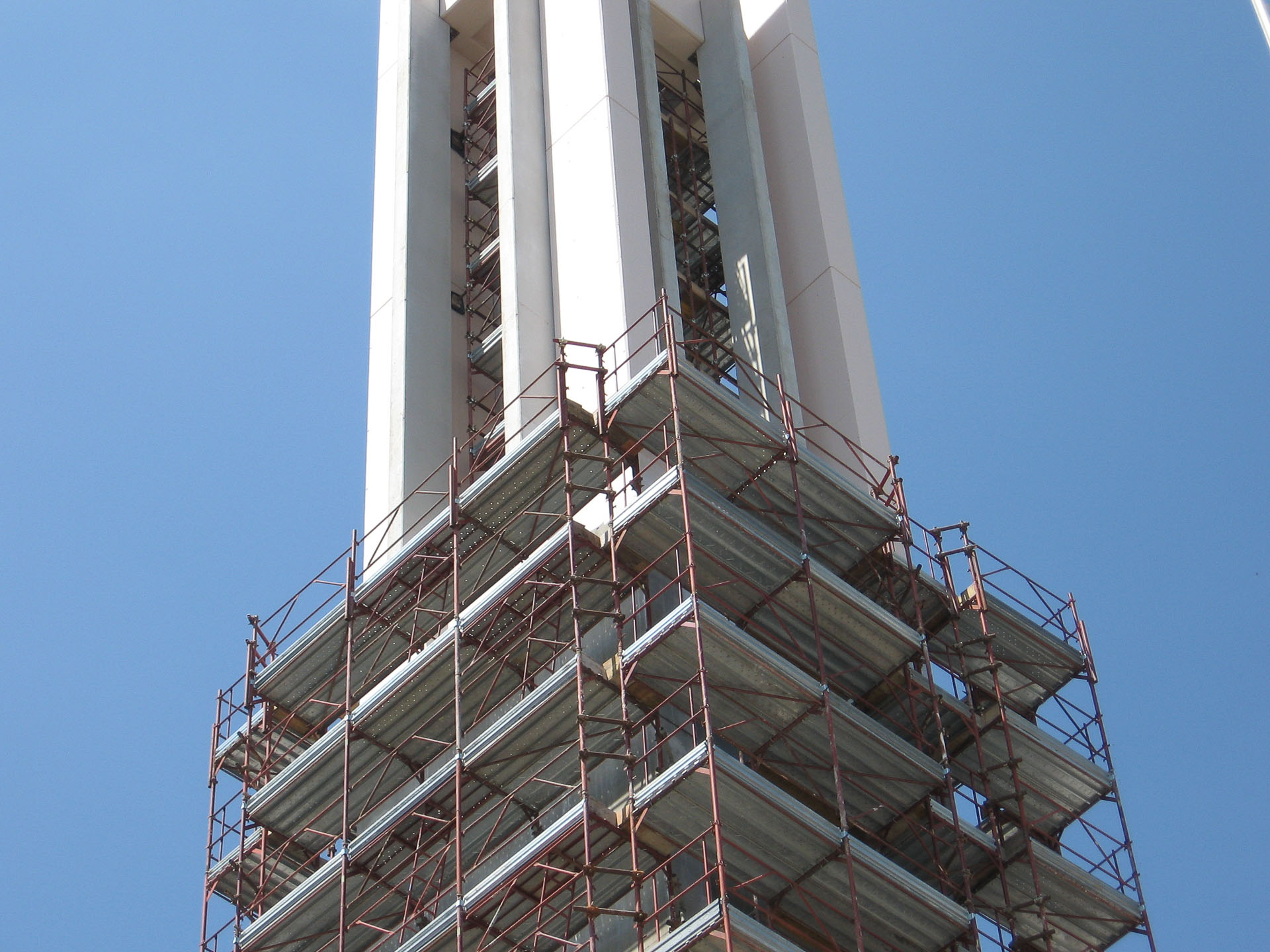

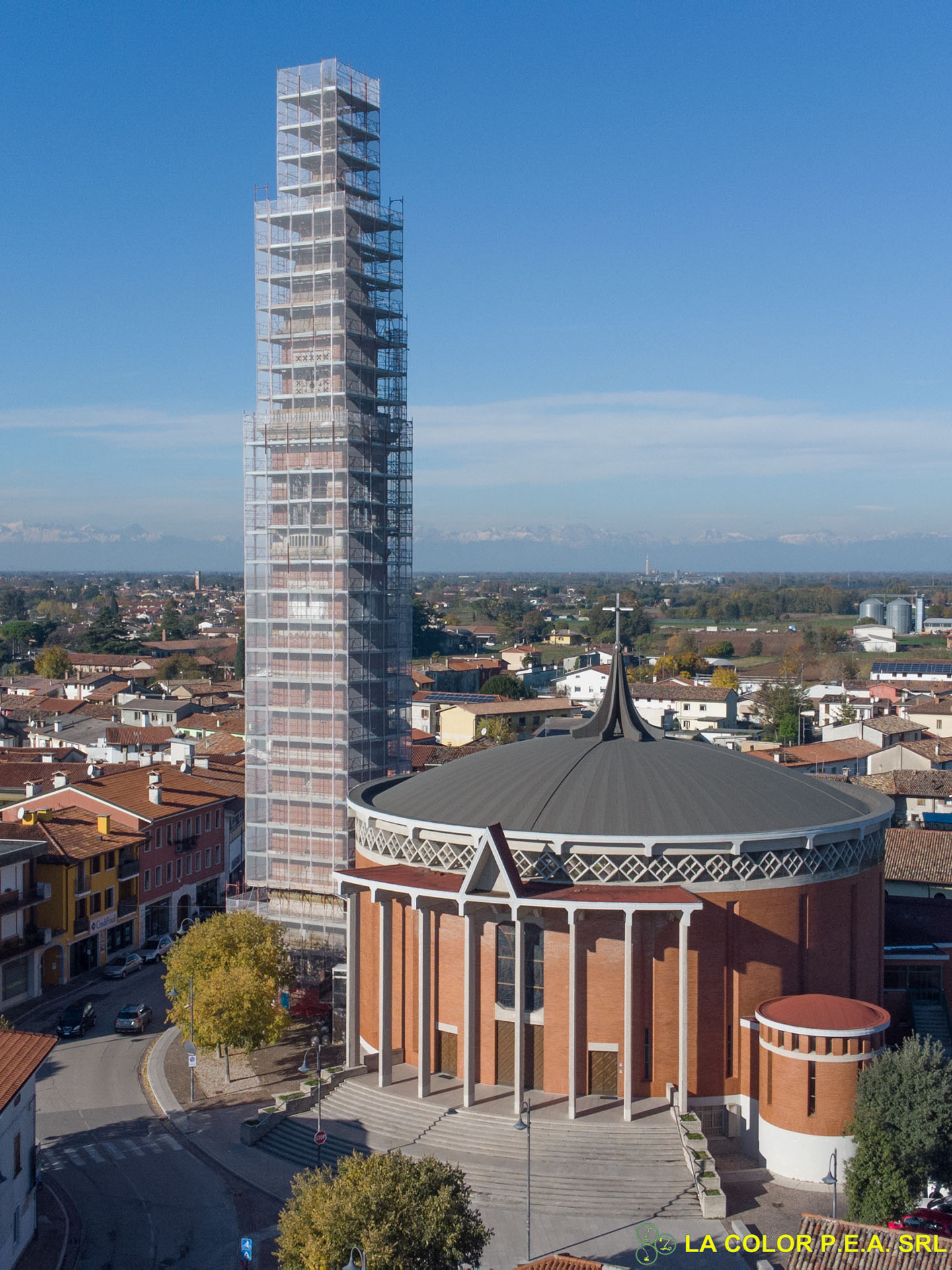

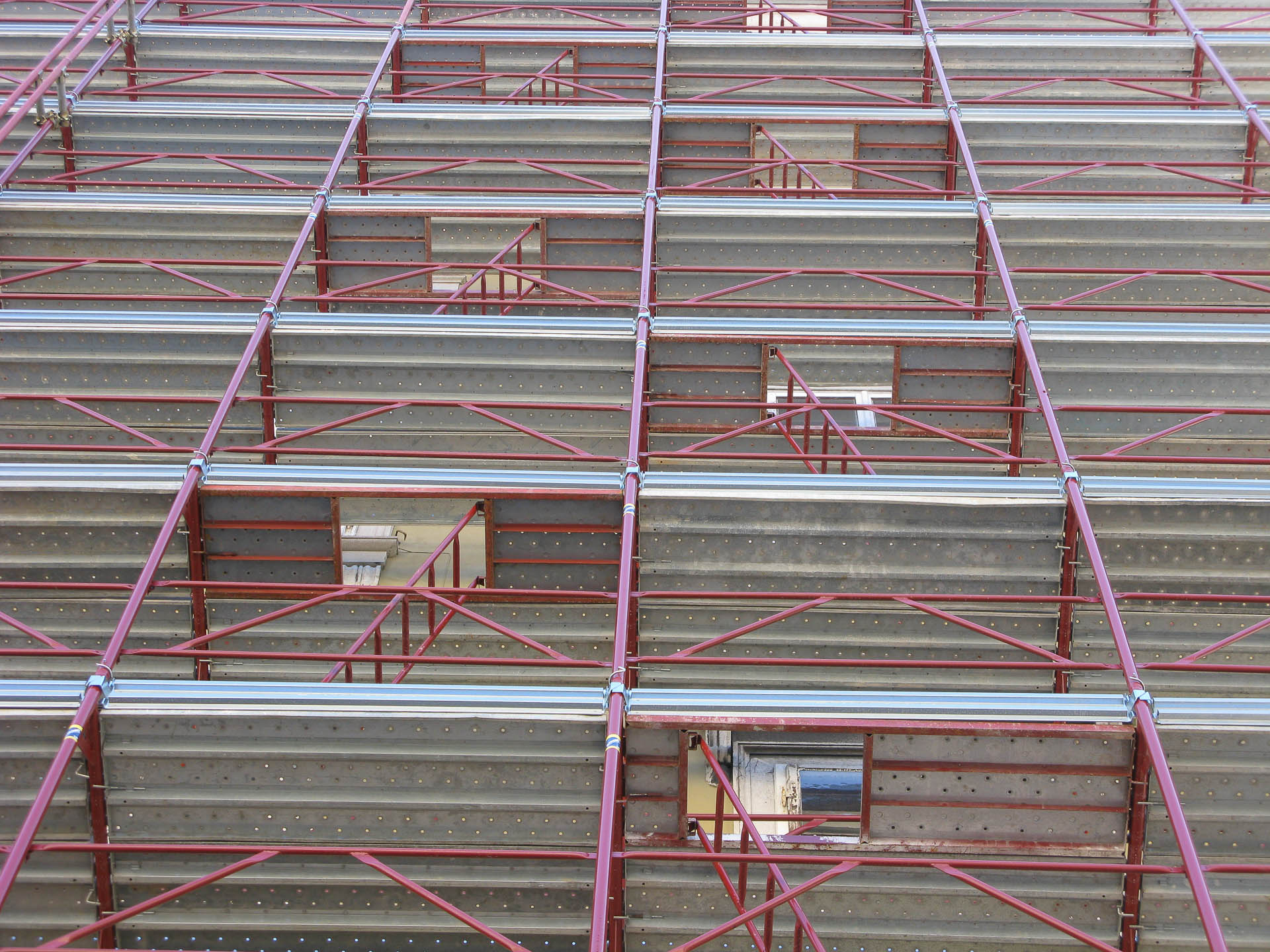

GALLERY
