Emco Diplomat Premium With Care Insert Mats
EMCO DIPLOMAT PREMIUM WITH CARE INSERT MATS
EMCO DIPLOMAT PREMIUM WITH CARE INSERT MATS
The premium entrance mat with the robust Care insert is exceptionally abrasion resistant and the number-one choice for the effective reduction of fine dirt. Optimally designed for buildings exposed to average to heavy footfall.
INFORMATION
BRAND
Emco
PRODUCT TYPE
Technical Mats
WEIGHT
- 9.4 kg/m²
- 8.7 kg/m²
- 10.5 kg/m²
APPROX. HEIGHT
- 12 mm
- 17 mm
- 22 mm
USAGE AREA
- Hotel
- School
- Sports hall
- Retail sector
- Offices and administrative buildings
- Family home
- Medical practice
- Apartment building
- Kindergarten/Nursery
- Retirement homes and Care-Nursery Homes
COLORS
- Grey
- Beige
- Brown
- Anthracite
ACCESSIBILITY
- Prams
- Wheelchairs
- Hand trolleys
- Sack-/hand truck
- Sack-/hand truck
PROFILE WIDTH
Normal
PILE MATERIAL
100% PA 6 (polyamide)
INSERT TYPE
Premium
INSERT STYLE
Care
SUPPORT CHASSIS COLOUR
Anodised colours for an additional charge: EV3 gold, C33 mid-bronze, C35 black or C31 stainless steel
REVOLVING DOOR DRIVES
Our mats with a profile spacing of 3mm in accordance with DIN EN 16005 are available for revolving door drives.
TYPE OF DIRT
Rubs off fine and damp dirt
BACTERIAL REDUCTION EHEC AST
11.9 %
SUPPORT CHASSIS
Made using Aluminium with sound absorbing insulation on the underside
MAT DIVISION AS PER FACTORY
- From a profile length of 3000 mm or a maximum mat weight of 25 kg. For profile lengths above 2300 mm, a surcharge is applicable . Mat devisions/splits possible at customer's request.
- From a profile length of 3000 mm or a maximum mat weight of 30 kg. For profile lengths above 2300 mm, a surcharge is applicable . Mat devisions/splits possible at customer's request.
MAT TYPE
emco DIPLOMAT
PROFILE WIDTH (MM)
27.5 mm
COLOUR FASTNESS TO RUBBING I
good 4-5
COLOUR FASTNESS TO ARTIFICIA
good 5-6
CONNECTION
Thanks to plastic-coated steel cable
SLIP RESISTANCE
R 12 slip resistance as per DIN 51130
EXAMPLES OF TYPE OF DIRT
- Damp street dust, damp sand deposits, dust, etc.
- Street dust, hair, sand, ash, textile fibres, small leaves and twigs, etc.
AREA
Covered outdoor areas
Indoor areas
DIRT COLLECTION ZONE
Indoor and outdoor (covered, Zone 1+2)
DOWNLOADS
COLOUR FASTNESS TO WATER ISO
good 4-5
BACTERIAL REDUCTION STAPHYLO
45.0 %
STANDARD PROFILE CLEARANCE A
5 mm, rubber spacers
USE CLASSIFICATION EN1307
Property suitable inlay 33
FLAMMABILITY
Fire classification for the complete mat system Cfl-s1 in accordance with EN 13501
TREAD SURFACE
The robust and exceptionally abrasion-resistant Care insert for the effective reduction of fine dirt.

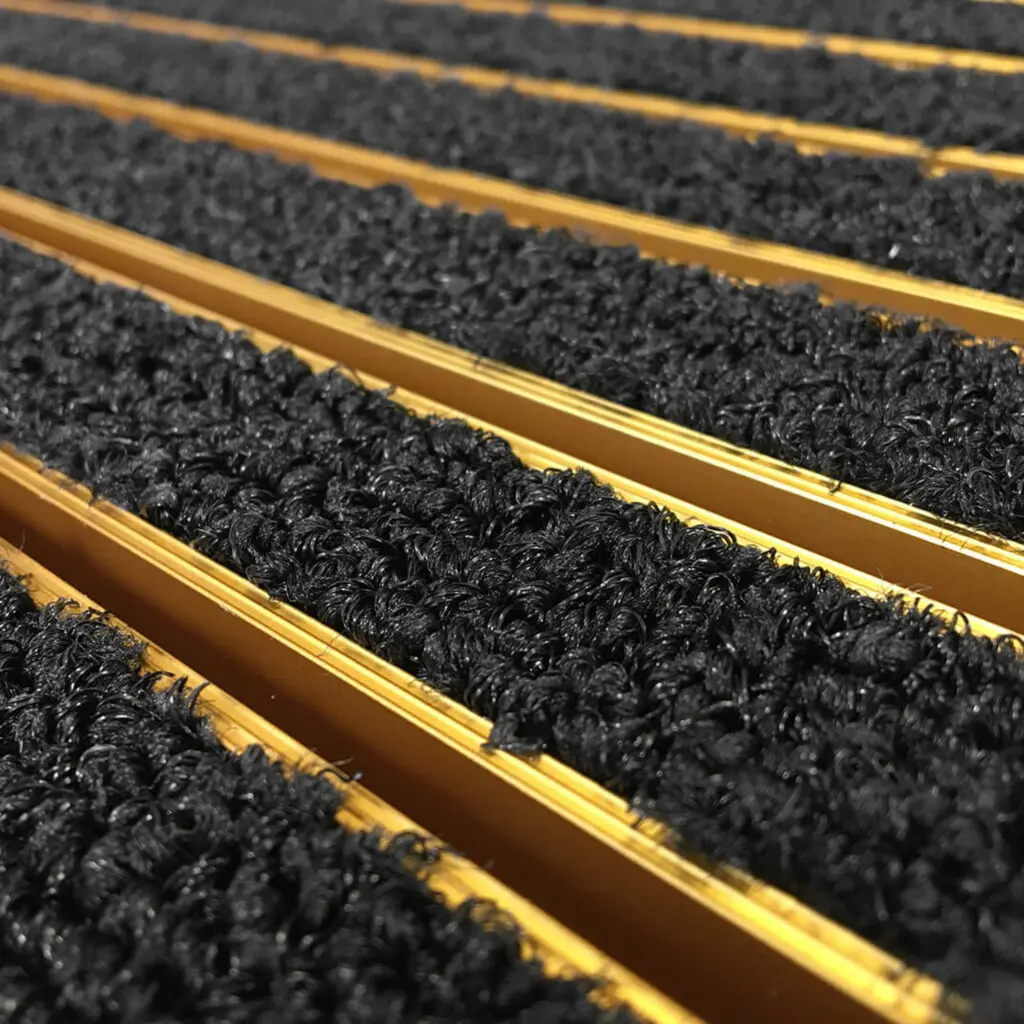

ANODISED PROFILES
Anodised profiles create new design possibilities. The combination with insert types and inlay colours leads to interesting harmonious and contrasting designs.
COLLECTION
Diplomat
AVAILABLE COLORS
4
