Peri Peri UP Flex Stair 75
PERI UP FLEX STAIR 75
PERI UP FLEX STAIR 75
The lightweight stair tower for flexible access solutions
The lightweight aluminium flights of stairs with 75 cm widths are mounted on ledgers of the PERI UP modular scaffolding.

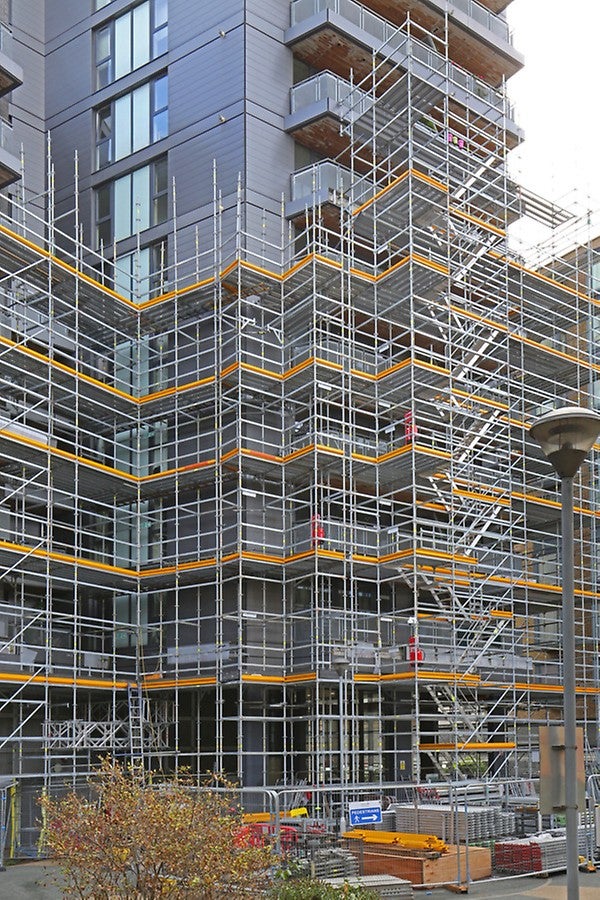

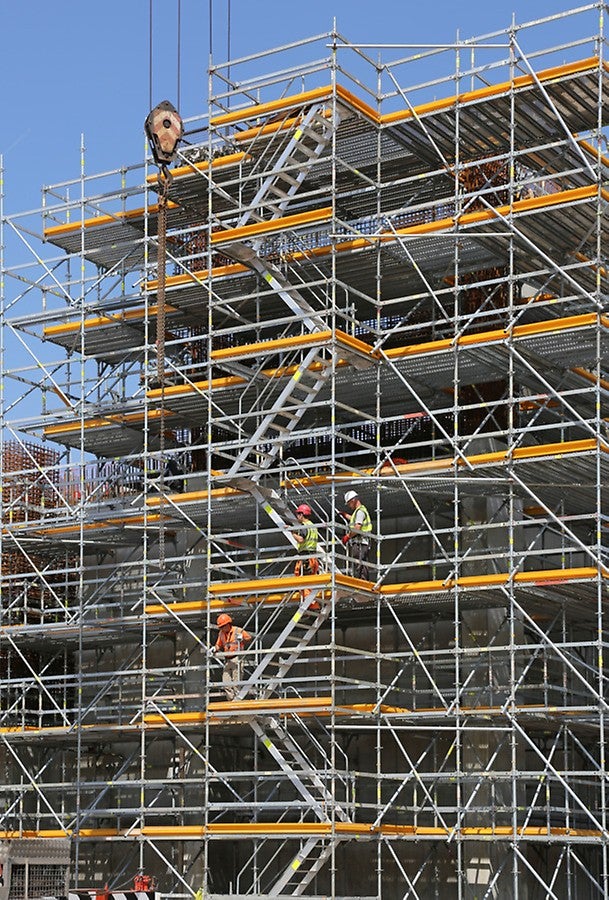

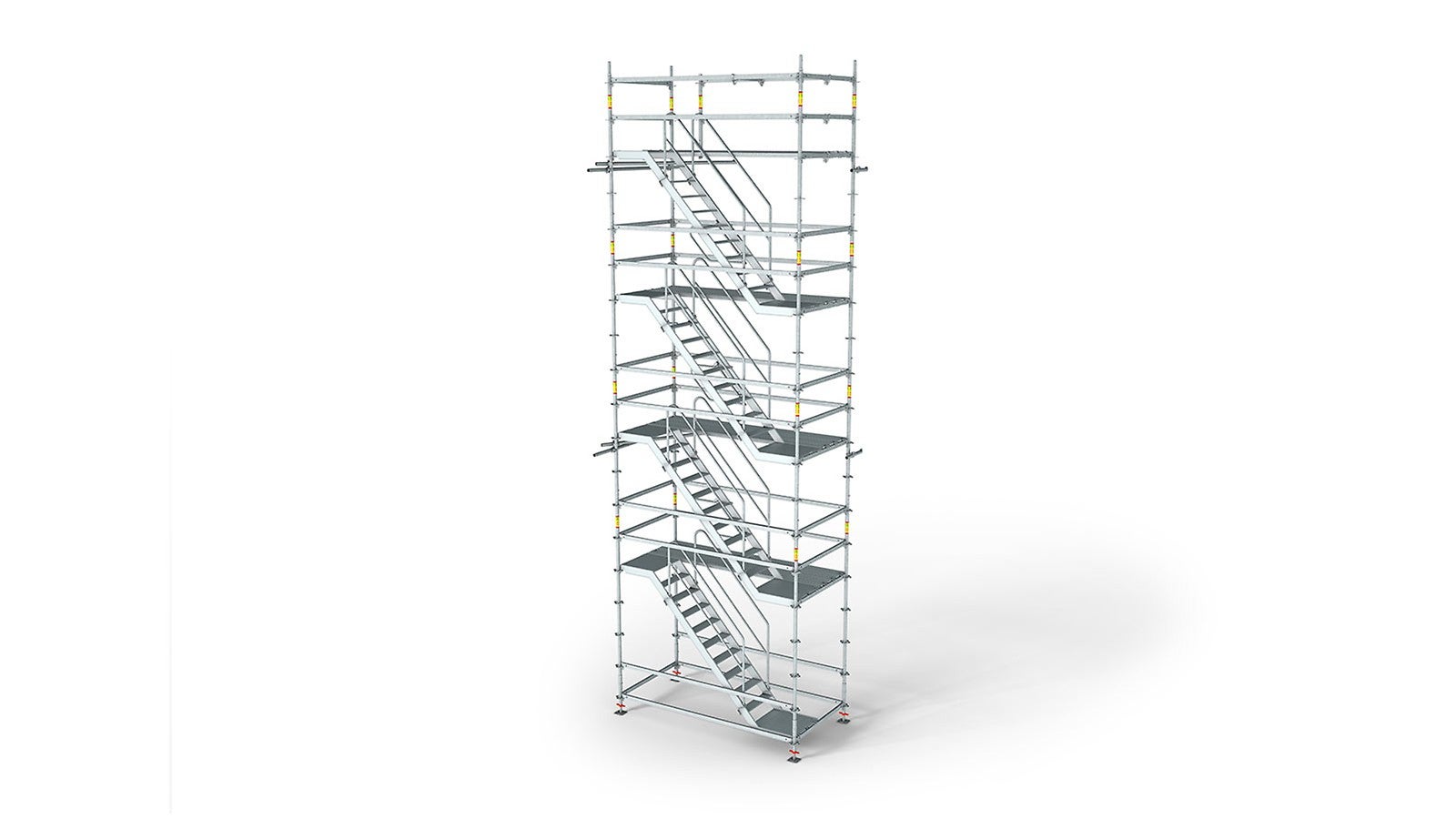

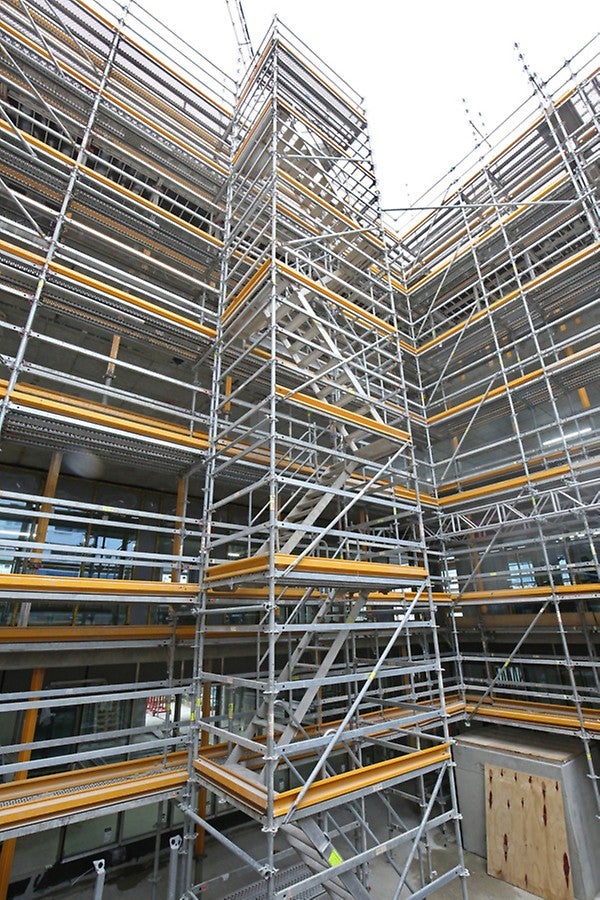

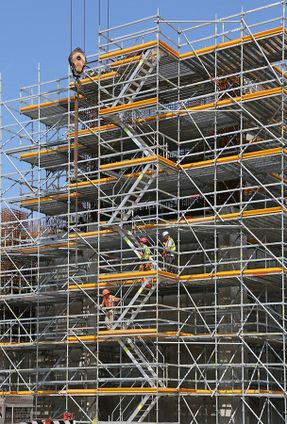

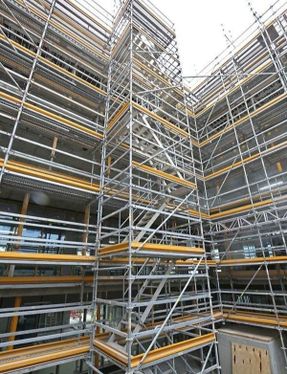

This results in 4-legged stair towers with alternating staircase units or staircase units in the same direction with heights of up to 100 m. The PERI UP Flex Stair 75 is designed to accommodate 2.00 kN/m² loads and serves as access to working areas or construction sites.
INFORMATION
BRAND
Peri
PRODUCT TYPE
Stairs
DIMENSIONS - FLOOR PLANS
- 1.50 mx 2.50 m
- 1.50 m x 3.00 m
STRUCTURE PRINCIPLE
With integrated stair safety without additional components
FAST INSTALLATION
With only a minimum number of ledgers and anchors.
MATERIAL
Aluminium
PRODUCTION
Made in United Kingdom
BODY HEIGHTS
According to the rules: up to 66 meters, beyond that: proof in individual cases
STANDARD APPLICATIONS
Compatible with : Peri up scaffolding construction kit, variokit engineering construction kit
FLEXIBLE ASSEMBLY
-Through the 25 cm grid dimension, all bays can be completely closed even in the smallest of spaces. -Short flights of stairs with 75 cm widths offer maximum adaptability also for small areas and narrow geometries.
DETAIL
-Adaptations to the building : 1.0 m and 0.5 m height adjustments via console or in the tower 0.2 m height adjustments via stair bars -Counter-rotating and co-rotating stair tower as a means of access for temporary work at high workplaces -Horizontal ledger can be mounted in advance -Gravity Lock secures ledgers as soon as they are inserted into the scaffolding node -Integrated pad protection -Use of standard handles with pressed-in tubular pins
SCAFFOLDING GRID
Metric
APPROVAL
Standard design according to EN 12810
STAIRWELL STAIRS
With the stairwell staircases, compact access means can be provided on the inside of buildings with small staircase wells.
For this, shorter ledgers are connected at the same height at 90° angles while using flights of stairs with smaller run lengths and heights.
At the same time, the stairwell staircases serve as working platforms for carrying out further work on the sides of the walls. With standard components, access can be created to all floors in height increments of 25 cm.
DOWNLOADS
↓ PERI UP Flex Stair 75
↓ PERI UP Scaffolding Kit
↓ PERI UP Access Technology Brochure
↓ PERI UP Scaffolding Kit | Core Components
↓ PERI UP | The modular system for a wide range of scaffolding applications
↓ PERI UP Access Technology | Access technology for construction sites, industry and public areas
TYPE OF USE
Access Technology
SCAFFOLD TYPE
Scaffolding Stairs
PERMISSIBLE LOAD
- For flights of stairs and coverings: 2.0 kN/m²
- For the entire construction up to 66 m: 2.0 kN/m² over a run length of 20 m
NORM
- DIN EN 12810 and 12811
- Load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²)
- Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
EASILY ADAPTED
For accessing building openings with brackets and small flights of stairs – regardless of storey heights.
