TORMAX T4 SERIES FOLDING DOOR SYSTEMS
TORMAX T4 SERIES FOLDING DOOR SYSTEMS
Where lack of space dictates that neither a sliding nor a swing door can be considered, an automatic folding door provides an ideal solution.
Its particularly compact construction makes this type of door the complete space-saver which is also perfect for retro-fitting during conversions or renovations.
INFORMATION
BRAND
Tormax
PRODUCT TYPE
Folding Door Systems
CHARACTERISTICS
Folding door system with specially designed slim door profiles
DOOR DRIVE
Tormax imotion 4201 synchronous motor - dynamic, quiet, efficient, long-lasting
OPERATING MODES
- Exit
- Off
- Manual
- Automatic
- Reduced Opening
- Permanently Open
SURFACE TREATMENT
Door profiles are available in powder-coated finishes in any colour.
OPENING TYPES
Opening width 800 – 2000 mm with a minimum built-in width of 1060 – 2260 mm
FOLDING DOOR
The tormax pre-finished compact automatic folding door solution impresses as a result of its restrained and graceful appearance. The door system is supplied completely prefabricated from attractively shaped special profiles.
Aluminium profiles which can neither trap nor crush limbs or people and with integrated lip seals ensure a high level of safety and guard against drafts.
DRIVE OPERATING TYPES
- Full power : Multiple sensors ensure fully automatic, secure and contactless operation for maximum convenience and fast opening speeds
- Low Energy : Automatic door setting with reduced energy and gentle force that immediately reacts when encountering an obstacle.
DOOR OPENING WIDTH
800-2000 mm
MAX. PASSAGE HEIGHT
2300 mm
CONTROL
Modular, programmable TORMAX iMotion microprocessor control unit with excellent functionality, extensive monitoring and diagnostic functions
ADDITION FUNCTIONS
-Building automation: integration into existing building management systems -Air-lock and porch function: two coordinated door systems control access or prevent the movement of air between the interior and the exterior
DRIVE HEIGHT
120 mm
MATERIAL
Aluminium
OPTIONAL AREAS OF USE
Barrier-free construction: can be easily fitted with contact-free switches and programmed with longer opening times
PROFILE SYSTEMS FOLDING DOOR
A profile system developed by TORMAX specially for folding doors to accommodate various glass thicknesses from 8 mm toughened safety glass to 16 mm insulating glazing.
SUSTAINABILITY
Long lifecycle, low environmental impact
-Eco-friendly packaging -Default stand-by modes with minimized power consumption -Use of recyclable materials and recycling at licensed facilities -Built-in sustainability thanks to quality and durability: fewer replacements, lower raw material consumption and a smaller CO2 footprint than with other brands
MAX. DOOR LEAF WEIGHT
2 × 80 kg
GLAZING
Single or double-glazed units
DESIGN
From standard to unique solutions
- Purpose-designed slim door profiles
- Designed and manufactured entirely to the customer's specific requirements
- Full functionality within limited space grants flexibility with refurbishings and retrofits
- Slim drive casing with an overall height of only 120 mm for smooth integration into the structure
- We have the skills and the passion to translate your idea into a visually and functionally superior door system
SECURITY
Protecting people and property
-Emergency stop and locking
- Secure locking and glazing solutions
- Configuration to specific security requirements
- Seamless integration with access control systems
- Access control with card or fingerprint readers or any other device
- Various solutions for people traffic separation and one-way traffic
- Secure and convenient entrances that present an elegant integral aspect of the building
OPTIONS
LOCKING
Folding door panels can be locked securely with an electromechanical locking system and unlocked manually from both the inside and the outside.
LONGER HOLD-OPEN TIME
Optional contact-free switches activate longer hold-open times for people to pass through if required.
ESCAPE
Tormax offers a reliable, redundant system for rescue and escape routes, which opens the doors immediately in case of an emergency.
HOLDING BRAKE
This option blocks door panels in the closed position by way of a holding brake. It also enables secure locking when the folding door system is in "exit only" operating mode.
BUILDING MANAGEMENT SYSTEM
Tormax t4 folding doors are easy to integrate into any building management system. They grant facility operators an immediate overview of the door status and any related error messages.
BATTERY MODULE
In the event of a power failure, the battery power supply automatically opens the folding door system, which then remains in the open position.

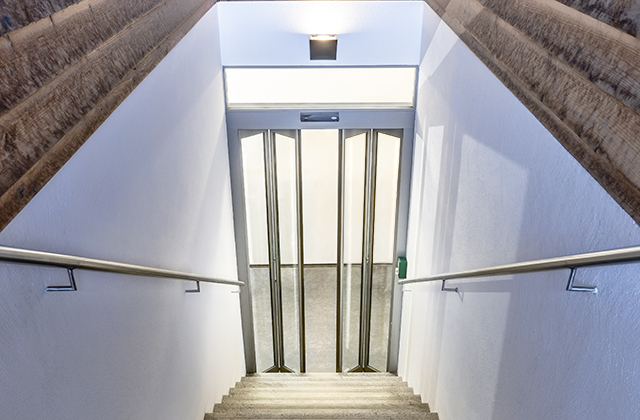

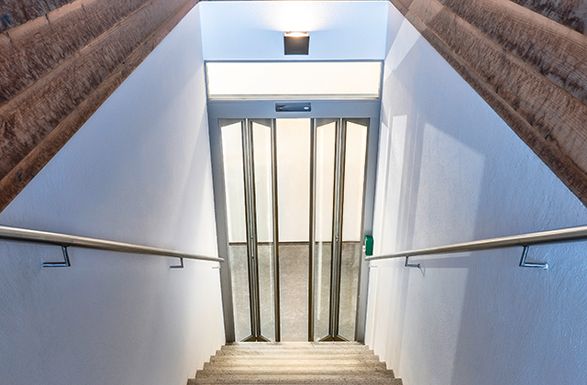

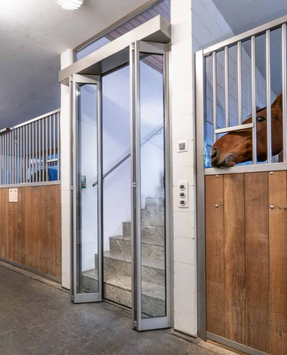

COMPACT AND VERSATILE
THE PERFECT FIT

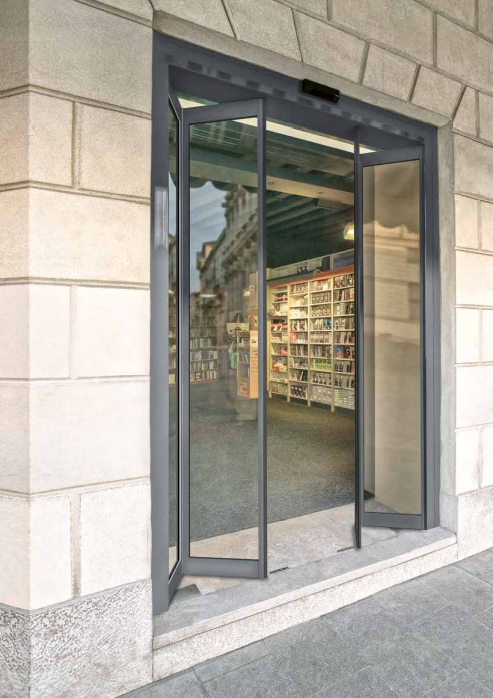

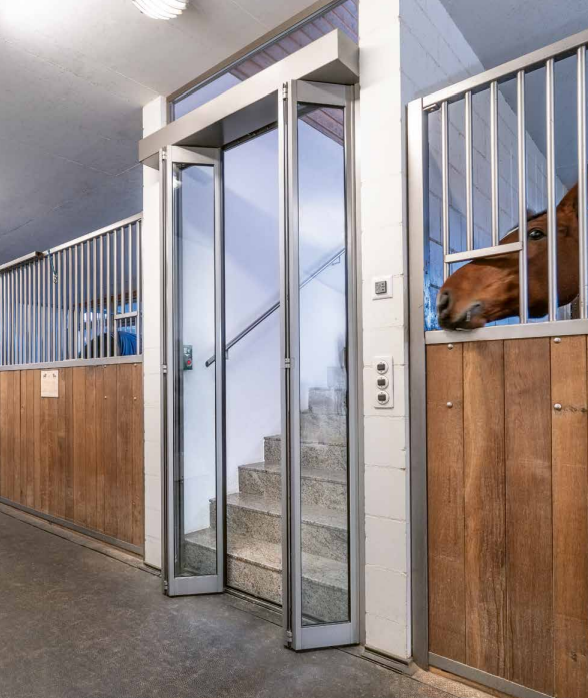

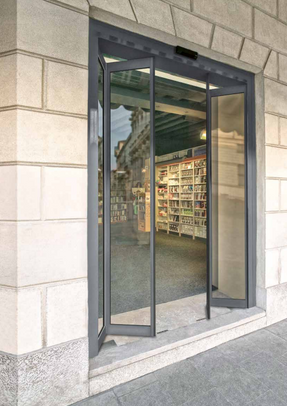

The TORMAX T4 contour folding door system is the ideal option for small shops, service stations or buildings with narrow entrances, for example in heavily built-up or historical city districts. It is easy to install in narrow corridors and passages during construction or as a retrofit. This versatile door system is ideally suited in many different situations.

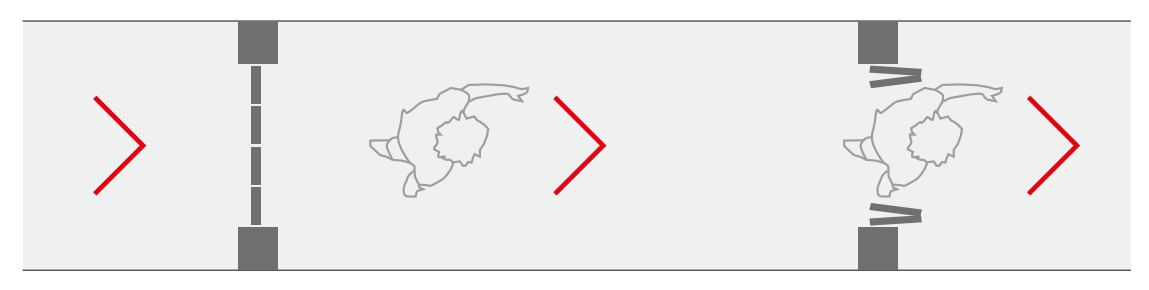

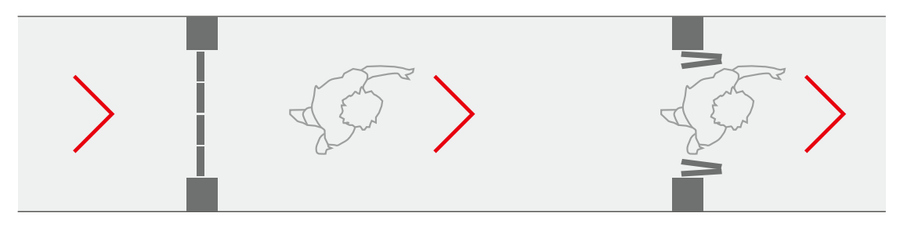

ONE-WAY PASSAGE AND AIRLOCK
Sequentially paired doors are a perfect fit for any anti-backtrack needs at airports or for busy entrances. Paired doors also prevent air exchange between the inside and the outside.

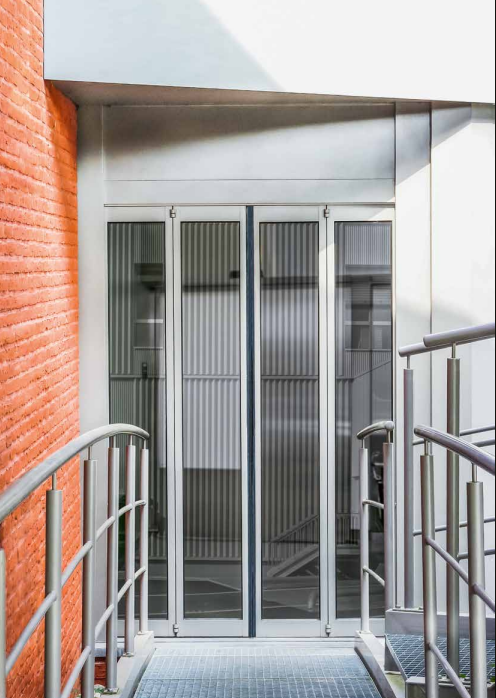

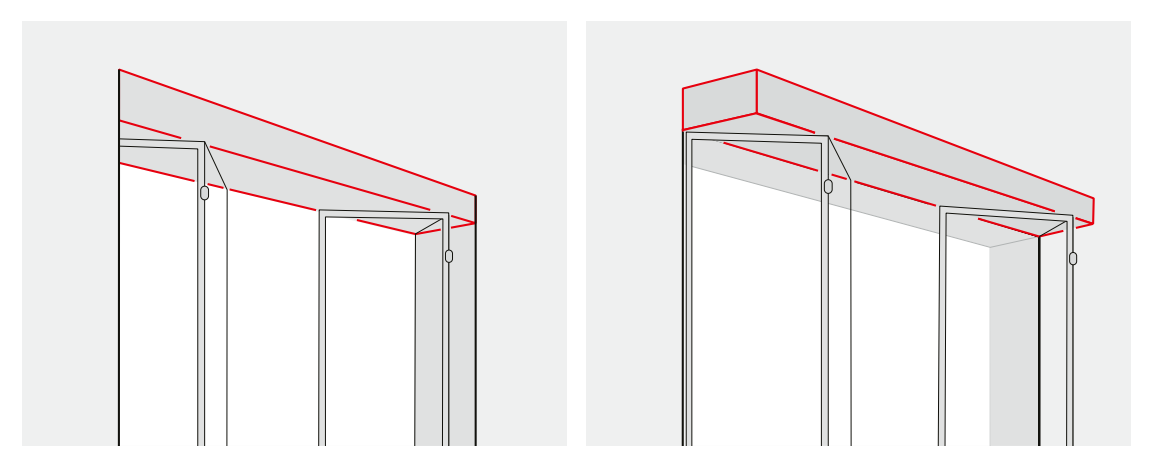

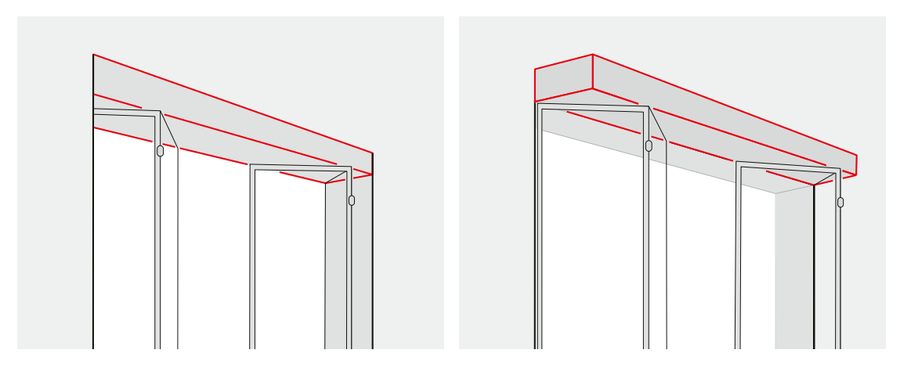

MOUNTING
The door system can be either embedded in the lintel or mounted on the door frame, thus granting maximum flexibility for retrofitting purposes.
DETAIL

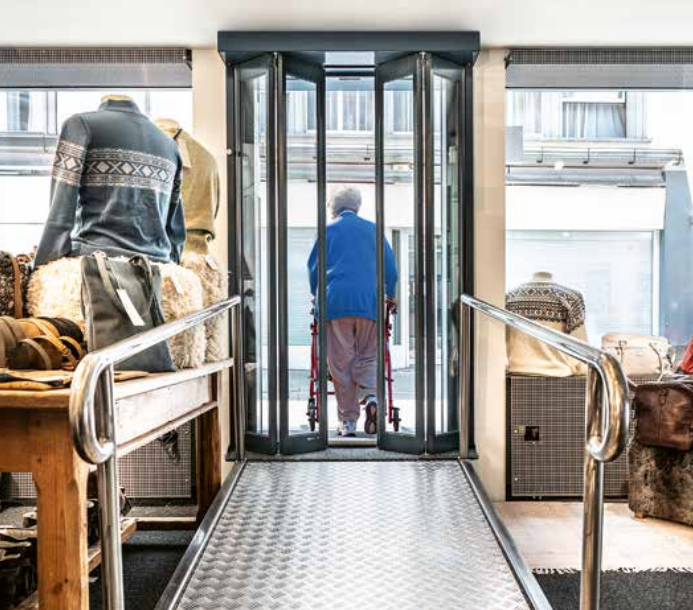

ACCESSIBILITY
Simple and equitable for all users
-Longer hold-open time for elderly people and wheelchair users -Various retrofit and refurbishment options to make buildings accessible -Solutions for all doorway types in public buildings, offices and private homes -Accessible for all: TORMAX automatic door systems adapt intelligently to the needs of a diverse society and are simple to use

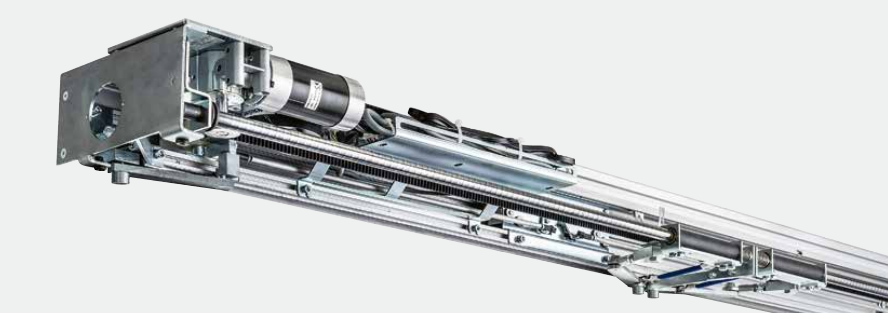

DRIVE TECHNOLOGY
Experts in drive systems
-Highly dynamic door movement -High-powered, wear-free and highly efficient synchronous motors -In-house engineering and manufacturing of brushless electric motors
-Exceptionally smooth, quiet and reliable operation due to high torque drives -Tormax drive systems : The global benchmark for innovative door automation since 1951
SAFETY
Uncompromising, highly certified

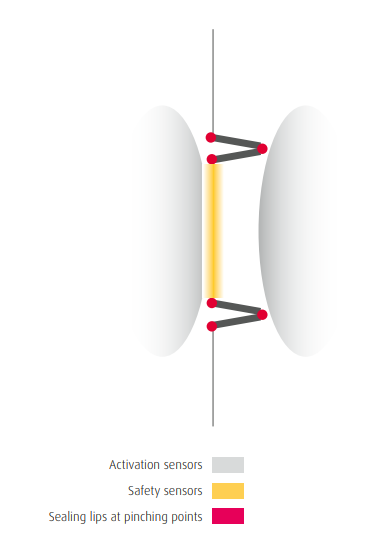

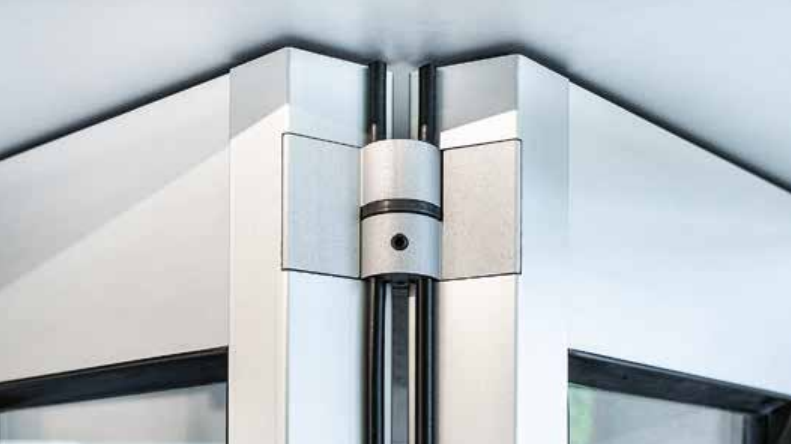

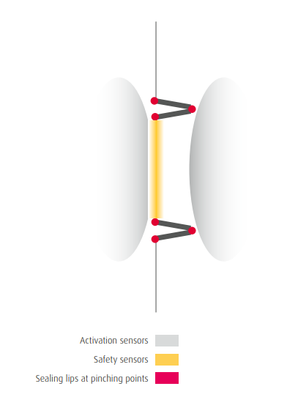

-Escape route options -Integrated sealing lips on the door hinge profiles prevent hazardous pinching points -Smart sensors and safety features detect people and prevent direct physical contact and injuries
-Certified according to the latest safety standards EN 16005, DIN 18650, CE, UKCA with relevant approvals by accredited certification bodies
-Control unit uses sliding door technology rather than the more commonly used swing door controls. This ensures highly sensitive reversing of the folding leaves and perfect integration of safety devices
QUALITY
Convincing performance on all accounts
-End-to-end TORMAX quality assurance -Engineered, manufactured, preassembled and tested at a TORMAX factory -Tough quality testing of each drive before it leaves the factory -Innovative, durable and low maintenance door systems

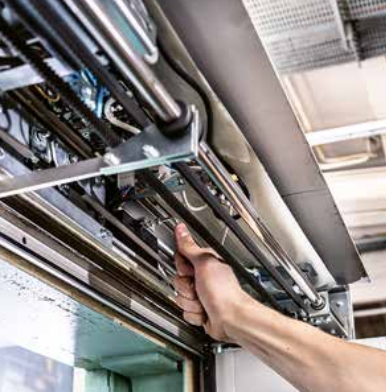

-Installation and on-site adjustment of pre-assembled modules by certified TORMAX technicians -Certified to ISO 9001:2015 in engineering, manufacturing, installation and service of electric drives and automatic door systems
SERVICE
Convenience throughout the lifecycle
-Service technicians available at all times -Your one-stop shop for all automatic door servicing needs and brands -Tormax service contracts ensure ongoing reliability and minimize the risk of an untimely breakdown -Professional maintenance and repair service quality provided by factory-trained tormax service technicians -Fleet well-stocked with original TORMAX spares › Very low Service costs over the lifecycle compared to other brands due to exceptionally long operating life, wear-free motors, reliable technology, fewer breaks and service calls
