Pilosio Flyrail Beam
FLYRAIL BEAM
FLYRAIL BEAM
The flyrail guide is the most practical and definitive solution to the difficulty of set-up and dismantling suspended temporary structures by means of beams, leaving road and railroad locations free.
INFORMATION
BRAND
Pilosio
PRODUCTION
Made in Italy

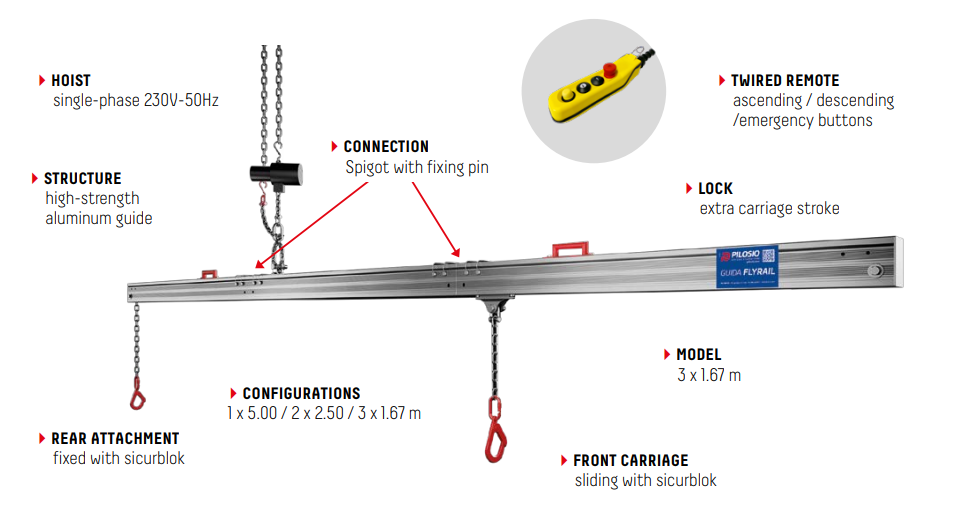

PUSHBUTTON PANEL CABLE
5m tear-proof
CHARACTERISTICS
The new flyrail beam in combination with the flydeck system remedies one of the biggest problems when erecting structures for bridges and viaducts maintenance: the continuation of the working surface beyond piles and piers without interrupting the roadway with by-bridges or negative platforms.
CONTROL PANEL
220 W single-phase electric hoist and control panel
LENGTH
1 x 5.00 / 2 x 2.50 / 3 x 1.67m to facilitate transport
APPLICATIONS
- Bridge Construction
- Bridge Maintenance
REDUCED TIME
This innovative solution enhances safety, greatly simplifies, and speeds up set-up and dismantling operations for each stage, ensuring considerable time and cost savings.
USE
The system is suitable for transverse beam structures, longitudinal beam structures, coplanar structures, stepped structures, lateral and forward cantilevered structures, going past pier and pier caps without the use of other bridge inspection platforms.
FIXING CHAIN
- Hoist suspension chain with safety
- Rear fixing chain to the top with sicurblok
ADVANTAGES
- Less fatigue for the workers
- High safety during erection and dismantling
- The FLYRAIL guide can be used with any type of beam.
- Great speed of execution of work (30 to 50 % time save)
- Ease of creating lateral suspended floors at the piers/piles allowing the provisional structure to continue into the next span
PIECES
- One 5 m piece
- Two 2.5 m pieces
- Three 1.67 m pieces
HANDLES
2
HOIST CHAIN
10m
PATENT PENDING
CE Marked
DOWNLOAD
↓ Brochure
SLIDING TROLLEY
Sliding trolley with sicurblok to move and support the beams
HOW TO USE IT
Single rail for cross structures, one pair of rails for structures in progress.
