Trident Scala Wheelchair Stair Lift
SCALA WHEELCHAIR STAIR LIFT
SCALA WHEELCHAIR STAIR LIFT

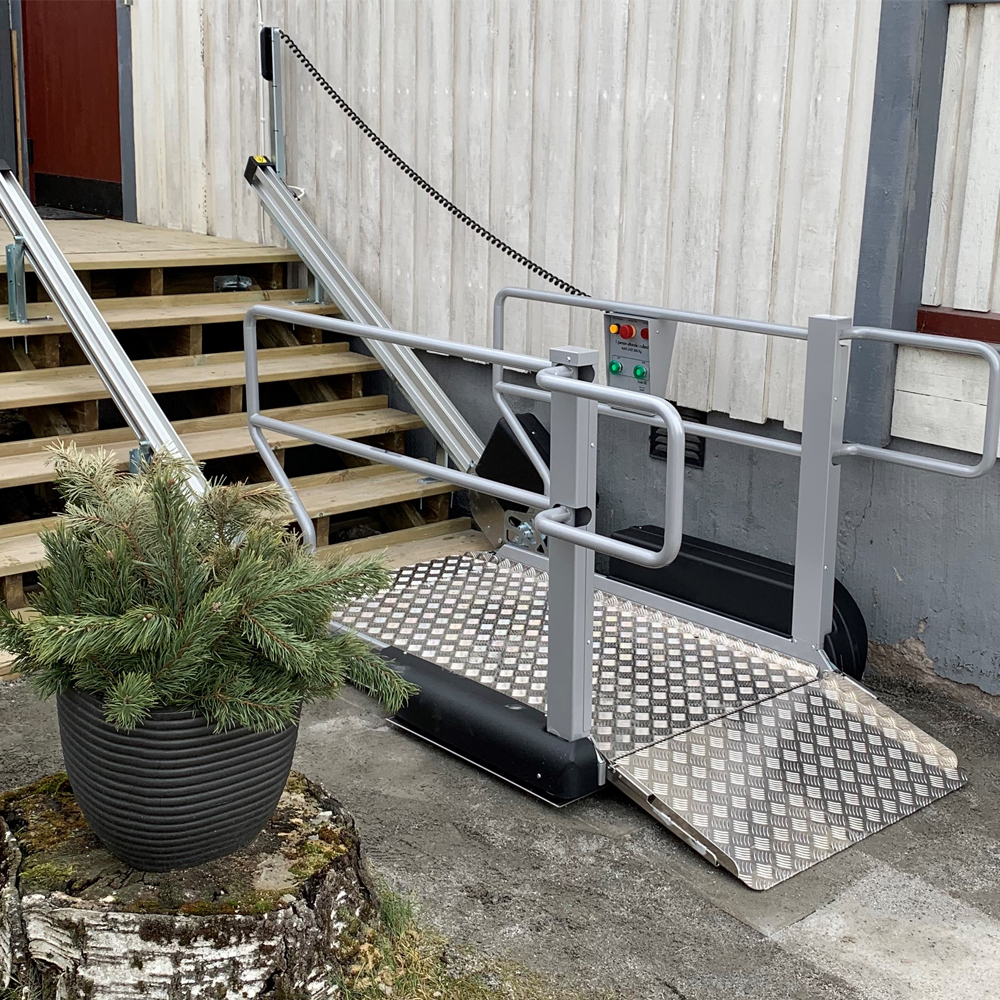

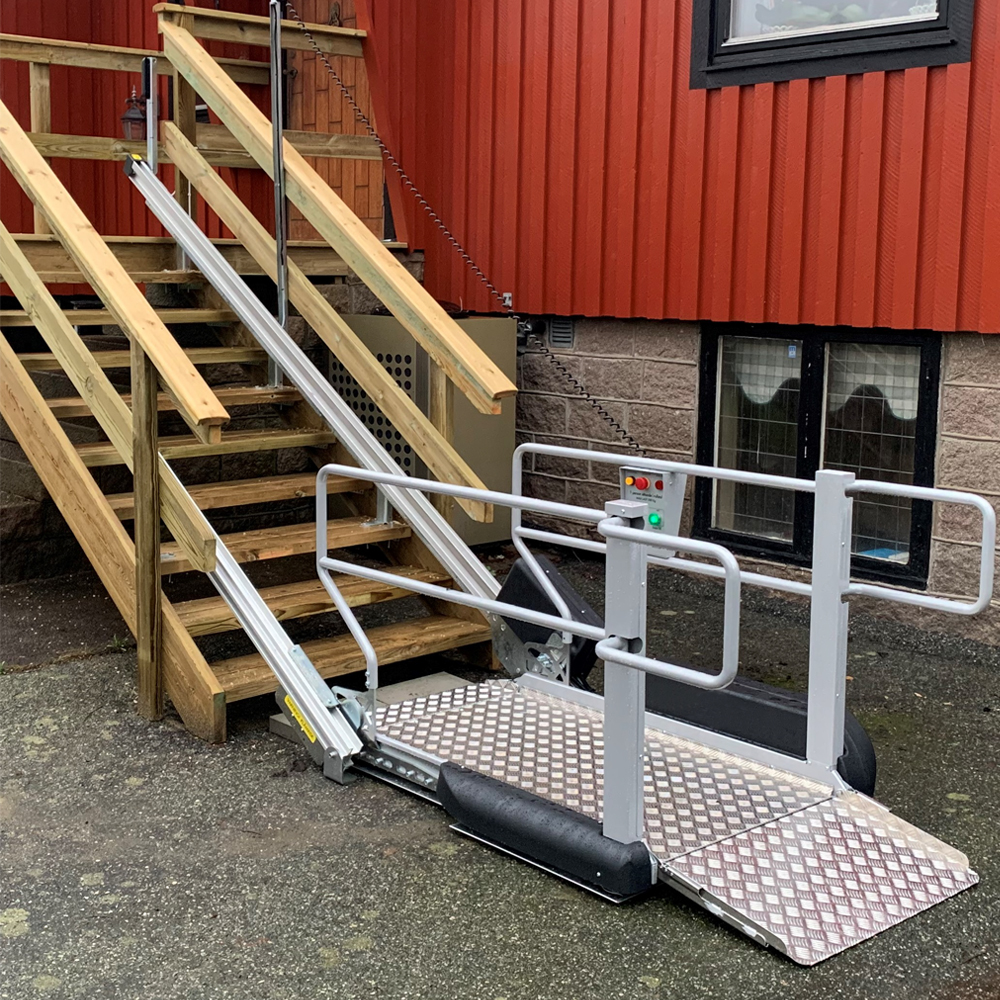

Scala is a fully automatic wheelchair stair lift for outdoor use, which transports the passenger while they are seated in a wheelchair, making it ideal for use in private homes.
The guide rails are installed on the stairs. Fully automatic gates and ramps make raising/lowering the lift easier. The automatically controlled raising/lowering ramp acts as the guardrails when moving.
INFORMATION
BRAND
Trident
PRODUCT TYPE
Stair Lift
USE
Scala can be used with all types of straight staircases.
CRUSH PROTECTION
Platform and ramps, audio and light signals.
STAIRCASE WIDTH
Min. 1140 mm, possibly smaller dimensions with special attachments.
COLLECTION
cala
PRODUCTION
Made in Italy
CONNECTION
- Single phase
- Electrical connection 230 V with integrated frequency converter.
ACCESSORIES
- Emergency phone.
- Control panel on the lower floor
- Remote Locking - Remotely control the lift's power on and off functions.
STANDARD
EN 81:40
DOWNLOAD
↓ Brochure
UPPER LANDING
Manual controls are located at the upper landing (lower landing as an accessory) and are situated adjacent to the lift for safe, convenient operation. Integrated frequency converter ensures that the lift starts and stops gently.
MAX. WEIGHT
300 kg
DRIVE SYSTEM
Rack
USE
Outdoor
INSTALLED
Stair
GATES/RAMP
Fully automatic for safe, secure travel.
PROTECTION
The lift is equipped with overload protection with audio and light signals. Emergency signal with audio and two-way voice communication. The platform is fitted with anti-slip protection. The lift is equipped with crush protection with audio and light signals by the raising/lowering ramp as well as under the platform.
PLATFORM (WXD)
800×1250 mm
STAIRCASE ANGLE
Min. 15° – max. 45°
EMERGENCY SIGNAL
Audio and two-way voice communication.
OVERLOAD PROTECTION
Audio and light signals
OPERATION
Turned on and off wirelessly.
INSTALLATION
The guide rails are mounted on the stairs, and usually no additional construction work is required.
SAFETY
- Fully automatic for safe and secure travel.
- Fully automatic gates for a safe and secure ride.
- The boarding ramp also serves as a safety barrier during the entire journey.
- The lift is equipped with squeeze protection at the boarding and disembarking ramp, as well as underneath the platform.
- The lift is equipped with overload protection featuring both audible and visual signals. The platform is equipped with anti-slip protection.
