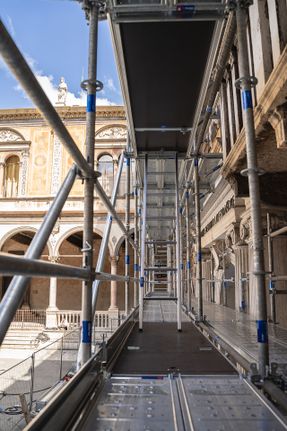

Pilosio MP Multidirectional Scaffolding
MP MULTIDIRECTIONAL SCAFFOLDING
MP MULTIDIRECTIONAL SCAFFOLDING
A versatile and durable solid scaffolding system
INFORMATION
BRAND
Pilosio
PRODUCTION
Made in Italy
LEVEL
Up to 8 ledgers/diagonals per level
STEEL FINISHING
Hot Deep Galvanized
HEIGHT INTERVALS
At every 50 cm
CERTIFIED
MP scaffolding is certified under European standards EN 12810-1 and EN 12811-1
ADVANTAGES
- Easy handling
- Enlarged working area width
- Extremely adaptable and robust
- Wide range of spans available
- Wide range of system accessories to meet any need
- Quick and easy assembly with only one hammer and level
- Flexible angle set up due to small and large connecting openings
ROSETTES WELDED
Vertical
CONNECTIONS
Bolt-free
TUBES & THICKNESS
Steel tubes Ø 48.3 mm with wall thickness 3,2 m for standards and 2.3 mm for diagonals and ledgers
CHARACTERISTICS
- Pilosio MP Multidirectional scaffolding is a very flexible system with great modularity and high capacity.

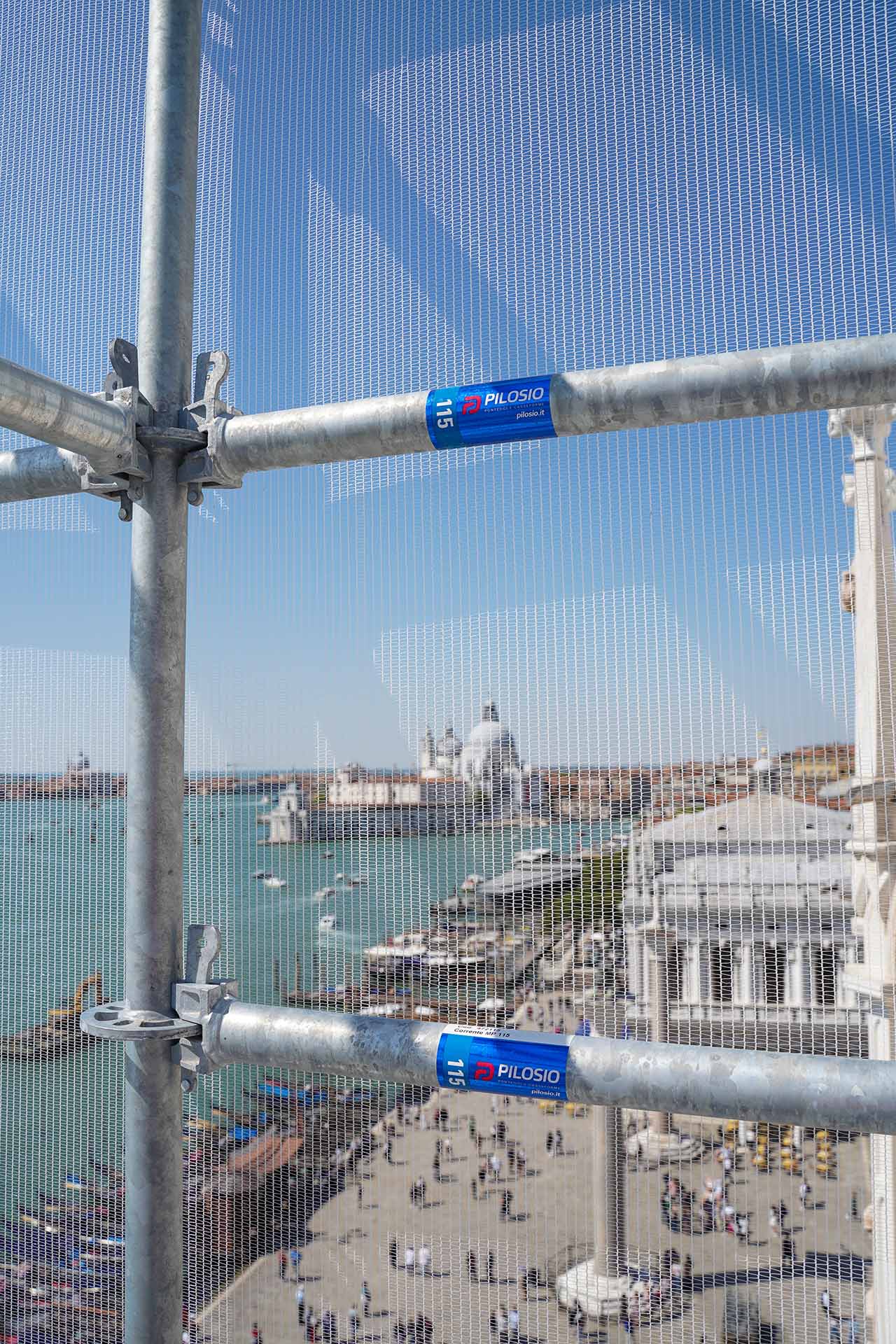

- The bolt-free connection (wedge-head and rosettes) allows quick, easy and very safe assembly and dismantling.

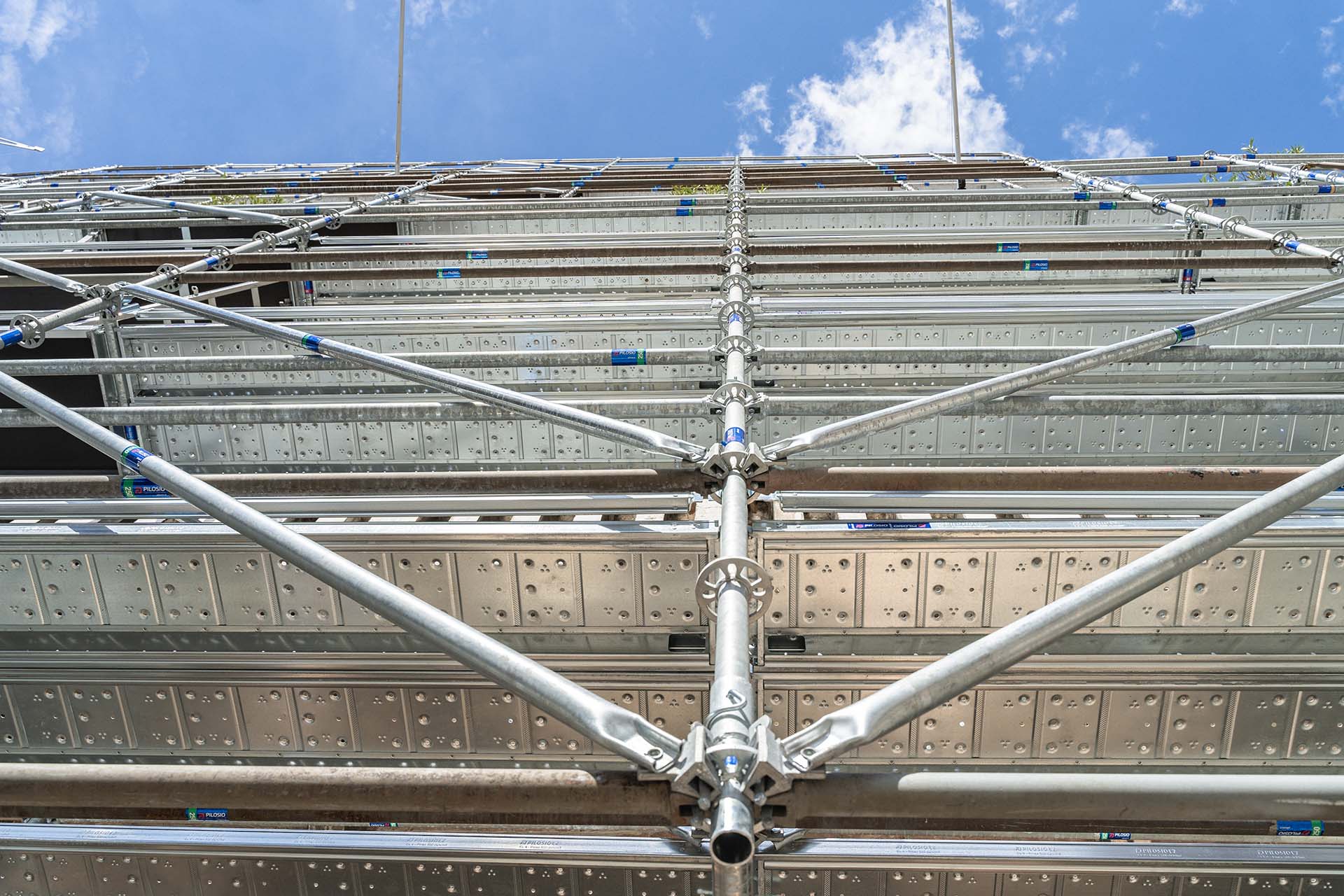

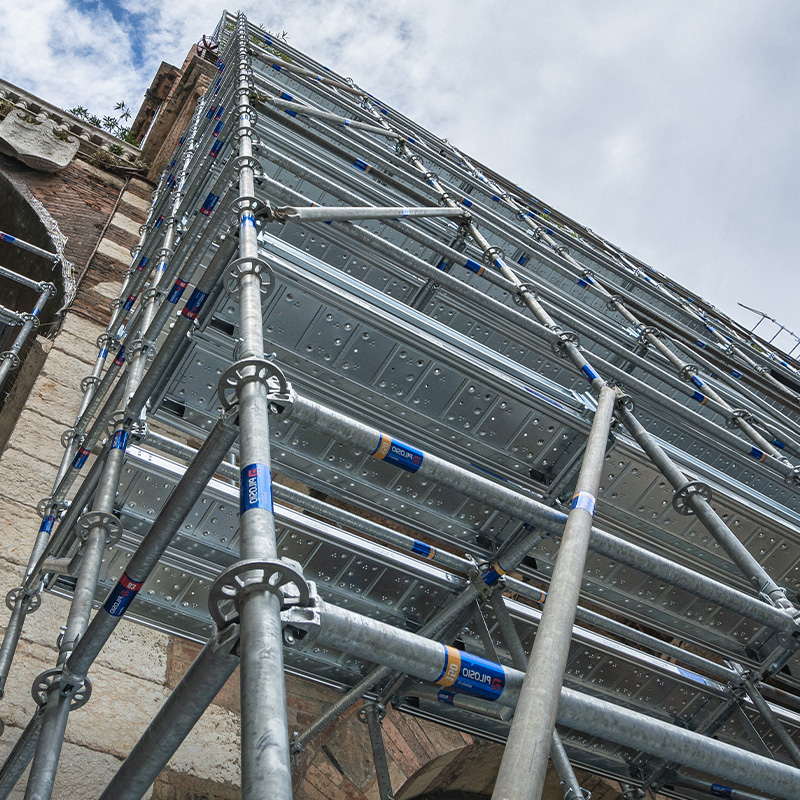

- Great versatility thanks to rosettes welded to vertical uprights every 50cm that allow 8 independent connections in 360°.

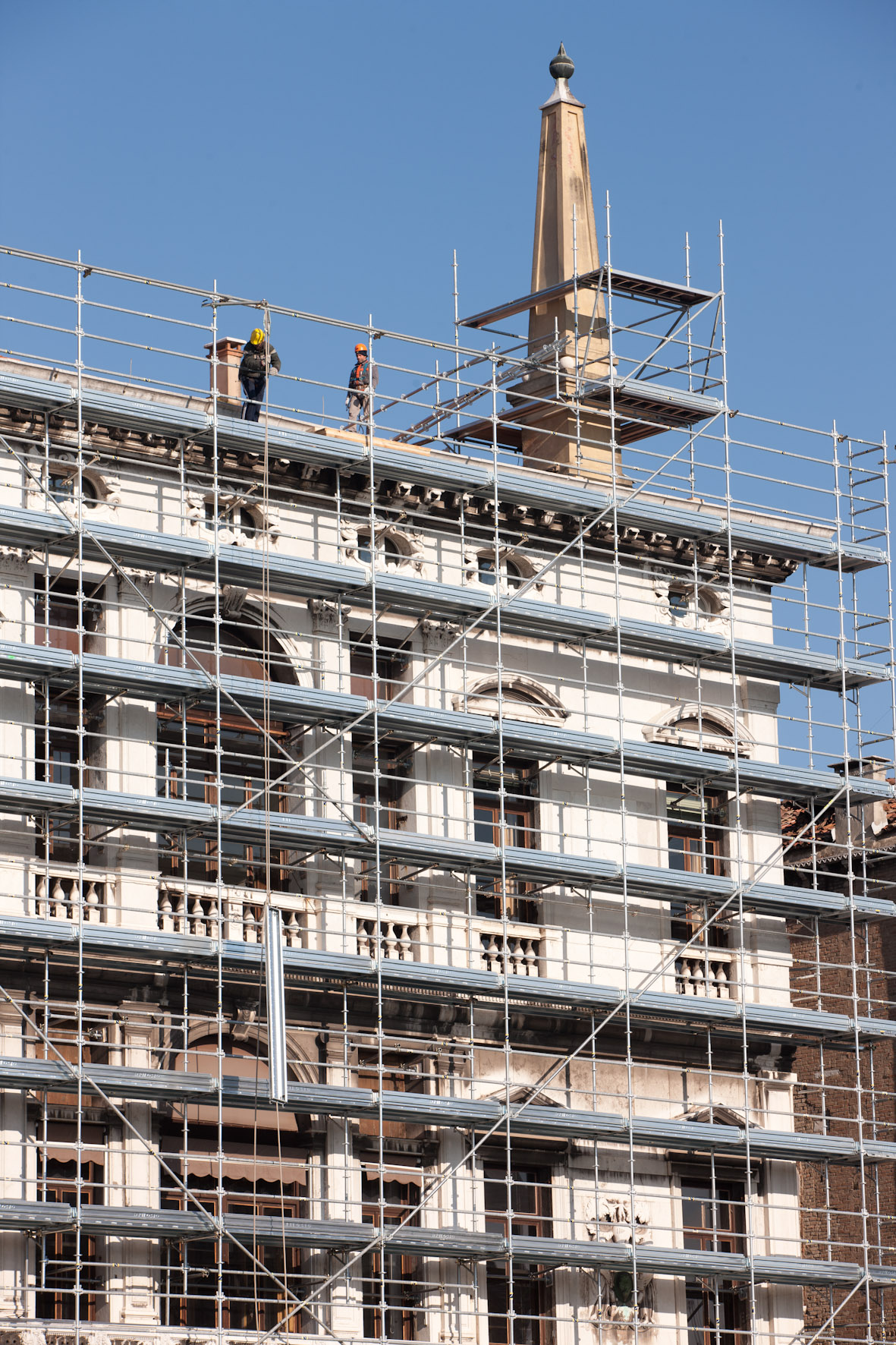

- MP system suits a wide range of applications from construction to industrial maintenance, shipyards, entertainment venues, facade applications and restoration.
APPLICATIONS
ALL APPLICATIONS

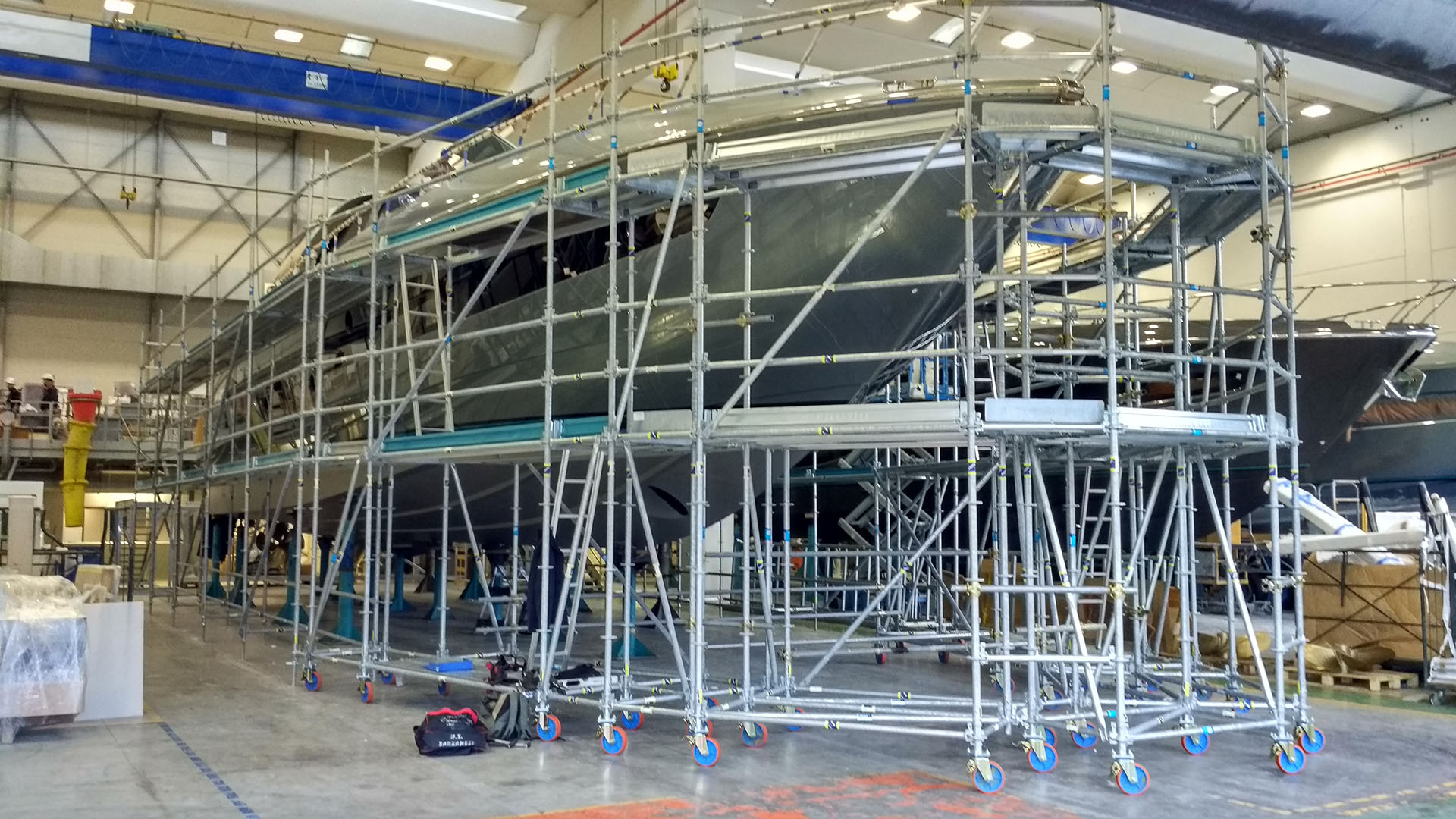

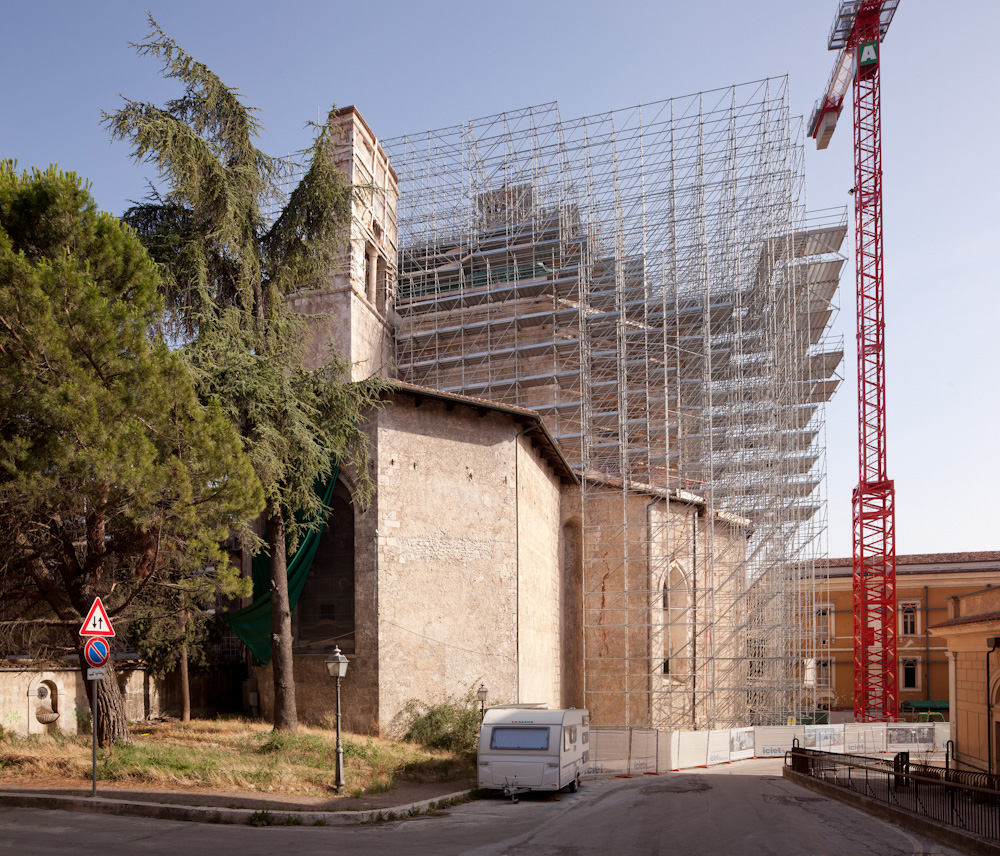

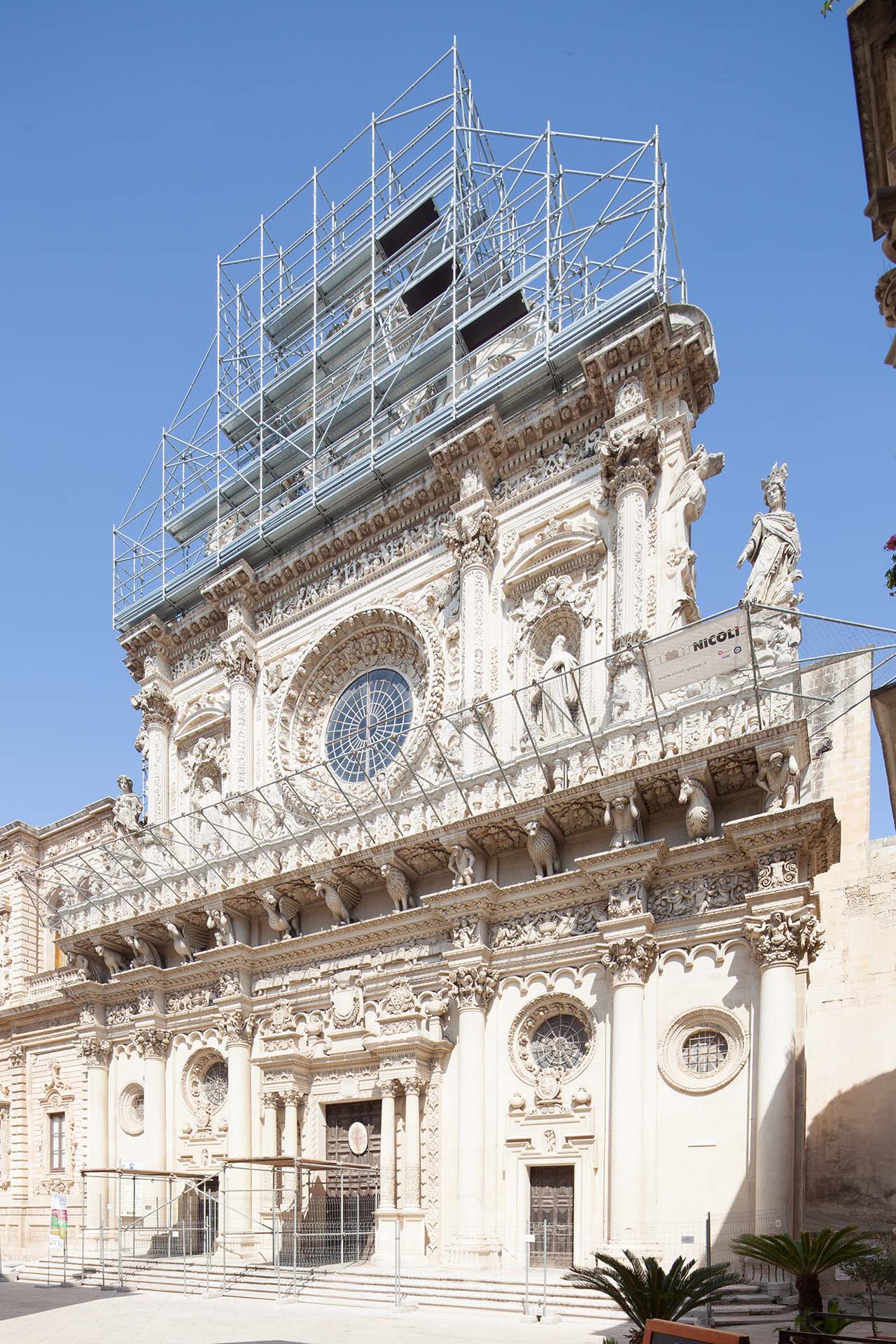

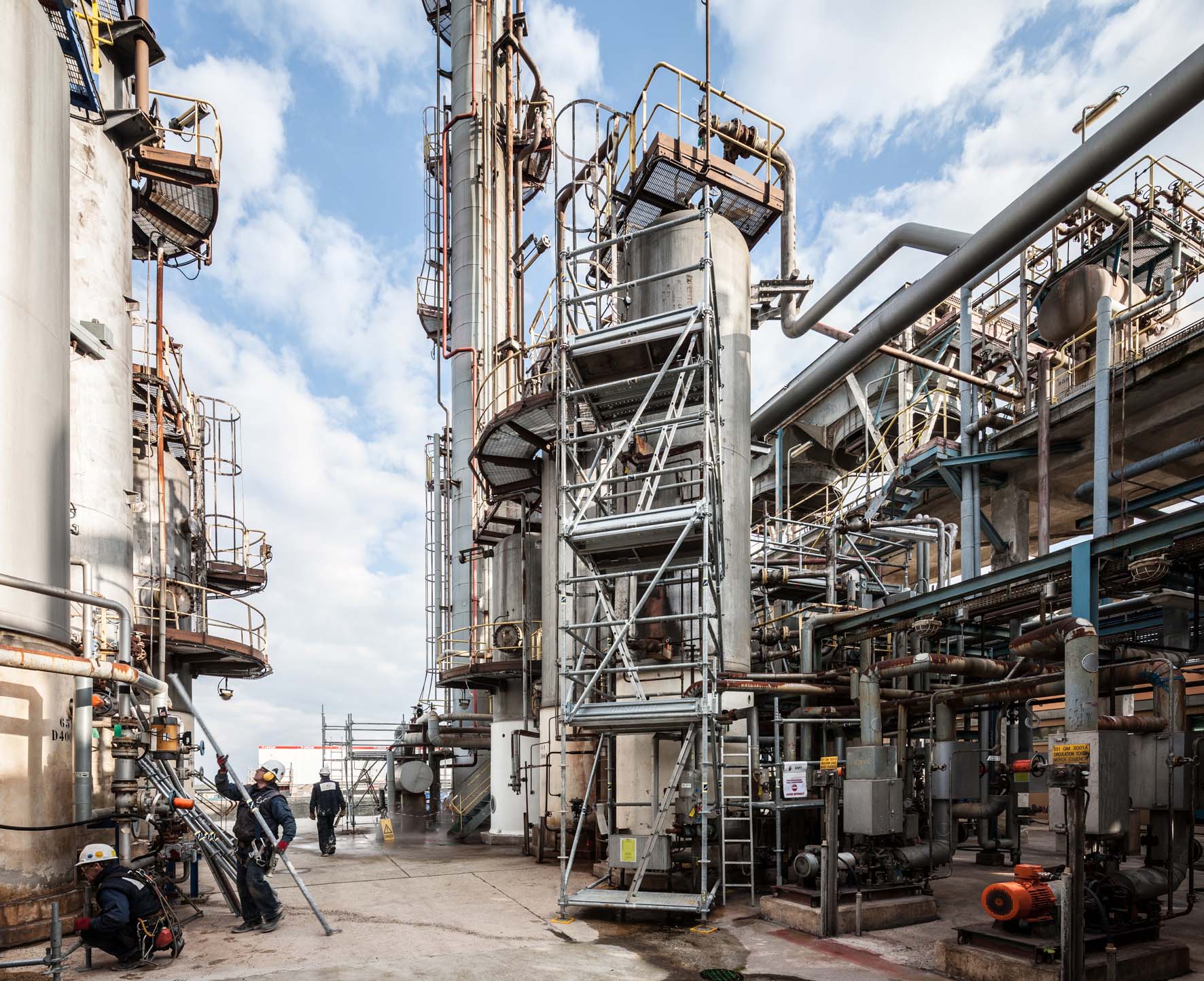

-Residential Constructions -Skyscrapers -Industrial Construction -Bridge Construction -Bridge Maintenance -Renovation & Restoration -Oil & Gas -Naval -Events

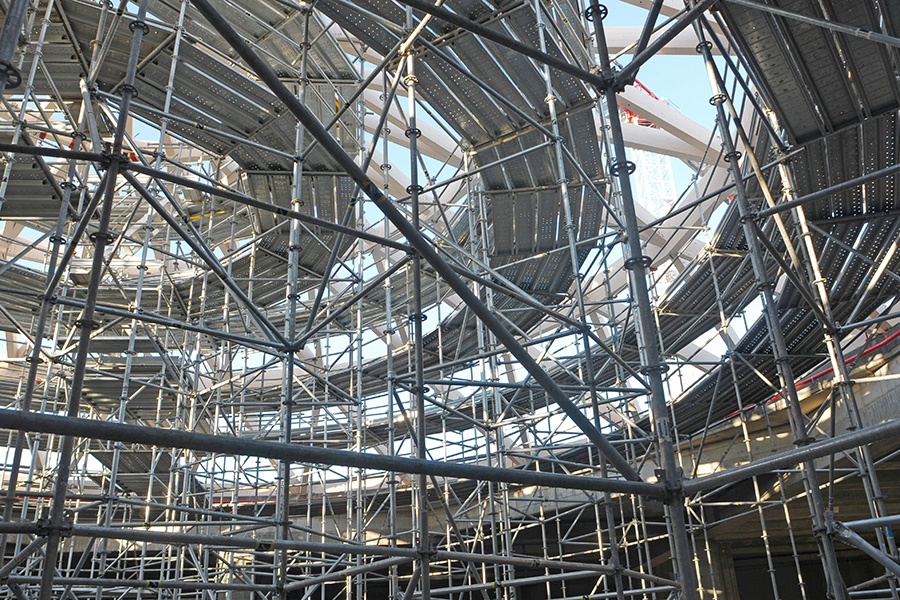

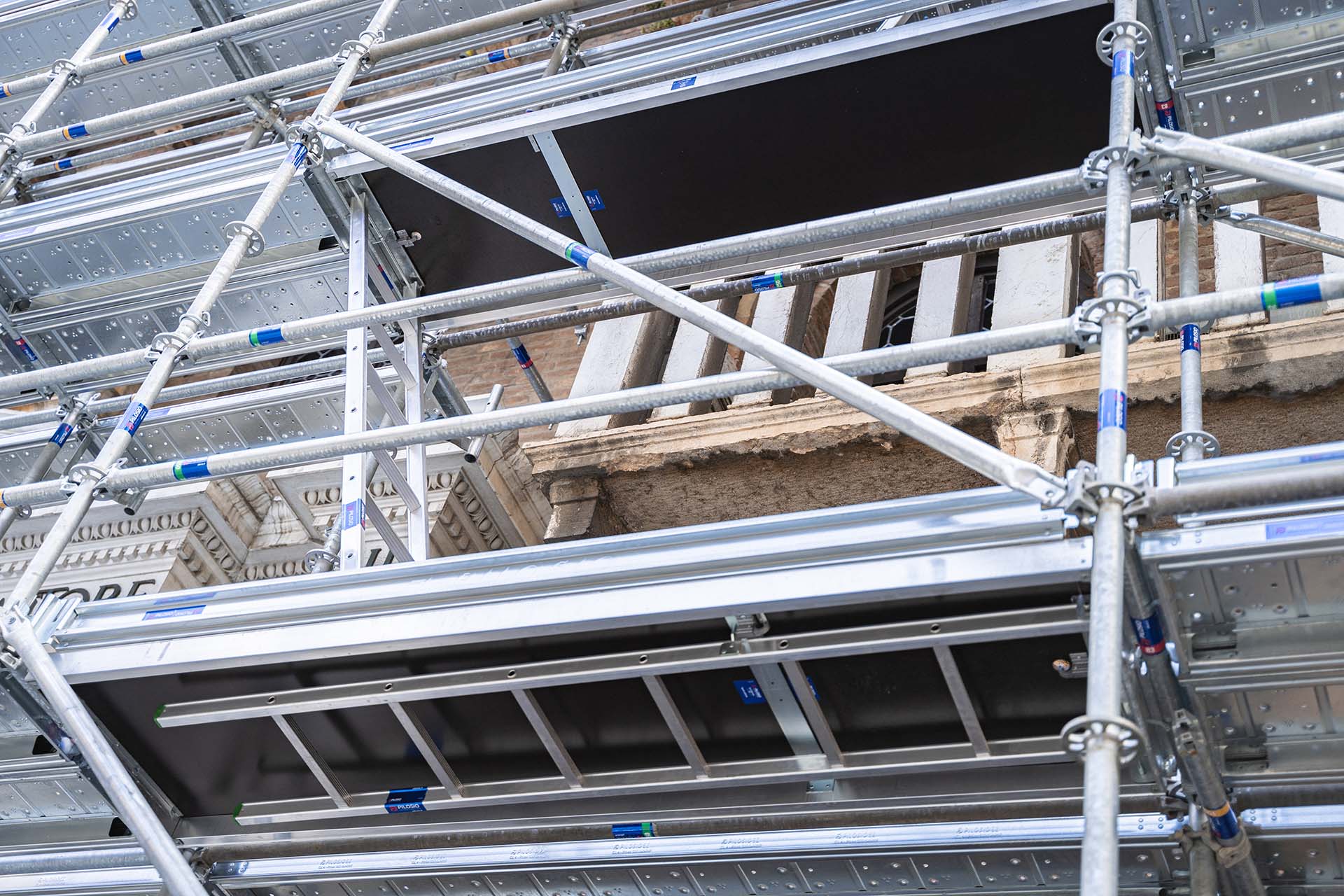

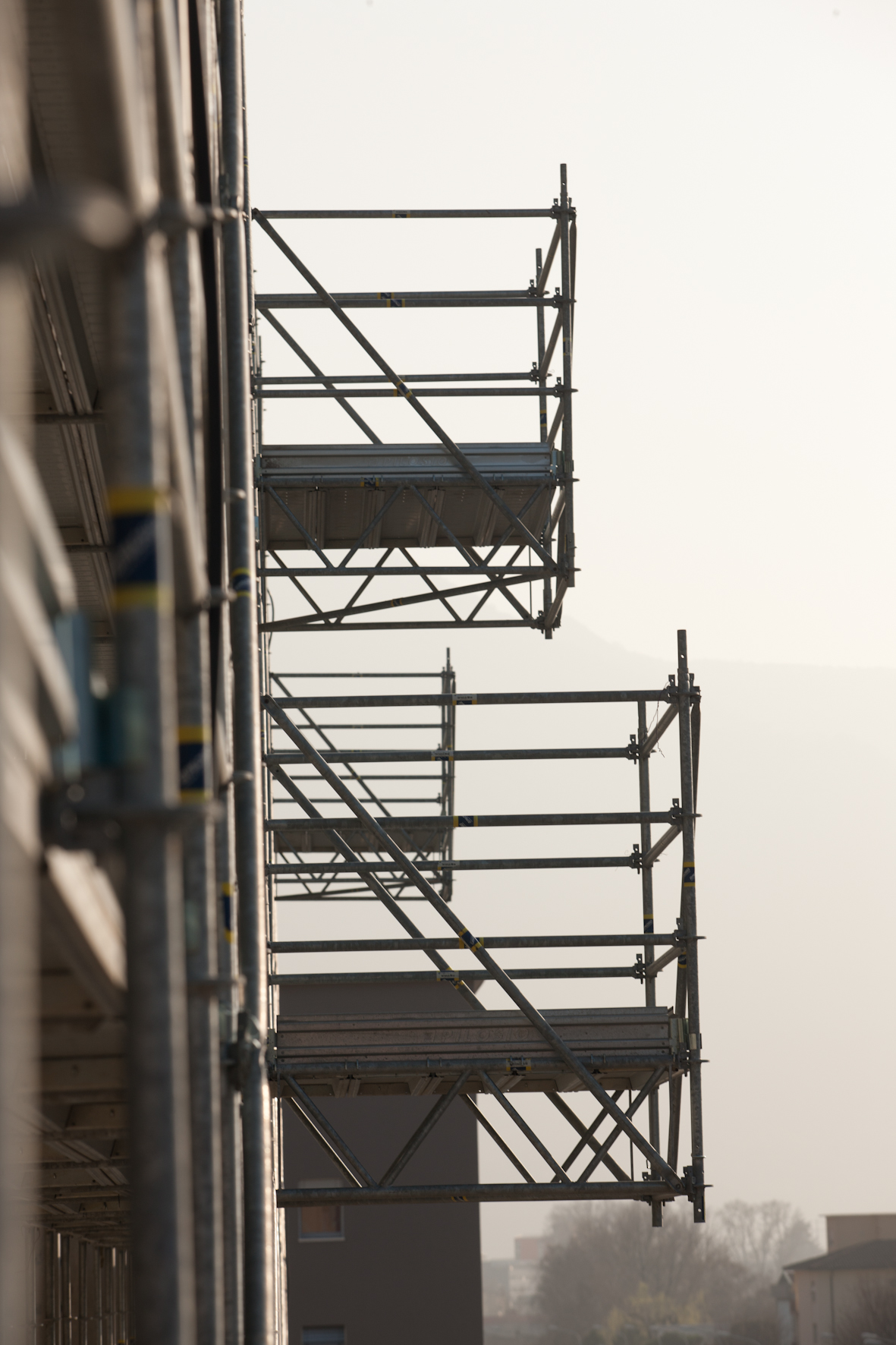

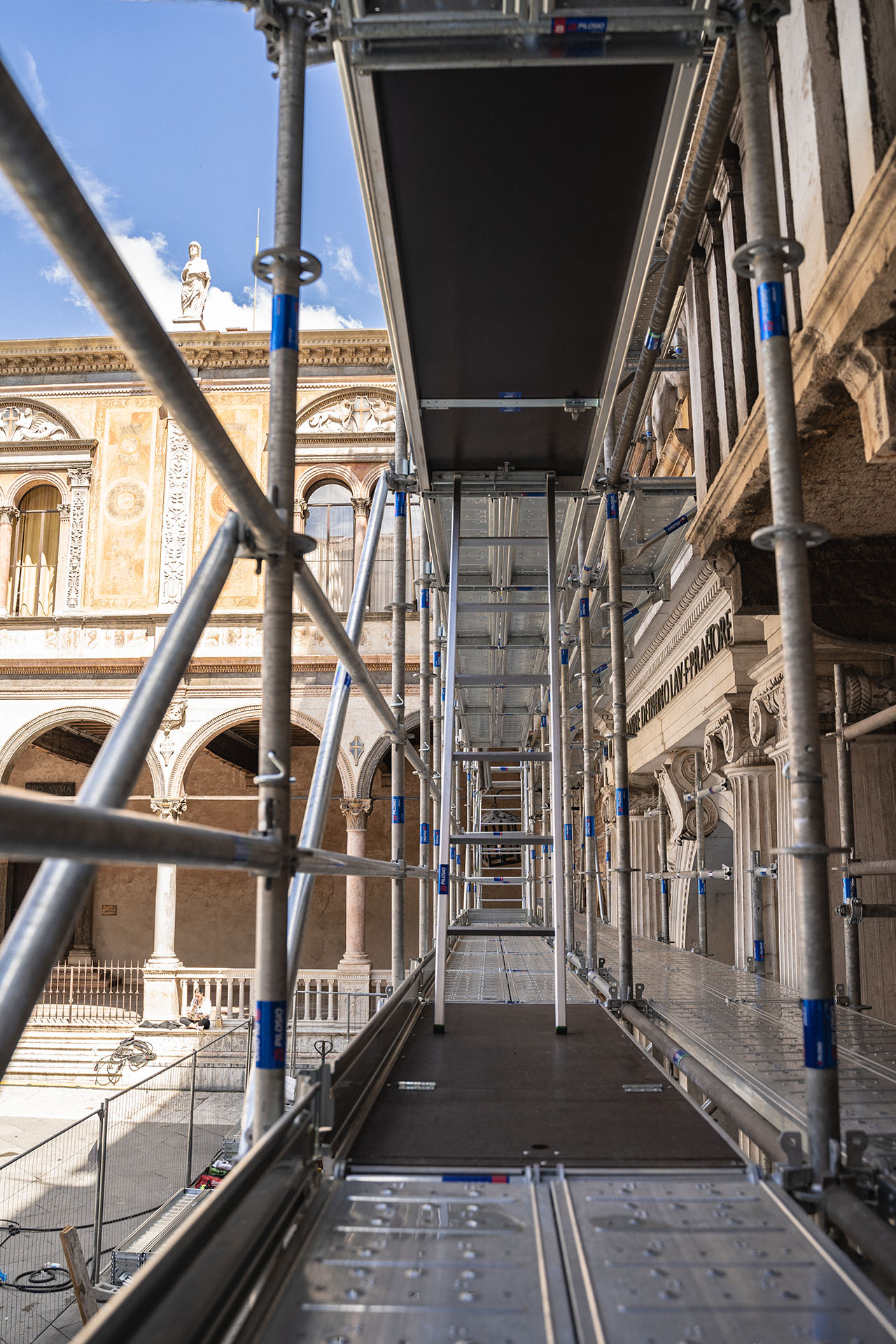

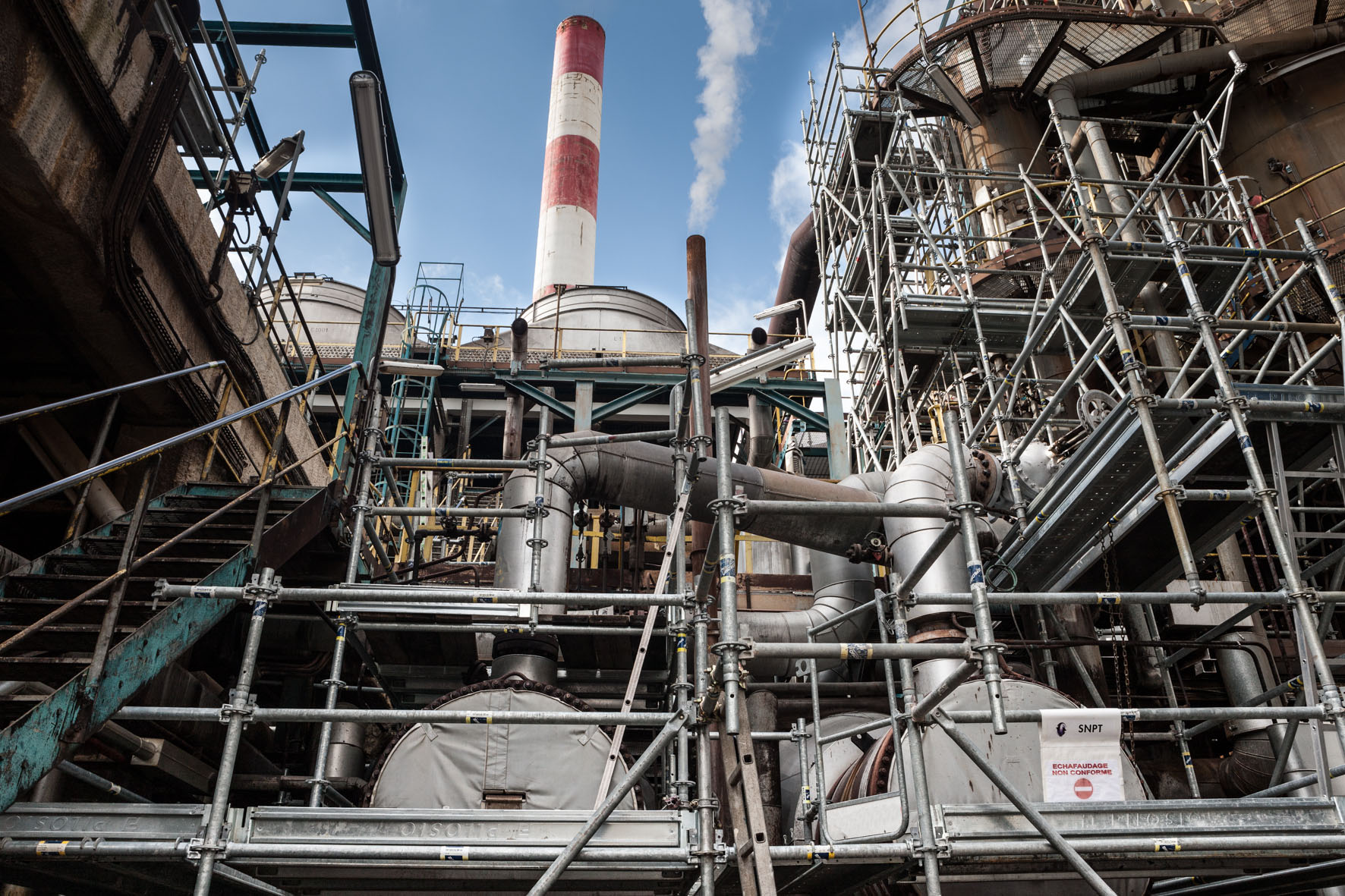

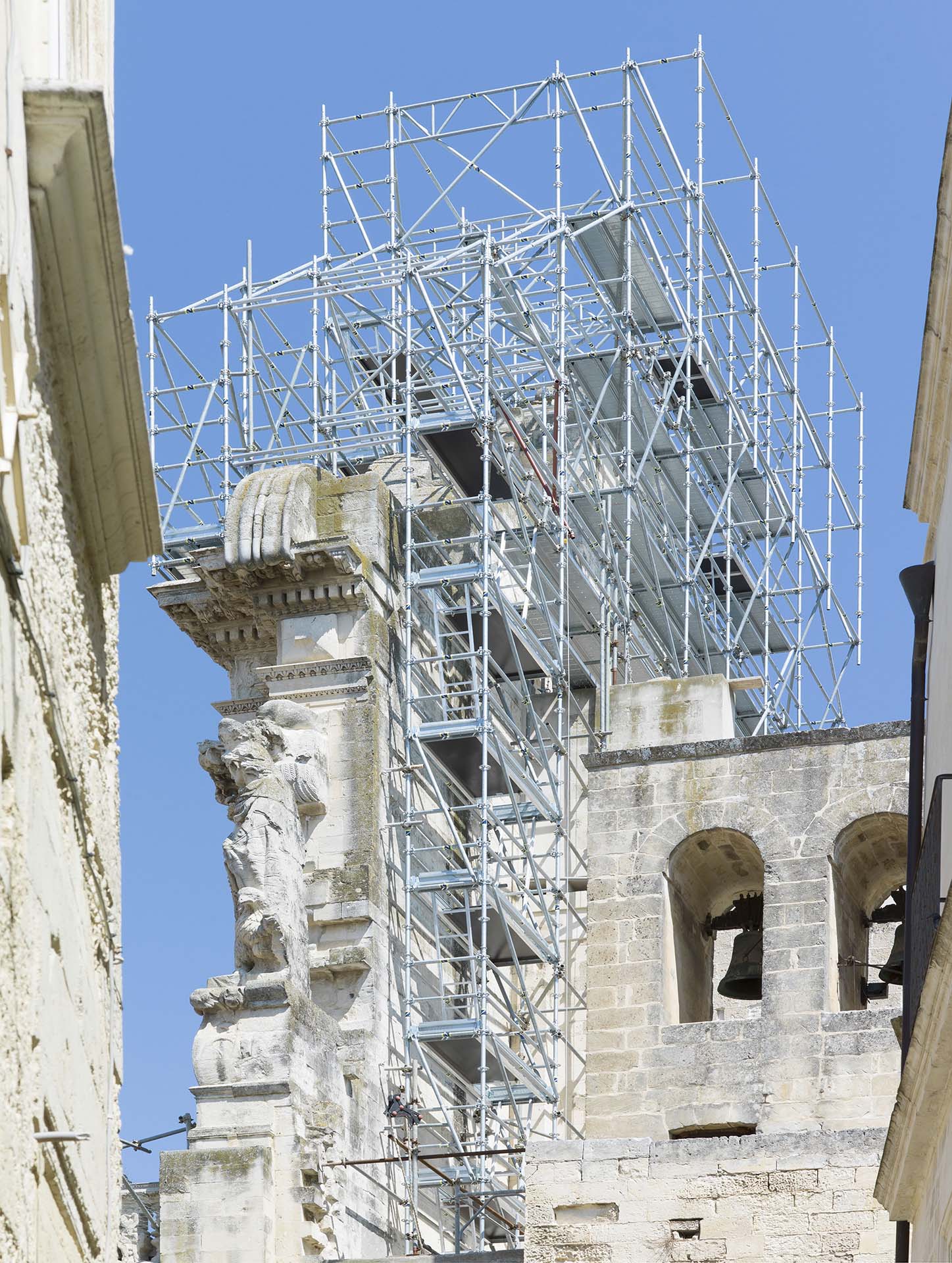

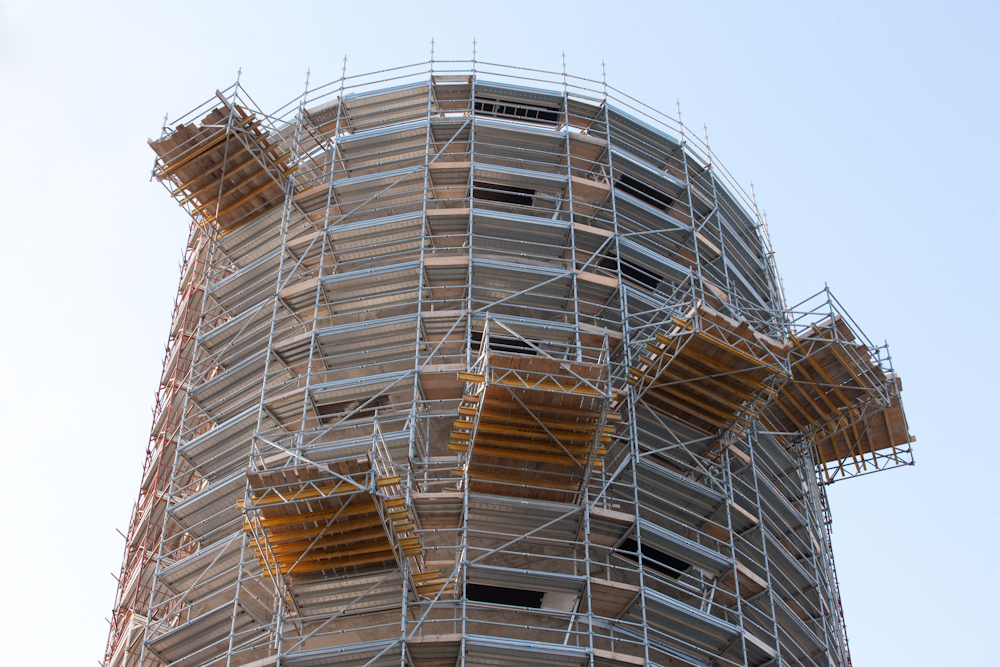

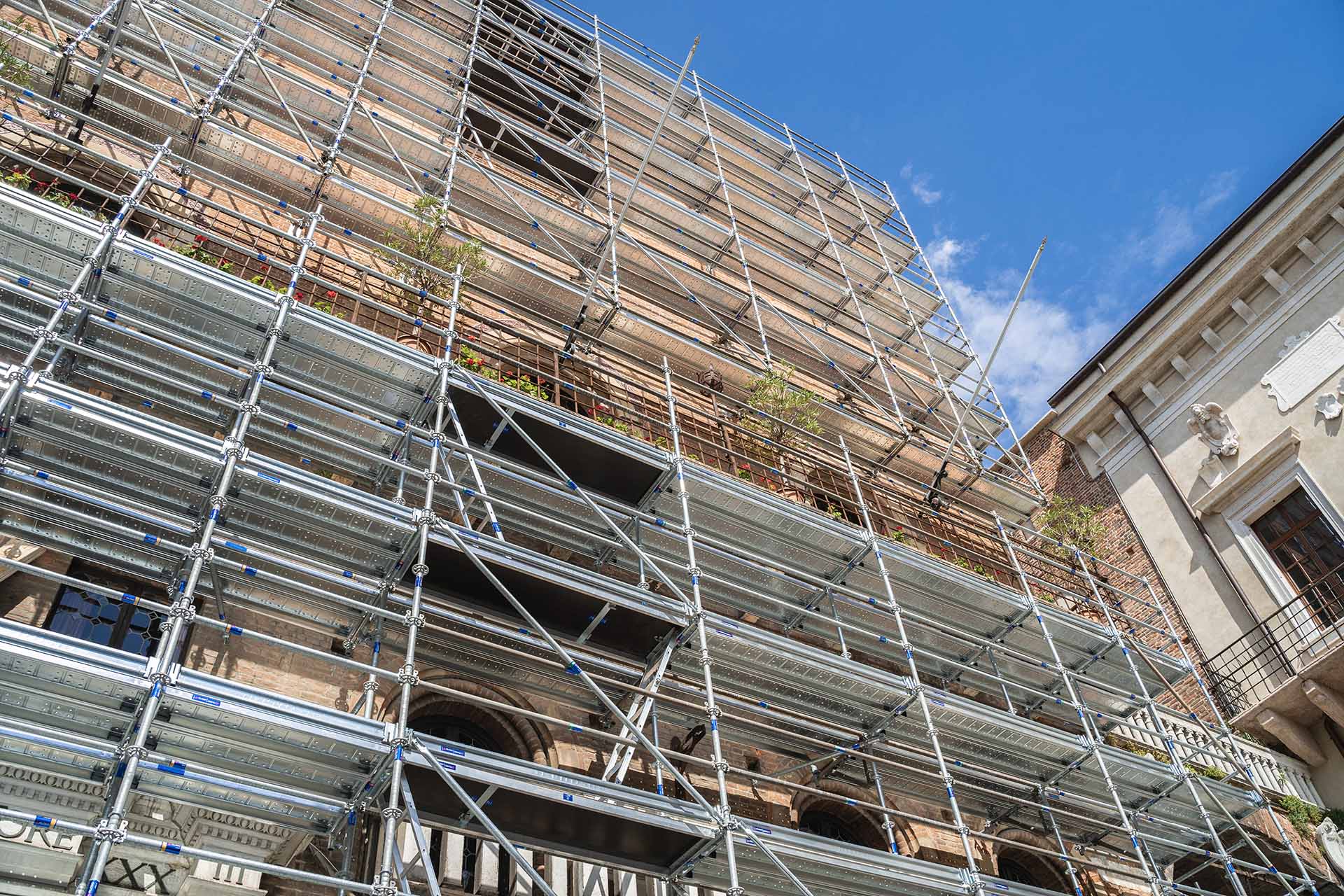

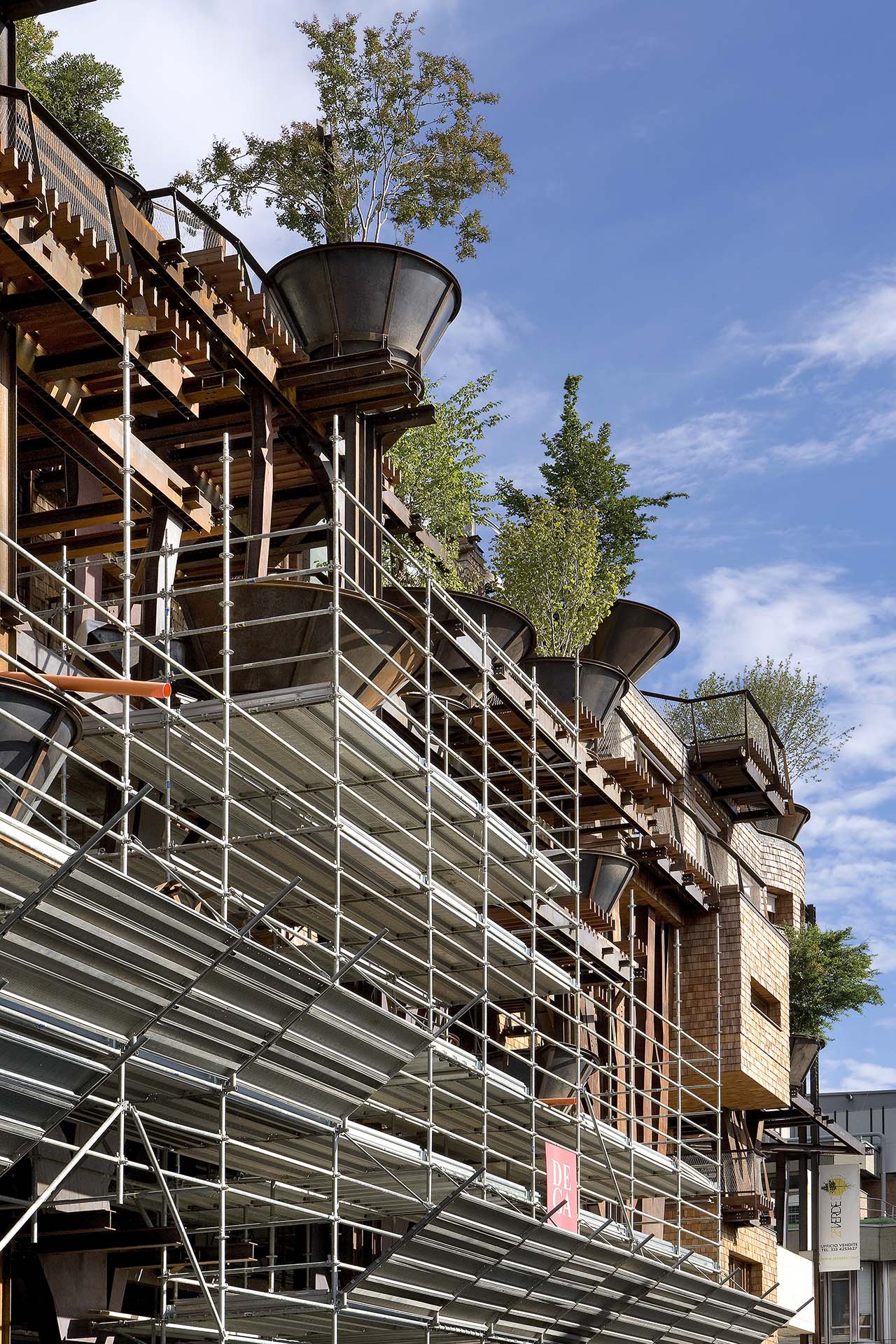

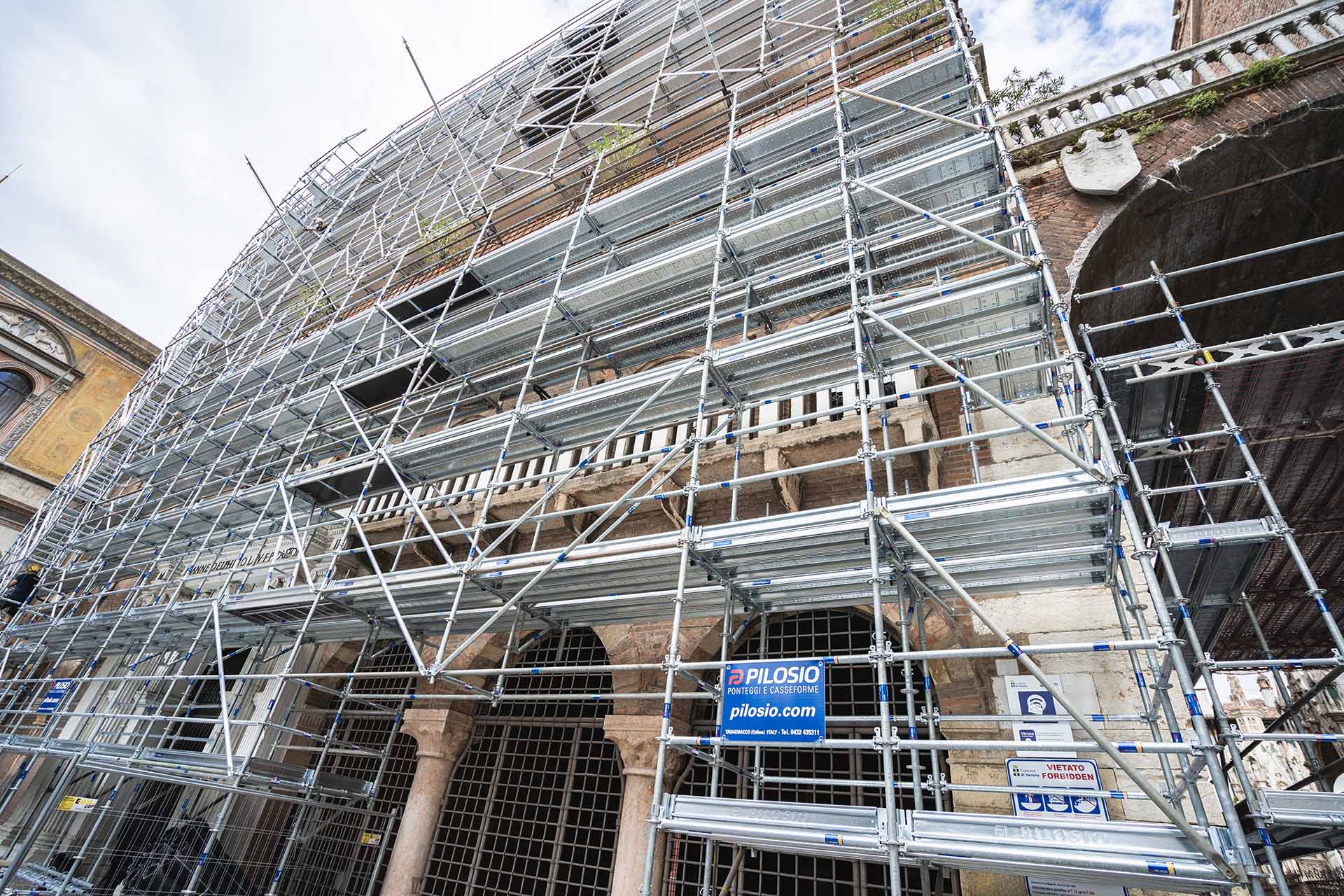

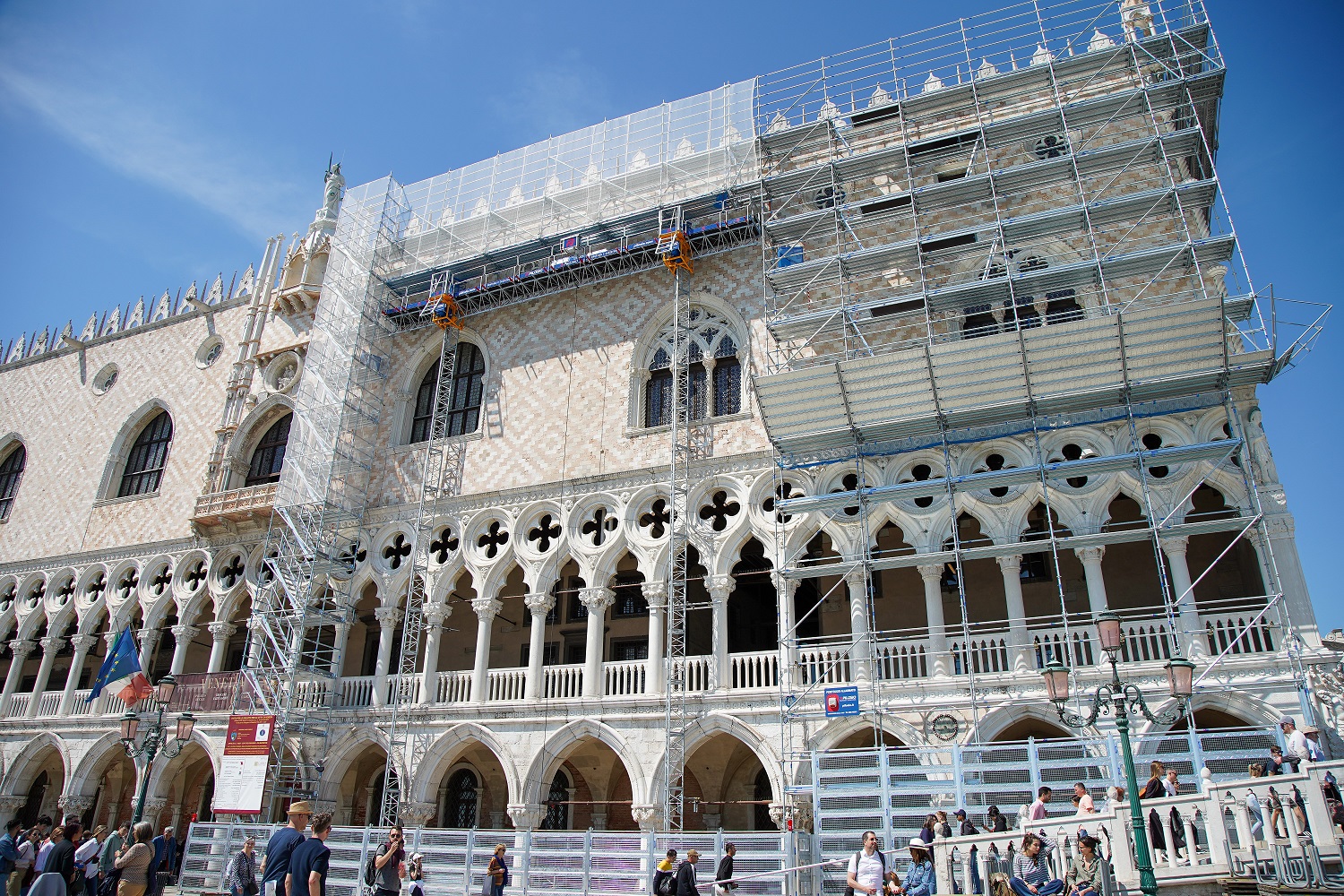

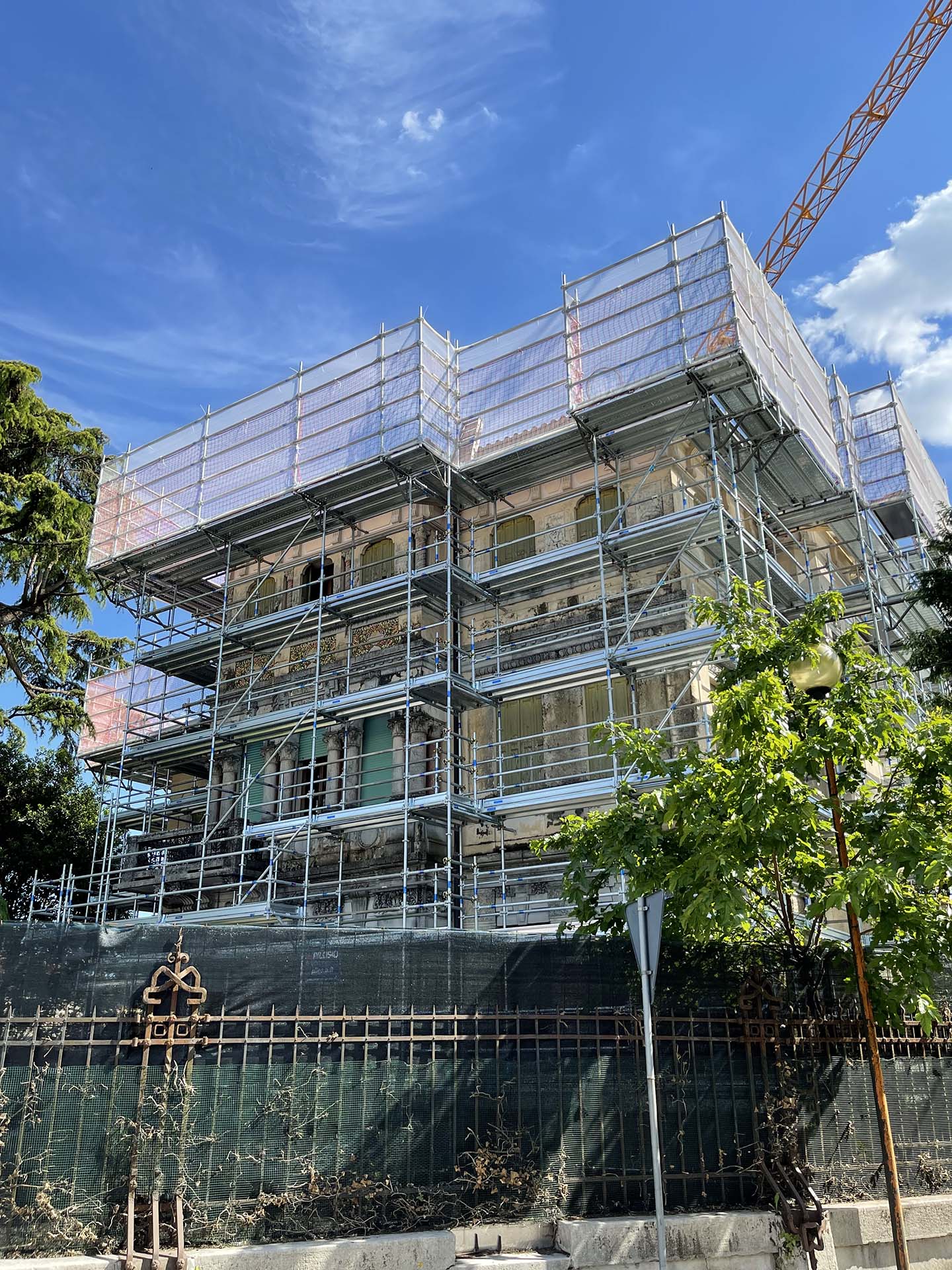

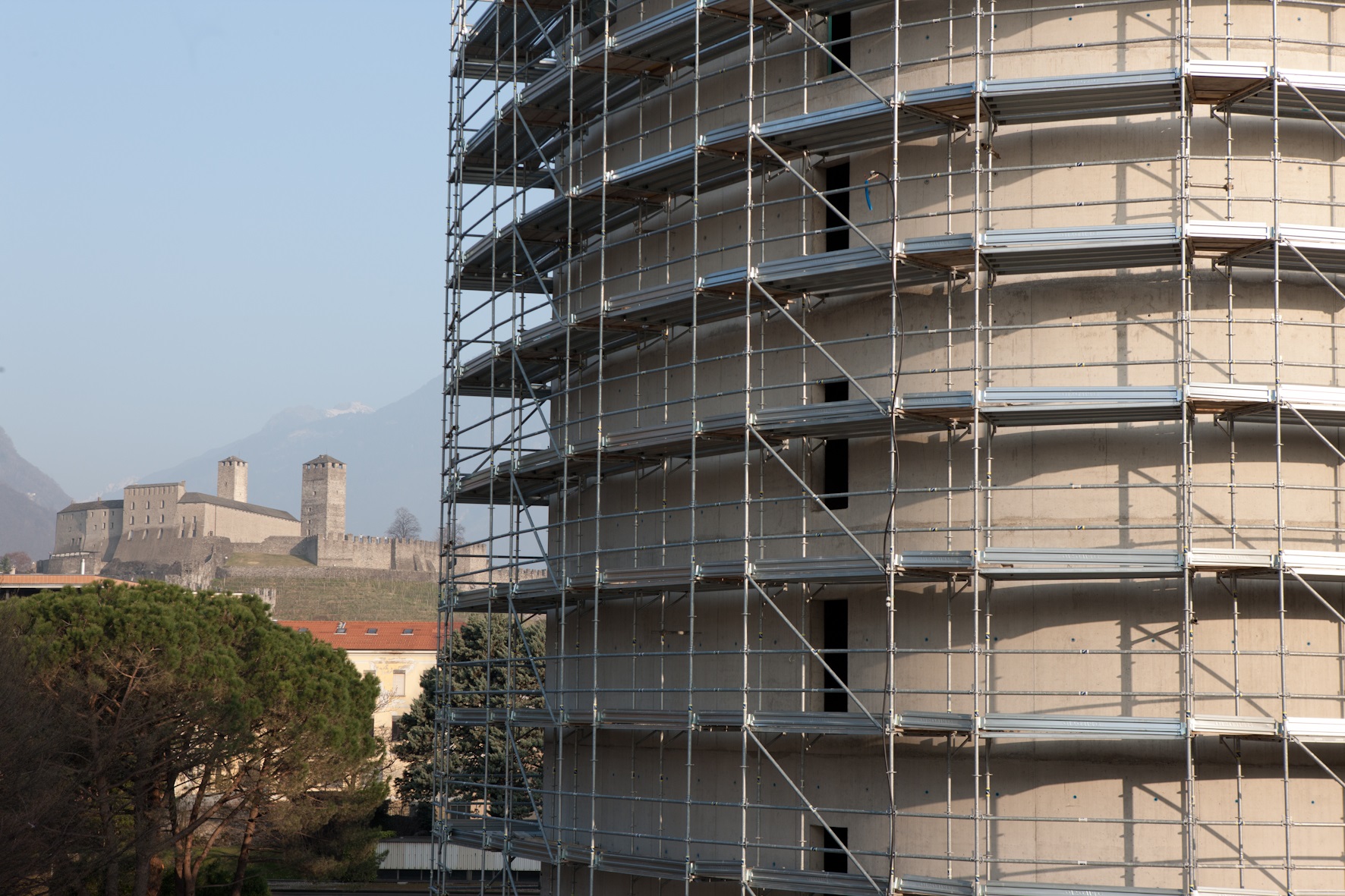

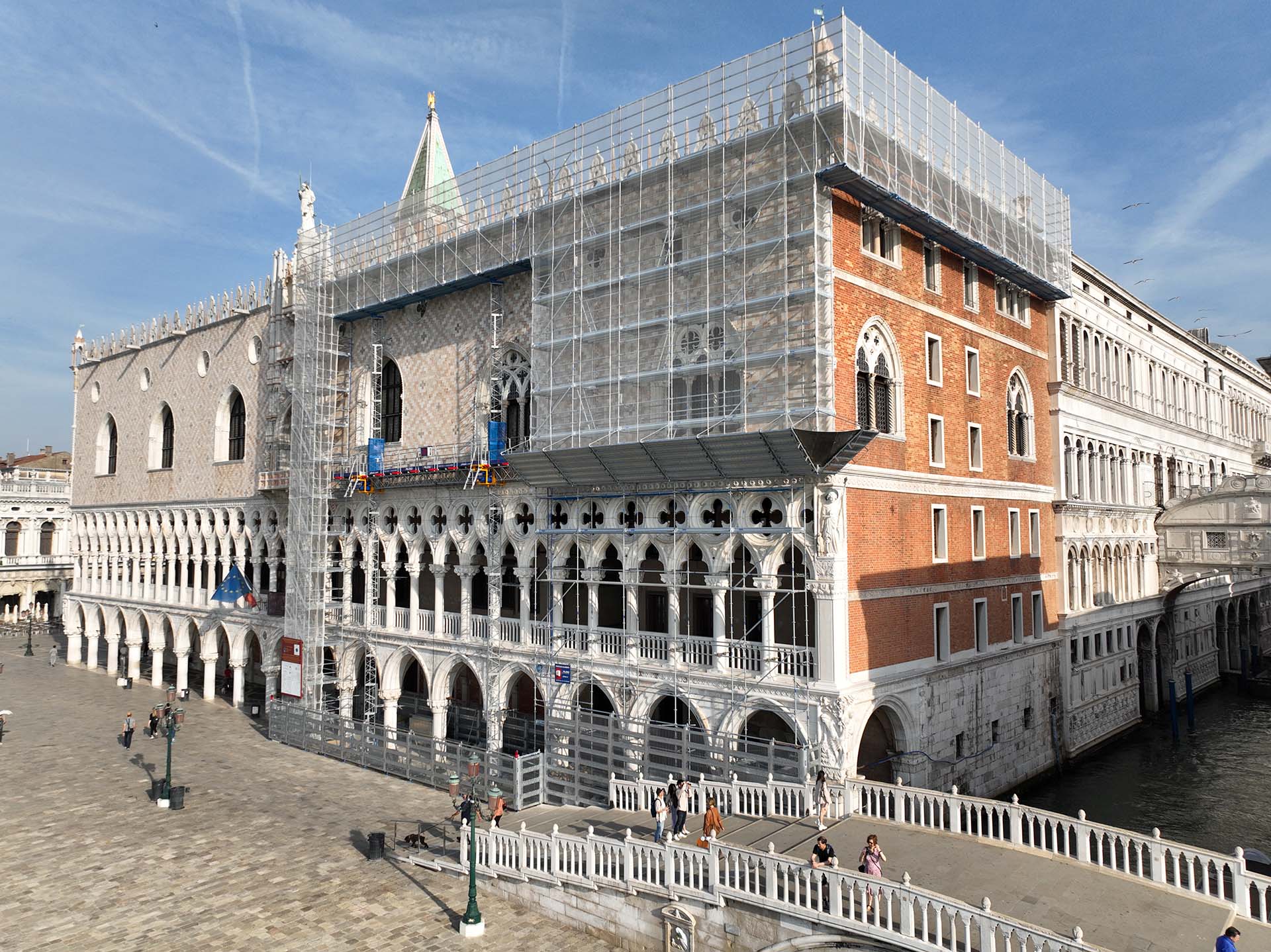

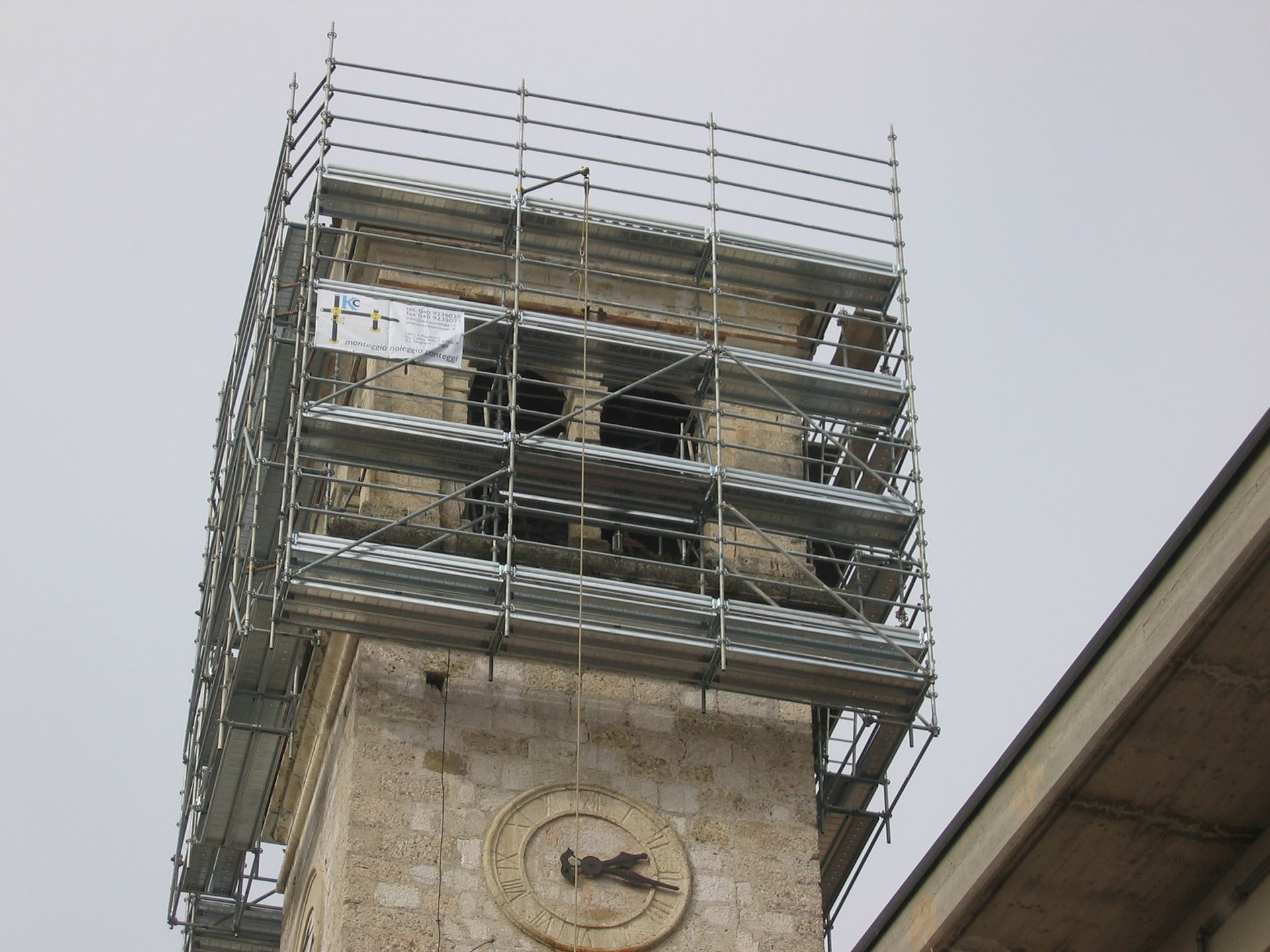

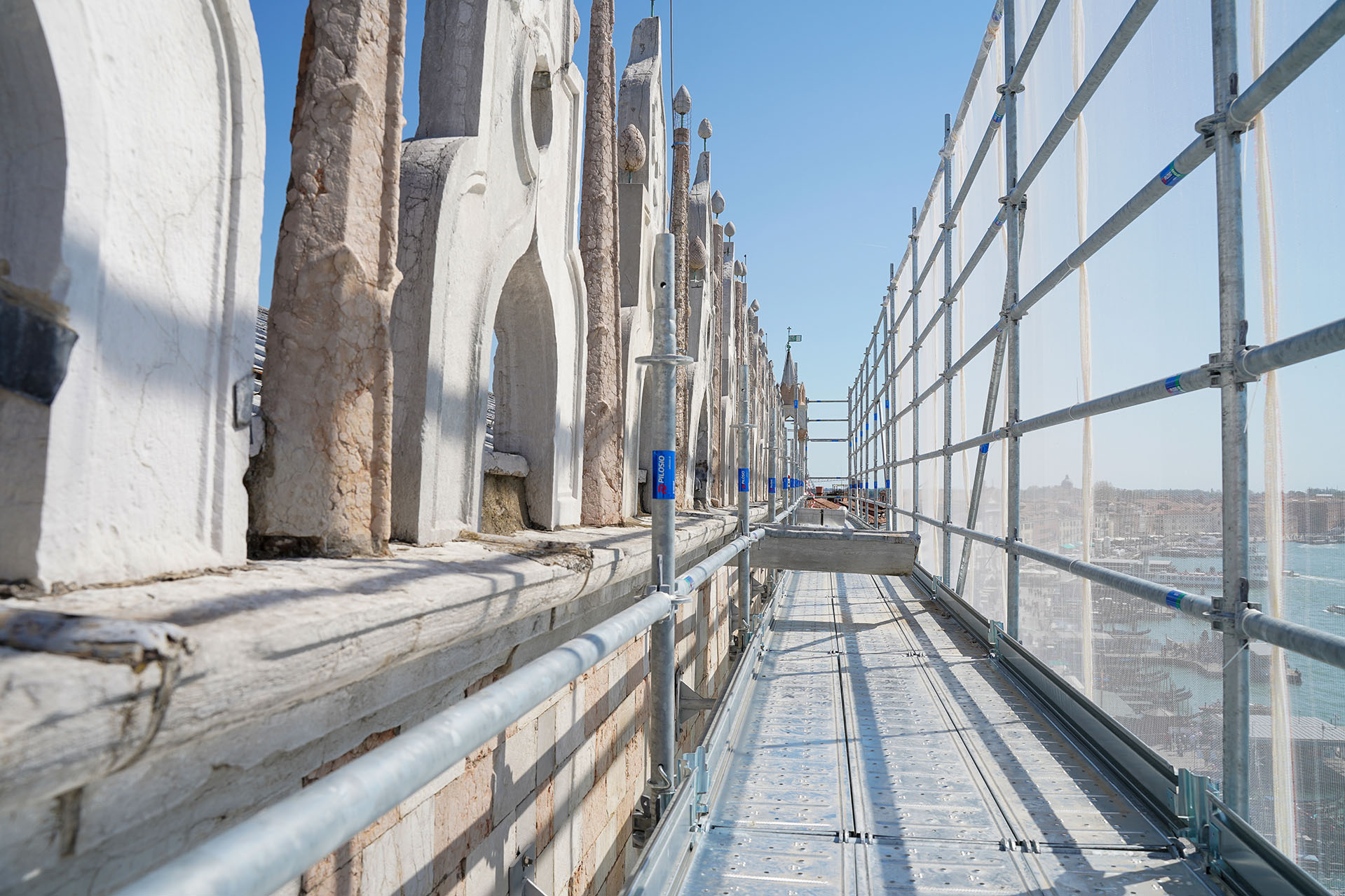

GALLERY
