HINGED INSULATED SYSTEM SMARTIA M9660 PHOS
HINGED INSULATED SYSTEM SMARTIA M9660 PHOS
SMARTIA M9660 PHOS offers concealed sash typologies.
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Thermal Insulation
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
70.5 mm
WINDOW TYPE
Hinged
THERMAL INSULATION
Yes
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
101 mm
WIND LOAD RESISTANCE
C3/B3
PRODUCTION
Made in Greece
SEALING METHOD
Perimetrical at 3 levels with EPDM & foam EPDM gaskets
RENOVATED RESIDENTIAL
Ideal for new and renovated residential and office buildings.
EXTERIOR SHAPE
Flat
MAXIMUM GLAZING THICKNESS
26 mm
ADVANTAGES
- High certified performance.
- Excellent value for money rate
- Ease of use and high functionality
- Elegant appearance thanks to straight lines of profiles.
- Enhanced natural light thanks to the system's minimal design. surface
- Suitable for all climatic zones thanks to high level of thermal insulation.
MECHANISM
Euro-nut
TYPE OF THERMAL INSULATION
Polyamides12mm width
SASH WEIGHT
up to 130 Kg
UF
From 2,5up to 3,6 W/m²K
GLAZING TYPE
Double
TYPES OF TYPOLOGY
For all tilt & turn typologies
DETAIL
Thanks to its minimal design, it maximizes natural light and further reduces the visible aluminium width whistle maintaining the high thermal insulation and waterproofing performance that characterize all opening thermal insulation systems.
WATER TIGHTNESS
Class 7A (300Pa)
AIR PERMEABILITY
CLASS 4
SECTIONS & TYPOLOGIES

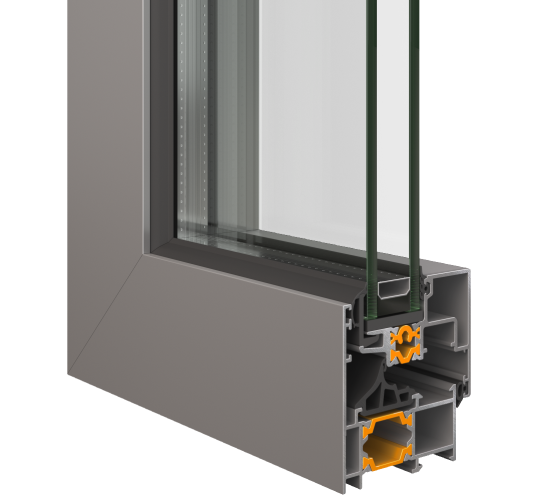

SECTIONS

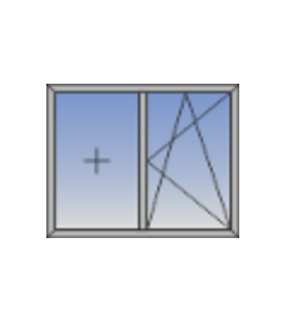

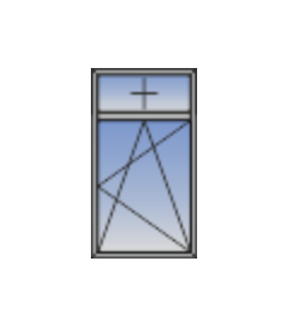

TYPOLOGIES

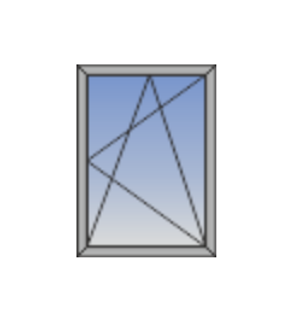

- Single Tilt & Turn Casement
- Single Tilt & Turn Casement
- Single Leaf Pivot Door With Fixed Light

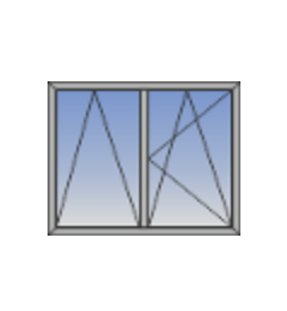

- Single Tilt & Turn With Side-hung Casement

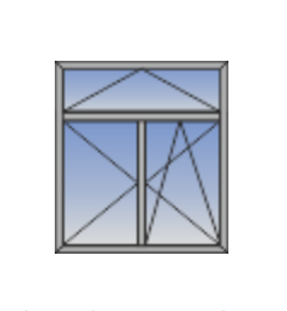

- Double Tilt And Turn Window With Top Hung
