CDESIGN 1620 DOUBLE BASIN
CDESIGN 1620 DOUBLE BASIN
Designed by Carr

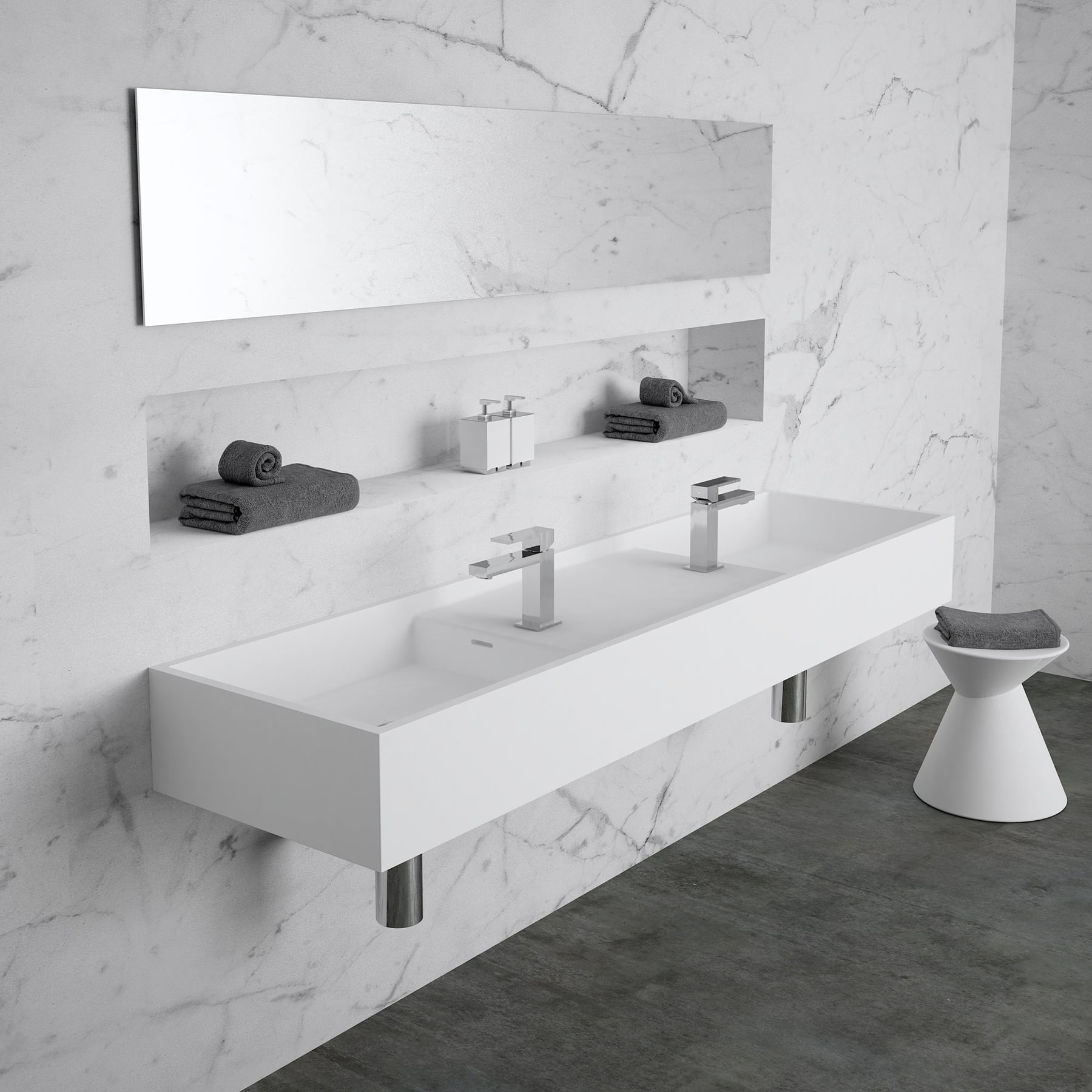

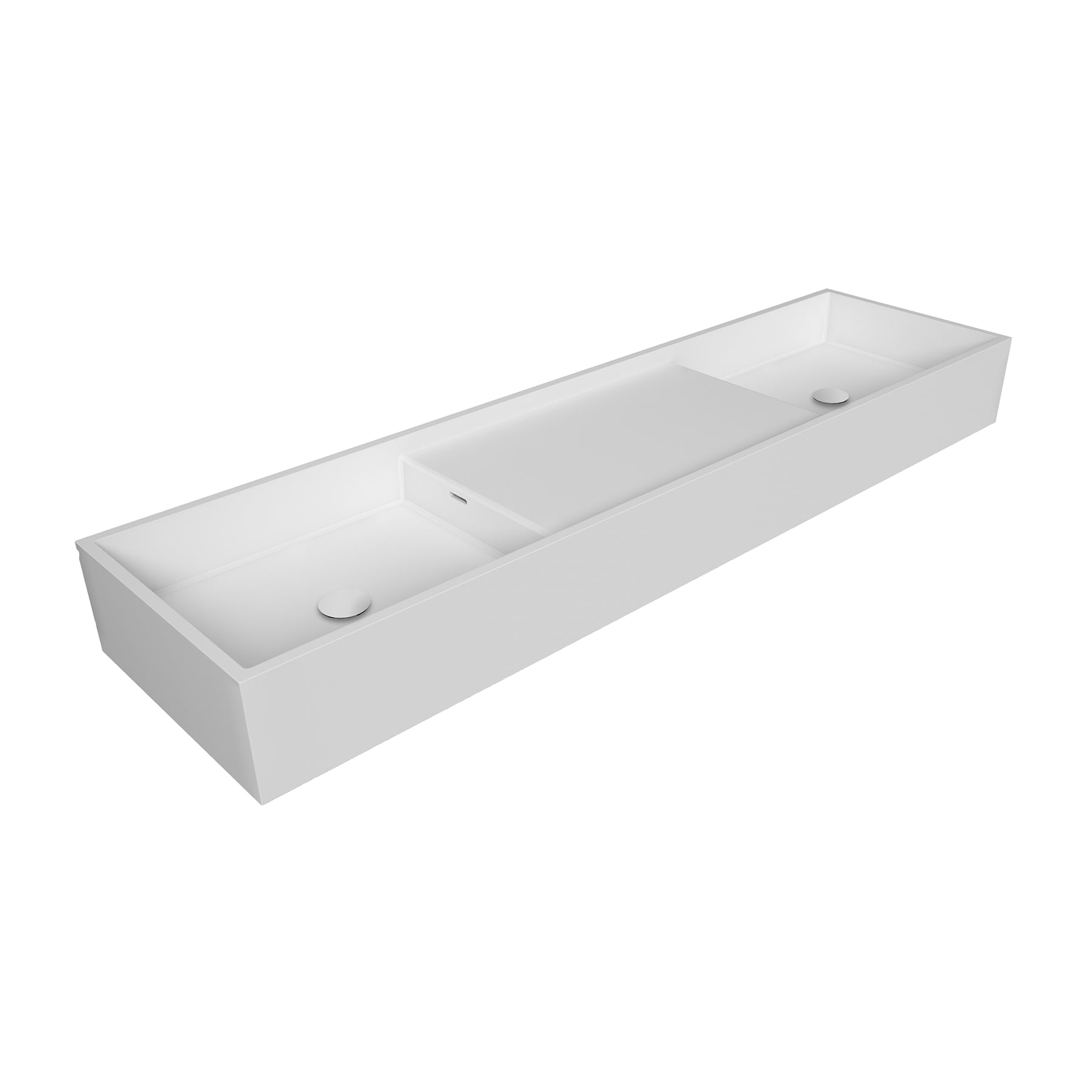

The CDesign 1620 double wall hung basin is an uncomplicated yet timeless design.
Created from solid surface, the CDesign 1620 double basin offers adequate bench space and with the understated detailing of the basin provides you with a functional yet stunning piece for your modern or traditional bathroom.
Manufactured from solid surface it has a smooth matt finish that is exceptionally hard wearing, durable and is also available with softskin options.
The CDesign 1620 double can be wall mounted or installed with the corresponding CDesign furniture with wall or hob mounted taps.
DESIGNER
CARR
Carr is a studio that has championed and cemented the power of design in Australia for more than 50 years – and behind it is Sue Carr – a passionate designer who continues to diligently push the industry forward with her progressive approach to design.
Sue’s design philosophy permeates every project that the studio creates. These guiding principles have been founded on a deep understanding of the value that design can impart on the human experience.
Whether a timeless home, a large-scale residential development, a future-facing workplace or a ground-breaking hotel, every Carr project considers its context, light and shadow, and form and function to create work that leaves an impact.
Since first starting an interior design studio in 1971, Sue has continued to drive the importance of design and this courageous commitment has been recognised by several key accolades. In 2006 Sue was inducted in the Design Institute of Australia’s Hall of Fame, an award that celebrates the work of design visionaries
She has also been recognised in the AFR Westpac ‘100 Women of Influence’ Awards, and in 2010 she received the Gold Medal for Interior Design at the Interior Design Excellence Awards.
In 2021, Sue was appointed as a Member of the Order of Australia (AM) for services to interior design, to education, and to women in business in the Queen’s Birthday Honours
INFORMATION
PRODUCTION
Made In Australia
BRAND
Omvivo
COLLECTION
CDesign
PRODUCT TYPE
Basin
ORIENTATION
Double Bowl
OVERFLOW
Yes
WASTE SUPPLIED
Yes, With A 40mm Micro Trap
SURFACE
Durable solid surface construction with smooth matt finish and softskin options.
WASTE SIZE
32 mm
TAP HOLE
0, 2 or 6
TIMELESS
Timeless double basin design offering generous bench space and modern functionality.
FLEXIBILITY
The installed with the corresponding CDesign furniture with wall or hob mounted taps. For ultimate flexibility it can be supplied with or without tap or fixing holes and it is supplied with a white solid surface plug, pop up waste and wall mounting kit.
DOWNLOADS
↓ Installation
↓ Specification Sheet
WEIGHT
44.6kg
BOWL CAPACITY
9.9L
WASTE SUPPLIED
Yes - 32/40mm chrome pop up waste with matching solid surface plug

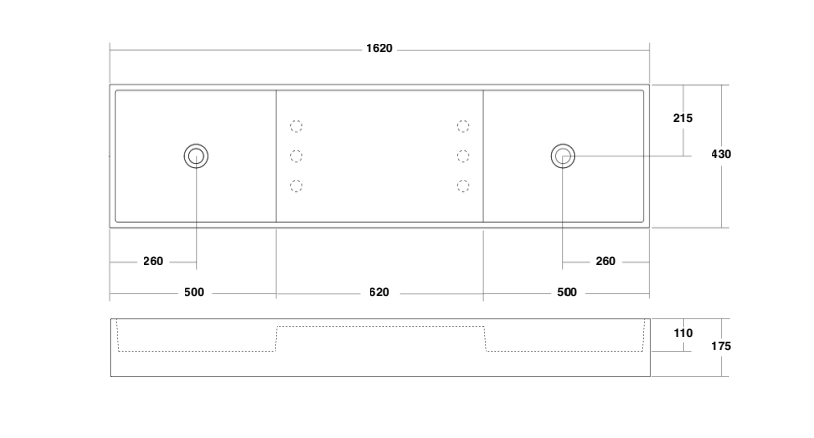

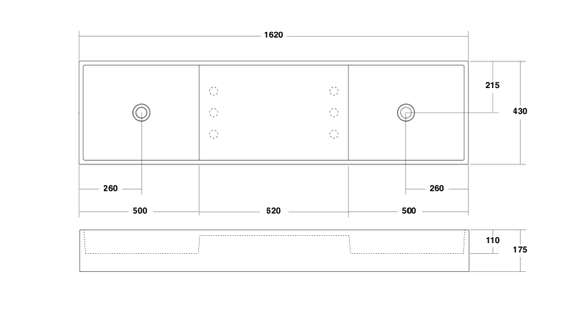

TECHNICAL DRAWING
DETAIL
WARRANTY
This warranty covers faults in the product construction, material and assembly. Products, which are within 5 years from the date of purchase, found upon inspection by an authorized representative, to be defective in construction, material or assembly, will be replaced or exchanged with an equivalent product free of charge.

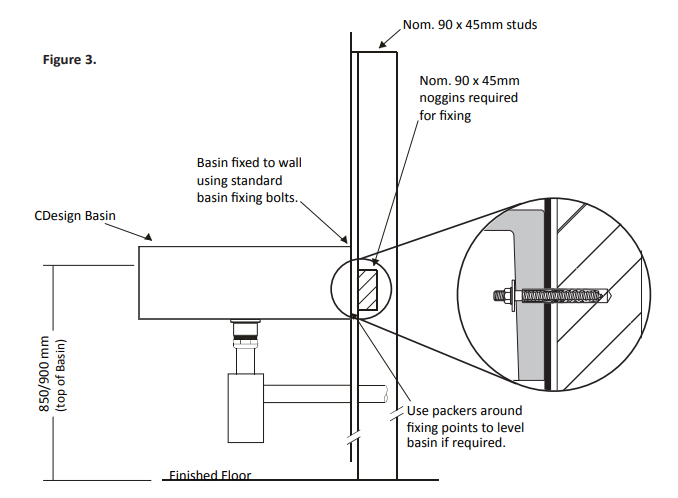

MOUNTING CDESIGN BASIN TO WALL INSTALLATION HEIGHTS
-Mark out bolt positions ensuring they are level and at the correct height.
-Installer to determine appropriate fixings, ensure wall is suitable and studs, noggins etc are in appropriate locations.-Once appropriate fixings are in the wall, place basin over bolts and tighte.-Once basin is attached to wall, connect trap and other hardware as necessary.

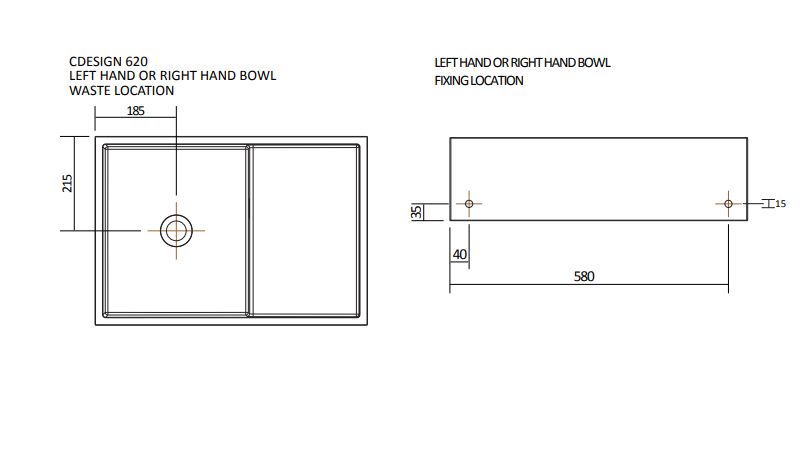

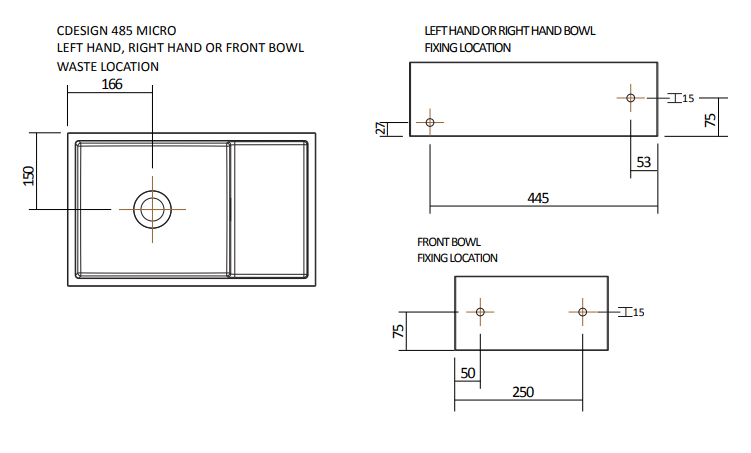

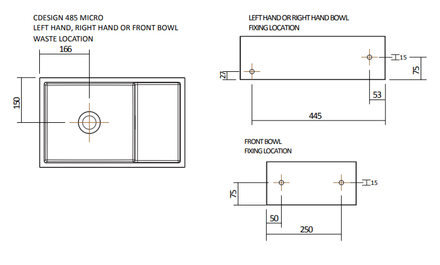

FIXING POINTS
Ensure appropriate framing is positioned to secure CDesign basins
