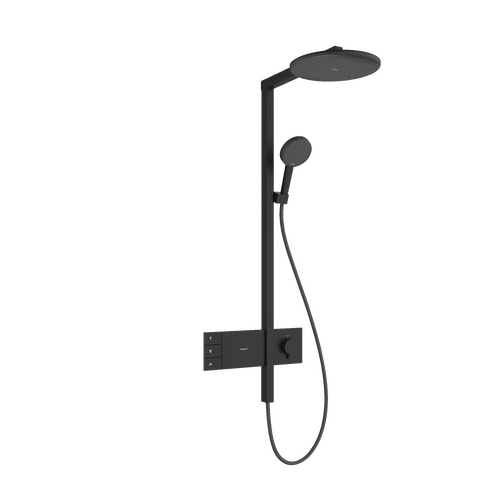

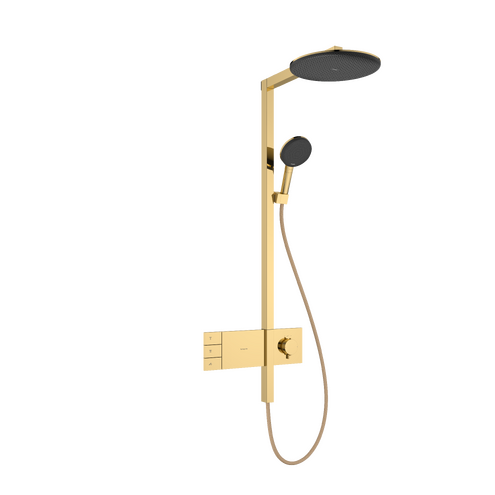

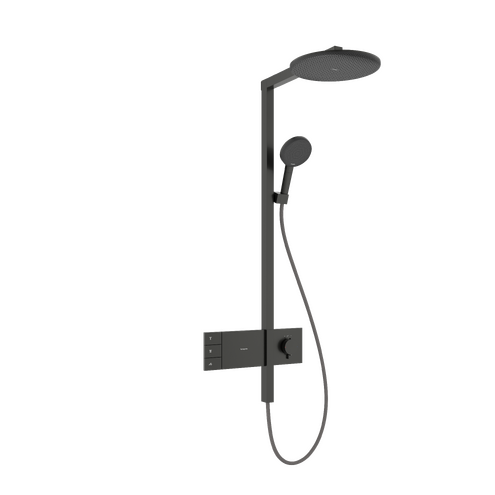

Hansgrohe Raindance Alive S Showerpipe 300 2jet With Showerselect Comfort Thermostat
RAINDANCE ALIVE S SHOWERPIPE 300 2JET WITH SHOWERSELECT COMFORT THERMOSTAT
RAINDANCE ALIVE S SHOWERPIPE 300 2JET WITH SHOWERSELECT COMFORT THERMOSTAT
Art. No. 24595000
SPRAY TYPES
RAINAIR
Gentle, Air-enriched Droplets Deliver A Soft And Soothing Shower Sensation. The Generous Rain Feels Pleasant Across The Skin While Remaining Efficient, Rinsing Shampoo Thoroughly For A Refreshing And Indulgent Experience.
POWDERRAIN
Relaxing, Micro-fine Droplets That Gently And Quietly Envelop The Body. The Water Is Transformed Into A Delicate Cocoon That Sensually Embraces The Body. For Sensual Showering And Indulgent, Deep Relaxation.
MASSAGE
An Invigorating Spray That Soothes And Causes Everyday Stresses To Flow Down The Drain. The Water Sprays Are Concentrated To Ease Tense Spots. For An Indulgent And Relaxing Spa-like Shower, Every Single Day.
INFORMATION
BRAND
Hansgrohe
PRODUCT TYPE
Shower
SPRAY TYPE OVERHEAD SHOWER
- RainAir
- PowderRain
HEIGHT
- Adjustable
- Easy Slide Slider
PRODUCTION
Made in Germany
MAX. OPERATING PRESSURE
10 bar
SHOWER HEAD SIZE OVERHEAD SHOWER
300 mm
FLOW REGULATOR
12 L/min (With Possible Tolerances ± 10 %)
SPRAY TYPE HAND SHOWER
- RainAir
- PowderRain
- Massage spray
FLOW RATE RAINAIR SPRAY AT 3 BAR
10.7 l/min
MAXIMUM FLOW RATE OF HAND SHOWER AT 3 BAR
8.4 l/min
FUNCTION FROM
6 l/min
DESIGN COVER SURFACE
graphite
CONSISTS OF
Overhead Shower, Hand Shower, Slider, Shower Thermostat, Shower Hose, Shower Bar
FINISHES
- Chrome
- Matt Black
- Matt White
- Brushed Bronze
- Polished Gold Optic
- Brushed Black chrome
OVERHEAD SHOWER RAINDANCE ALIVE
S 300 2jet
FLOW RATE POWDERRAIN SPRAY AT 3 BAR
10.8 l/min
SCOPE OF SUPPLY
- Escutcheons
- S-connections
- Mounting Material
- Assembly Instruction
- Showerpipe With Thermostat
DESIGN
Designflex Textile Shower Hose, Water-resistant And Water-repellant Material, Unique Design With Multi-colored Braided Yarns
CONNECTION THREAD
G ½
MINIMUM FLOW PRESSURE
1 bar
MATERIAL THERMOSTAT COVER, HANDLE AND SELECT BUTTONS
Metal
FUNCTIONS
2
MOUNTING TYPE
Exposed Installation
MAXIMUM FLOW RATE FOR SHOWERPIPE AT 3 BAR
10,8 l/min
TECHNICAL DRAWINGS

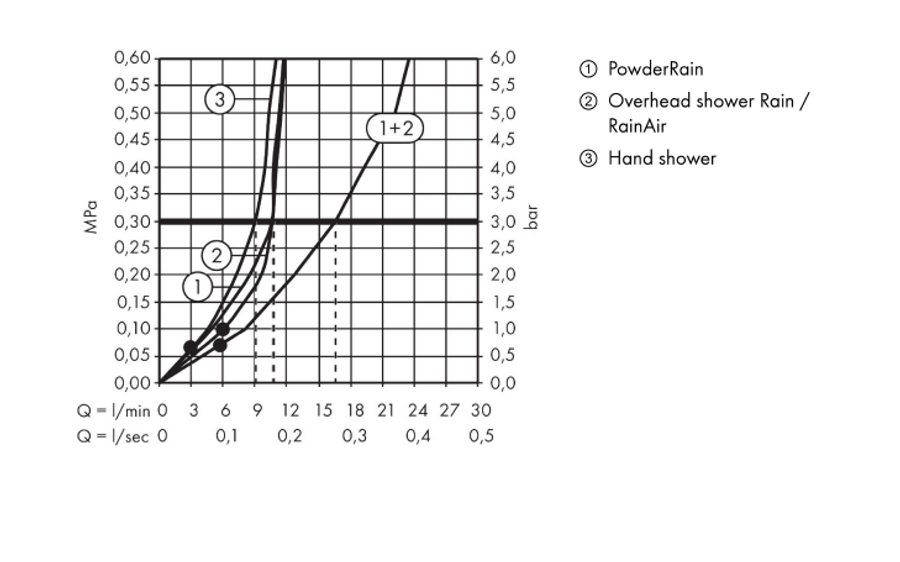

- Flow Chart

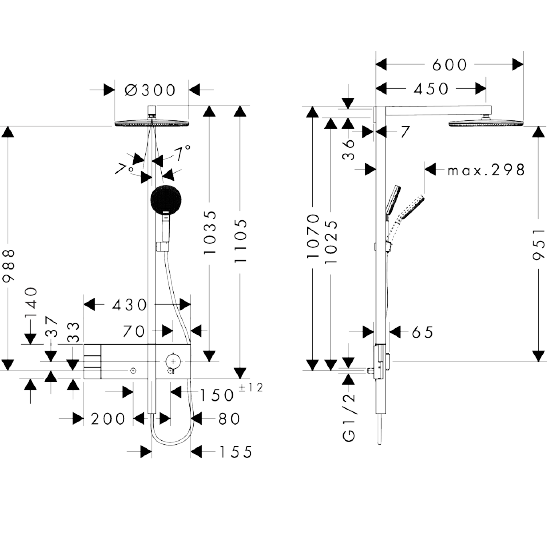

- Scale Drawing
DOWNLOADS
↓ Flow chart JPG, 514 KB
↓ Scale drawing JPG, 89 KB
↓ Full Covering Drawing JPG, 21 KB
↓ Installation Example JPG , 138 KB
↓ Perspective Drawing JPG , 195 KB
↓ Planning data (AutoCAD 3D) DWG, 3.2 MB
↓ Planning data (AutoCAD 2D) DWG, 12 MB
↓ Assembly instruction (Showerpipe) PDF, 57 MB
↓ Declation of conformity/performance PDF, 322 KB
↓ Service instruction ( Cleaning Recommendation) PDF, 1.2 MB
CENTRE DISTANCE
150 ± 12 mm
BALL-JOINT
Overhead Shower Angle Adjustable
FEATURES
- Adjustable Hot Water Limitation
- Height-adjustable, Easy Slide Slider
- Thermostat Showerselect Comfort E
- Design Cover Conceals The Nozzles, Flat, Minimalist Design
- Comfortable Turning On / Off Of Outlets With Large Select-paddle
- Dropguard Reduces The Dripping After Stopping The Shower To Just A Few Seconds
- Safetystop At 40°c
- Intrinsically Safe Against Backflow
- Simultaneous Use Of Several Outlets
- Spray Disc Removable For Cleaning
- Suitable For Continuous Flow Water Heaters
- Convenient Spray Selection Via Select Button On The Hand Shower
- Design Cover Can Be Removed Easily And Without Tools For Cleaning
INNOVATIVE TECHNOLOGIES
MORE PLEASURE, MORE EFFICIENCY
Mixes Generous Quantities Of Air Into The Water To Create Light, Pearl-like Droplets That Caress The Skin. The Shower Feels Luxurious, Even Though Little Water Is Consumed. The Spray Causes Less Splash, Reducing The Time To Clean The Shower Area.
LESS LIMESCALE, MORE JOY
Who Actually Likes Cleaning? Limescale Deposits And Dirt Disappear In An Instant With This Technology. Simply Rub The Flexible Silicone Discs Or Nozzles With A Finger. It’s Fast And Keeps Cleaning To A Minimum.
GREAT SHOWERING PLEASURE
Xxl Showering Indulgence That Envelops The Complete Body In Real-life Dreams Of Water Using Wonderfully Soothing Spray Types From Hand Showers And Overhead Showers With Diameters Of 100 To 600 Mm.
ALWAYS CONSTANT WATER TEMPERATURE
Reliable: The Thermostat With Integrated Temperature Control Continuously Monitors The Water Temperature During Use. It Reacts Quickly To Changes In Pressure And Keeps The Temperature Comfortably At A Constant Level. For Pleasant Water Enjoyment At All Times.
SAFETY LOCK AT OVER 40 °C
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
INTUITIVE JET ADJUSTMENT
The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
ANGLE-ADJUSTABLE OVERHEAD SHOWER
The Angle Of The Overhead Shower Can Be Tilted So That The Shower Rain Is Adjusted To Suit The Specific Shower Area Or A Person’s Height. The Water Sprays Can Then Work Their Feel-good Magic And Envelop The Whole Body.
FINISHES
FINISHES
- Matt Black
- Matt White
- Brushed Bronze
- Polished Gold Optic
- Brushed Black Chrome
