SMARTIA M8200 GLASS RAILINGS
SMARTIA M8200 GLASS RAILINGS
Vertical glass support system for glass railings of modern aesthetics and top robustness. Continuous base profiles without mullions, to leave the visual field free and offer a sense of luxurious freedom.
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Railing
HANDRAILS
Various Shapes (flat, oval, round, square)
WIND LOAD RESISTANCE
Up To 5.0kn/m2
LIGHTING
With 8+8mm Glass Thickness
PRE-DRILLED PROFILES
Yes, And For Counter Shank Screws
COLLECTION
Smartia
PRODUCTION
Made in Greece
PLACEMENT - INSTALLATION
- Curved
- On-floor
- Embedded
- Side-mounted
USE
- Indoor
- Outdoor
- Seaside
GLAZING TYPE
Laminate Tempered
MAX STRUCTURE LENGTH
Unlimited
ADVANTAGES
- Easy and fast to install
- Top quality in terms of design and production
- Extreme sturdiness due to the continuous profiles
- Constructions of great lengths without any glass alignment issues
- Extensive variety in terms of placement, glass thickness, handrails and surface treatment
END COVERS
Inox And Coated Aluminium
PHILOSOPHY
Continuous Profile With Simple Wedges
MAXIMUM HEIGHT
1.6 m
LINEAR HORIZONTAL LOAD
Up To 4.0kn/m
GLASS THICKNESS
- 5+5 mm
- 6+6 mm
- 8 +8 mm
- 10+10 mm
- 12+12 mm

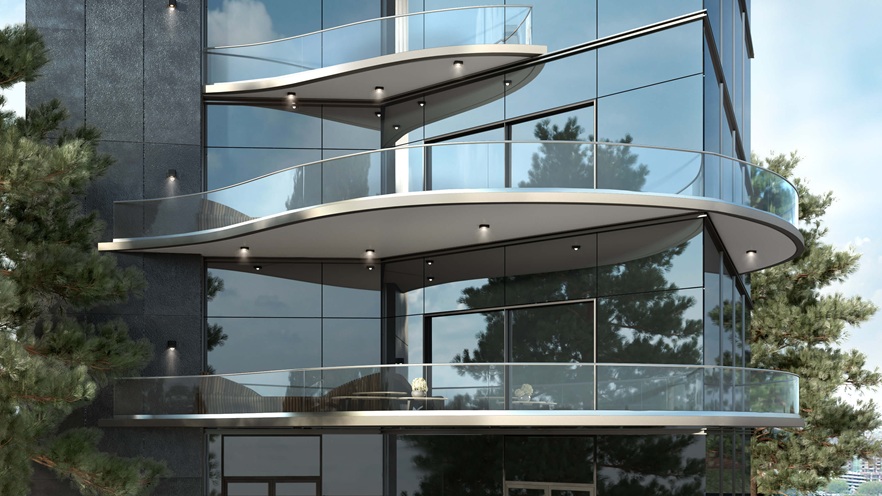

APPLICATIONS
- Malls
- Hotels
- Commercial
- Office Buildings
- Modern Residences
TYPOLOGIES
ALL AVAILABLE TYPOLOGIES
SECTIONS

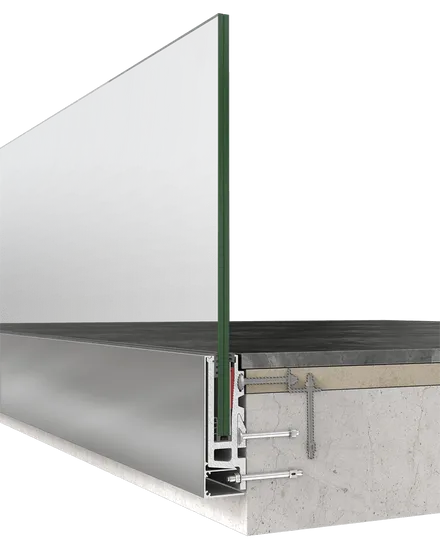

M8202
Side-mounted for finished and semi-finished floor.

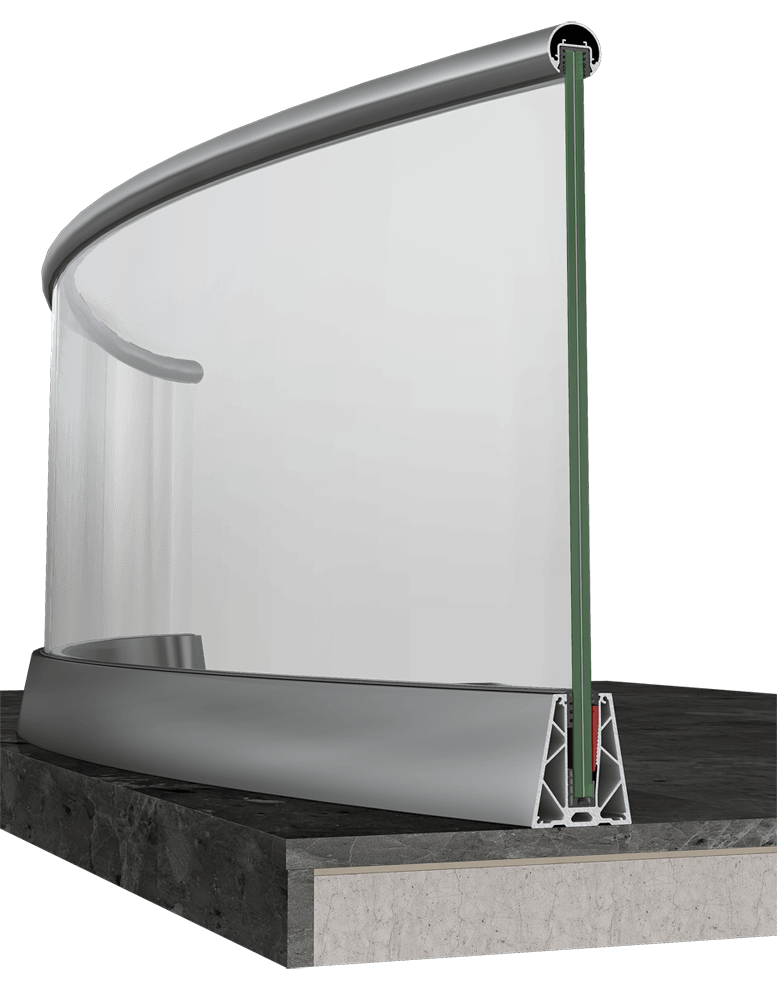

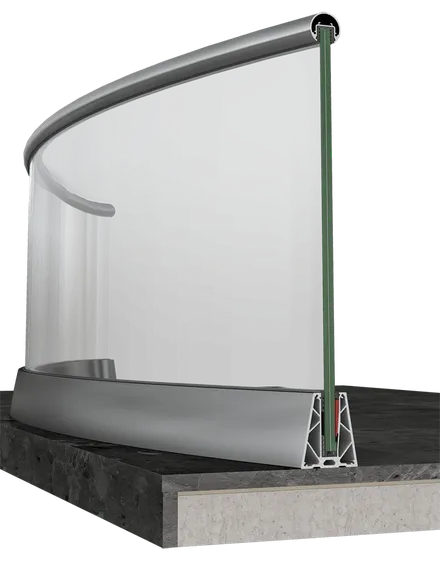

M8208
On-floor with continuous curved profiles.

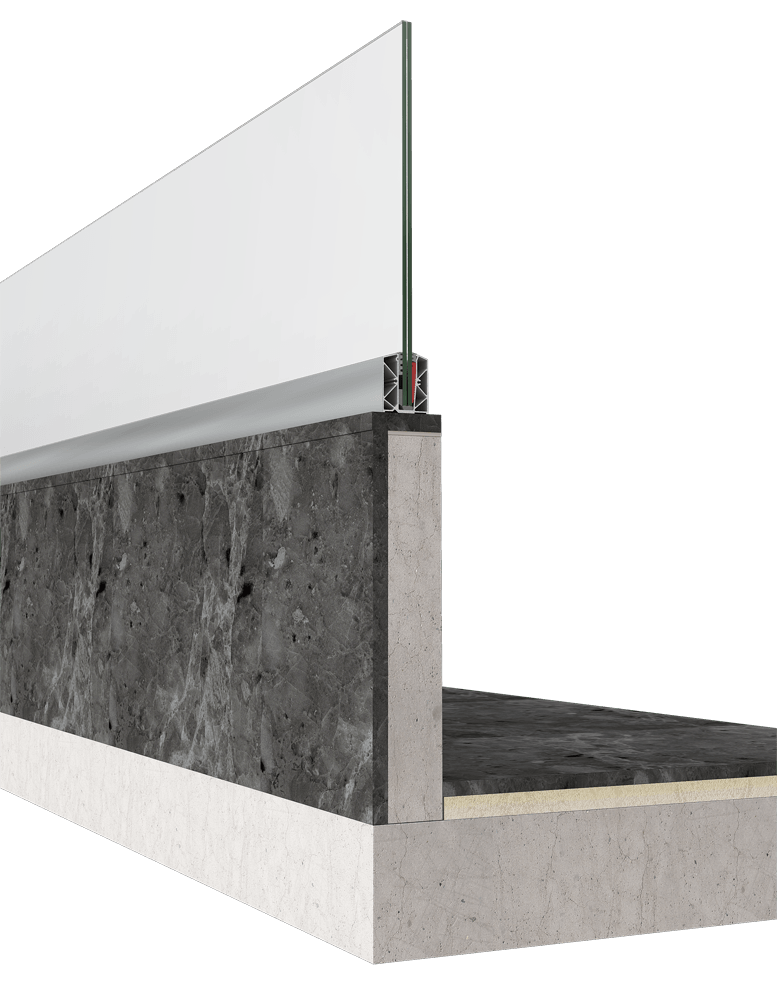

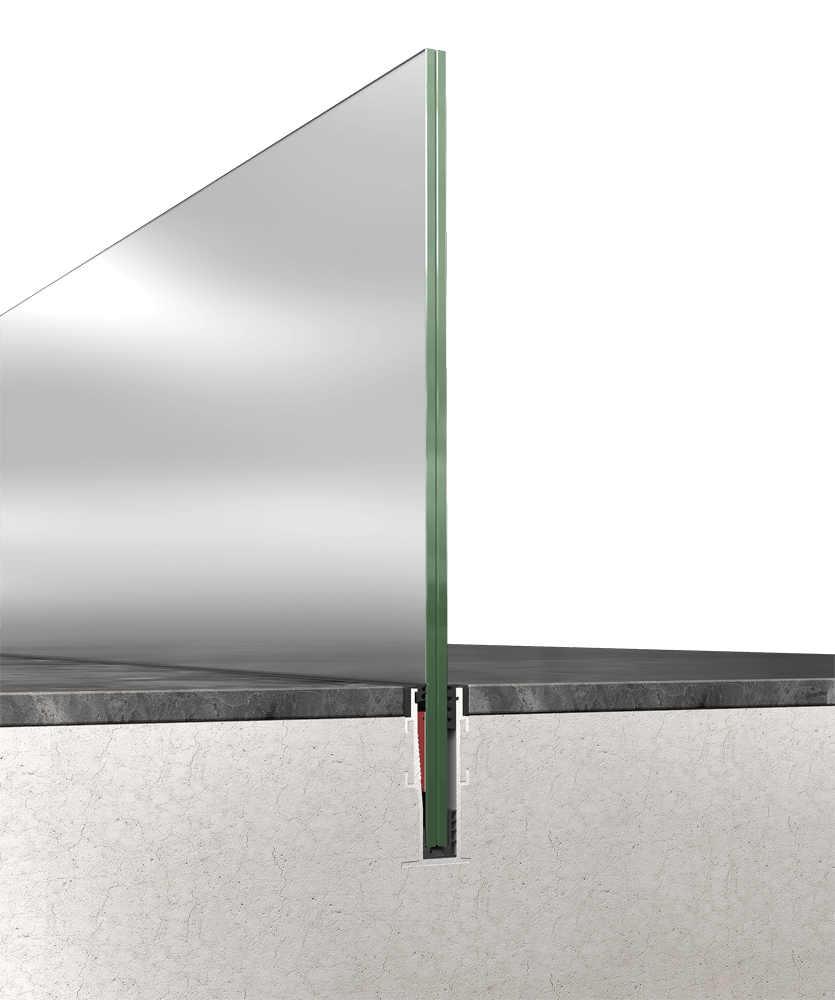

M8210
Specially designed for embedded installation.

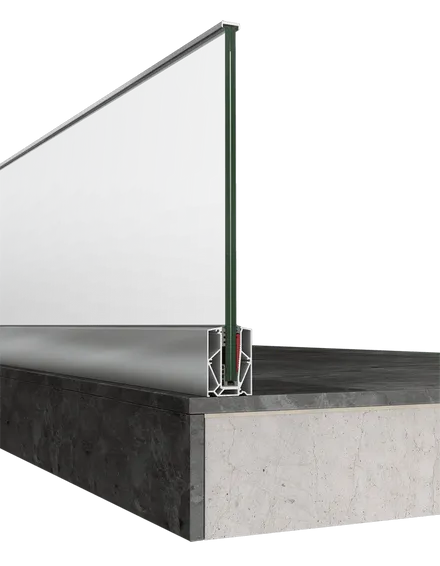

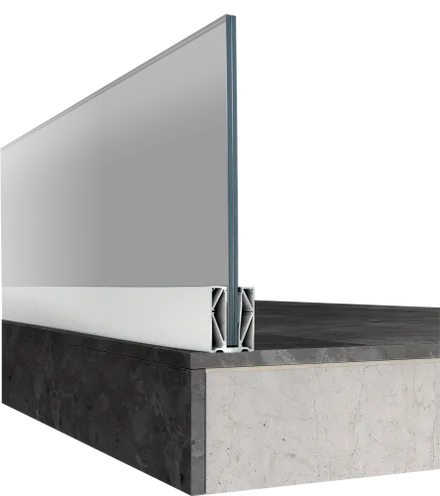

M8209
Light weight on-floor solution.

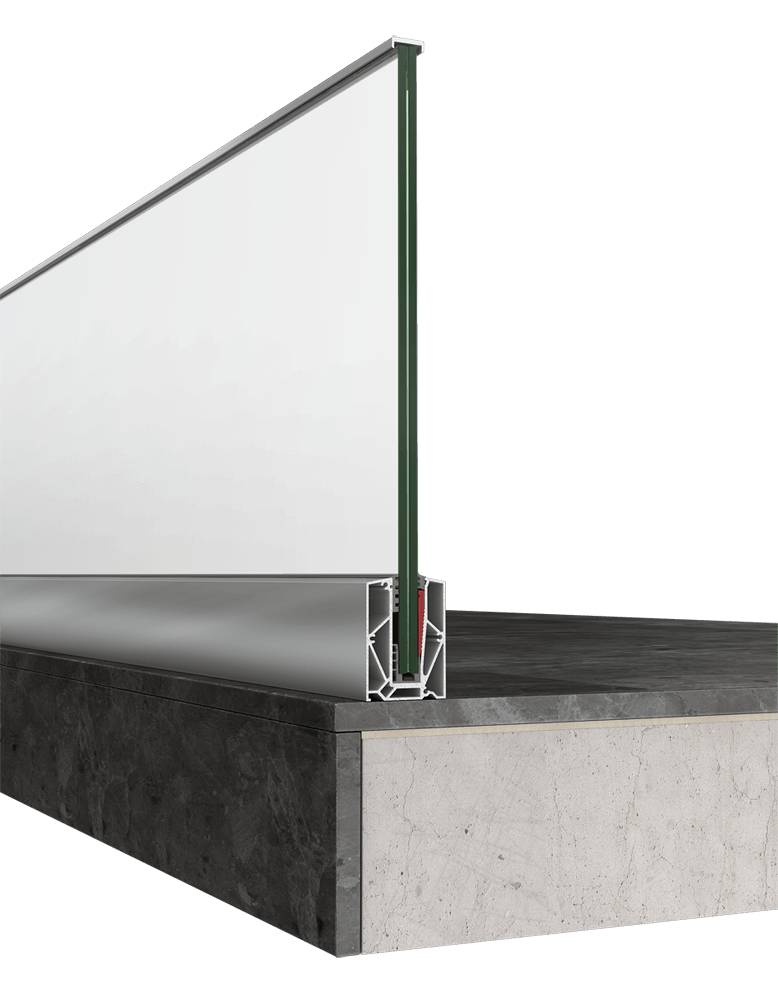

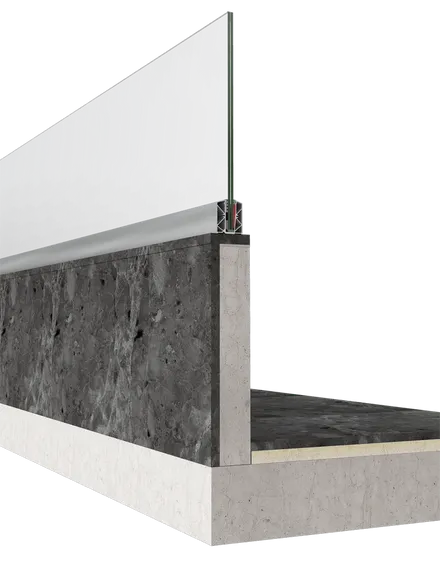

M8200
On-floor with extreme robustness.

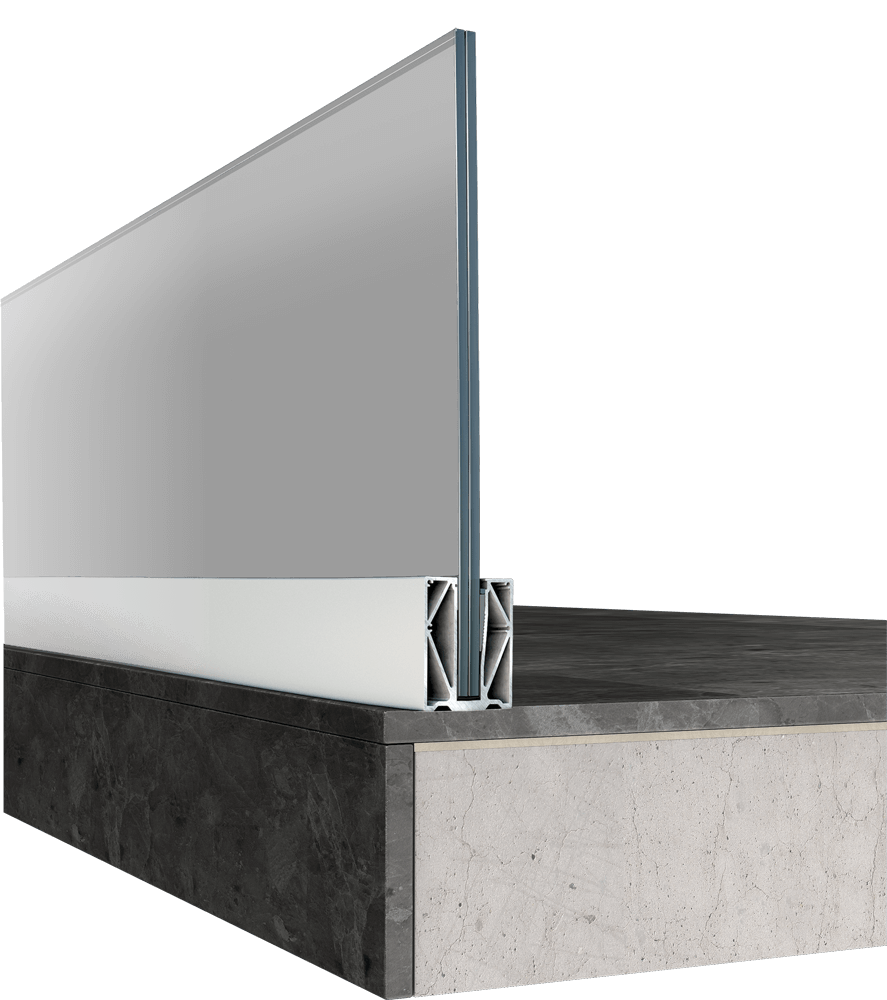

M8207
On-floor with top sturdiness and smart features.
