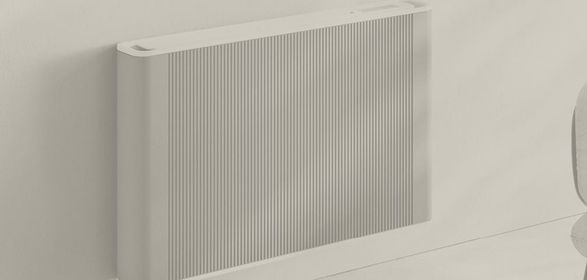

Cordivari Run Hot & Cold Fan Coil Radiator
RUN HOT & COLD FAN COIL RADIATOR
RUN HOT & COLD FAN COIL RADIATOR
Run is a high-performance, high-efficiency fan coil designed for use with heat pump systems.
INFORMATION
BRAND
Cordivari
PRODUCT TYPE
Radiator
MODELS
- 2000 Run
- 4000 Run
- 6000 Run
FIXING KIT
Supplied with suitable plugs for masonry or compact brick walls.
PRODUCTION
Made in Italy
CONNECTIVITY
Wi-Fi
PACKAGING
The fan coil unit is packaged in a recyclable cardboard box.
ELECTRICAL SPECIFICATIONS
Class 1.
GUARANTEE
European Guarantee
FEATURES

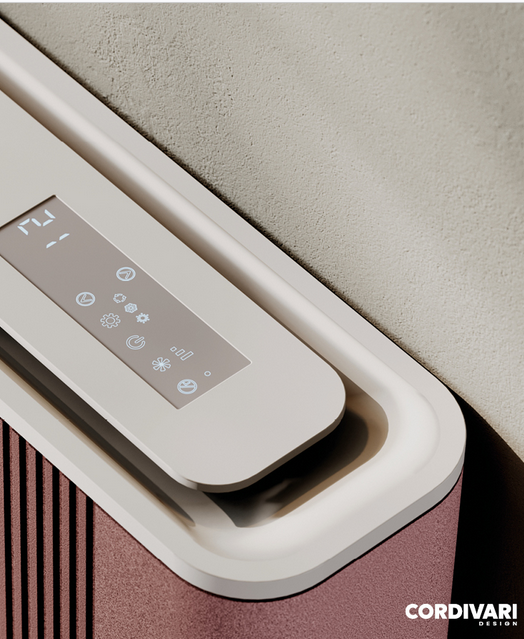

The unit can operate in heating and cooling modes. On-board touch-screen control interface. Integrated Wi-Fi module.
PAINTING
Environmentally friendly epoxy polyester powder coating using a DIN 55900-1, -2 certified process.
CHARACTERISTICS
-Heating
-Cooling
-High power and high efficiency
-Brushless DC Inverter Motor
-Stand-Alone or IoT Management
-Also suitable for traditional systems
DOWNLOADS
↓ Technical Sheet
↓ Use And Maintenance Manual - Run/seven Lines
↓ Replacement Instructions - Run/seven Lines Filter
↓ Assembly Instructions For Fixing Kit - Run/seven Lines
↓ Assembly Instructions For Support Feet – Run/seven Lines
↓ Assembly Instructions - Three-way Solenoid Valve Kit For Run/seven Lines
HYDRAULIC CONNECTIONS
G1/2" maschio
SUITABLE
Suitable for heat pump or low temperature systems
MINIMUM SPEED CHARACTERISTICS SOUND POWER (3)
- 2000 : 41 dB(A)
- 4000 :41 dB(A)
- 6000 : 42 dB(A)
COLORS
Standard White RAL 9016-R02.
DESIGN
Monica Alegiani & Vanessa Massacci.
AVERAGE SPEED CHARACTERISTICS SOUND POWER (3)
- 2000 : 46 dB(A)
- 4000 :46 dB(A)
- 6000 : 42=7 dB(A)
ELECTRICAL CHARACTERISTICS
-Power supply voltage : 230 V AC, 50 Hz
-Electrical insulation: Class I
-Power cable : Schuko L > 1000 [mm]
-Other : Bypass solenoid valve management (optional)
HYDRAULIC CHARACTERISTICS
-Operating ambient temperature : 5 [°C] to 32 [°C] – 60% RH
-Water outlet temperature : From 6 [°C] to 75 [°C]
-Operating pressure : From 1 [bar] to 10 [bar]
MANAGEMENT AND CONNECTIVITY
-STAND-ALONE management : All models can be managed in stand-alone mode via the onboard control thermostat. In this fan coil management mode, each terminal can be controlled, managed, and programmed individually, independently of any other terminals in the system.
-IoT management : Thanks to the onboard Wi-Fi control thermostat, the Run and Seven Lines models can be managed in IoT mode, conveniently via the Smart Life mobile app. This is the most advanced and smart configuration for home use and allows you to operate all the functions and programming of each terminal remotely via a stand-alone logic or by creating groups or levels. The same mobile app can also be used to manage the Vestalis® heat pump system and the Ventana® terminals (versions with Wi-Fi control).

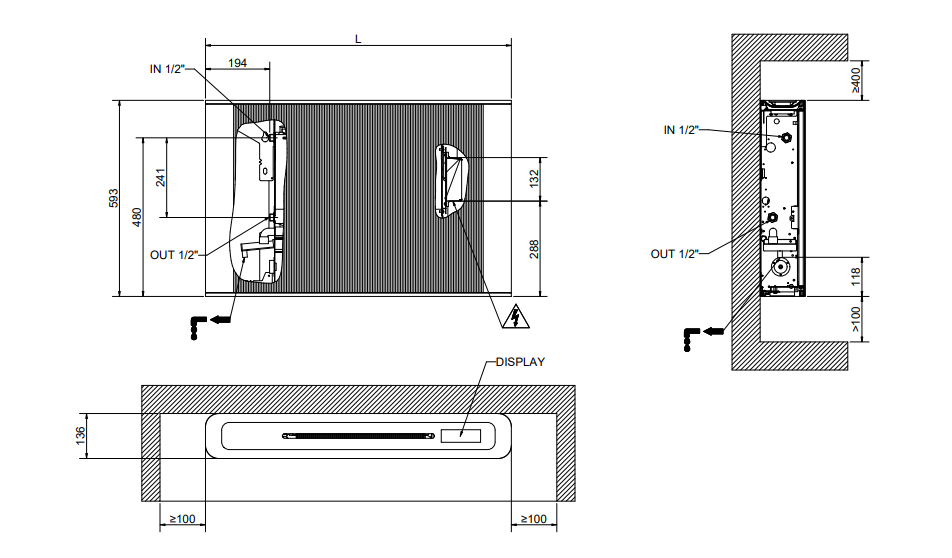

DIMENSIONS
| MODEL | WIDTH | HEIGHT | DEPTH | WEIGHT |
|---|---|---|---|---|
| 2000 | 715 mm | 593 mm | 136 mm | 17 Kg |
| 4000 | 925 mm | 593 mm | 136 mm | 21 Kg |
| 6000 | 1135 mm | 593 mm | 136 mm | 25 Kg |
DETAIL
DETAIL
| MODEL | 2000 RUN | 4000 RUN | 6000 RUN |
|---|---|---|---|
| Total heating output (1) [W] | 720 | 1196 | 1738 |
| Water flow rate (1) [l/h] | 122 | 205 | 297 |
| Water pressure drop (1) [kPa] | 1.1 | 3.3 | 7.5 |
| Total cooling output (2) [W] | 544 | 979 | 1539 |
| Sensible cooling output (2) [W] | 426 | 774 | 1196 |
| Water flow rate (2) [l/h] | 95 | 170 | 265 |
| Water pressure drop (2) | 0.9 | 2.8 | 7.3 |
| Sound power (3) [dB(A)] Maximum Speed Characteristics | 50 | 50 | 51 |
| Power consumption Maximum Speed Characteristics | 10 | 12 | 16 |
| Air flow rate Maximum Speed Characteristics | 130 | 250 | 370 |
