Ondumit Ondule Roof
ONDUMIT ONDULE ROOF
ONDUMIT ONDULE ROOF
Thanks to its flexible structure, the Ondule model, which is easily used in all types of roofs, is available to customers with various color options.
INFORMATION
BRAND
Ondumit
PRODUCT TYPE
Roofing Sheet
WARRANTE
Warranted for 30 Years against Atmospheric Conditions. Fit for All Climates
NONDEFORMABLE IN ACIDIC ENVIRONMENT, NON-CORRODIBLE
Ondumit sheets don’t react with salt, alkali, and acids under 60% concentration.
CONDUCTIVITY RATE
0,19W/mK
WATER ABSORPTION
0.02% of water absorption rate

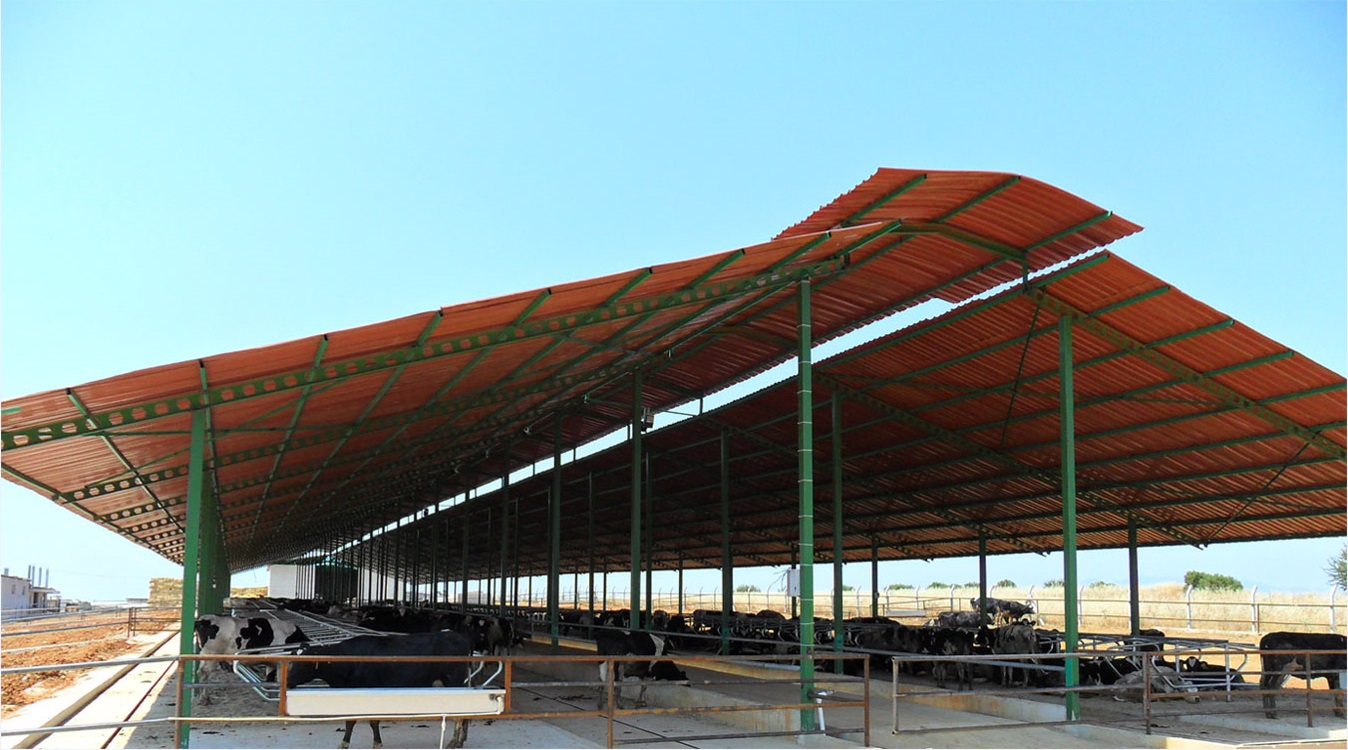

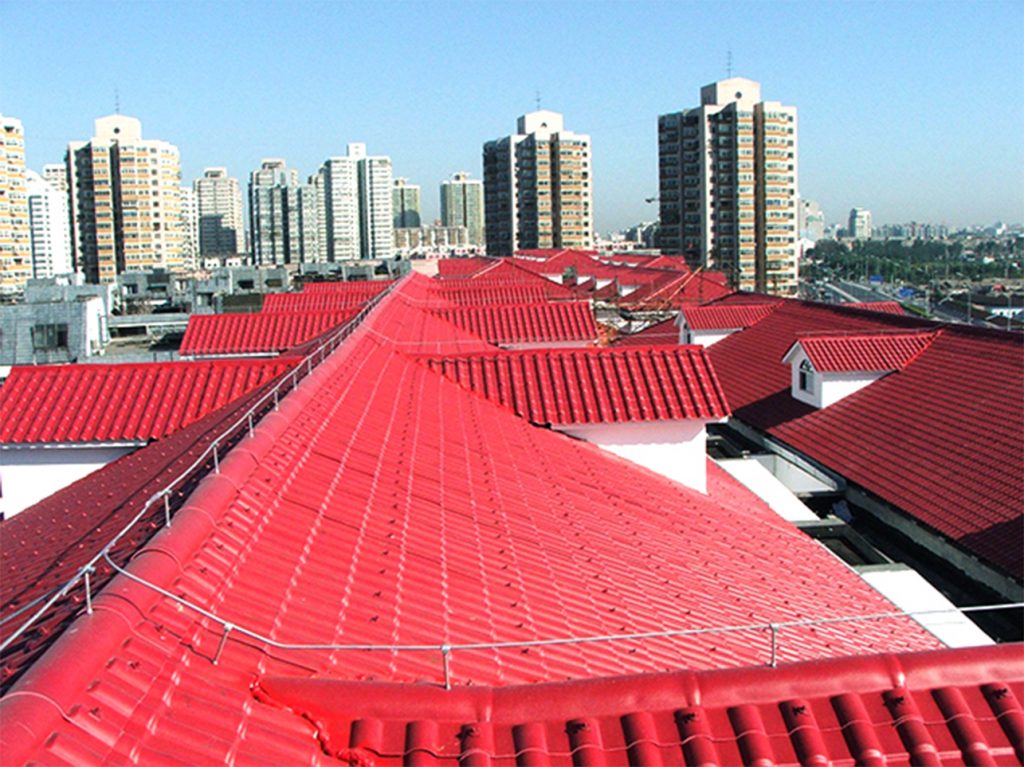

APPLICATIONS
- Industrial Buildings
- Sports facilities
- Garages
- Bazaar Palace
- Fertilizer & Ranch
- Chemical & Chlor - Alkali

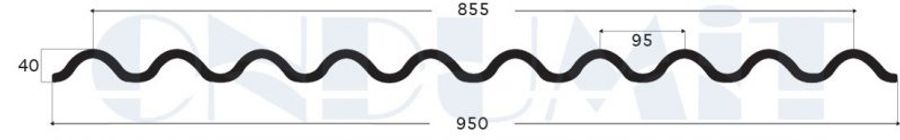

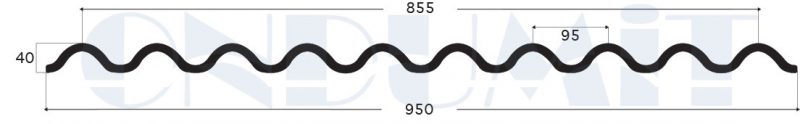

DIMENSIONS
- Width : 950 mm
- Length : 2, 2.5, 3.4 m
HIGHEST LOAD CAPACITY
Ondumit sheets, among all other alternatives, has the highest load capacity. They can carry more than 600kg of spread weight on a sqm.
SURFACE
ASA, produced by Samsung, which covers the surface of Ondumit sheets, provides perfect resistance both to sunlight and frosting.
THICKNESS
2.2 – 2.5 mm
PURLINE SPACE
≤800 mm
LIGHT WEIGHT
The weight is 5 kg per square meters. Belonging to light structural material, it can effectively reduce the load of the building and save the consumption of building framework materials. In the mean time, it is easy to be handled and lifted, whichreduces the construction cost.
PROTECTION AGAINST WATER AND HUMIDITY
Ondumit sheets have just a 0.02% of water absorption rate. Without the need for any extra material, they insulate the building against water.
PRODUCTION
Made in Turkey
DOWNLOAD
↓ Catalogue
RESISTANT TO IMPACTS. DON’T BREAK OR CRACK.
No breaking or cracking were observed during a test while which a 25 kg weight was dropped onto an Ondumit sheet which had been installed with a purlin space of 1m.
PERFECT SOUND AND HEAT INSULATION
Ondumit sheets insulate rain sound perfectly even under stormy weathers. With a very low thermal conductivity rate of 0,19W/mK they insulate the buildings without the need for extra insulation materials.
LONG LASTING COLOR STABILITY AND PHYSICAL RESISTANCE
Thanks to PVC and ASA raw materials in it, Ondumit is perfectly resistant to both colour and shape deformations. No such deformation was observed during the tests ranging from -40°C to +94°C.
TRANSPORTATION AND INSTALLATION ARE CHEAPER AND EASIER
Ondumit’s lightweight and panel shaped structure creates advantages through all steps from transportation to installation. More than 5000sqm of Ondumit can be carried in a single container. Ease of installation also decreases labor costs by saving time.
FIREPROOF AND NONFLAMMABLE
Ondumit sheets are in the B1 flammability class. When contacted to flame, they don’t ignite and spread it. They are self extinguished as soon as the contact with the flame source is cut. Ondumit increases the building safety compared especially to the materials containing bitumen.

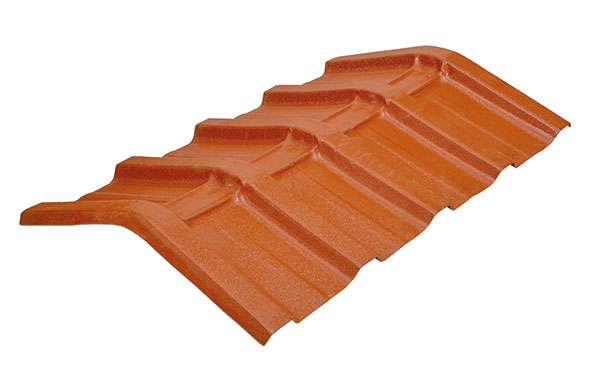

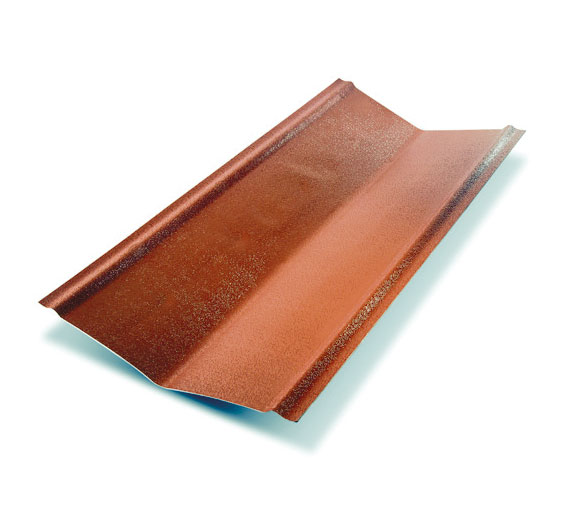

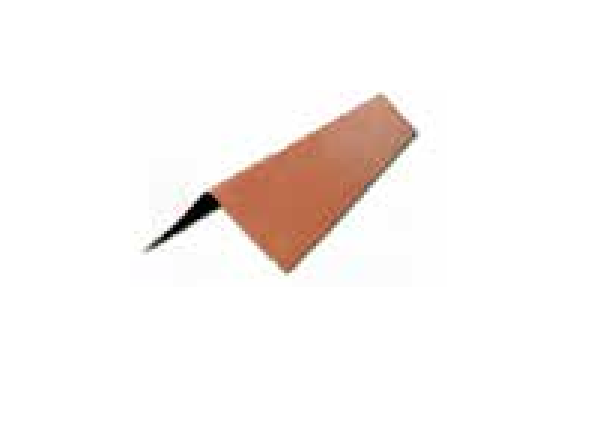

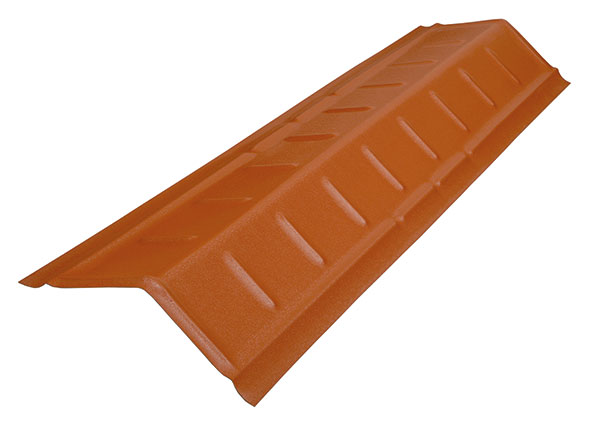

ACCESSORIES
