Geoplast Elevetor Max Formwork
ELEVETOR MAX FORMWORK
ELEVETOR MAX FORMWORK
Permanent formwork for technical backfilling, level adjustments, and crawl spaces
Elevetor Max is the next level innovation of New Elevetor, designed for highest load-capacity requirements of residential, industrial, and commercial buildings.
INFORMATION
BRAND
Geoplast
PRODUCT TYPE
Formwork
MODULAR
Modular, single-use system for ventilated foundations up to 300 cm high to create a physical barrier between ground and building.
PIPE DIAMETER
Ø 125mm
COLLECTION
Elevetor
PRODUCTION
Made in Italy
YEAR OF PRODUCTION
2021
ADVANTAGES
- Adjustable height
- Saving of filling material
- High productivity on site
- High load bearing capacity
- Inspectable for maintenance
DOWNLOAD
↓ Data Sheet
MATERIAL
Concrete
DETAIL

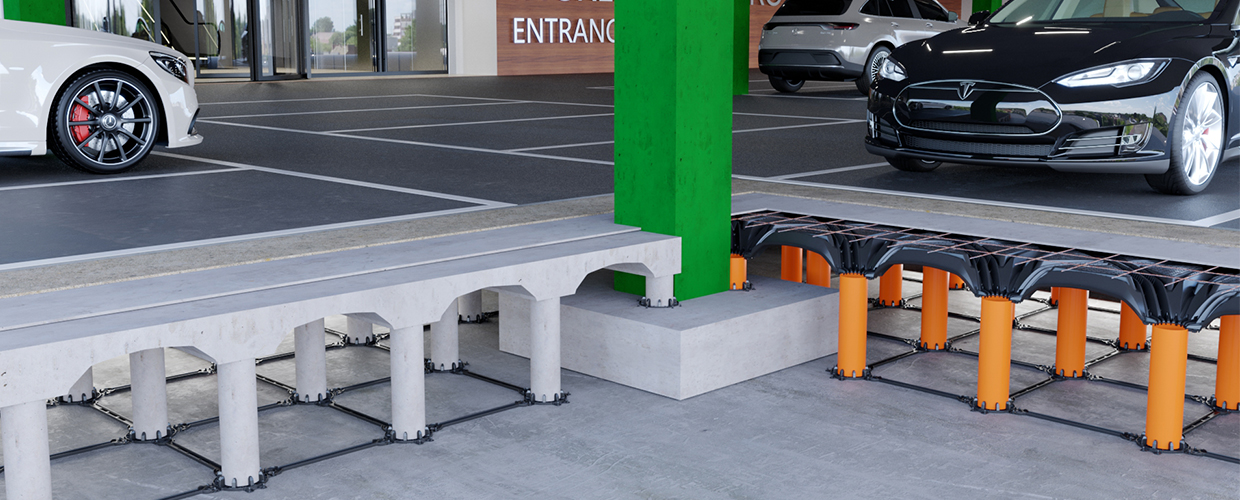

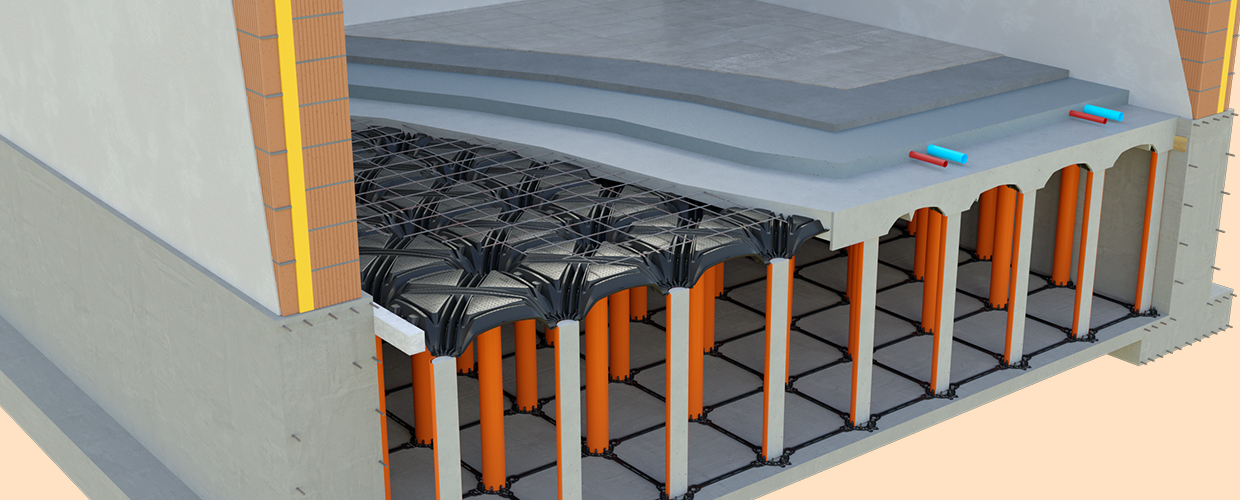

By replacing gravel, EPS, and concrete with void space, Elevetor Max saves tons of backfilling materials, making construction projects more sustainable and more profitable.
BASE GRID

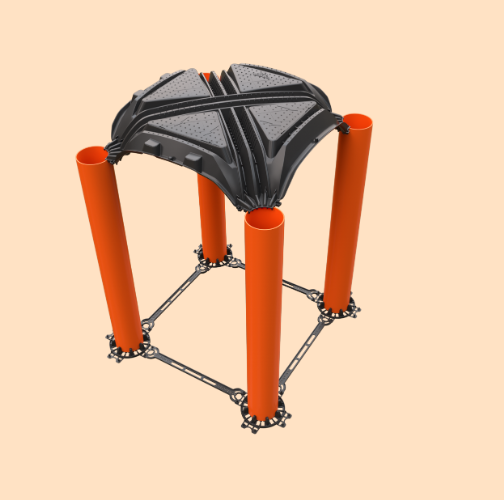

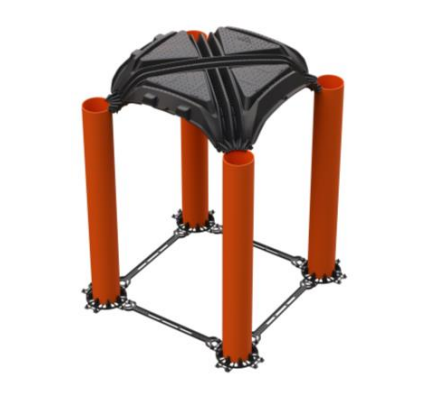

Elevetor Max consists of a base grid, height-adjustable PVC pipes (Ø125, Ø160, or Ø200), and a larger, 71 x 71 x 15 cm top formwork that can carry up to 5,000 kg/m2 loads.
HEIGHT
15 cm
WIDTH & LENGTH
71 cm
COMPONENTS

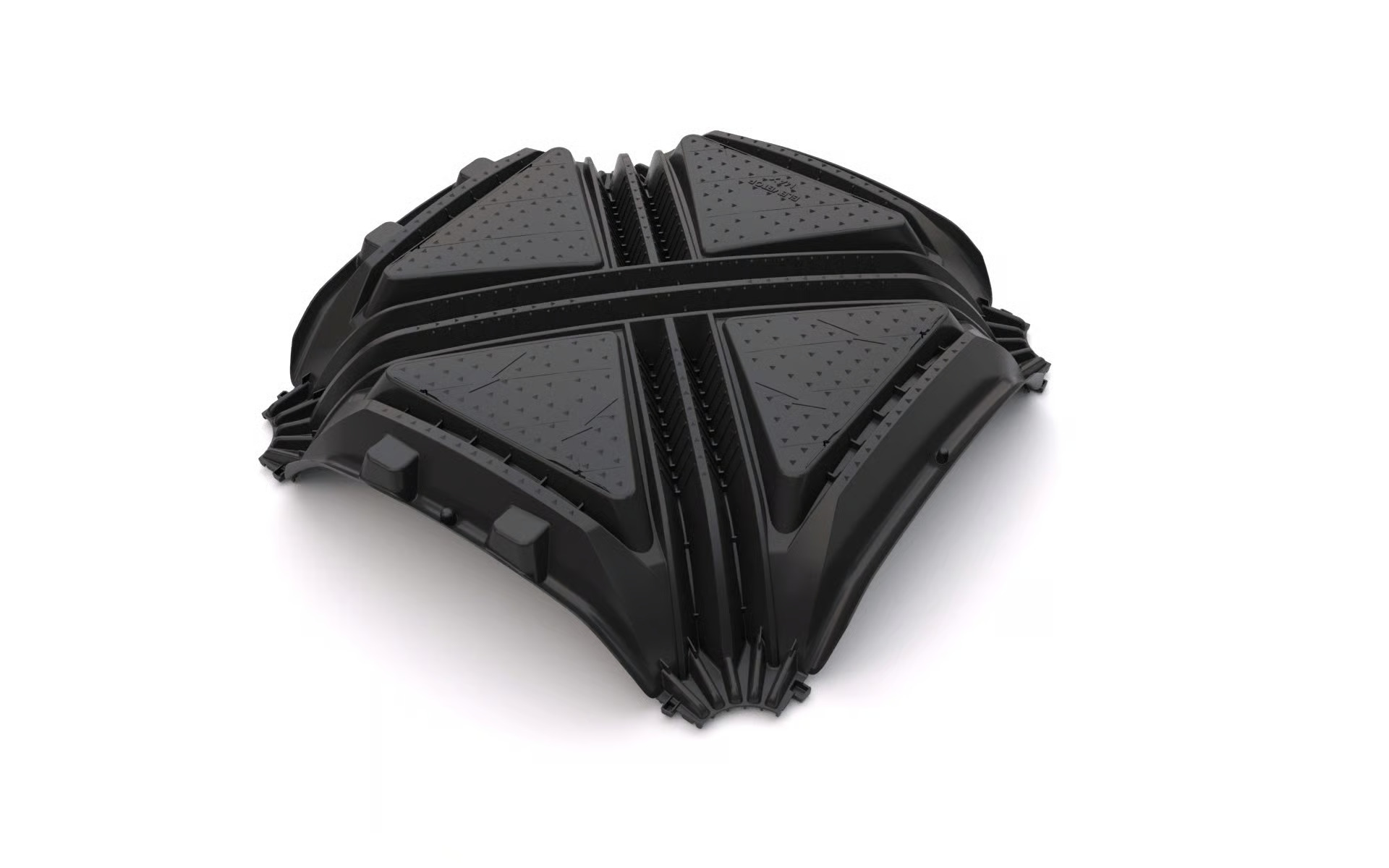

- Formwork

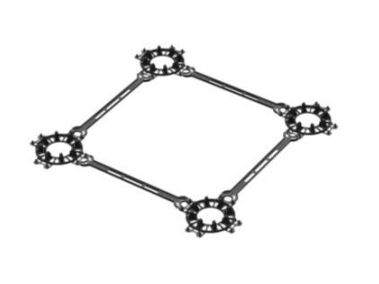

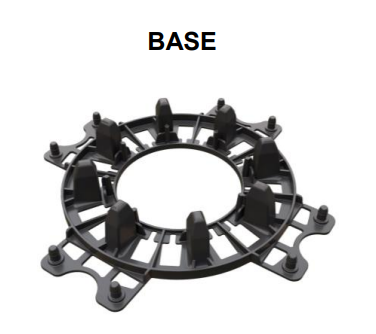

- Base

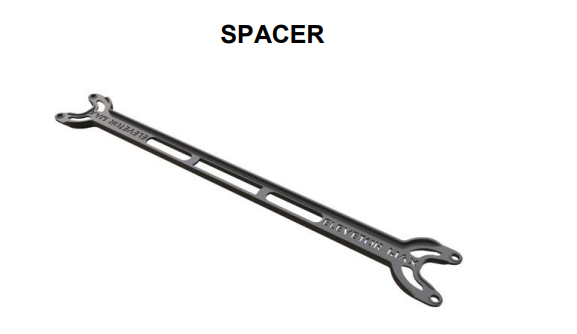

- Spacer
- Pipe
INSTALLATION
PIPE INSTALL

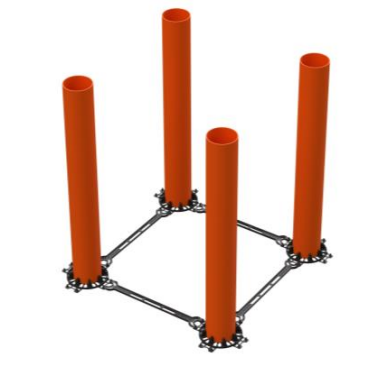

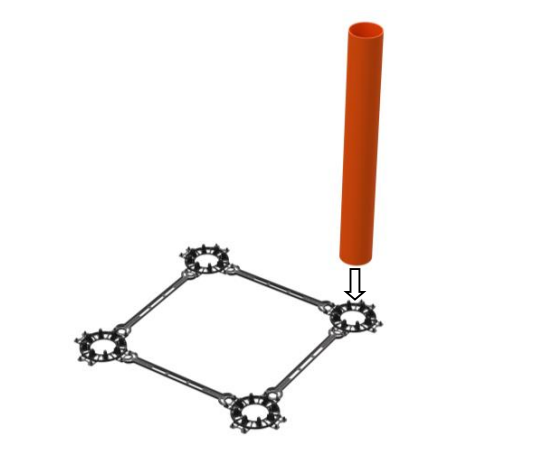

Install the pipes in the appropriate brackets.
CHECK CORRECT INSTALL
Check the correct installation of each pipe
CHECK BASE BY FIXING THE SPACER

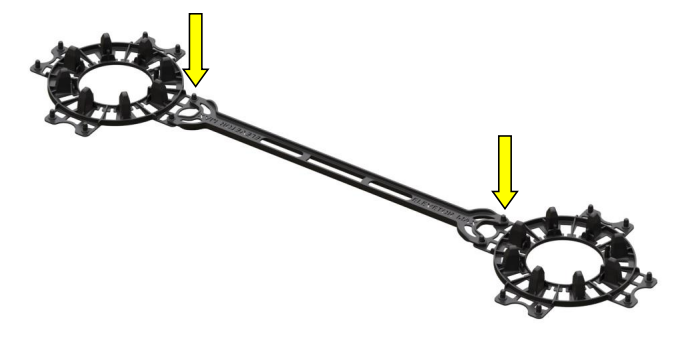

Check the correct positioning of the base by fixing the spacer between them. The elements must be blocked by using the appropriate pins (yellow arrow).
BASE INSTALLED
Proceed with the installation of the base and their spacers creating a homogeneous grid throughout the laying surface.
CLOSE SYSTEM
Close the system by installing the formworks, making sure they fit together properly.
BASE & SPACER

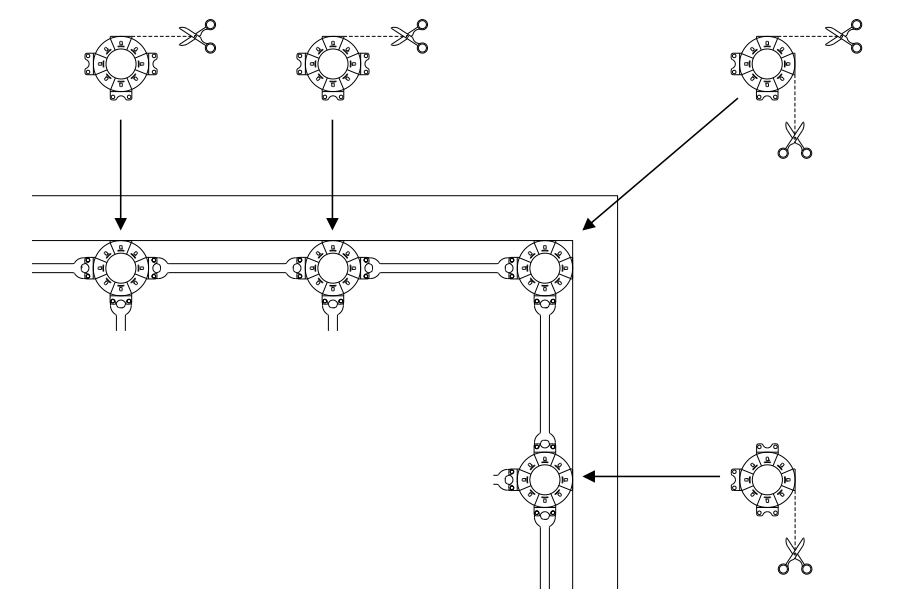

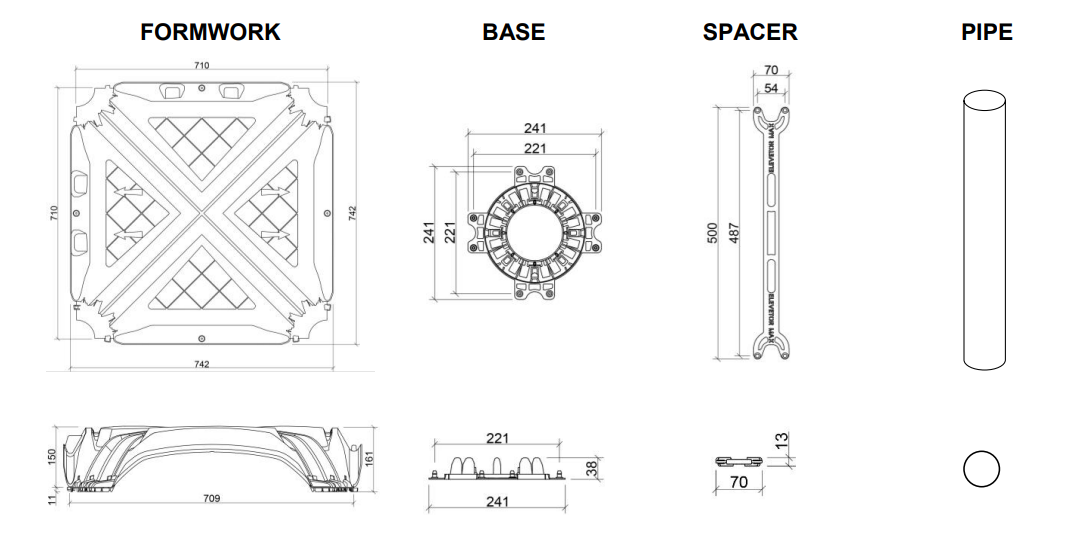

Cut the base tabs as shown in the drawing and position the first row by resting it on the perimeter wall or curb.
