HEROAL S 77 SL - SLIDING DOOR
HEROAL S 77 SL - SLIDING DOOR
Innovative lifting-sliding door for large-scale transparency
The aluminium lifting-sliding system heroal S 77 SL is an innovative, design-oriented lifting-sliding door for patios, balconies or conservatories.
INFORMAION
BRAND
Heroal
PRODUCT TYPE
Sliding Door
THICKNESS
Frame & Casement : 52 mm
ELEMENTS
Frameless glazing of the fixed element
MAX. LEAF WEIGHT
300 - 400 kg
MAX. LEAF HEIGHTS
3.000 mm
GLASS INSET
18 mm
GLASS FILLING STRENGTH
52 mm
VERSION
As all sliding and lifting-sliding doors by heroal, heroal S 77 SL is also available as a barrier-free version.
INSULATION VALUES
With perfect insulation values (Uw ≥ 0.86 W/m2K) and certified burglary resistance (resistance class RC2), heroal S 77 SL is a high-end, aesthetically appealing and at the same time functional system
PROFILE DEPTH
- Frame Profile : 202 mm
- Casement Profile : 77 mm
- Cross Bar Profile : 70 mm
PROFILE WIDTH
- Central Joint : 104 mm
- Frame Profile : 30/40 mm
- Casement Profile : 104 mm
- Cross Bar Profile : 74-104 mm
PRODUCTION
Made in Germany
MATERIAL
Aluminium

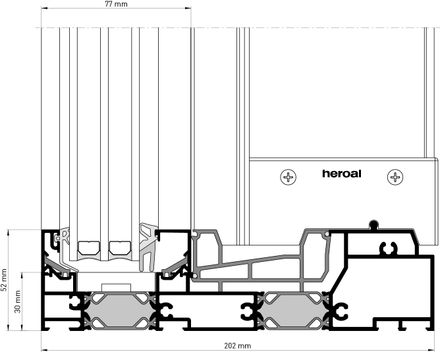

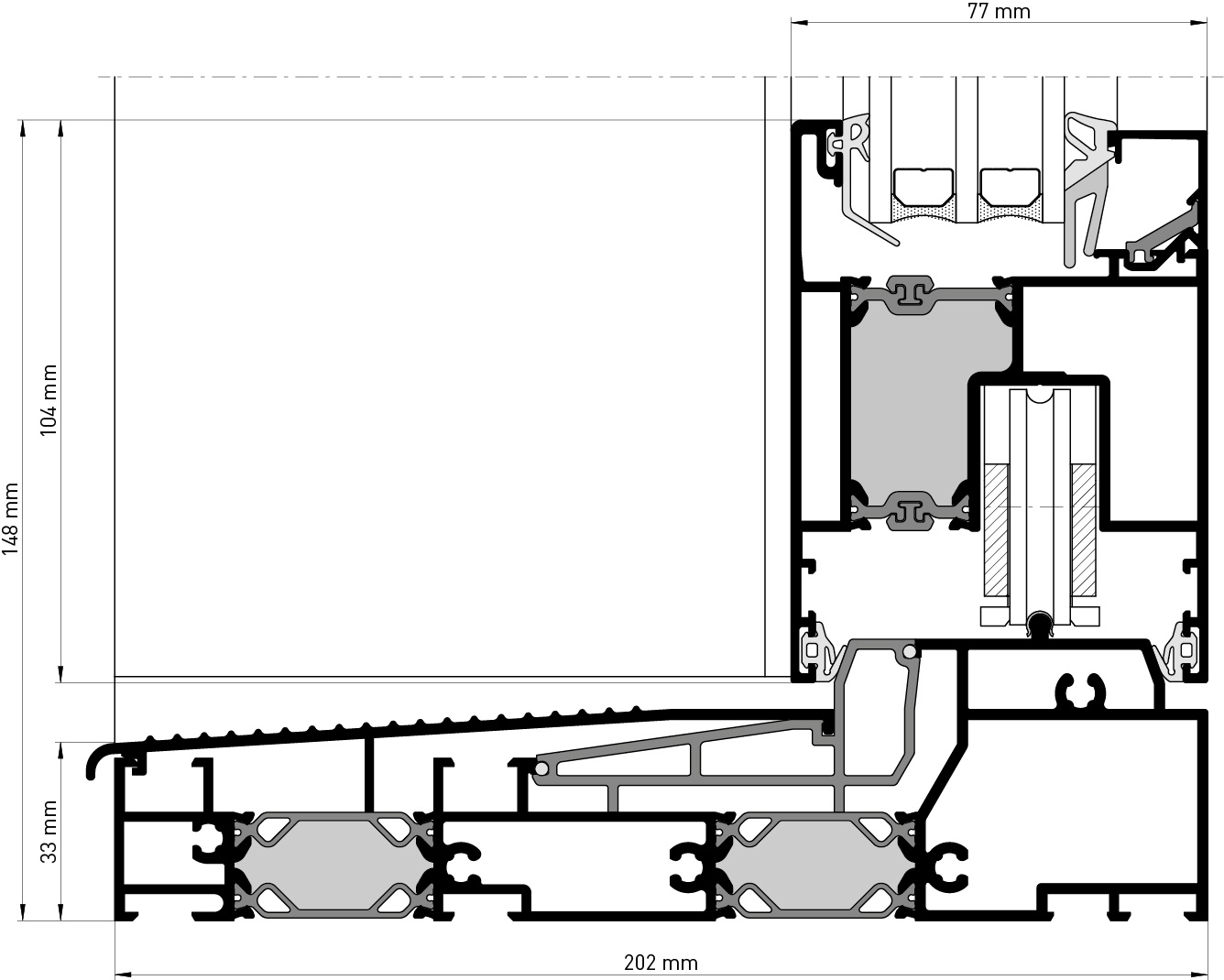

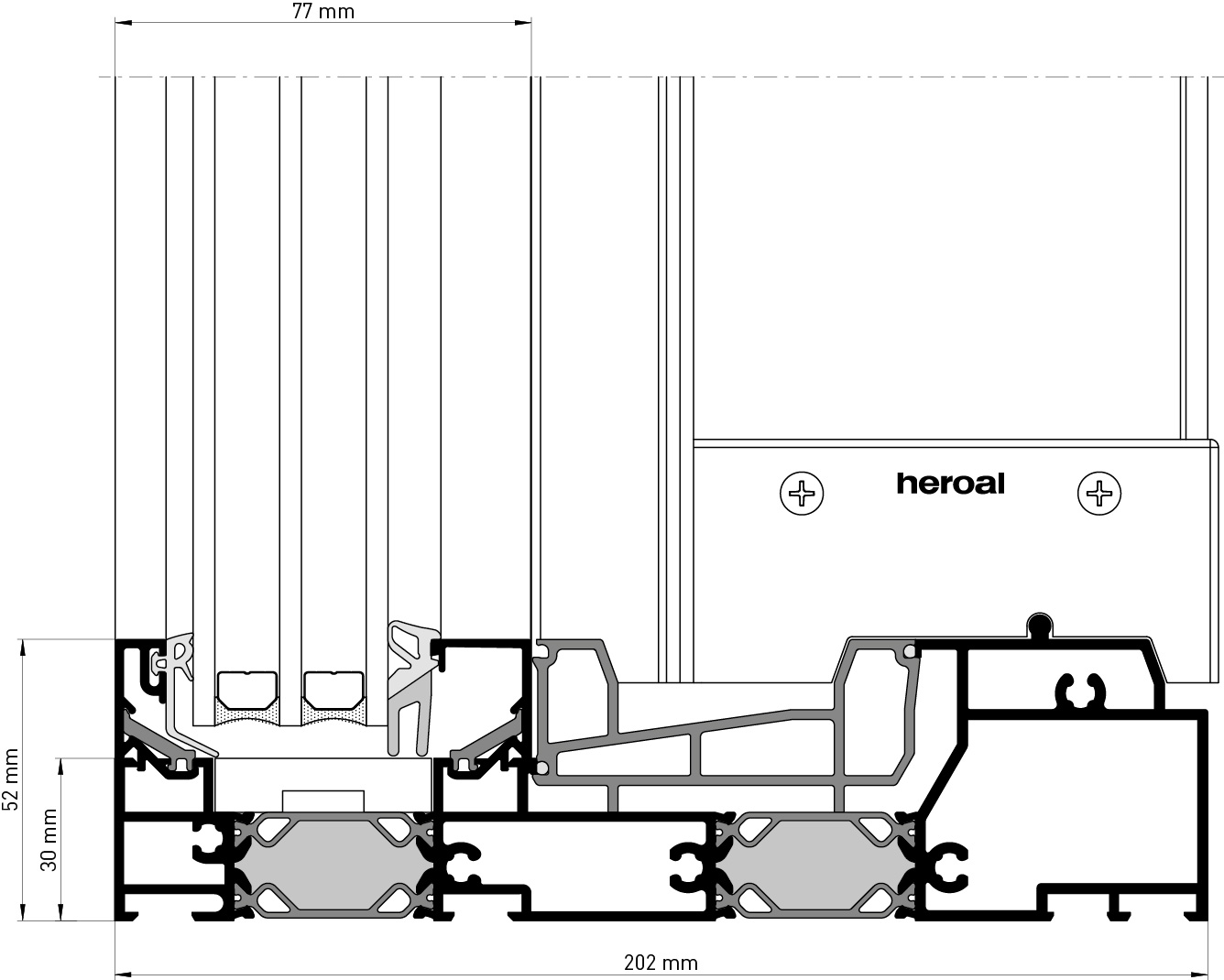

SECTIONAL DRAWINGS
USE

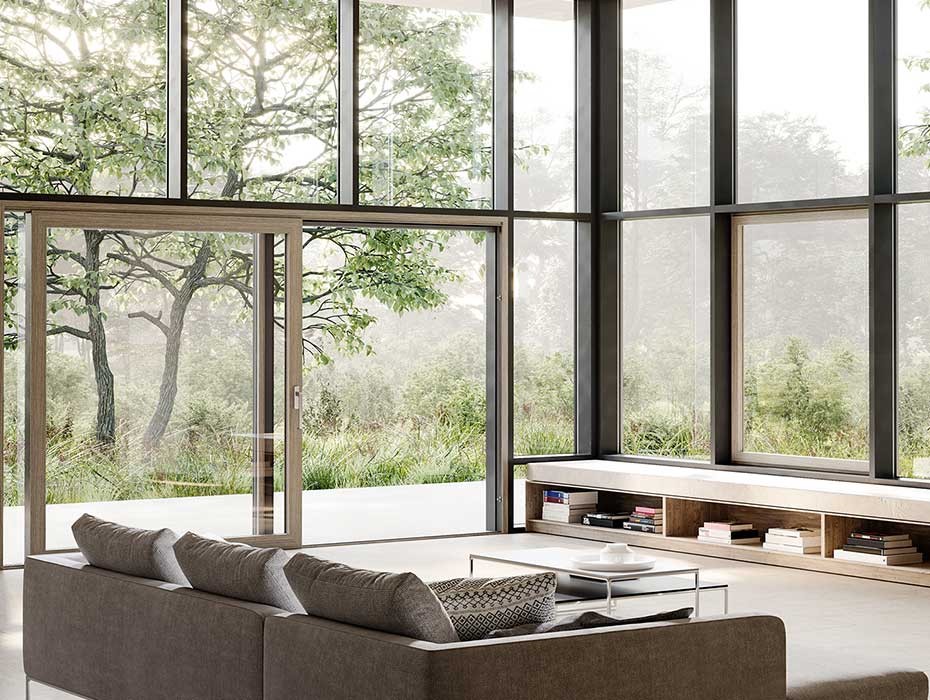

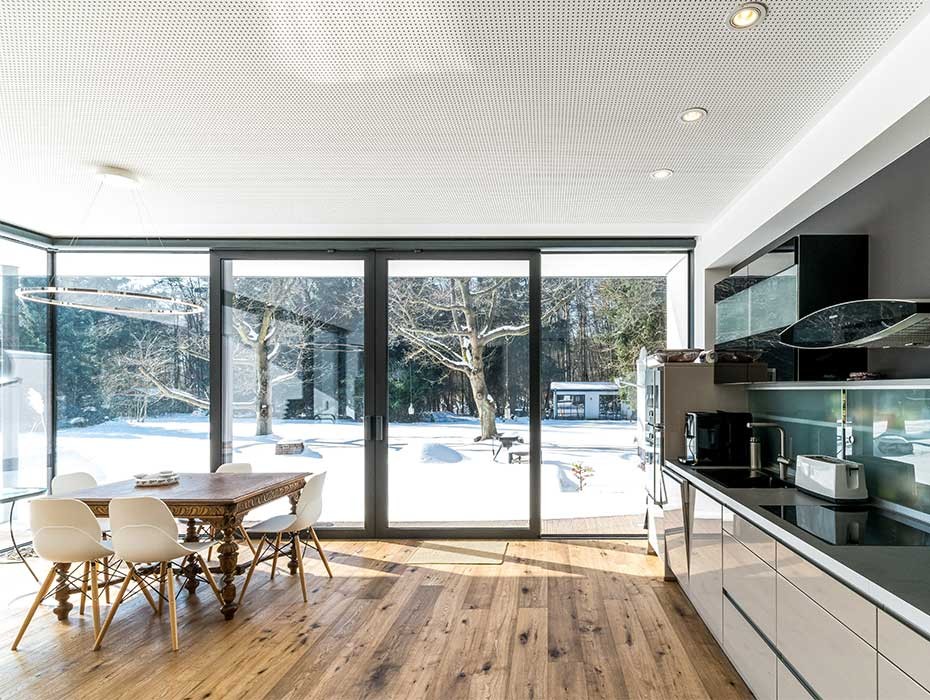

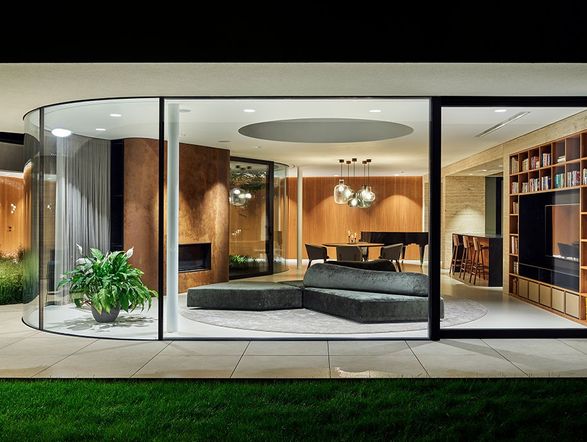

Heroal S 77 SL combines large, frameless fixed glazings with moveable monorail sashes, and serves as an almost invisible link between indoors and outdoors.

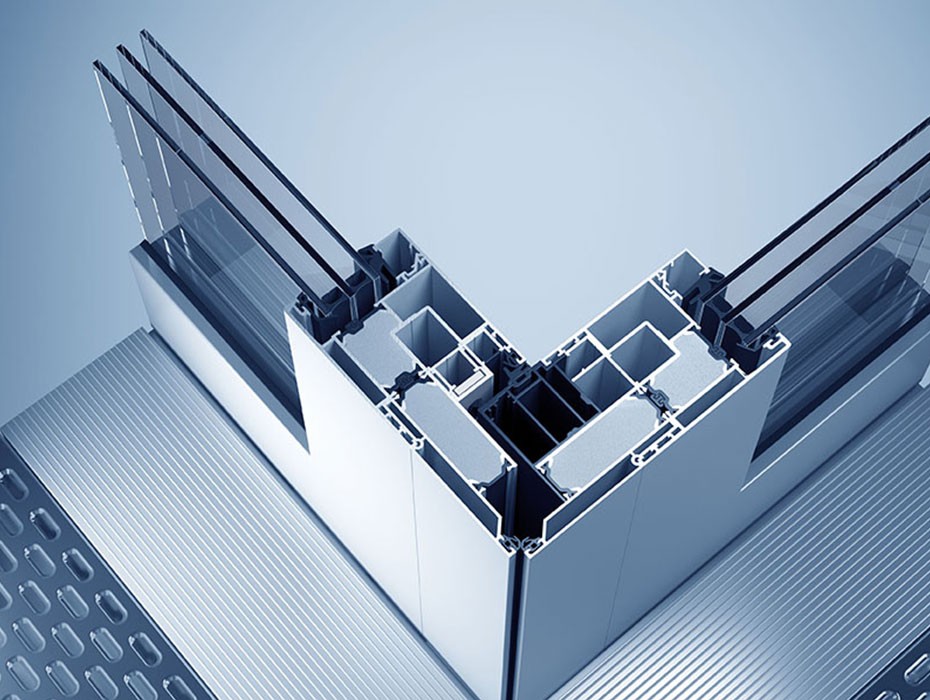

CORNER

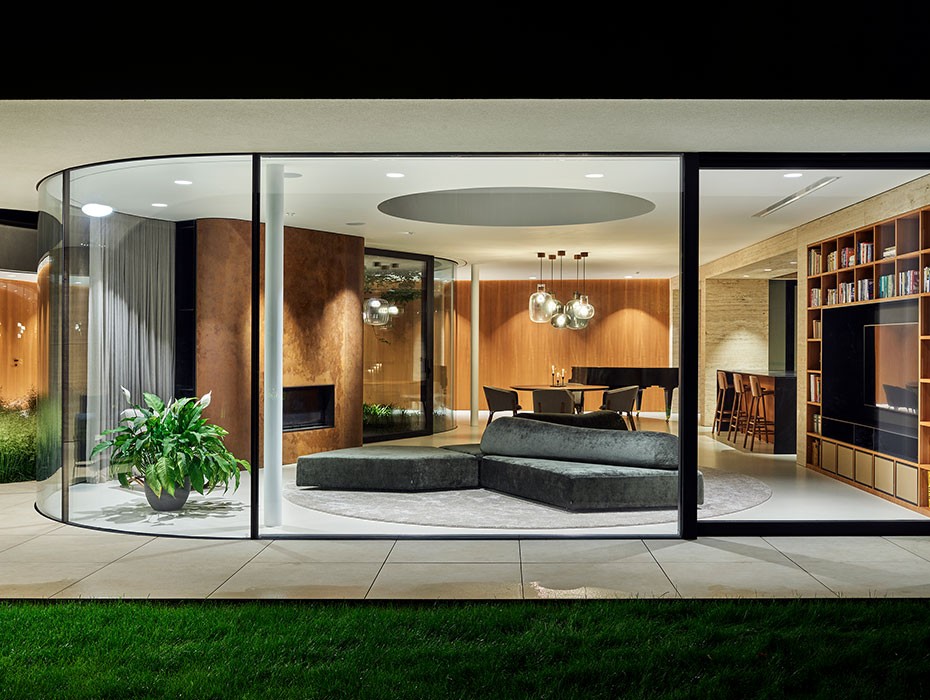

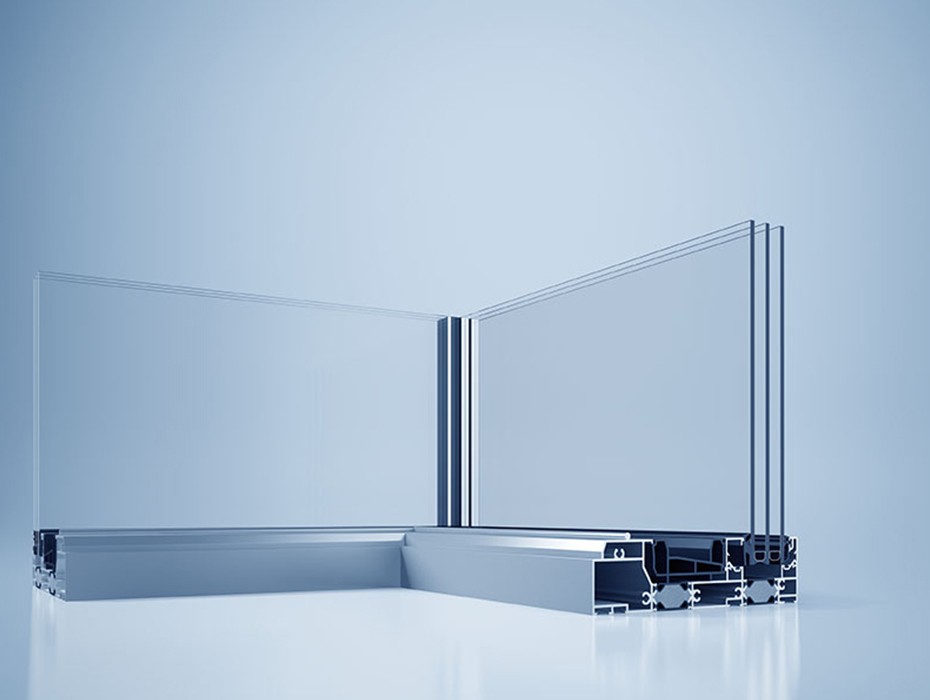

At the same time, this lifting-sliding door offers best insulation values. Additional highlights connecting the interior with the exterior are a corner designed with fixed glazings, and a corner solution that can be opened – both create a unique living experience.
DOWNLOAD
↓ Brochure
BURGLARY RESISTANCE
Up to RC 2
PERFORMANCE CHARACTERISTICS
- Wind resistance
- Operating forces
- Air permeability
- Soundproofing class
- Resistance to burglary
- Resistance to driving rain
- Heat insulation (Uw in W/m2K) / Profile width [mm]
- Thermal insulation [Uf in W/m2K] / Profile width [mm]
