Fritsjurgens System Fx Door interior
System Fx - HINGES
SYSTEM FX- HINGES
System Fx offers strong hold positions at every 90 degree angle. With its minimalistic, sleek, and durable design it is the ideal solution for interior doors.
information
BRAND
Fritsjurgens
PRODUCT TYPE
Pivot Door
PRODUCTION
Made in Netherland
COLLECTION
System Fx

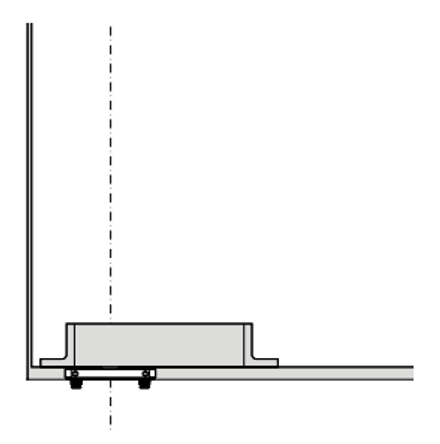

PLACEMENT - 40 MM
Side placement

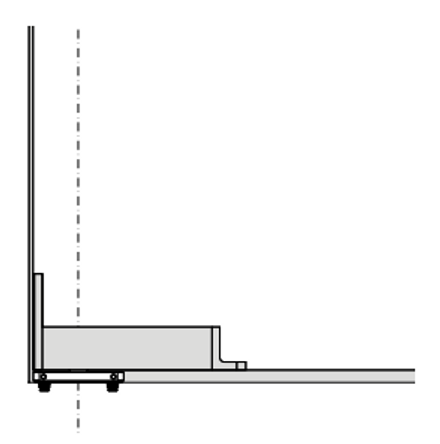

PLACEMENT - 70 MM
Side to middle placement
PIVOT POINT - 40 MM
Fixed at 40 mm
COVER PLATES -70 MM
No
ROTATION
- Revolving: 360°
- Double-acting: 180°
- Single-acting: 90°
PIVOT POINT - 70 MM
From 70 mm to middle placement
FREE SWING
Yes, between 10° and 80°
DOOR MOVEMENT -70MM/40MM
Free swing between 10° and 80°, with hold positions at 0°, 90°, 180° and 270°
DOOR ACTING - 70MM/40MM
- Single-acting: 90°
- Double-acting: 180°
- Revolving [door]: 360°
COVER PLATES -40 MM
Yes
PIVOT POINT - 70MM
Side and middle
TOP PIVOTS - 70MM
- Top pivot 70 mm Class B (Class A)
- Top pivot 70 mm Class G (Class C)
- Top pivot Reversed (all classes)
DOOR WIDTH - 70MM/40MM
Unlimited
DOOR HEIGHT - 70MM/40MM
Unlimited
TOP PIVOTS - 40MM
- Top pivot 40 mm Class B (Class A)
- Top pivot 40 mm Class G (Class C)
- Top pivot Reversed (all classes)
DIMENSIONS - 70MM
210 x 32 x 38 mm
MINIMUM DOOR THICKNESS - 70MM/40MM
40 mm
WEIGHT CAPACITY - 70MM/40MM
- Class A : 20 ‑ 119 kg
- Class C : up to 209 kg
DIMENSIONS - 40MM
188 × 32 × 85 mm
FLOOR PLATES - 70MM/40MM
- Floor plate round
- Floor plate squared
- Floor plate Flush squared
- Floor plate Flush rounded

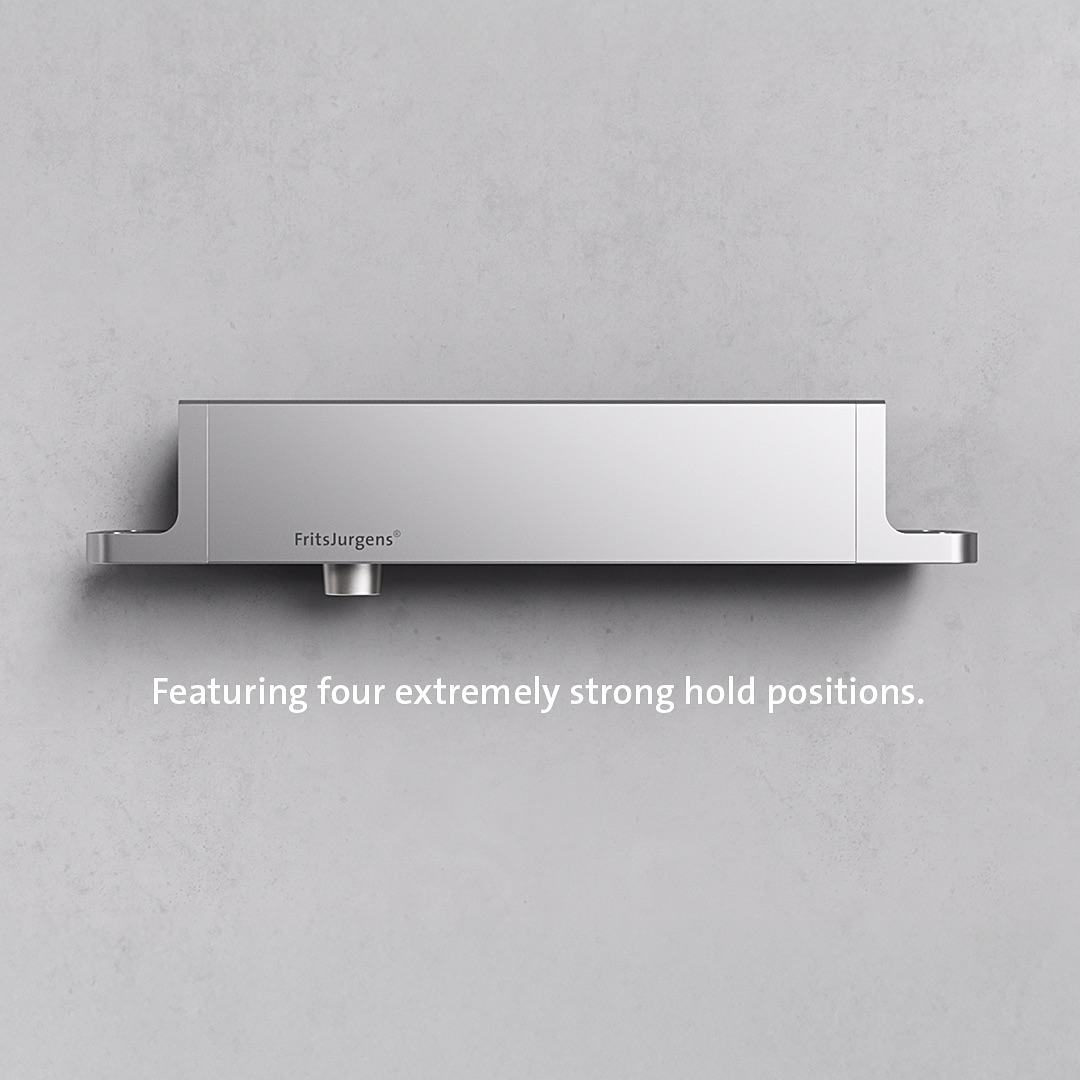

HOLD POSITIONS
- Revolving: 0°, 90°, 180° and 270° - Double-acting: 90°, −90° and 0° - Single-acting: 90° and 0°
FUNCTIONALITIES - 70MM/40MM
- Free swing : Yes
- Self-closing : No
- Hold Positions : Yes
TOP GAP - 70MM/40MM
4 - 10 mm
BOTTOM GAP - 70MM/40MM
7 - 11 mm
BOTTOM PIVOTS
It all hinges on the bottom pivot. Our bottom pivots are easily applicable to the side as well as to the middle of the door.
DOWNLOADS
↓ System Fx technical documentation
↓ Milling and mounting manual System Fx 40 mm Class A
↓ Milling and mounting manual System Fx 40 mm Class C
↓ Milling and mounting manual System Fx 70 mm Class A
↓ Milling and mounting manual System Fx 70 mm Class C
PIVOT POINT
Side
SELF-CLOSING
No

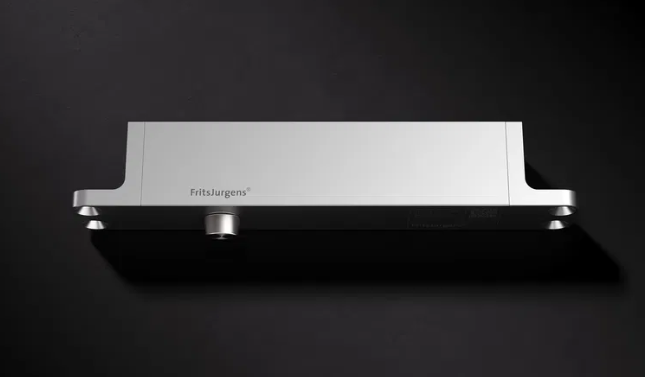

COMPACT DESIGN
With a height of just 38 mm and a width of 32 mm, System Fx fits seamlessly into slim-profile doors, combining effortless installation with a sleek, minimalist aesthetic that doesn’t sacrifice performance.
RETURNS TO CLOSEST HOLD POSITION

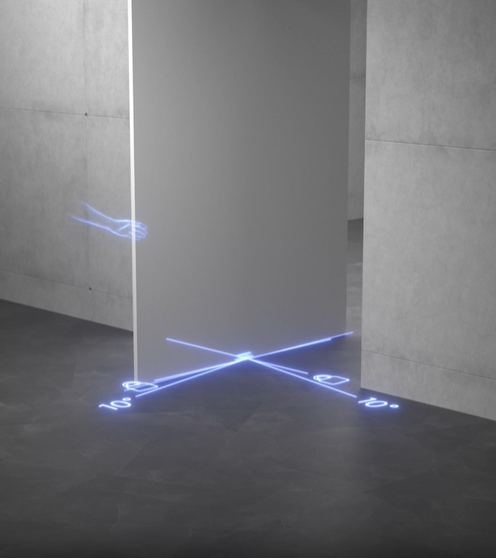

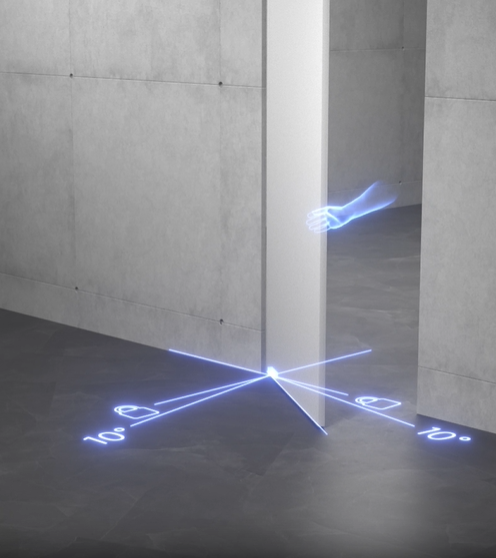

Whether installed in middle or side placement, System Fx returns to the nearest hold position from +10 or -10 degrees from the hold position, for enhanced functionality and convenience.
WEIGHT CAPACITY
System Fx is engineered to support doors weighing between 20 and 209 kg, ensuring reliable functionality across a wide range of applications, from lightweight to heavier door designs.
ROTATION
REVOLVING
Revolving means that the pivot door can rotate a full 360°, with hold positions at 0°, 90°, 180°, and 270°.
DOUBLE-ACTING
Double-acting means that the pivot door can be opened towards both sides, with a hold position at 90° at either side.
SINGLE-ACTING
Single-acting means that the pivot door can only be opened towards a single side. This is enforced by an external stop such as the door frame.
BENEFITS
TAILORED FOR INTERIOR SPACES
System Fx is designed for side placement, making it the ideal choice for interior pivot doors. Its robust engineering ensures reliable hold positions that enhance functionality and aesthetics in residential and commercial settings. It is the ideal system for high-traffic areas where the door primarily needs to remain open in a single hold position.
VERSATILE HOLD POSITIONS
With strong hold positions at 0°, 90°, 180° and 270°, System Fx adapts effortlessly to diverse applications, providing smooth operation and precision alignment for both single- and double-acting doors, and even revolving doors (middle-placement).
HOW TO HANDLE SYSTEM FX

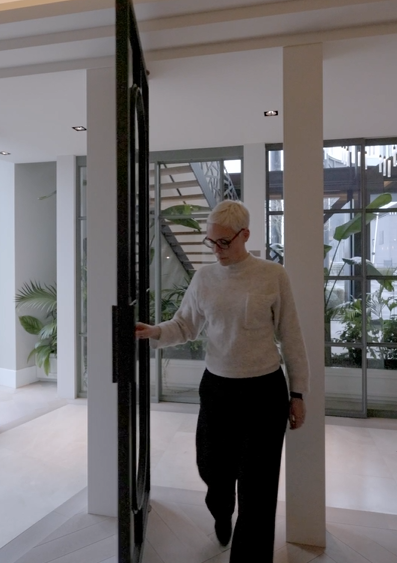

System Fx is pretty self-explanatory, but it has some things you need to take into account. For instance, how to handle it correctly. To open or close, you guide the door manually until it reaches its hold position.
COMPONENTS
TOP PIVOT
The top pivot is mounted into the top of the door. It uses a so-called pinhole connection, in which the pin is fixed to the top pivot and goes into the hole in the ceiling plate when the door is placed. FritsJurgens offers two types of top pivots: Top pivot Regular and Top pivot Cable Grommet. Top pivot Cable Grommet is designed to enable easy wiring through the door for lighting or electronic security.
CEILING PLATE
The ceiling plate is fitted in the ceiling, where the pin of the top pivot seamlessly fits into the hole in the ceiling plate. The ceiling plate is available in two finishes: brushed stainless steel and black.
BOTTOM PIVOT
The bottom pivot is the pivot mechanism and driver of the pivot door and is fitted in the bottom side of the door. The pivot mechanism therefore is virtually invisible. FritsJurgens bottom pivots have a load bearing capacity for pivot doors up to 500 kg.
The bottom pivot offers several features, depending on the choice of bottom pivot, such as: hold positions, self-closing, damper control, latch control, 30° speed control, free swing. The bottom pivots placement determines the spatial impact that the pivot door will have on its surroundings. Besides a more regular side placement to create pivot doors, FritsJurgens pivot hinges are also suitable for 360 degree rotating panels or walls.
FLOOR PLATE
Every FritsJurgens floor plate is mounted 8 mm in the floor. This is sufficient for almost every floor type and makes it possible to combine FritsJurgens’ hinges with floor heating. Two longer, shortenable floor plate pins of 30 mm are included with the square floor plate designs.
There are various floor plates available for System Fx. The standard floor plate is available in four designs: brushed stainless steel (Series 420) and PVD black in a round and a square version. Also available is floor plate Flush, which can be integrated into thresholds and into interior floors. The floor plates by FritsJurgens are made of solid tempered steel and, therefore, entirely scratch resistant.
