Emac Eclipse® Sunset Squadron
ECLIPSE® SUNSET SQUADRON
ECLIPSE® SUNSET SQUADRON
Wall Profile

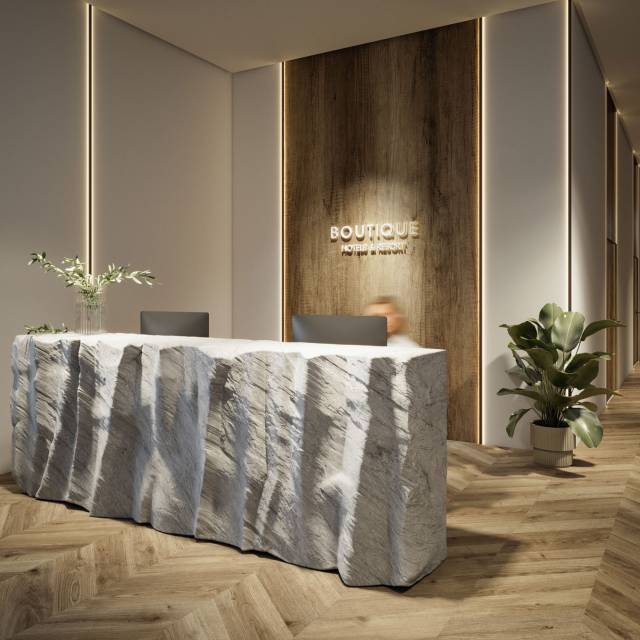

The new Eclipse® Sunset collection was created to evoke the effect of sunset in the various spaces where it is installed, creating calm and comfort through the use of light.
Novoescuadra Eclipse® Sunset is a corner protection profile. Its geometry, with a clip-on trim, is designed for the concealed mounting of LED strips against the wall, allowing the light to flow on both sides of the profile and creating an innovative light curtain effect.

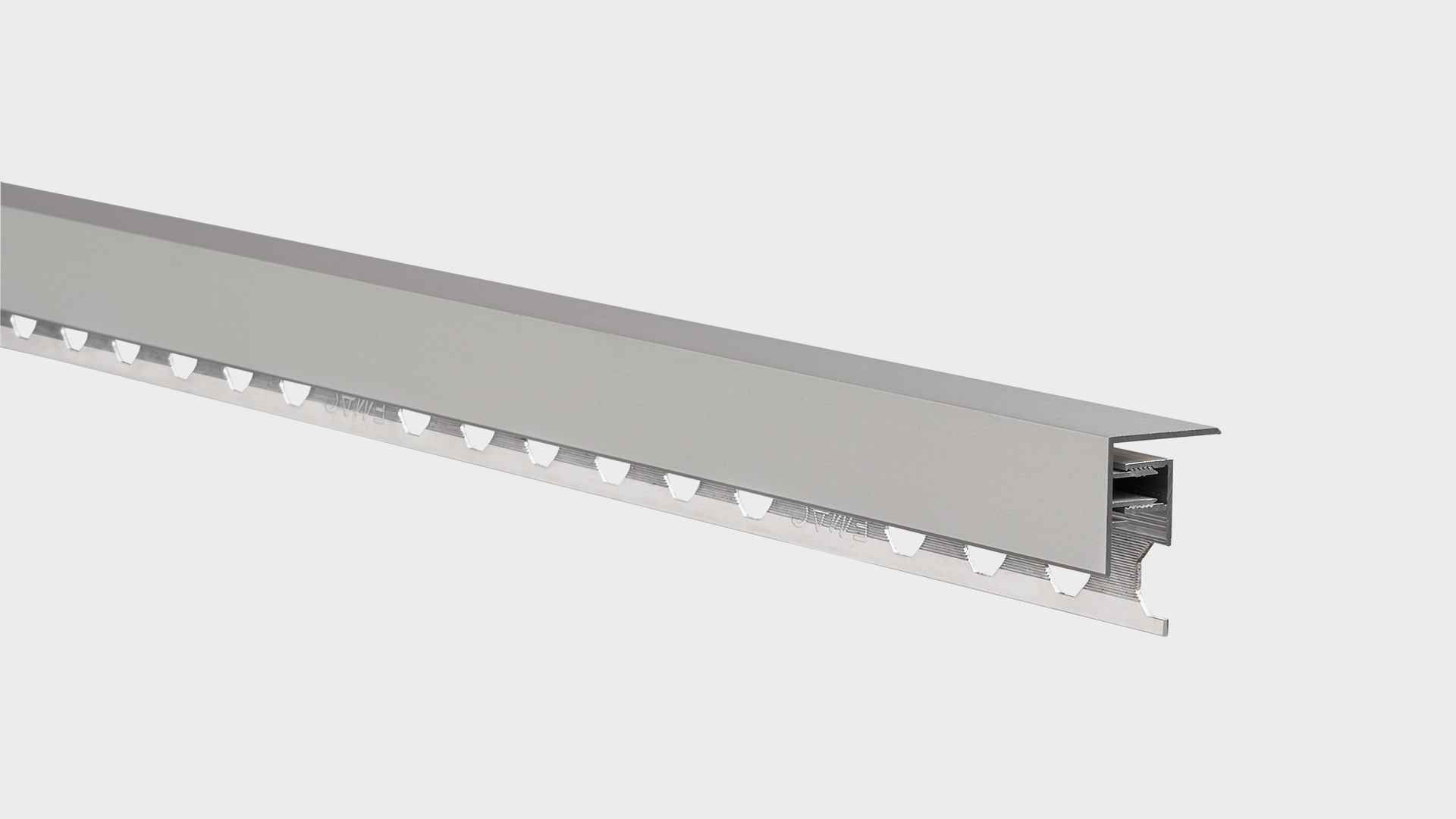

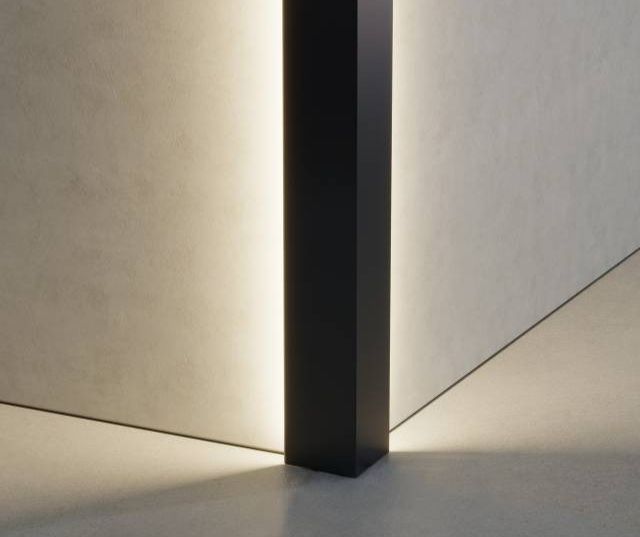

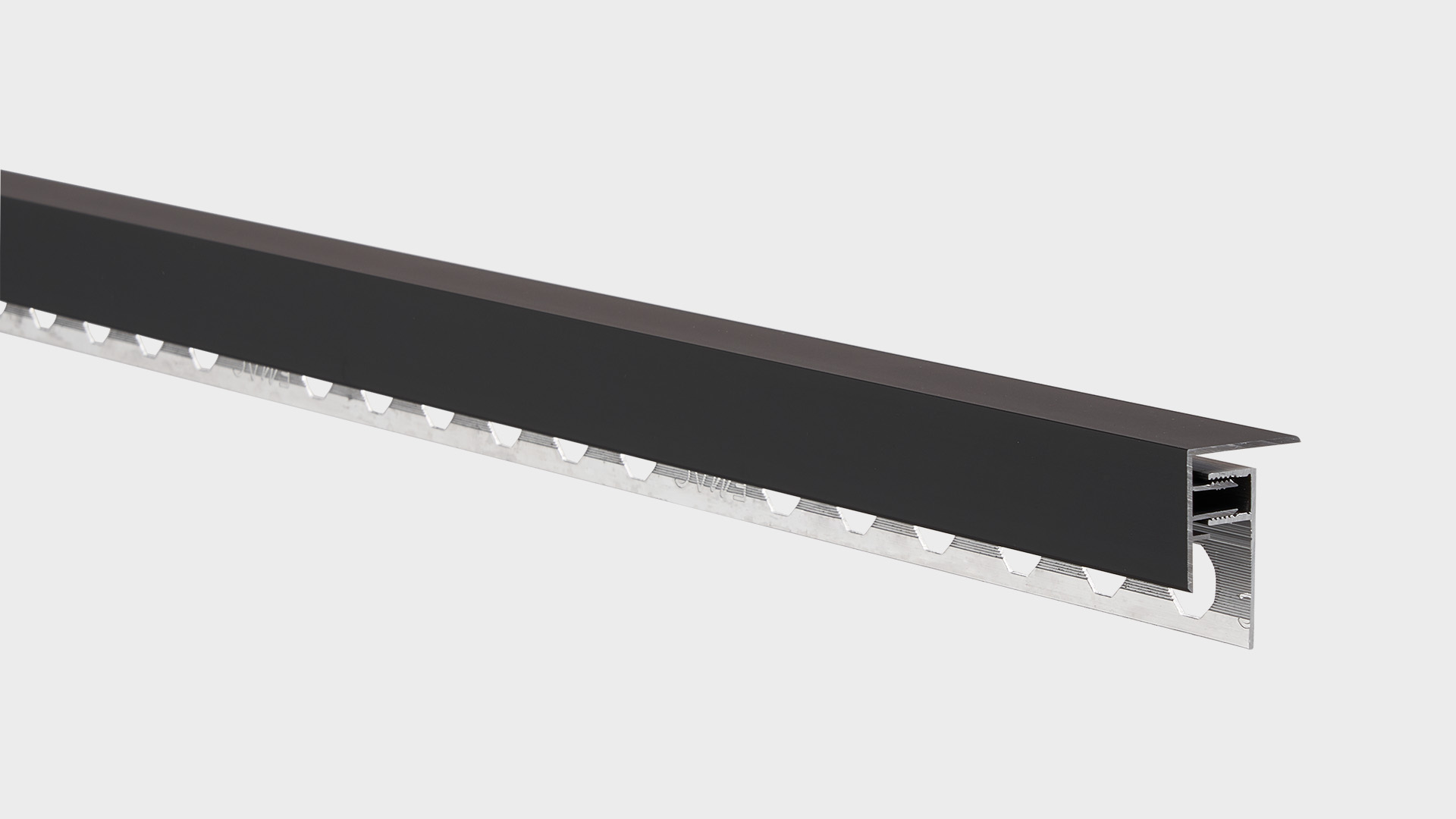

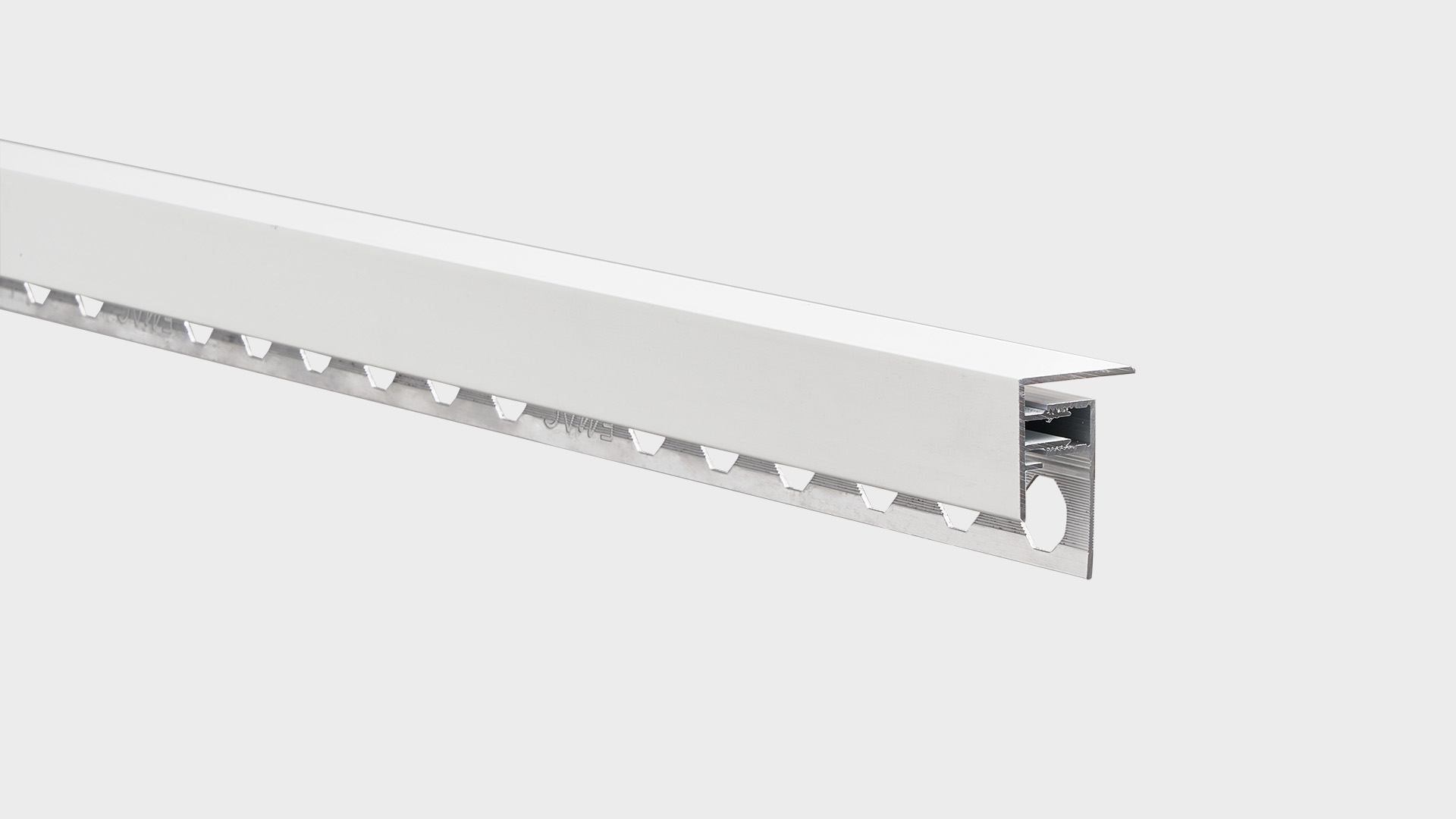

This light curtain contributes to the creation of warm and relaxing environments, generating a sense of comfort in the surroundings. Novoescuadra Eclipse® Sunset is a system that adapts to coverings between 8 and 13 mm, covering most market needs. It is available in matte black and silver anodized finishes and matte white lacquer.
INFORMATION
BRAND
EMAC
PRODUCT TYPE
LED Strips
PRODUCTION
Made in Italy
COLLECTION
Eclipse
USE
Light
MOUNTING
Wall
ENVIRONMENT
Indoor
APPEARANCE AND COLOR
Excellent
QUALITY SEALS
Qualicoat / Qualanod
COVERING
8 and 13 mm
PRODUCT CODE
U202431751
BASE
Natural Aluminium
EMBELLISH
Anodized/Lacquered Aluminum

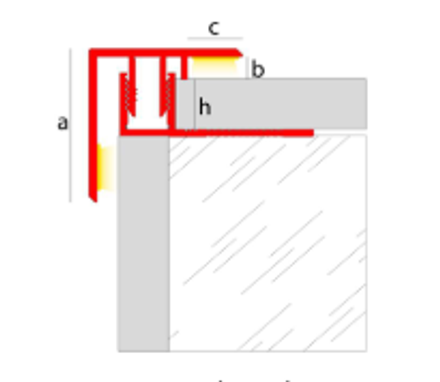

DIMENSIONS -NECALSSNM25
- A : 25 mm
- B : 3.7 mm
- C : 9 mm
- H : 8-13 mm
APPLICATIONS
Novoescuadra Eclipse® Sunset is a two-piece profile: a natural aluminum base and a decorative cap available in two anodized aluminum colors (matte silver and matte black) and one lacquered aluminum color (matte white). This innovative corner protection profile has been designed to adapt to walls with varying thicknesses of cladding. The profile can be illuminated with LED strips, allowing the light to flow along both sides, creating an innovative curtain-of-light effect.
ALLOY
6063 / T5
STRESS TEST
110-130 MPa
TENSILE STRENGTH
160-175 MPa
FIRE RESISTANCE
M0 (UNE 23-727-90)
PACKAGING
10 Unit
ELONGATION (%)
8%
FINISHES
