BAFLES PANELS
BAFLES PANELS
Ideaflow

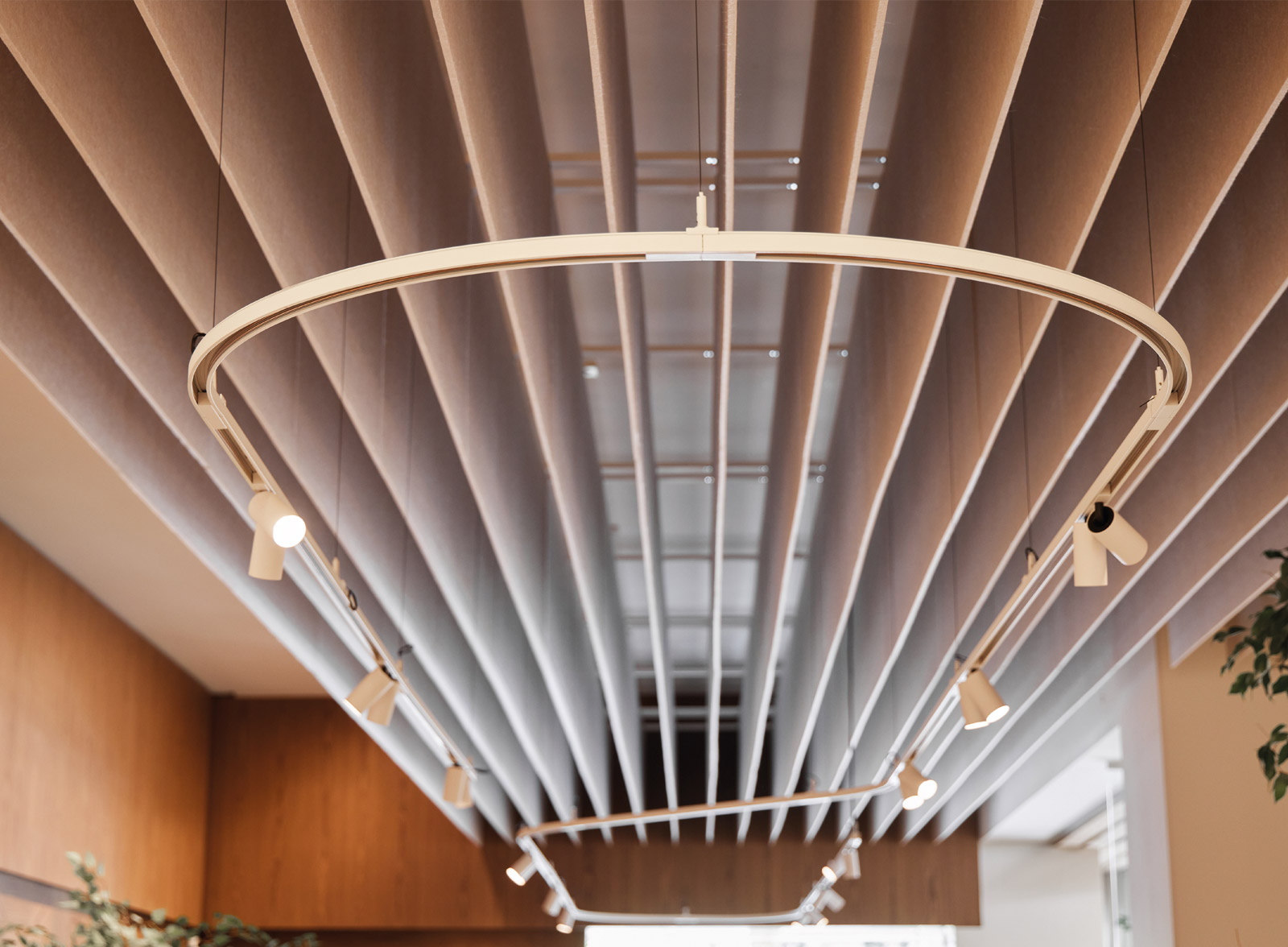

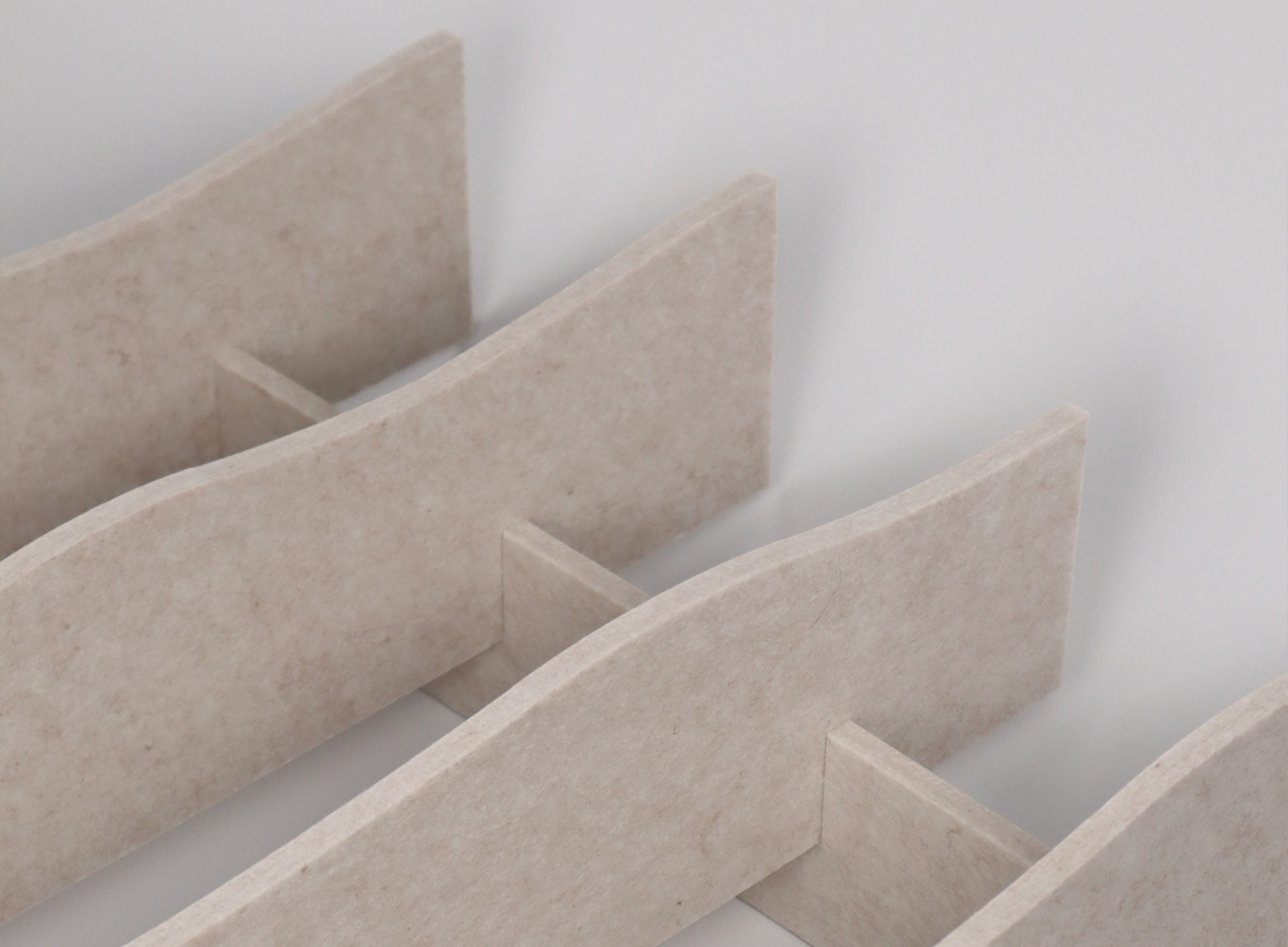

Baffle made from recycled polyester fibre with a metallic structure for suspension, cut to size.
It is a lightweight product available in 16 colours that can be incorporated into all types of spaces that require sound absorption.

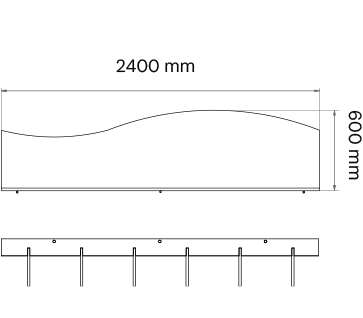

Designing various creative proposals and concepts such as the design inspired by the waves of the sea.
INFORMATION
BRAND
Ideatec
PRODUCT TYPE
Panels
FIREPROOF
- A 13501
- Polyester fiber recycling: B-s1,d0
PRODUCTION
Made in Spain
APPLICATION
Ceilings
PRODUCT CONSIDERATIONS
The material must remain at the installation site for a minimum of 24 hours before assembly. The ideal temperature conditions are 18° to 25°C and a relative humidity of 40% to 60%. The substrate is a fibrous material; light exposure may create shadows, textures, and similar effects. A 5 mm gap between modules is recommended.
THICKNESS
18 mm
COMPOSITION
Polyester Fibre Board
STANDARD INSTALLATION SYSTEM
Roof
Fastening hooks, anchoring to the slab and wire rope
ACOUSTIC TESTS
αm=0.98, αw=0.95, NRC=0.91
SOUND-ABSORBING ASSEMBLY
Recycled polyester fiber core
WEIGHT
3.44 kg/m2
DENSITY
220 kg/m3
CERTIFICATES
ADDITIONAL FEATURES
- Washable Product : Clean with a damp cloth. Do not use chemical agents.
- Impact resistance : Depending on the support material.
- Scratch resistance : Depending on the finishing material.
- Dirt resistance : Moderate resistance to soiling
- Recyclable : 100% Recyclable
- Earthquake resistant : Possibility of installation with seismic-resistant system.
AVAILABLE COLORS
16
STRUCTURE
Metallic

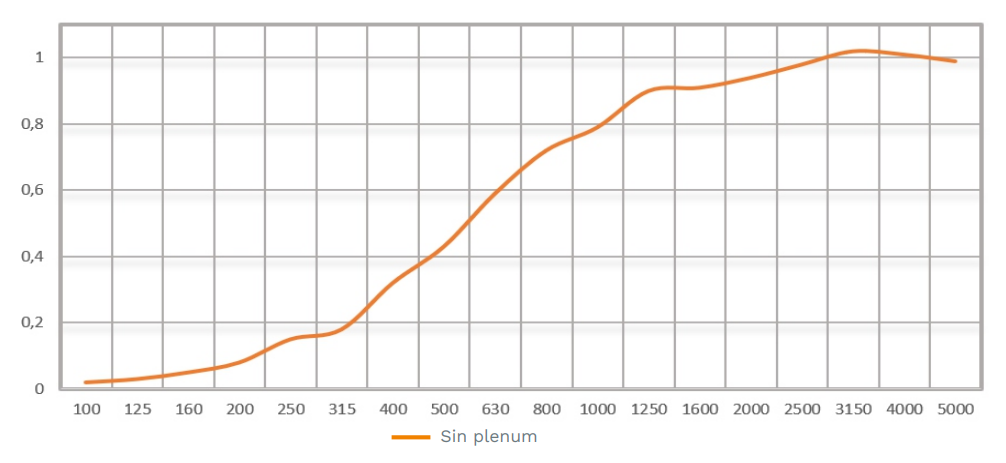

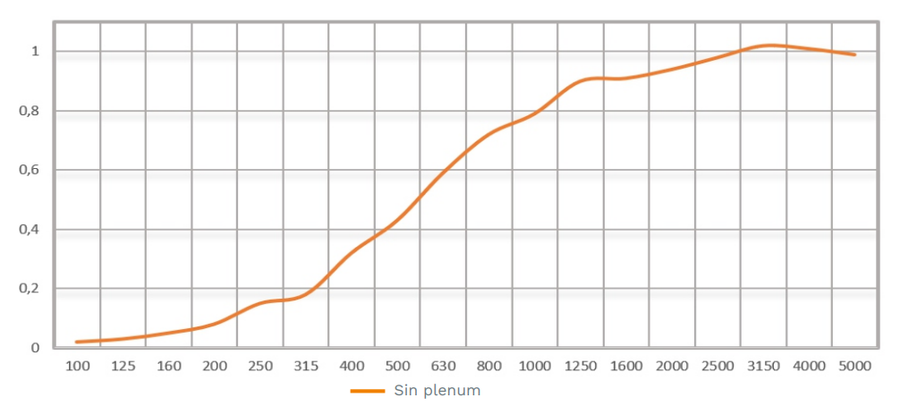

ACOUSTIC TEST
- Average acoustic absorption coefficient : αm = 0.72
- Weighted sound absorption coefficient : αw = 0.45
- Noise reduction coefficient e : NRC = 0.58
FINISHES
ALL FINISHES
