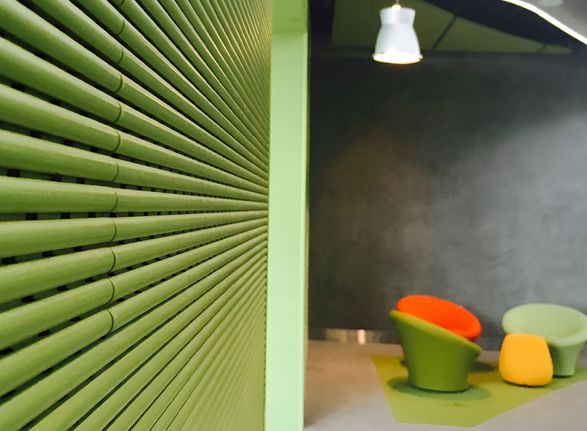

Ideatec Pro 11 R Acoustic Panel
PRO 11 R ACOUSTIC PANEL
PRO 11 R ACOUSTIC PANEL
Ideacustic

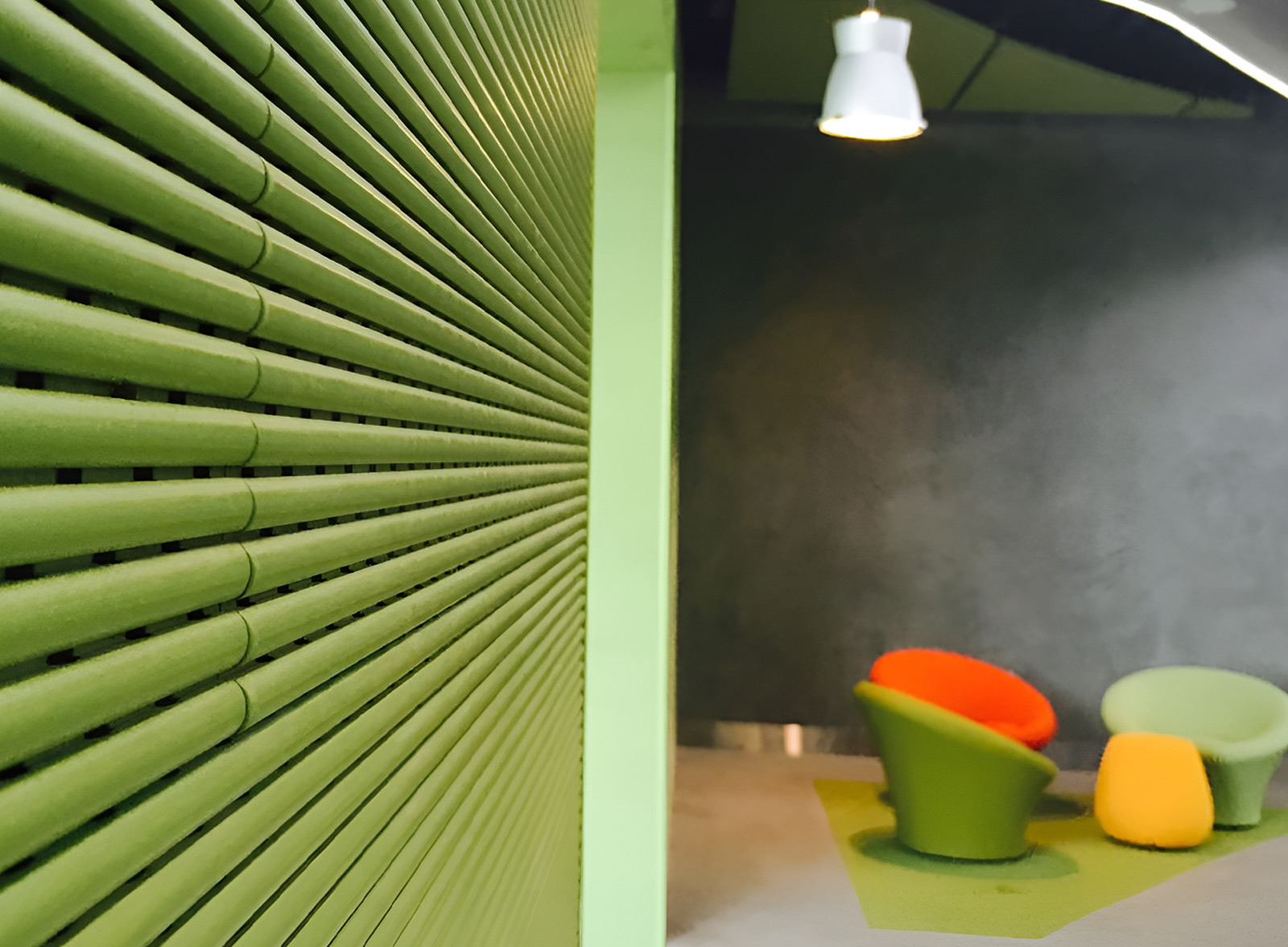

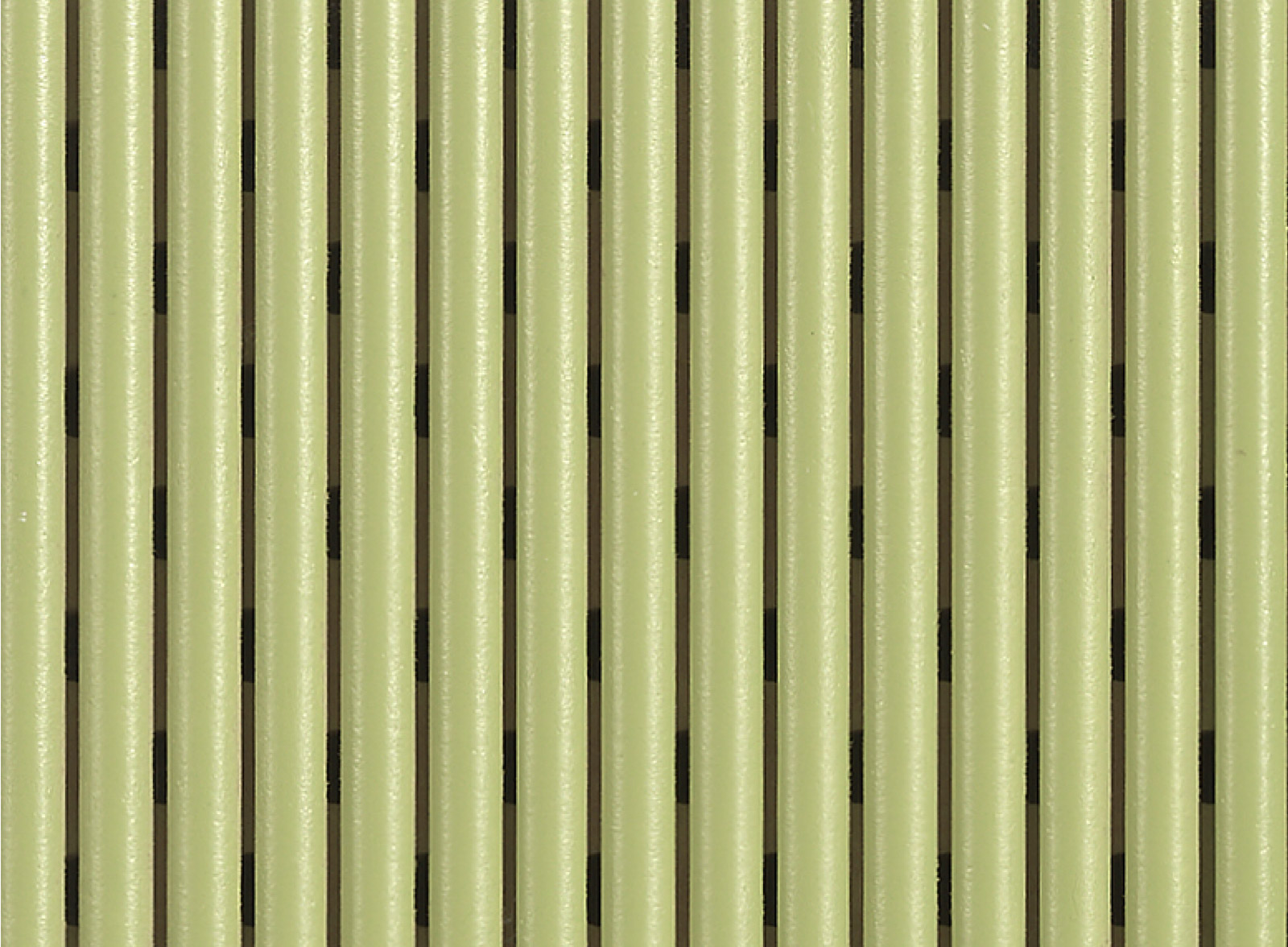

Acoustic panel made of MDF. It is derived from the ideatec acustic PRO 11, but improves its aesthetic and diffusive qualities with a rounded effect that makes it suitable for finishing in any lacquered colour.
INFORMATION
BRAND
Ideatec
PRODUCT TYPE
Acoustic Panel
ACOUSTIC TESTS
αm=0.95, αw=0.85, NRC=0.90
PRODUCTION
Made in Spain
FIREPROOF
UNE 13501: B-s2,d0
PRODUCT CONSIDERATIONS
The material must remain at the installation site for a minimum of 24 hours before assembly. The ideal temperature conditions are 18° to 25°C and a relative humidity of 40% to 60%.
SOUND-ABSORBING
Adhered to the back 0.25 mm

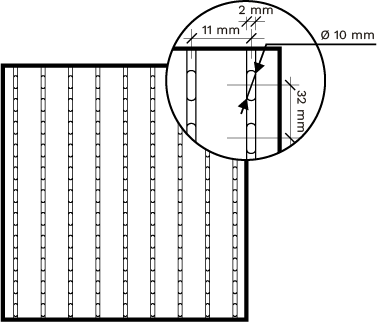

DIMENSION
2430x160x16 mm
COMPOSITION
Medium density fibreboard MDF
TOLERANCES
- Ancho : ± 1.5 mm
- Largo: ± 1.5 mm
WEIGHT
8.36 kg/m2
DENSITY
750 kg/m3
APPLICATIONS
- Walls
- Ceilings
CERTIFICATES
ADDITIONAL FEATURES
- Washable Product : Clean with a damp cloth. Do not use chemical agents.
- Impact resistance : Depending on the support material.
- Scratch resistance : Depending on the finishing material.
- Dirt resistance : High dirt resistance. May vary depending on the finish.
- Recyclable : Environmentally responsible.
- Earthquake resistant : Possibility of installation with seismic protection system.
SET
Black acoustic veil attached to the back of 0
LACQUERED
Customizable to any color from the Pantone, RAL or NCS range.

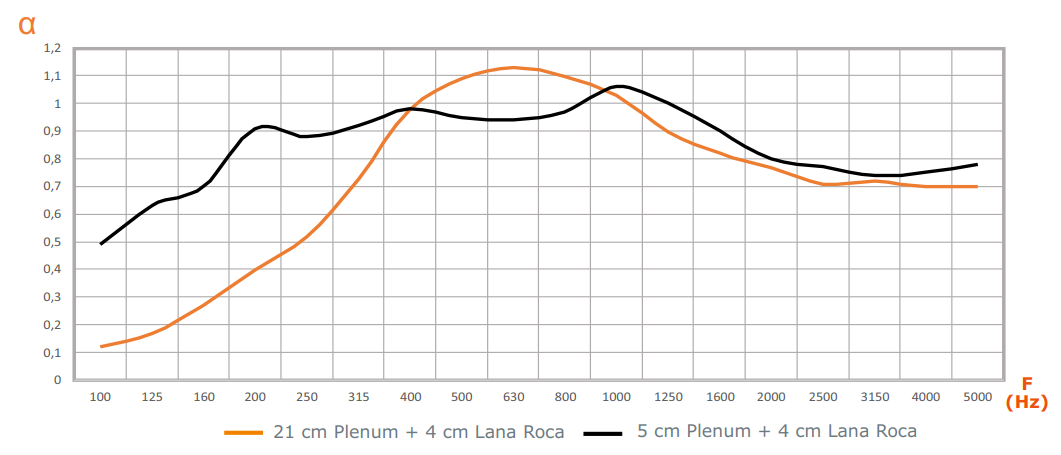

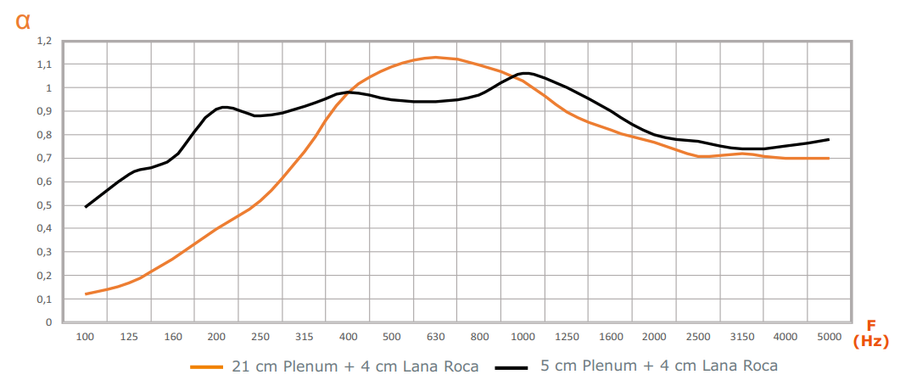

ACOUSTIC TEST
- Average acoustic absorption coefficient : αm = 0.95
- Weighted acoustic absorption coefficient : αw = 0.85
- Noise reduction coefficient e : NRC = 0,90
FINSIHES
FINISHES DETAIL
We offer a wide range of finishes, including melamine finishes in wood designs or plain colors, stained finishes, lacquered finishes, and natural wood veneers. These options, when applied to the various base materials (MDF, plywood, or phenolic composite), will provide a high-quality final result.
STANDARD WOOD VENEERS
STANDARD MELAMINE

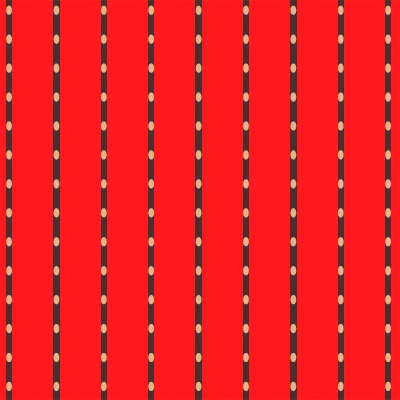

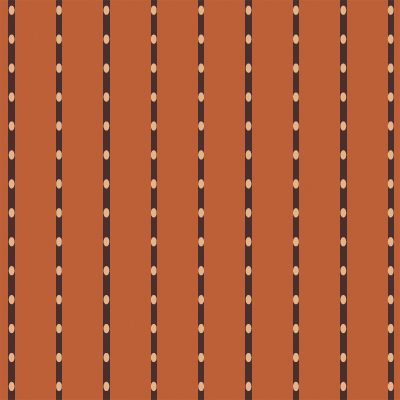

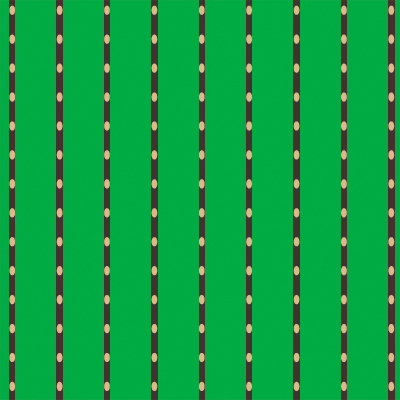

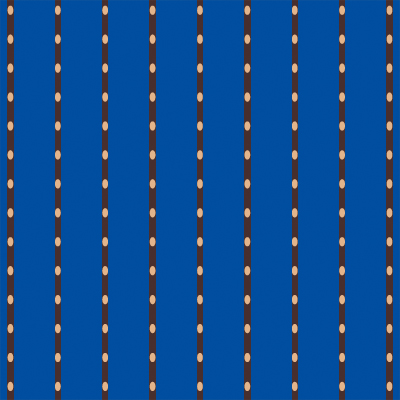

LACQUERED MDF BOARDS
-Amarillo -Naranja -Rojo -Verde -Azul -Naranja Oscuro -Gris -Negro
