PAVITEC HP NERVATO HEATED FLOOR
PAVITEC HP NERVATO HEATED FLOOR
Electro-welded mesh made of panels with square meshes. The transverse and longitudinal wires, both linear, are made of high-strength (600 N/mm2) hot-dip galvanized steel.
INFORMATION
SURFACE

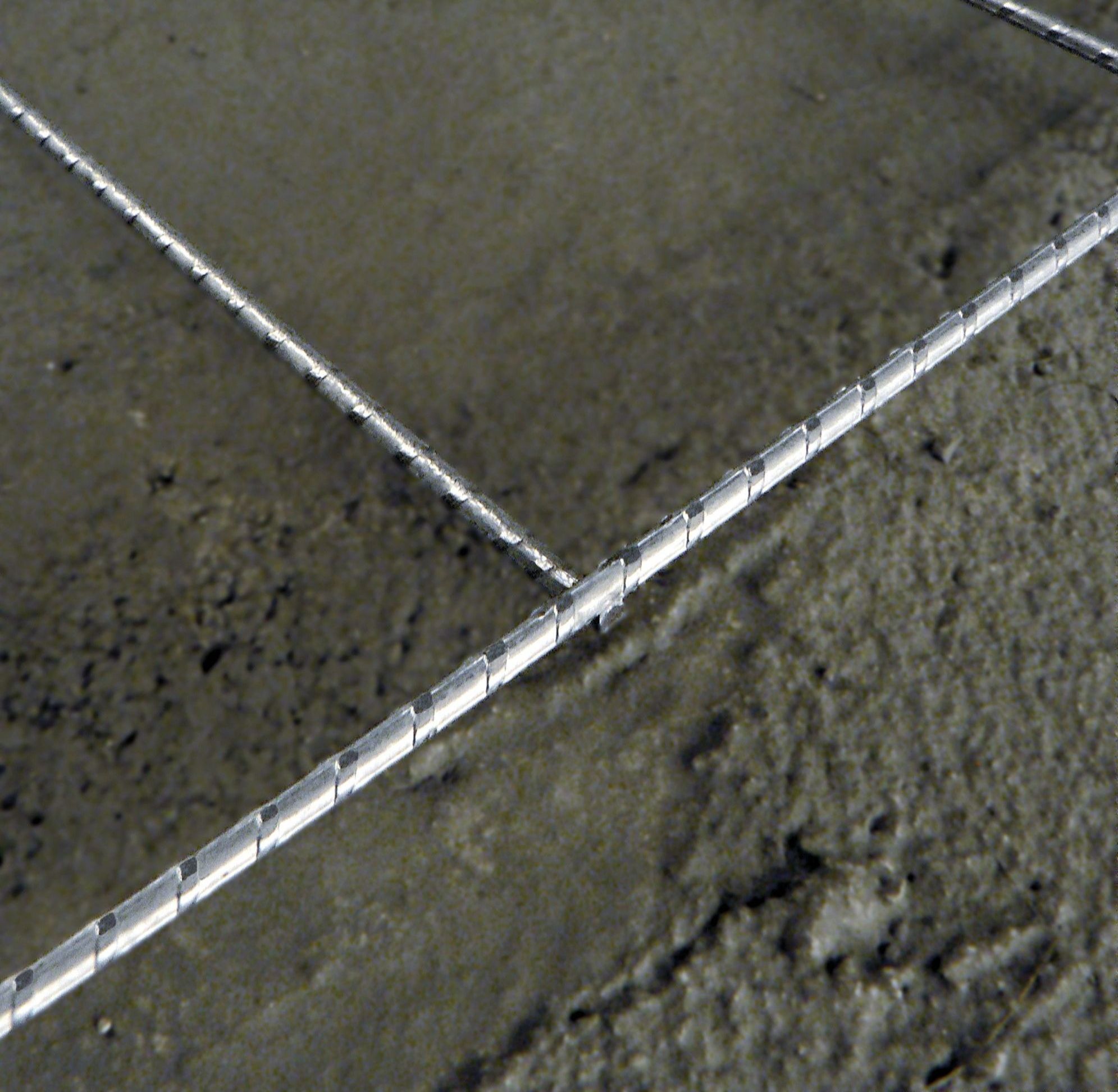

The surface of the wires is characterized by the presence of ribs uniformly distributed along the entire length that prevent the steel from sliding against the concrete, thus improving the adhesion between the panel and the concrete mix.
BRAND
Cavatorta
CATEGORY
Heated Floor
COLLECTION
Pavitec
USE
Indoor
PRODUCTION
Made in Italy
NET
Electrowelded
H PANEL
100 cm
APPLICATIONS

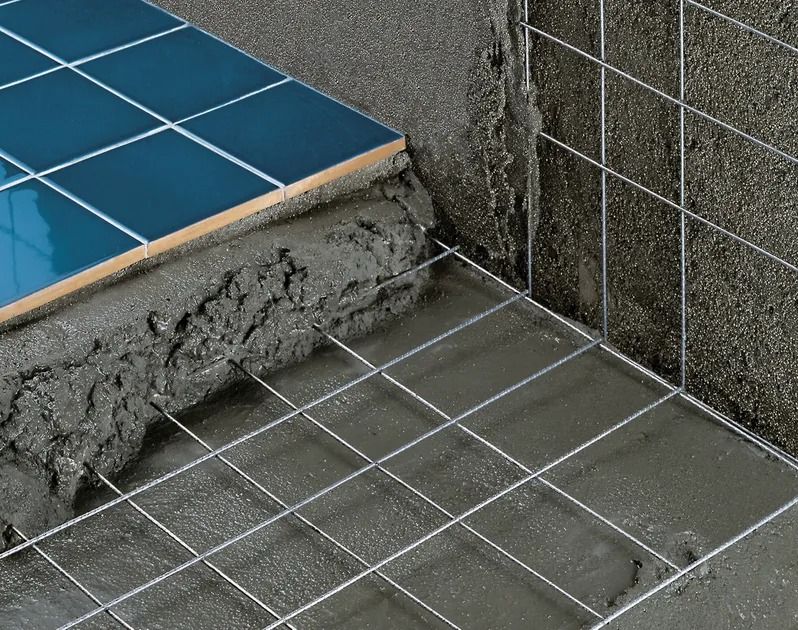

Lightweight, crack-preventing reinforcement for heated and floating floors
PACKAGING

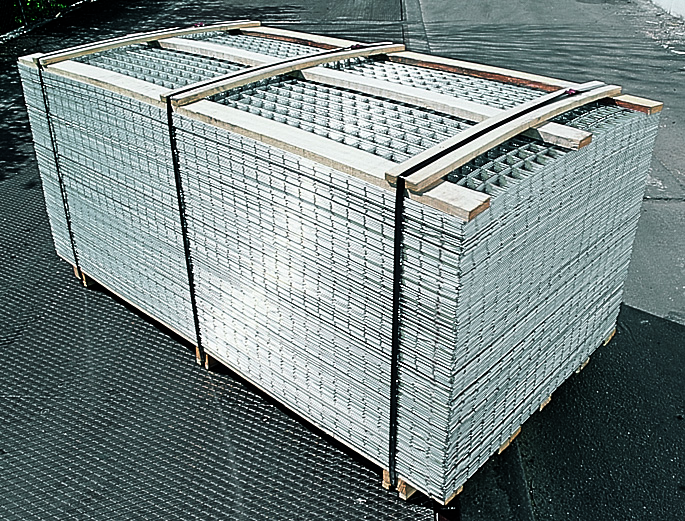

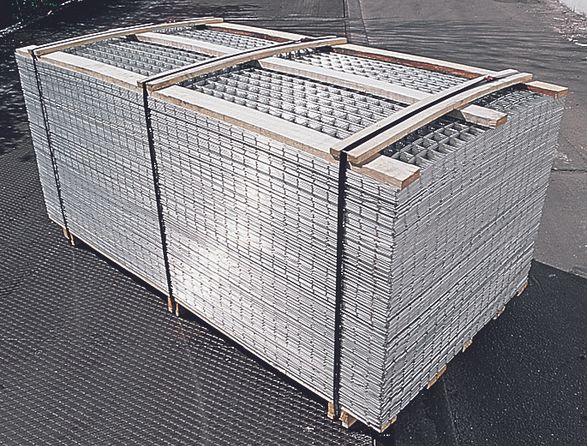

Bundles of 15 pieces, arranged on a pallet of 18 bundles each, for a total of 270 panels.
THE PANEL
200 cm
COVERAGE
Zinc
MATERIAL
Steel
Ø WIRES
3.00 mm
Ø ZINC.MM
3.00mm
BANK KG
636 kg
PANN./BANC.N°
270
DETAIL

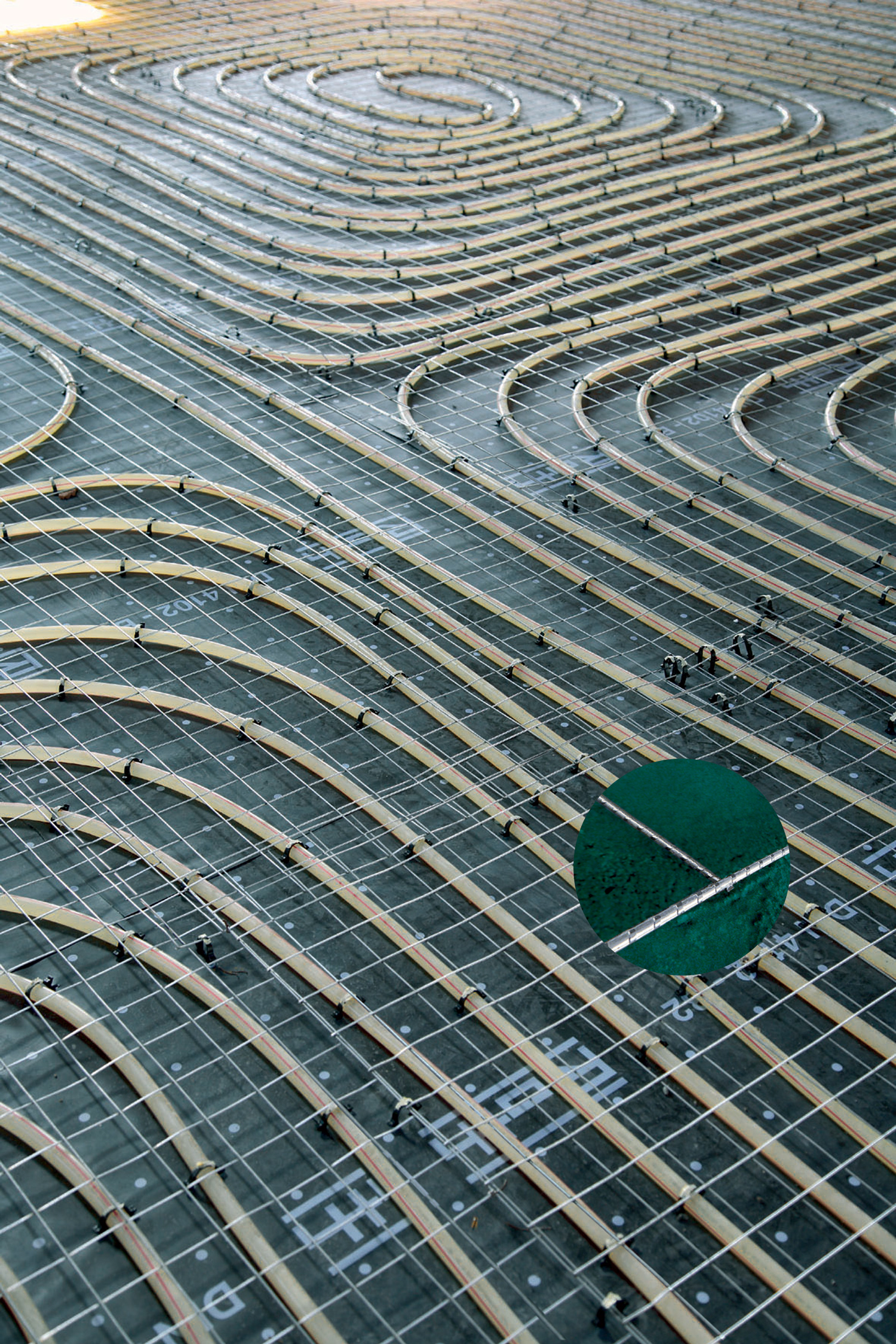

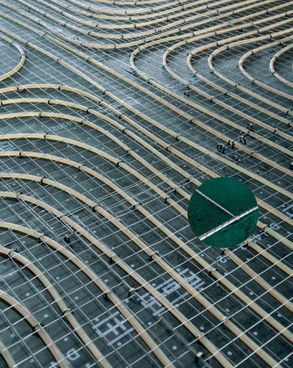

Pavitec HP gives the screed a particular homogeneity, and therefore greater compactness, enhanced impact resistance, and reduced fragility. Used in the construction of heated and floating floors, Pavitec HP prevents the formation of cracks in the concrete screed.
Pavitec HP gives the screed a particular homogeneity, and therefore greater compactness, enhanced impact resistance, and reduced fragility. Used in the construction of heated and floating floors, Pavitec HP prevents the formation of cracks in the concrete scr

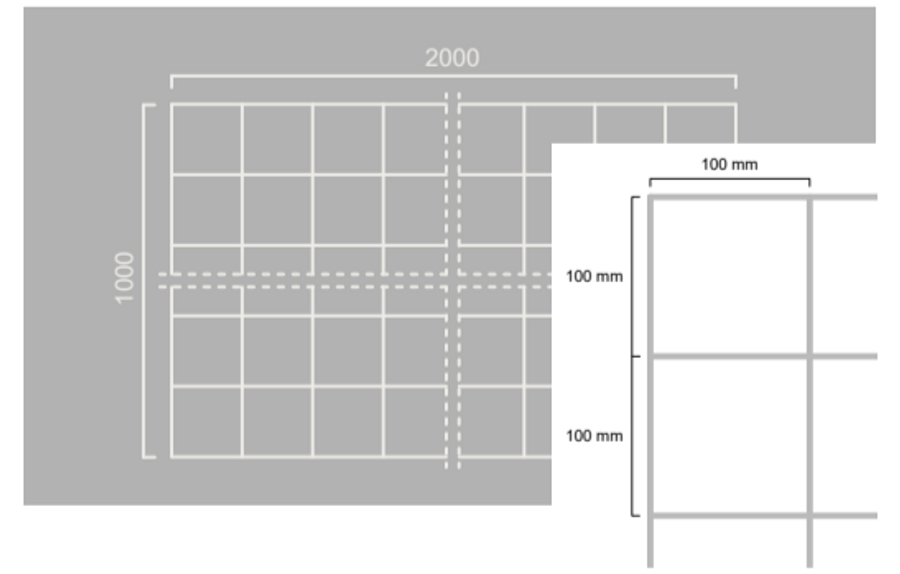

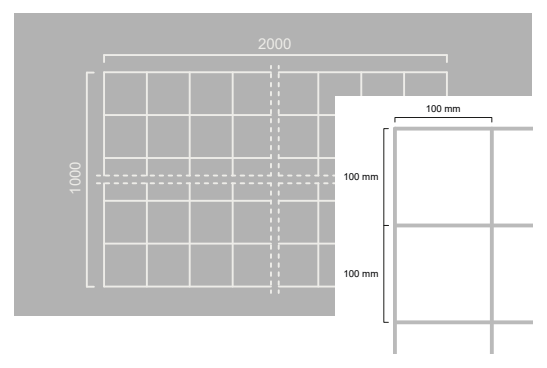

HEIGHT
100 cm
LENGTH
200 cm
SWEATER
100 x 100 mm
TECHNICAL DATA
| GENERAL PROPERTIES | VALUE | UNIT OF MEASUREMENT | REFERENCE STANDARDS |
|---|---|---|---|
| Maximum Unit Breaking Load Per Wire | 600* | N/mm2 | - |
| Galvanizing Type | Hot | - | UNI-EN 10244-2 |
| Zinc Purity Grade (Shg) | ~99,995 | % | UNI-EN 1179 |
| Zinc Adhesion | 1 (QVVKOC) | - | UNI-EN 10244-2 |
| Zinc Weight | ≥ 100 | g/m2 | - |
| Welding Point Resistance | ≥50 | % | UNI-EN 10223-4 |
| Thick Zinc Coating | ~15 | µm | - |
| Panel Length Tolerance | -0/+1 | % | - |
| Mesh Size Tolerance <50 Mm | ±2 | mm | UNI-EN 10223-7 |
| Mesh Size Tolerance 50≤x<200 Mm | ±3 | mm | UNI-EN 10223-7 |
| Mesh Size Tolerance ≥200 Mm | ±4 | mm | UNI-EN 10223-7 |
| Tolerance Ø Galvanized Wires | ±0,050 | mm | UNI-EN 10218-2 |
