HARDIE® ARCHITECTURAL PANEL
HARDIE® ARCHITECTURAL PANEL
Endless design possibilities. With James Hardie, It’s Possible™
Hardie® Architectural Panel is one of the most innovative products when it comes to fibre cement cladding.
It does not only impress with performance but is also a real design all-rounder: pick any of our amazing colors, choose a texture and make every project individual. And that’s not all: The Hardie® Architectural Panel comes at a price you can afford and is the perfect solution for any building.
INFORMATION
BRAND
James Hardie
PRODUCT TYPE
Architectural Panel
TEXTURES

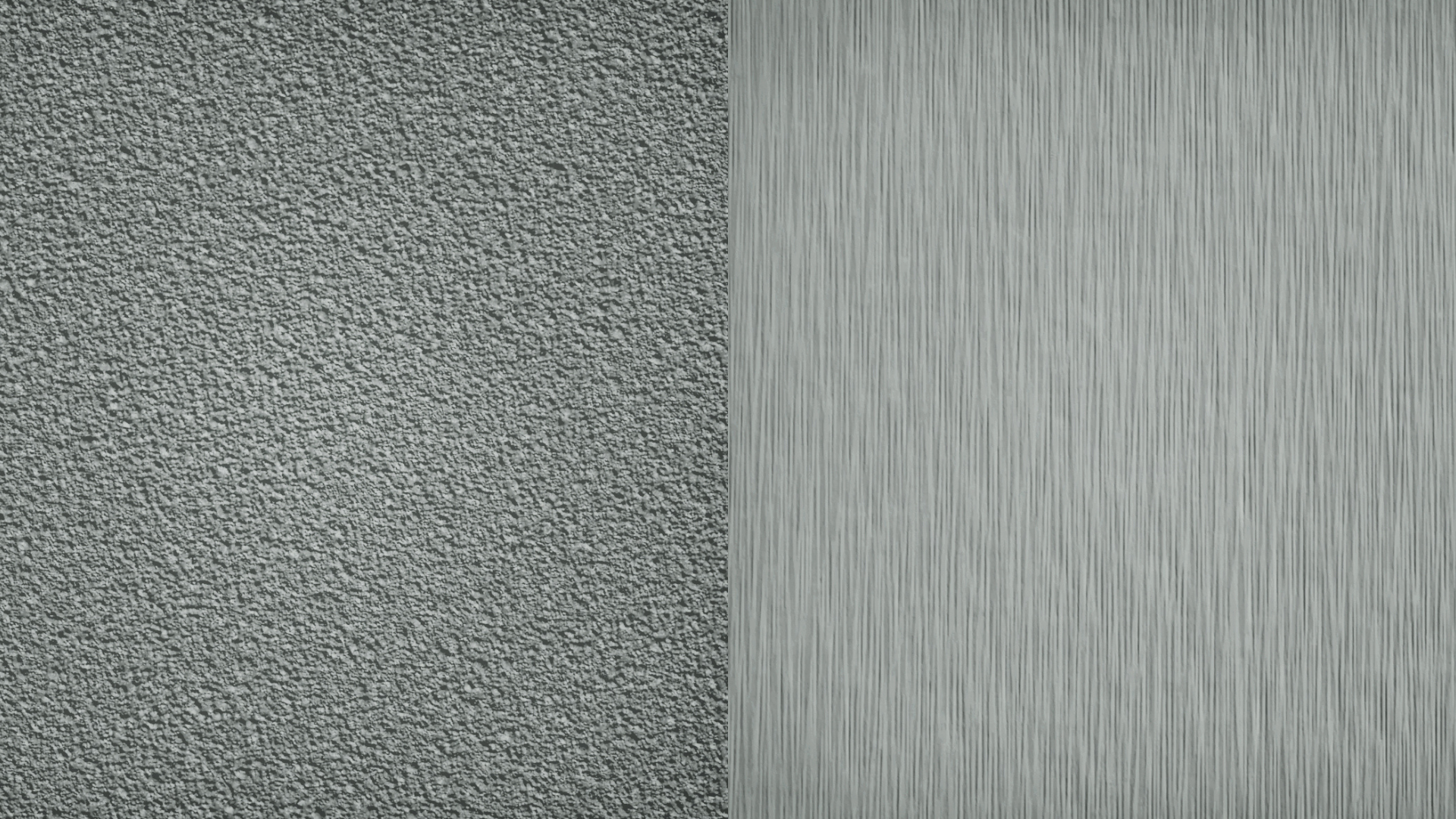

Smooth Sand and Brushed Concrete
DIMENSIONS
The nominal production dimensions of the panel is 3048×1220mm.
INSTALLATION
- Dry installation
- Easy deconstruction
- Easy and full year installation
GROSS DENSITY
~1300kg/m³
THERMAL CONDUCTIVITY
λ10,tr=0.23W/mK
NOMINAL SQUARENESS (DIN EN 12467)
Level I
MASS PER UNIT AREA
- 11.2kg/m²
- 13.7kg/m²
- 11.2kg/m²
- 13.7kg/m²
THICKNESS
- 8+1.2/-0.8mm
- 11+1,65/-1,1mm

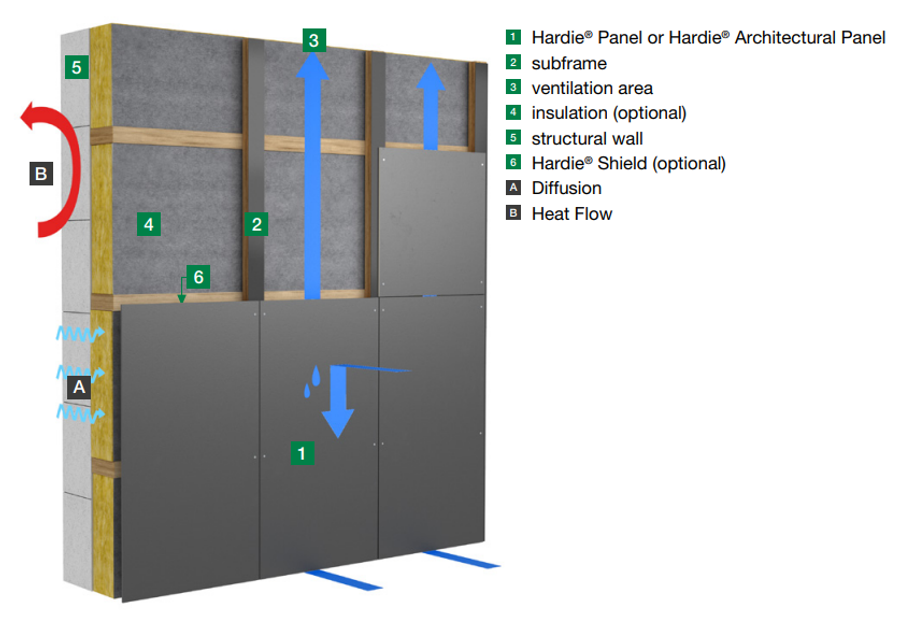

RAINSCREEN FACADE SYSTEM
USE
- Low maintenance
- Non-combustible
- Energy efficiency
A2 FIRE RATED
Non-combustable
WARRANTY
15 years warranty
FIRE CLASSIFICATION (EN 13501-1)
A2-s1, d0
MATERIAL
Cement
PRODUCTION
Made in Germany
YOUNG’S MODULUS
5100N/mm²
STRUCTURE
The structural wall to which Hardie® Panel cladding is to be fixed, must be of sufficient strength and stiffness to satisfy the requirements of the local building regulations. The wall may be made of masonry, timber, or steel. In the case of the latter, a sheathing board must be installed over the frame/ behind the rainscreen facade.
LENGTH
- Net. : 3038mm
- Raw : 3048±5mm
WIDTH
- Net. : 1210mm
- Raw : 1220±3.66mm
CATEGORY AND CLASS (EN 12467)
Category A and Class 2
FLEXURAL STRENGTH (EN 12467)
- 14,0 MPa perpendicular to fibre direction 8,5 MPa parallel to fibre direction
- 17,0 MPa perpendicular to fibre direction 11,8 MPa parallel to fibre direction
THERMAL RESISTANCE
- R10,tr=0.035m²K/W
- R10,tr=0.048m²K/W
BUILDING PHYSICS
- Rapid drying
- Temperature control
LINEAR STRAIN, 30–90% RELATIVE HUMIDITY
≤0.05mm/m
IMPACT RESISTANCE (SOFT AND HARD IMPACT AS PER EAD 090062-00-0404)
Category 1 (H1-3, S1-4)
APPLICATIONS
AFFORDABLE PERFORMANCE
With unmatched price performances, we bring design and value to every project. Whatever look you choose, you know you’re getting the strength and durability your clients deserve – making it a smart and cost effective solution for any project.
DESIGN FLEXIBILITY

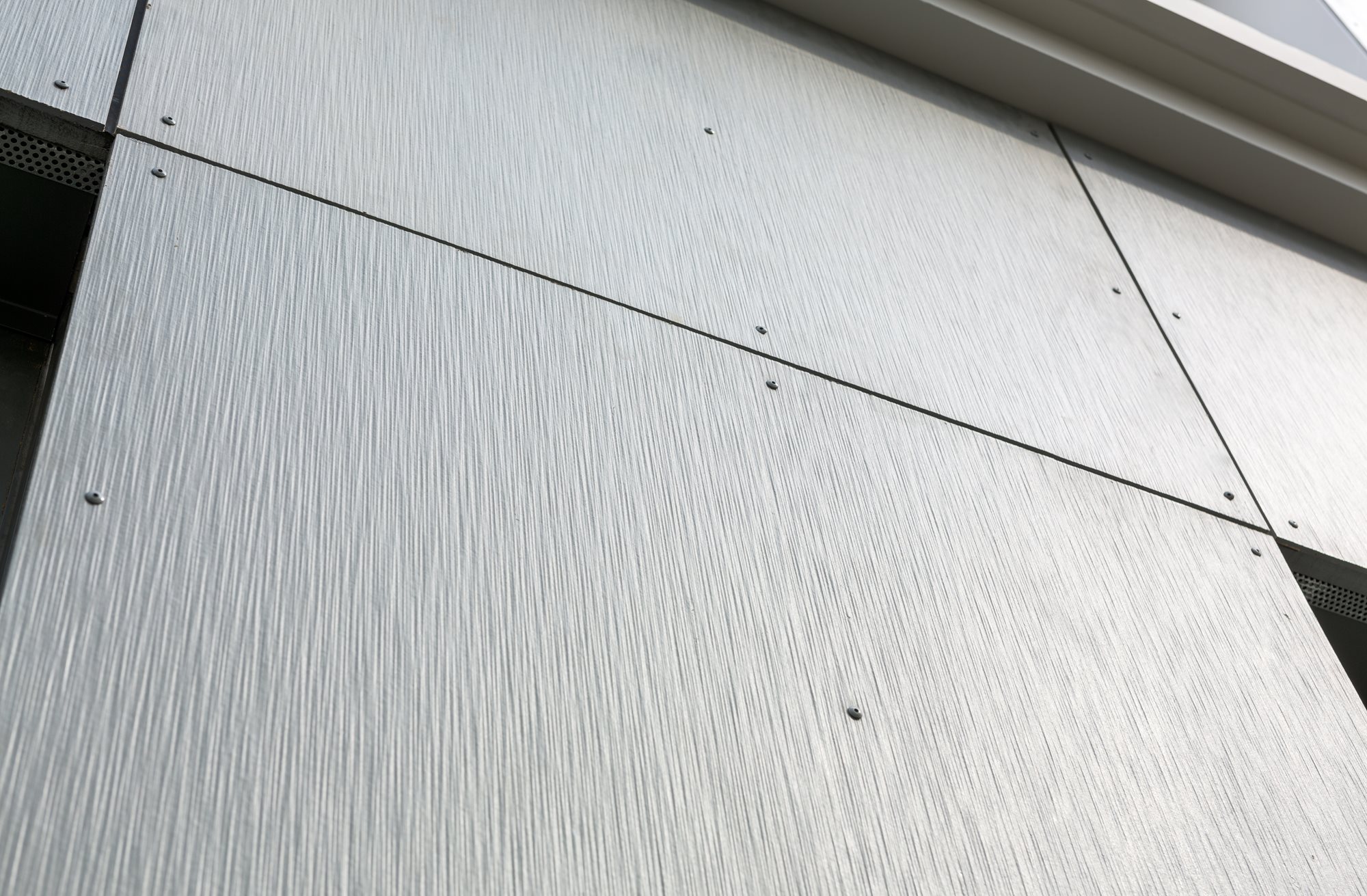

Choose between our two textures ‘Smooth Sand’ or ‘Brushed Concrete’ and several modern colours. Building state-of-the-art designs was never easier. Hardie® Architectural Panel is available in two textures: Smooth Sand and Brushed Concrete. These textures will enable you to build modern, contemporary designs – specifically formulated to give you a long-lasting and low maintenance, consistent finish for years to come with a minimum warranty of 15 years.
EASE OF MIND
If you're looking for a high performance, A2 fire-rated facade cladding at an affordable price – Hardie® Panel is the right choice for your next project. Our cladding product are backed by an A2 fire-rating and an industry leading 15-year warranty. James Hardie™ is the global leader in fibre cement with proven quality for your ease of mind – so you can focus on what’s really important: the project.
UNLIMITED COLOUR FLEXIBILITY
Hardie® Architectural Panel comes in 6 standard colours. To give you a bigger flexibility and make your project unique, it is also available in custom colour and you can chose from almost every colour you want!
STORAGE
ARCHITECTURAL PANEL

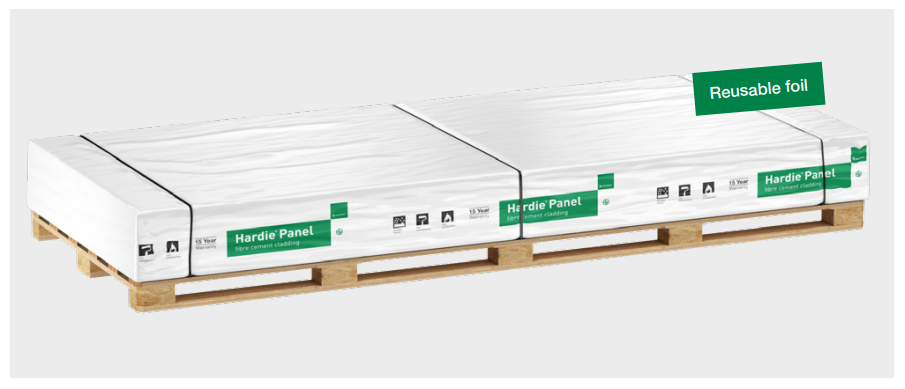

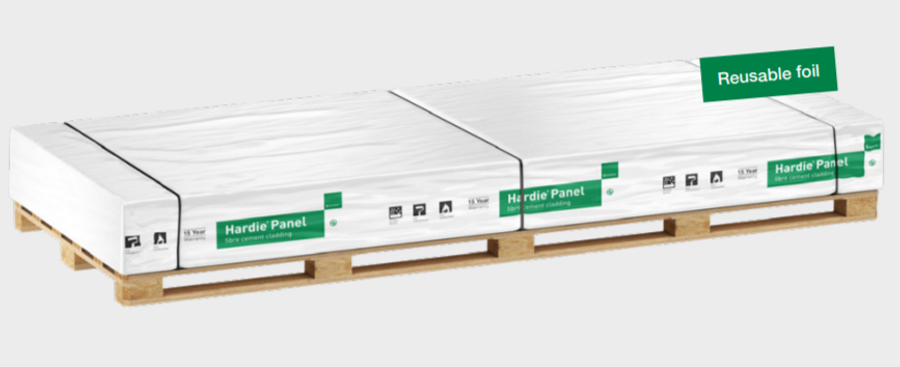

Hardie® Panel and Hardie® Architectural Panel must be stored covered, level, and dry. Pallets must be protected against rising damp and weathering. Damp products must not be installed, or damage may occur. The cover of the pallets can be reused for dry storage.

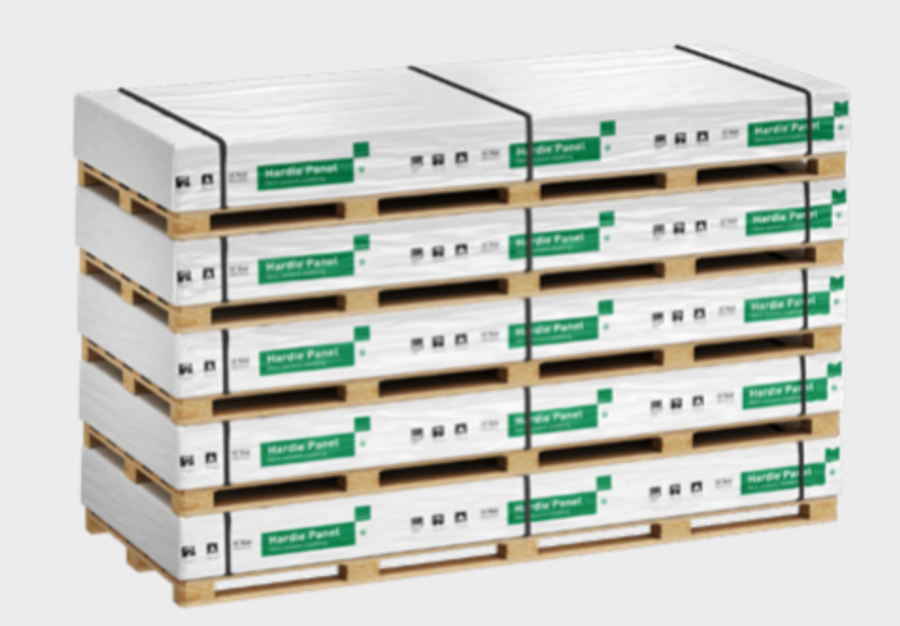

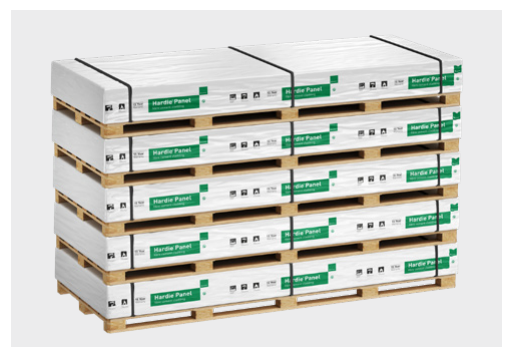

A maximum of 5 pallets (with 25 panels each) may be stacked on top of each other. Make sure that the storage woods of the pallets are vertically on top of each other.

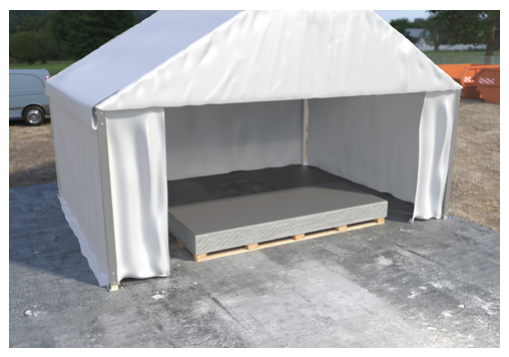

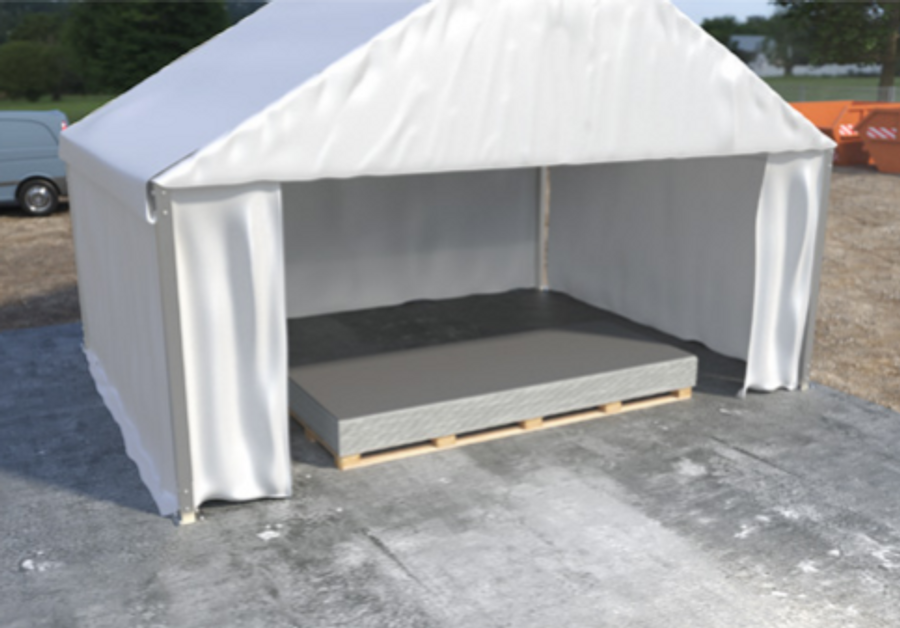

If the panels are not assembled immediately after delivery to the construction site, they should be stored in a protected area.
HANDLING
SURFACE

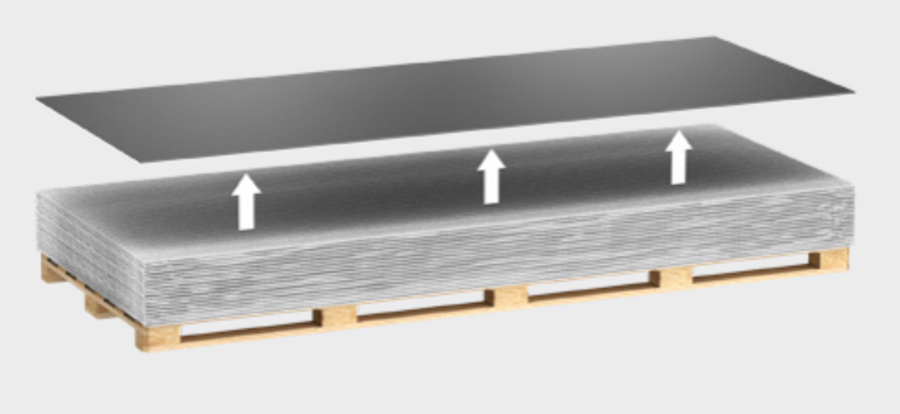

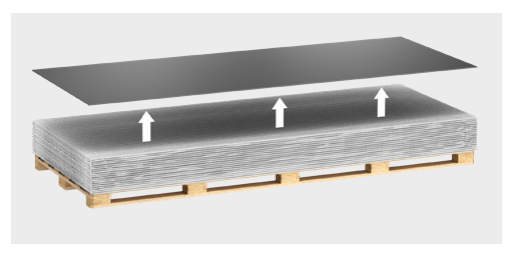

The panels should be lifted straight and not pulled over each other to avoid damage to the surface.

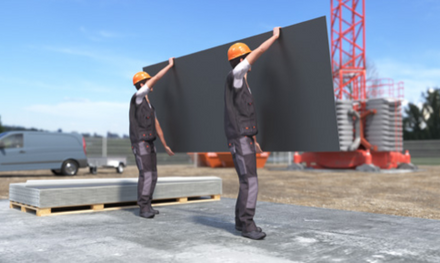

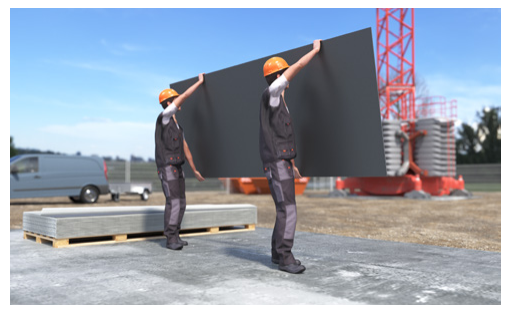

To lift, the panel should be erected over the narrow edge and then carried landscape by two installers.

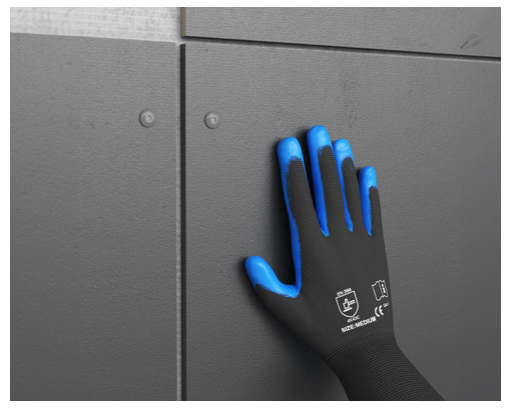

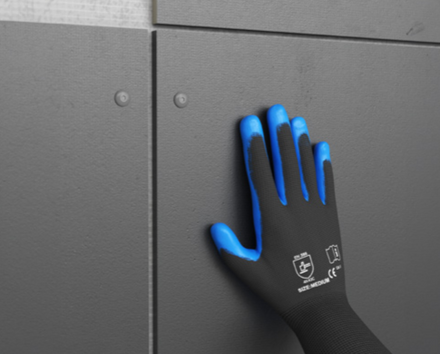

Avoid the contact with grease/oil & silicone, as these can leave permanent stains. For safety reasons the use of clean gloves is advisable while avoiding staining the panels.

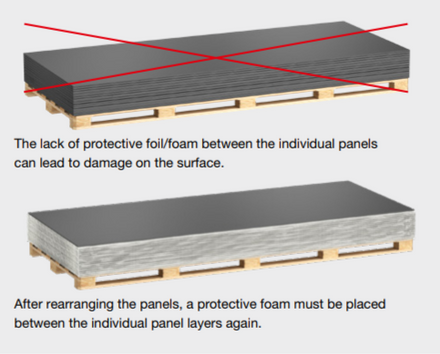

Hardie® Panel & Hardie® Architectural Panel facade panels are covered with a protective foil to protect the surface during shipping.

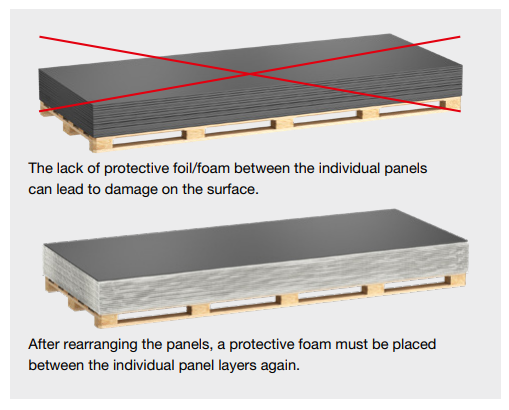

When repositioning the panels, make sure the foil is placed back between the panel layers to prevent surface damage.
Use mechanical lifting equipment if possible. Ensure that the vacuum is set correctly to avoid damage to the surface.

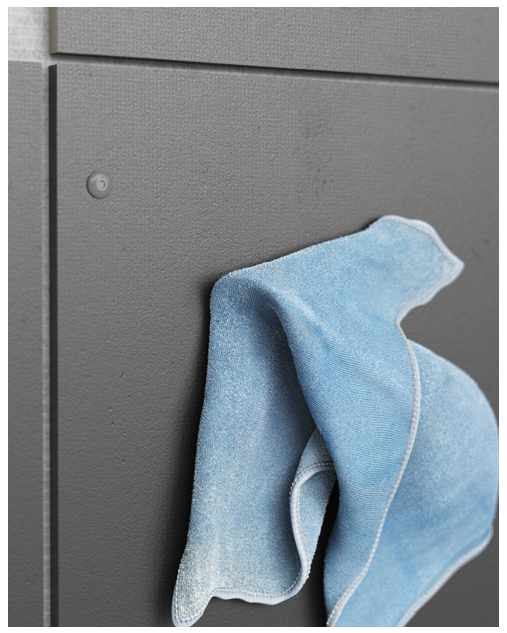

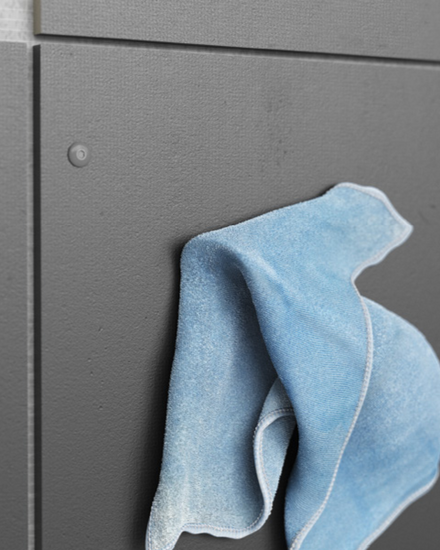

Dust should be removed immediately with a soft cloth such as a microfiber or soft brush.
