PALLET RACKING
The Solution For Warehouse Logistics

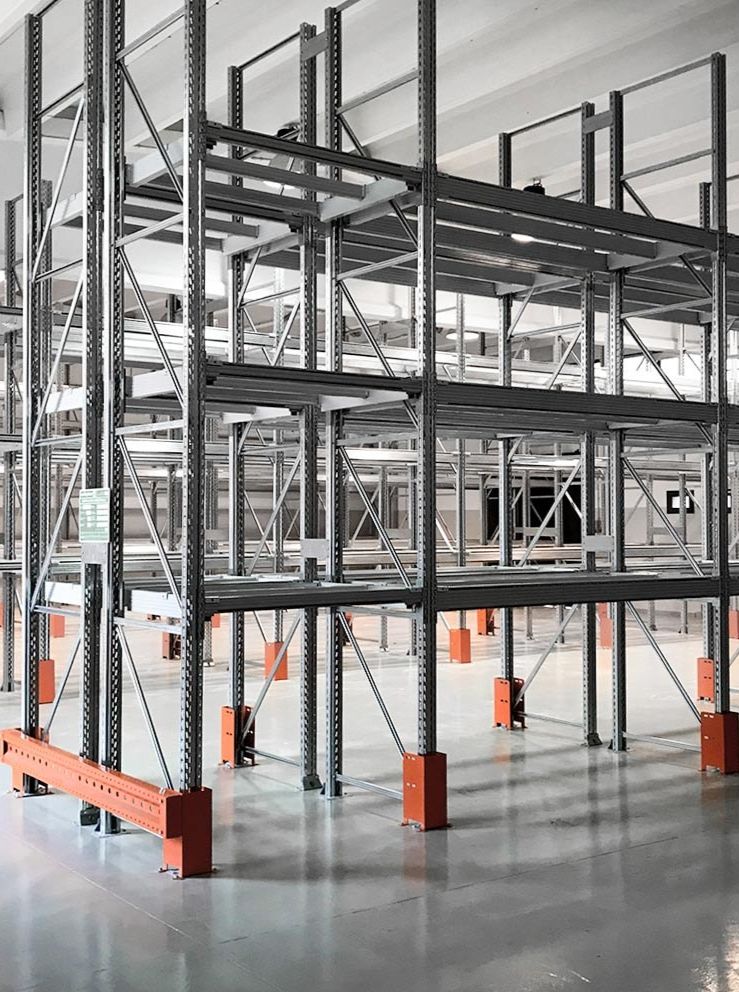

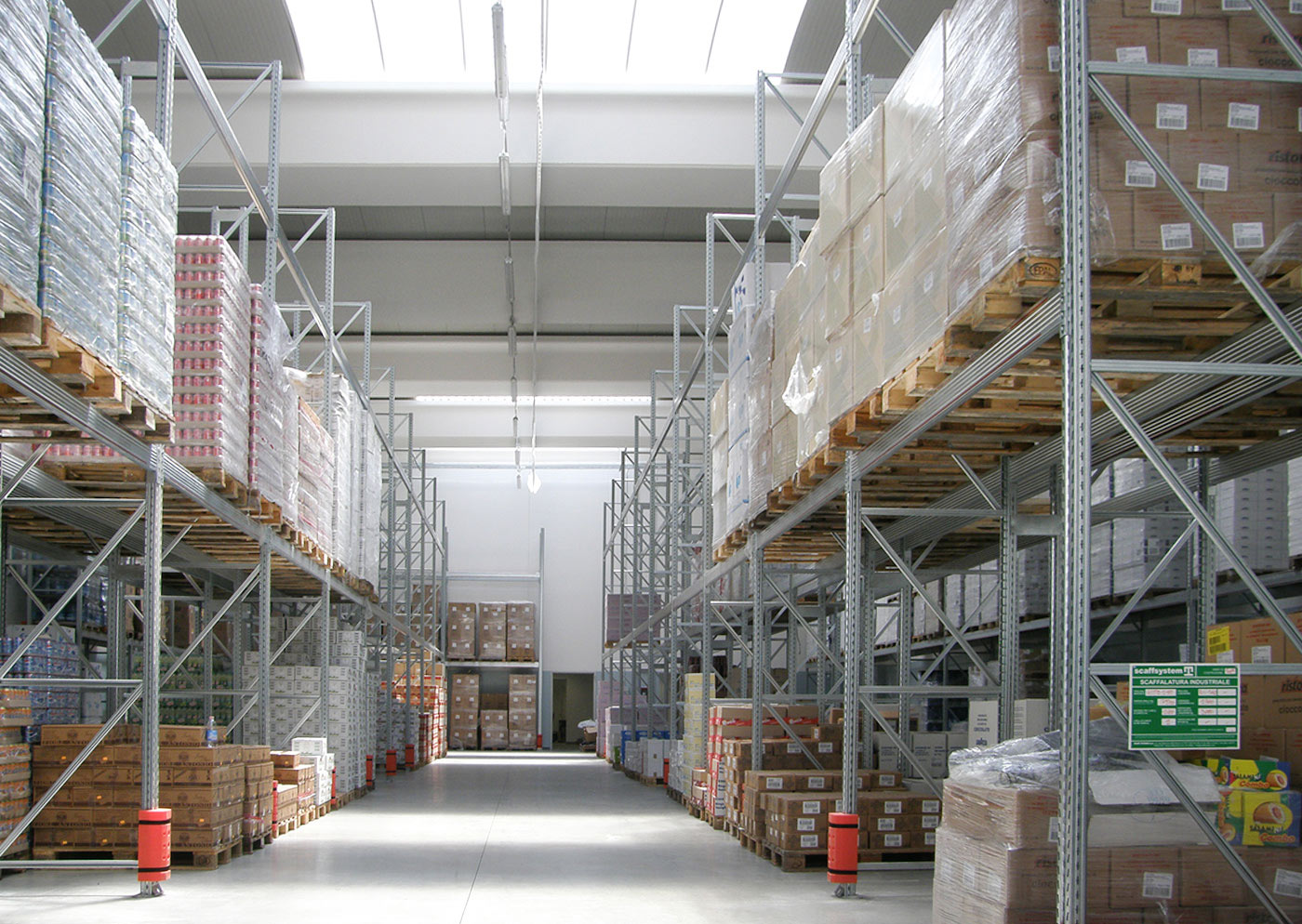

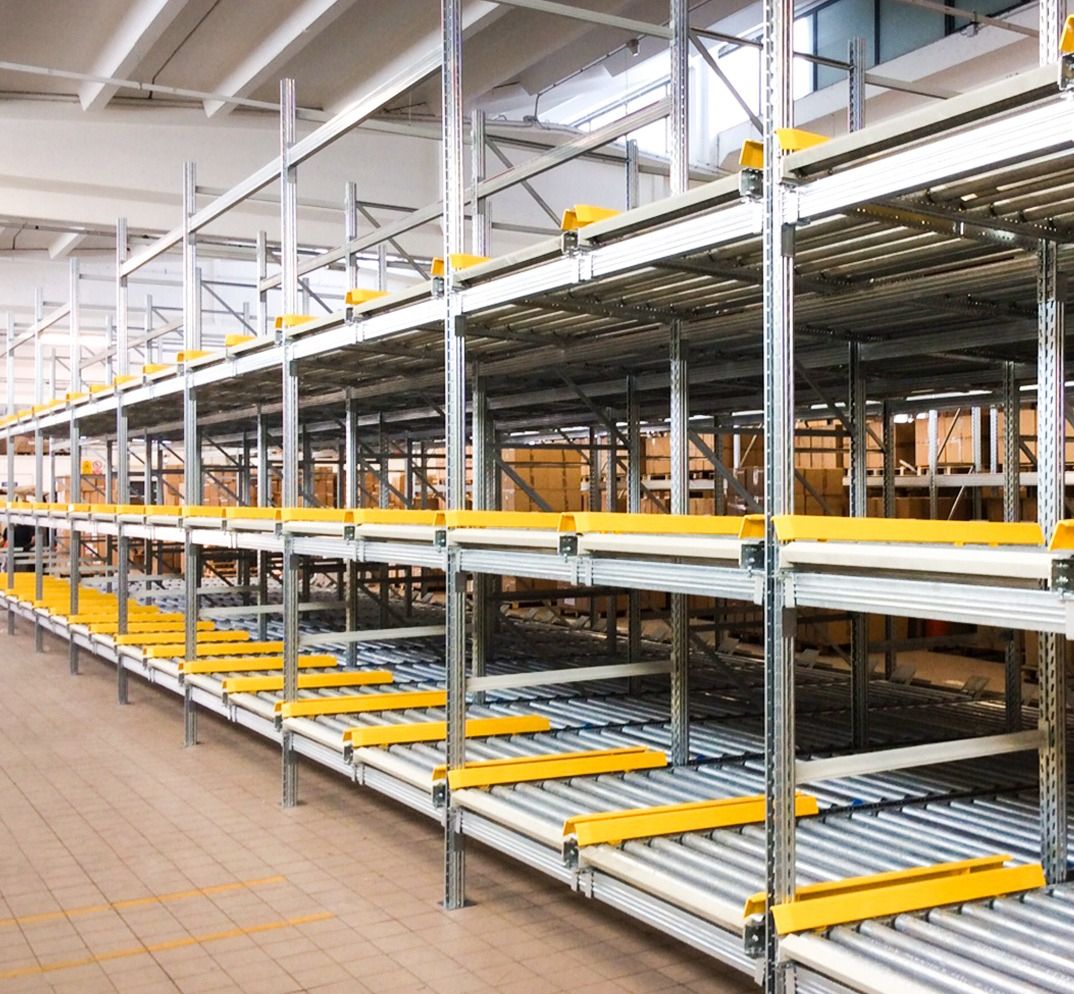

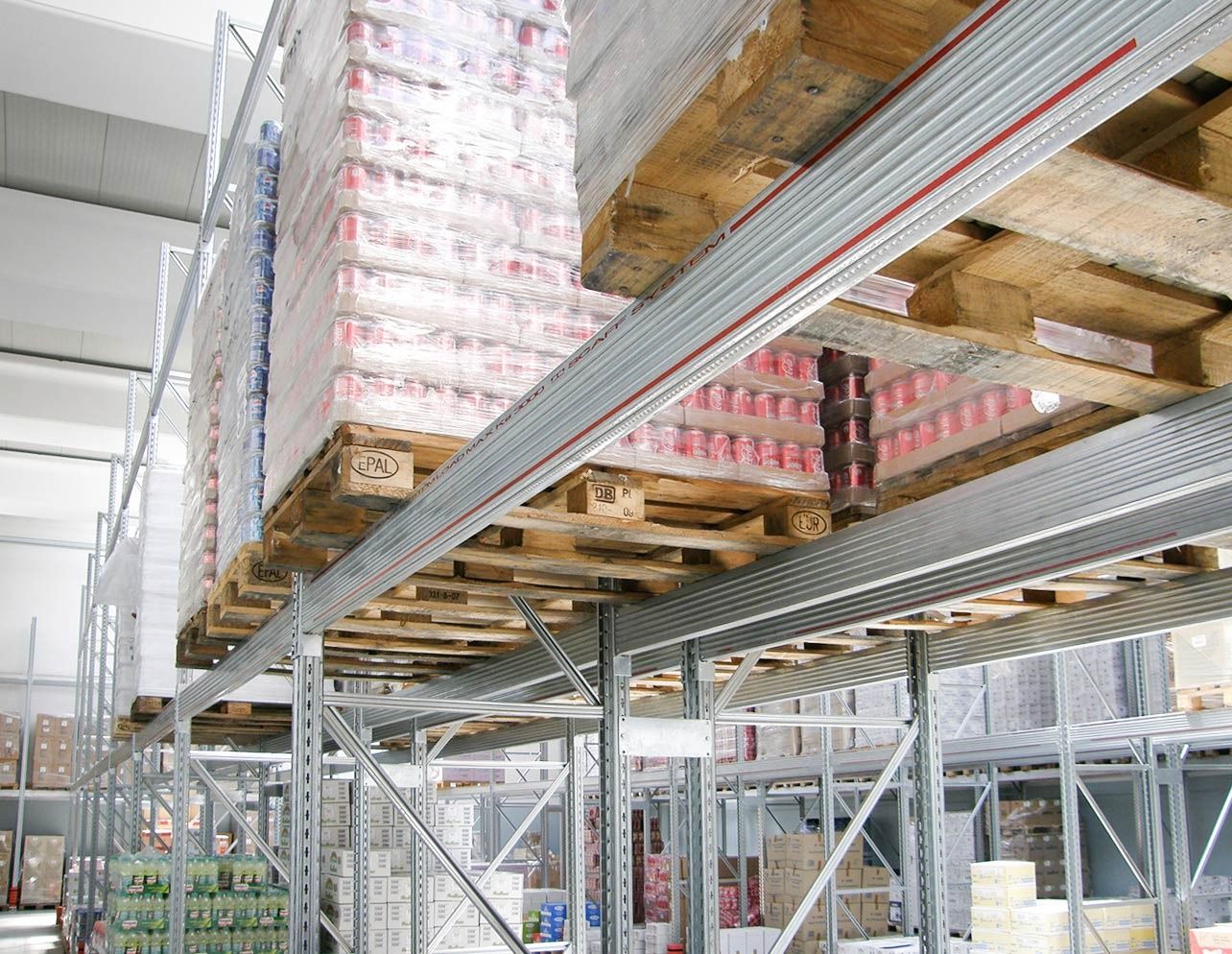

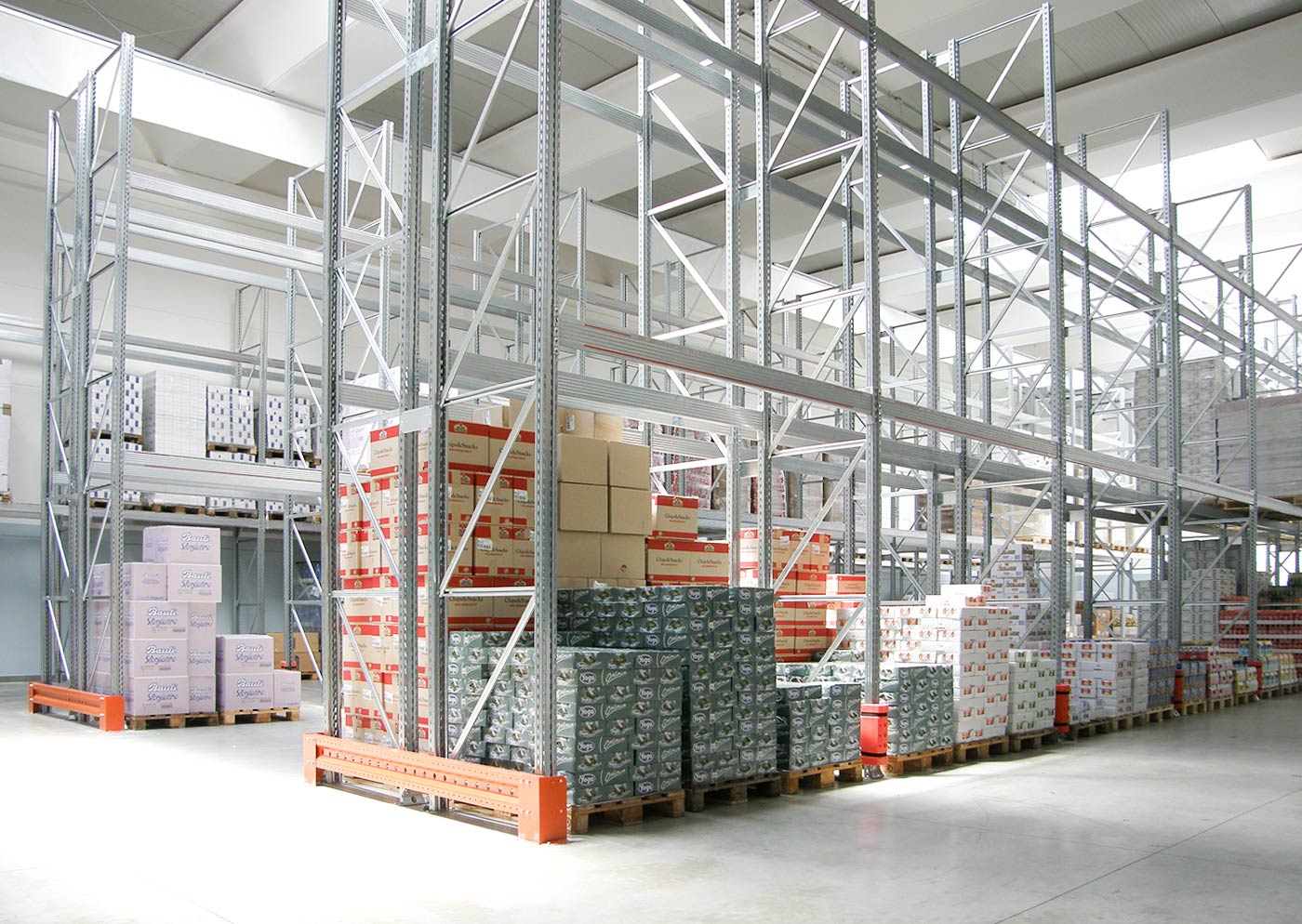

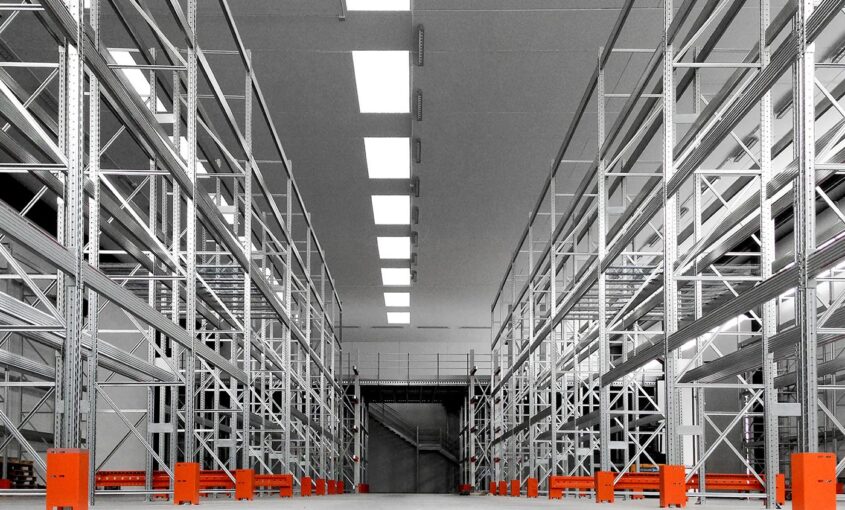

Pallet racking systems represent one of the best solutions for defining and organizing pallet storage on multiple levels.
These industrial metal shelving systems are used for pallet storage and improving warehouse logistics, especially in cases where heavy goods or products stored on pallets are involved.
This type of industrial shelving can be either static or compact. In the former case, there is a need for an aisle to allow passage between the shelves, while in the latter, the metal modules slide on guiderails.
The latter application is suitable for smaller warehouses and pallets with a low turnover rate. Pallet racking structures are modules that ensure simple and smooth access to pallets, increasing capacity and space.
INFORMATION
BRAND
Scaffsystem
PRODUCT TYPE
Steel Racking
CAPACITY
- Capacity of over 25,000 kg
- Beams with a capacity, per pair, of up to 5,000 kg
SYSTEM
Scaffsystem has successfully integrated its traditional steel systems with these pallet racking structures, supporting pallets of different weights and sizes, significantly enhancing safety and operational speed for any type of product.
COLLECTION
Pallet
PRODUCTION
Made in Italy
DETAIL
This method of warehouse organization allows for the highly intuitive and orderly management of goods, optimizing production and reducing downtime.
ELEMENTS
The wide range of available profile sections, thicknesses, and complementary elements allows Scaffsystem to meet any requirement, which is why pallet racking is applicable to many sectors. One of the principal sectors this applies to is the retail industry, particularly the food sector, which needs to address the issue of product sorting within the store’s warehouse.
SHELVING

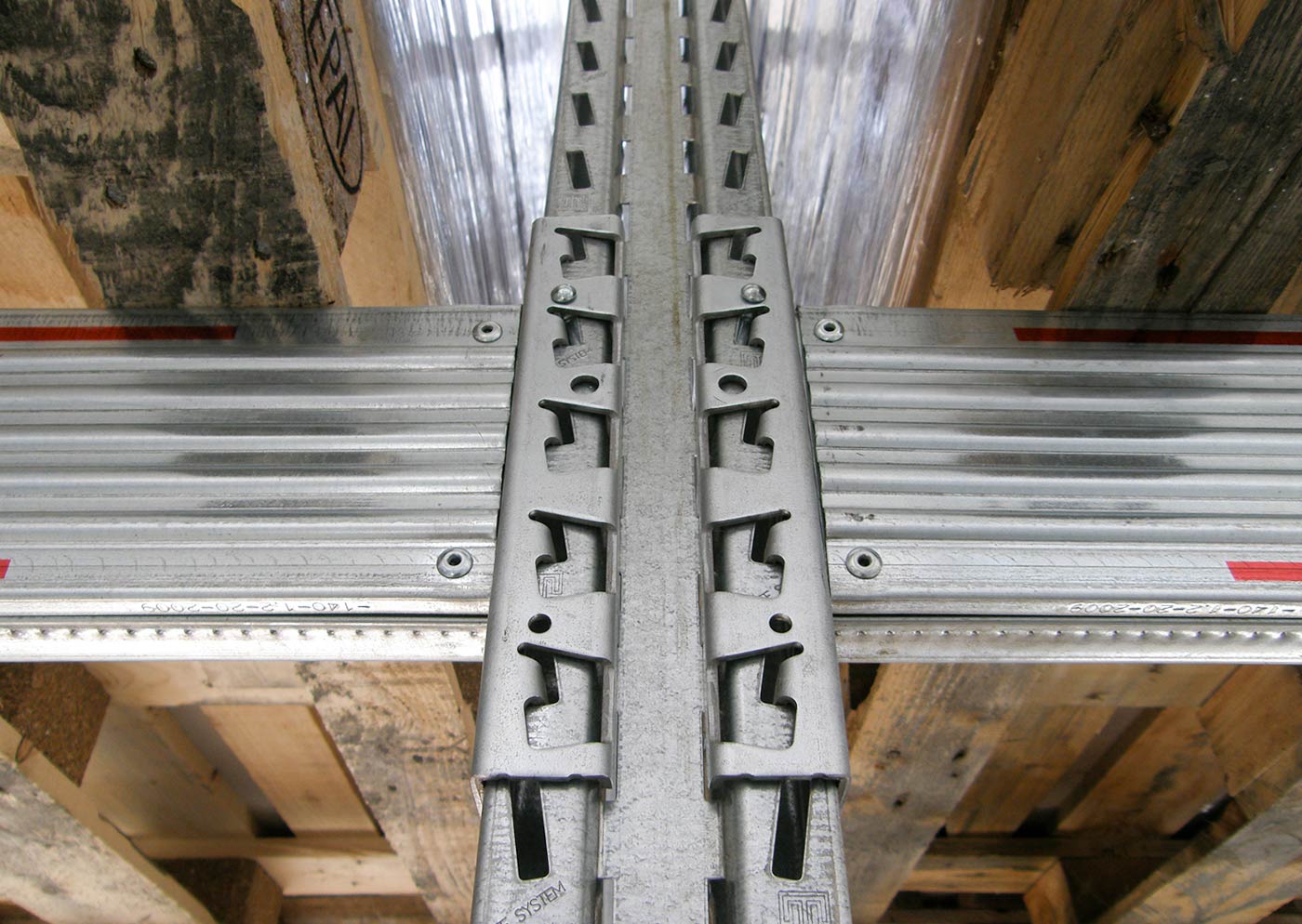

Suitable shelving often requires materials with high mechanical properties due to operating heights and the weight of the materials to be stored. For this reason, we have developed a range of special cold-formed profiles with different sections, thicknesses, and finishes. With this system, we can create steel uprights with a capacity of over 25,000 kg, and beams with a capacity, per pair, of up to 5,000 kg. This makes it a particularly functional system, especially in large-scale distribution.
MATERIAL & SHELVES
Steel
SHELVES LEVEL
Multiple
STRUCTURE
This organizational system as described is comprehensive in every respect. Pallet racking can also have shelves dedicated to manual picking for managing small quantities of goods, giving rise to combined structures.
THE SAFETY OF SCAFFSYSTEM STRUCTURES
For each individual company, Scaffsystem’s construction starts with the measuring of the structures and then is developed based on other elements such as:
- The type of load unit
- The type of installation site
- The size of the available space
- The characteristics of the forklifts
All projects are designed in full compliance with anti-seismic regulations. Our priority is safety, which is why we equip our shelving systems with important protective accessories, for instance:
- Pallet stoppers
- Spacer brackets
- Guardrails for single/double batteries
- Front bumpers for vertical uprights
SURFACE
To enhance workplace safety, the maximum load capacity is printed on each beam, and the metal pallet rack is designed with a non-slip surface for pallet support. Finally, the pallet is connected to a mounting bracket.
For the storage of loose goods or non-standard load units, we equip our shelving systems with a range of solutions that complement the required configuration:
- Galvanized steel shelves are available in different thicknesses and widths, and also available in a perforated version, particularly suitable for fire protection systems.
- Welded wire mesh panels, which provide exceptional strength in the case of concentrated loads.
- Transverse and longitudinal beam break systems, which ensure optimal load distribution and the ability to store pallets of various sizes.
- Creating an intelligent and safe warehouse is our priority, which is why we provide complete systems and profiles tailored to every need. Tell us what you need.
