NOVOJUNTA® 3 PVC - FLOORING

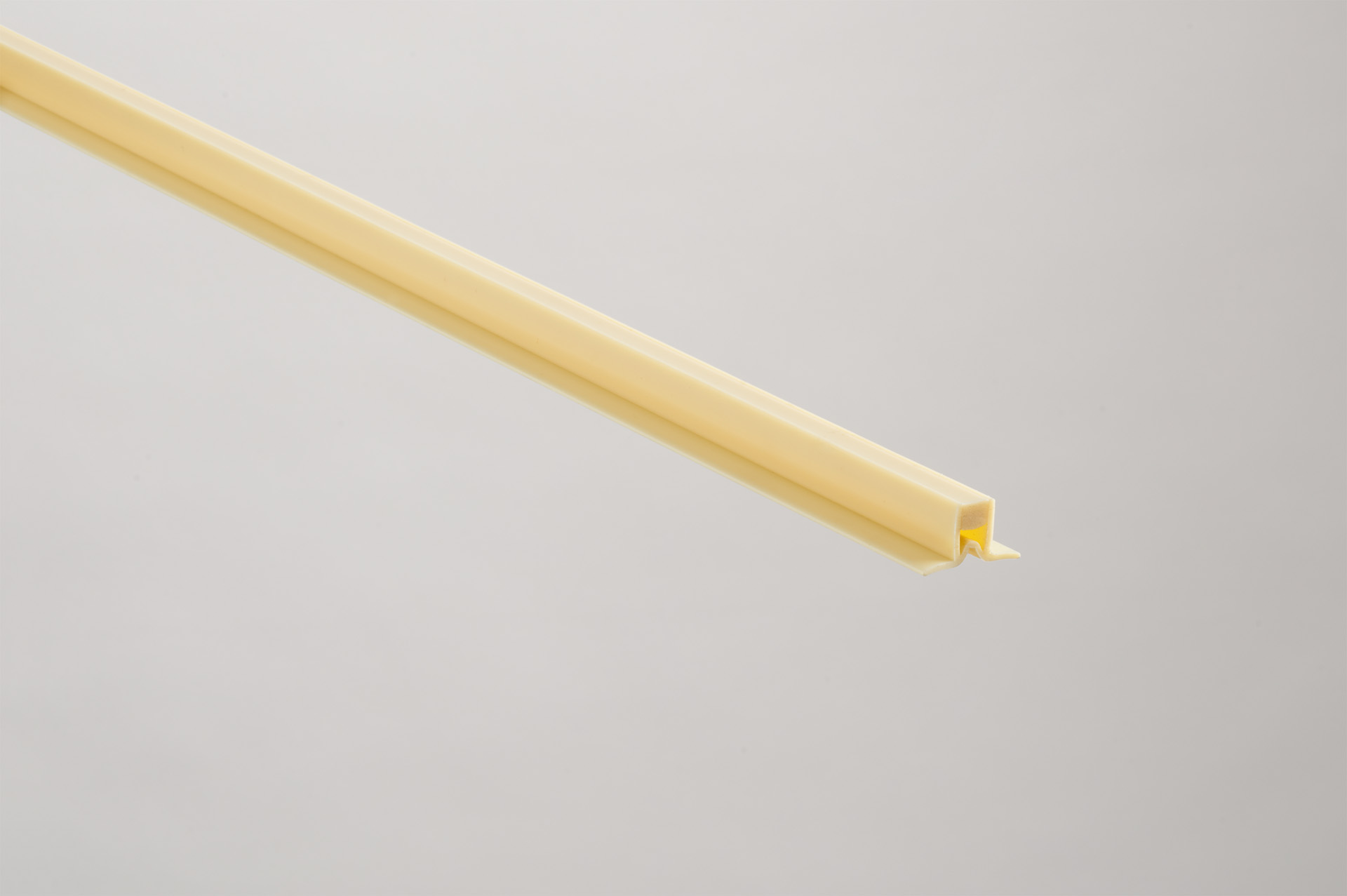

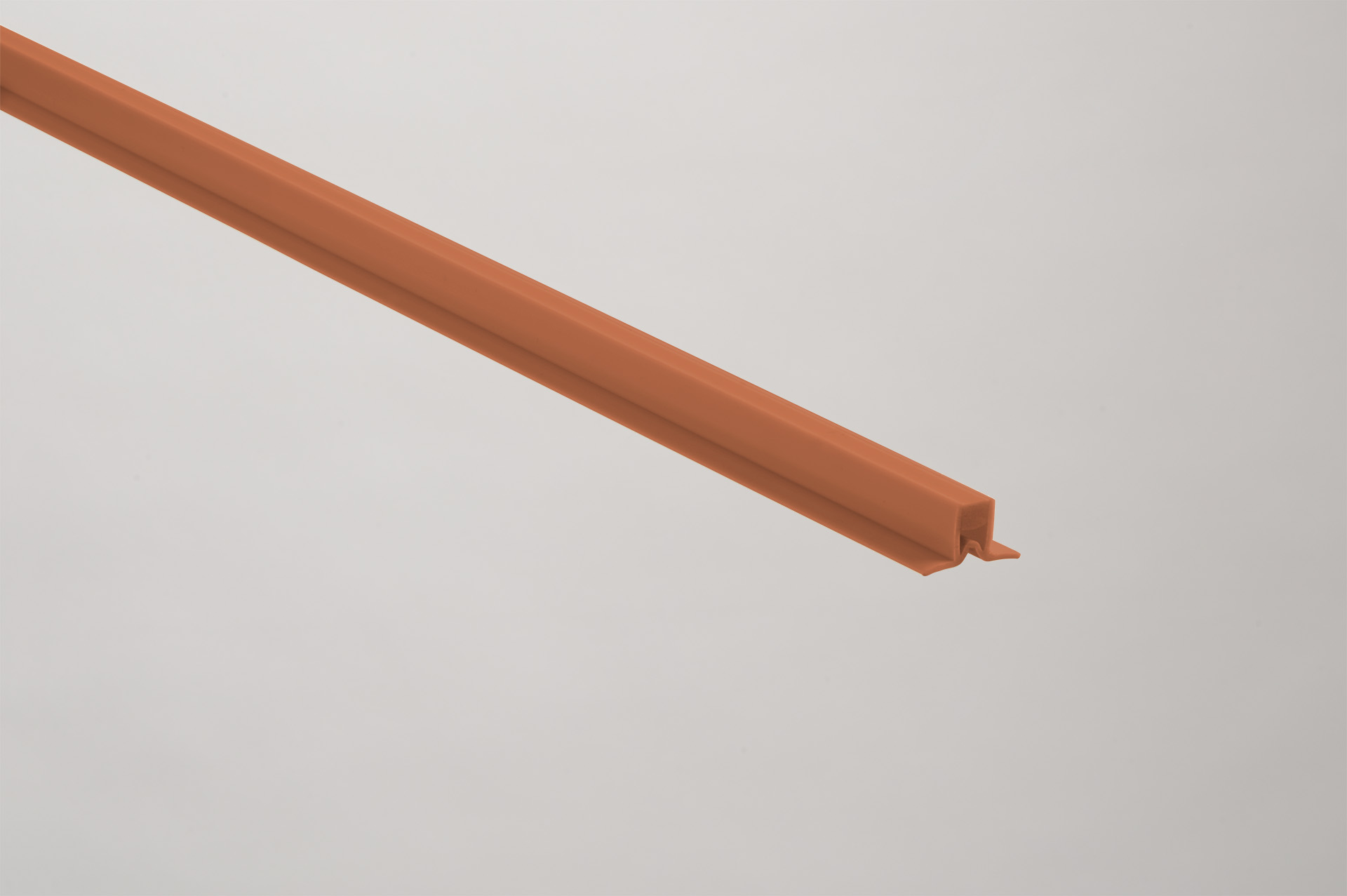

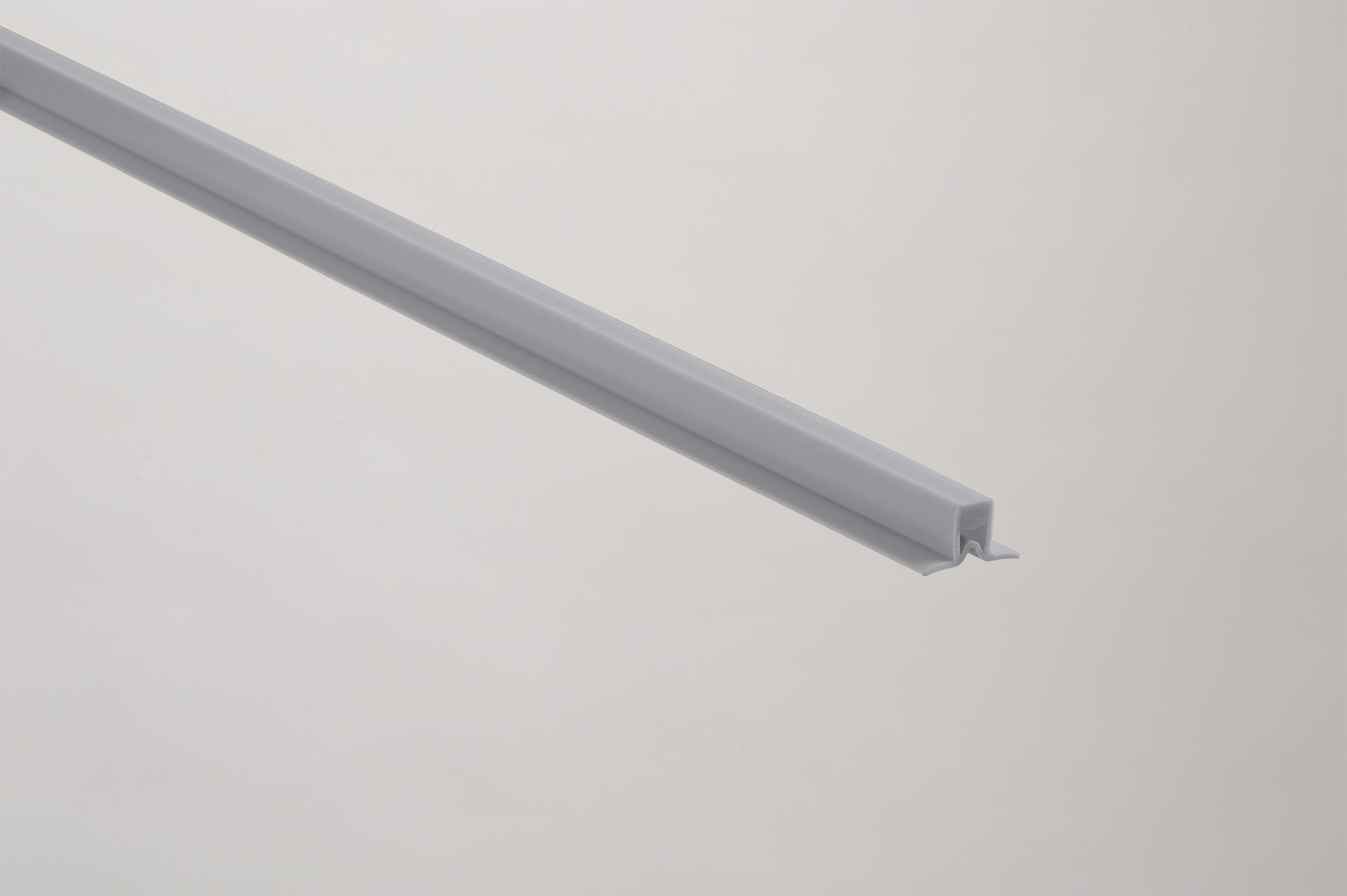

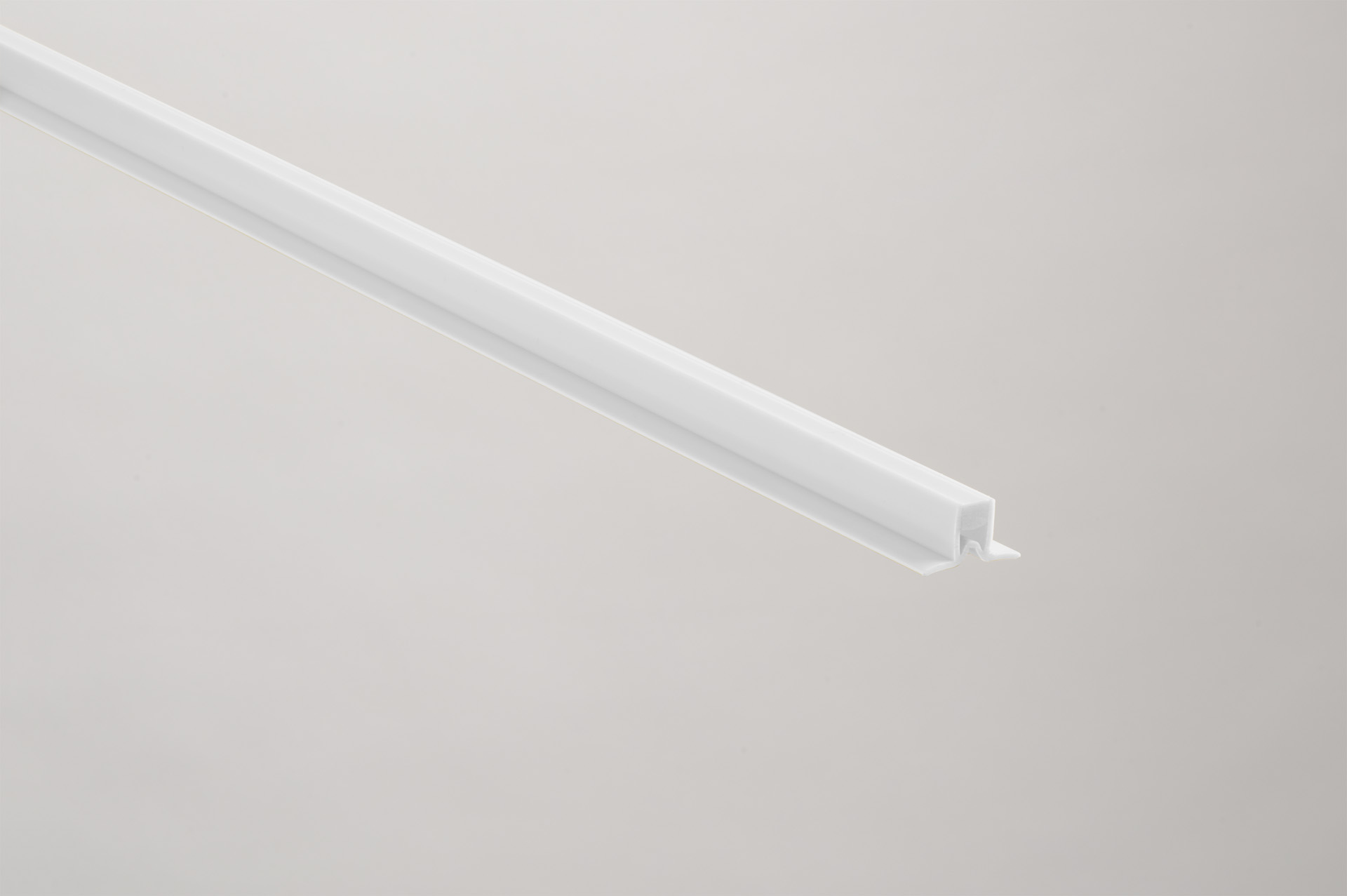

Novojunta® 3 PVC is a solution for expansion joints manufactured in PVC coextrusion.

APPLICATIONS

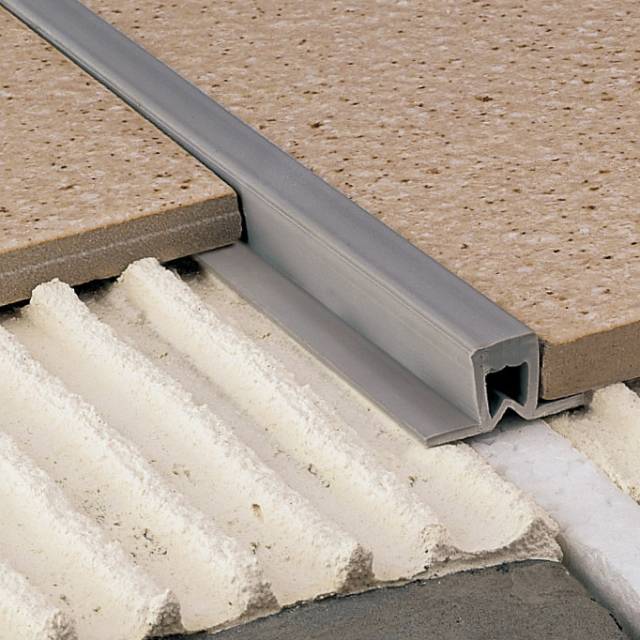

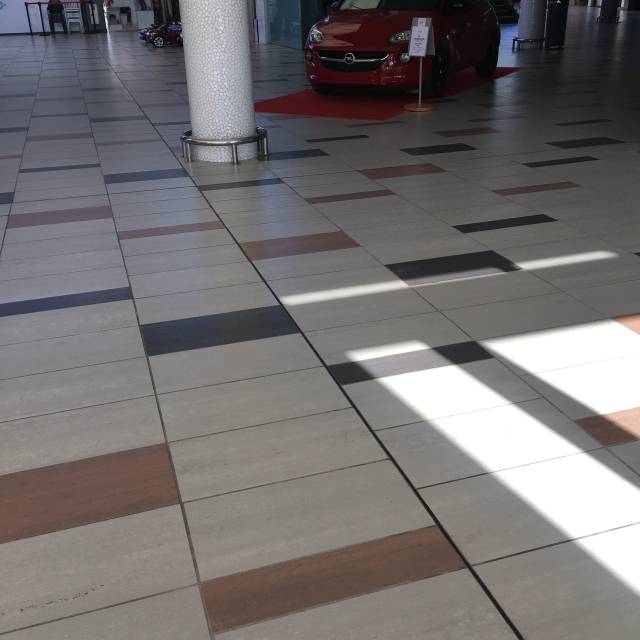

Novojunta® 3 PVC is a solution for expansion joints whose main function is absorbing expansions and contractions in tiled floorings or walls to avoid the apparition of pathologies. It can be installed vertically or horizontally both in floorings as in walls.

CHEMICAL RESISTANCE (AIMPLAS)

Good resistance except to chromic, nitric and sulphuric concentrated acids and organic solvents like acetate or toluene.

M.A.

+ 0.7 mm
-0.7 mm

M.A: Movement allowed (mm.)

RECOMMENDATIONS

For outdoor installations, it is recommended to close areas up to 172 sqare meters (16 m²) maximum, with a distance between joints not over 16,4ft (5 m.)

For indoor installations, with less thermal variations, it is recommended to close areas up to 430 square meters (40 m²) maximum, with a distance between joints not over 26ft (8 m.)

MATERIAL  - PVC

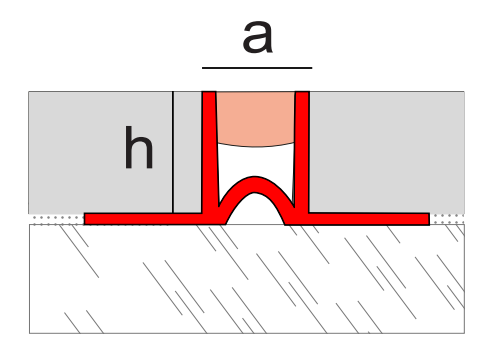

Novojunta® 3 is a profile made by coextrusion of PVC-P (rigid PVC) and PVC-U (flexible PVC). PVC-U allow the profile to absorb expansion and contraction movements from floor and wall tiling where is installed and PVC-P is suitable, due to its rigidity, to the support of the tile.

El PVC (polyvinyl chloride), is a polar amorphous thermoplastic polymer highly resistant to abrasion, corrosion and a wide range of chemical products. Has a good resistance to impact, low water absorption, low electrical conductivity and is dimensionally stable.

CLEANING AND MAINTENANCE

-You can daily clean the profile with water and common detergents. The correct use of bleach, does not affect it. It is resistant to the most common acids except in concentrated status.
-It is not recommended the use of organic solvents such as acetate, acetone or toluene.
-Thanks to its high resistance to many of the chemical products, the PVC products are ideal to be installed in industries with saline environment, oils, etc.
