Knauf Armstrong Dune Max 20mm Ceiling Tiles
ARMSTRONG DUNE MAX 20MM CEILING TILES
ARMSTRONG DUNE MAX 20MM CEILING TILES
Finely sanded mineral ceiling with good humidity resistance and acoustical performance
INFORMATION
BRAND
Knauf Ceiling Solutions
PRODUCT TYPE
Ceiling Tile
PRODUCTION
Made in Italy
COLLECTION
Armstrong
CLEANABILITY
- Wipeable with dry cloth
- Wipeable with damp cloth
CERTIFICATION
Armstrong DUNE MAX 20mm has received a Very Good rating under the Singapore Green Building Product (SGBP) certification in South & North East Asia and holds GRIHA and GreenPro sustainability certifications in India.
SOUND ABSORPTION
0.70 NRC
SOUND ATTENUATION
CAC = 33 dB
DIMENSIONS
- 600 x 600 Tiles
- 600 x 1200 Tiles
- 300 x 1200 Planks
BUILDING TYPES
- Retail
- Education
- Warehouse
- Office Building
- Industrial Building
- Leisure & Hospitality
HUMIDITY RESISTANCE
RH99
RECYCLED CONTENT
Up to 78%
SYSTEM
-Exposed Grid System, Demountable Ceiling (Prelude 24 mm) -Exposed Grid System, Demountable Ceiling (Suprafine 15 mm / Silhouette)
DETAIL

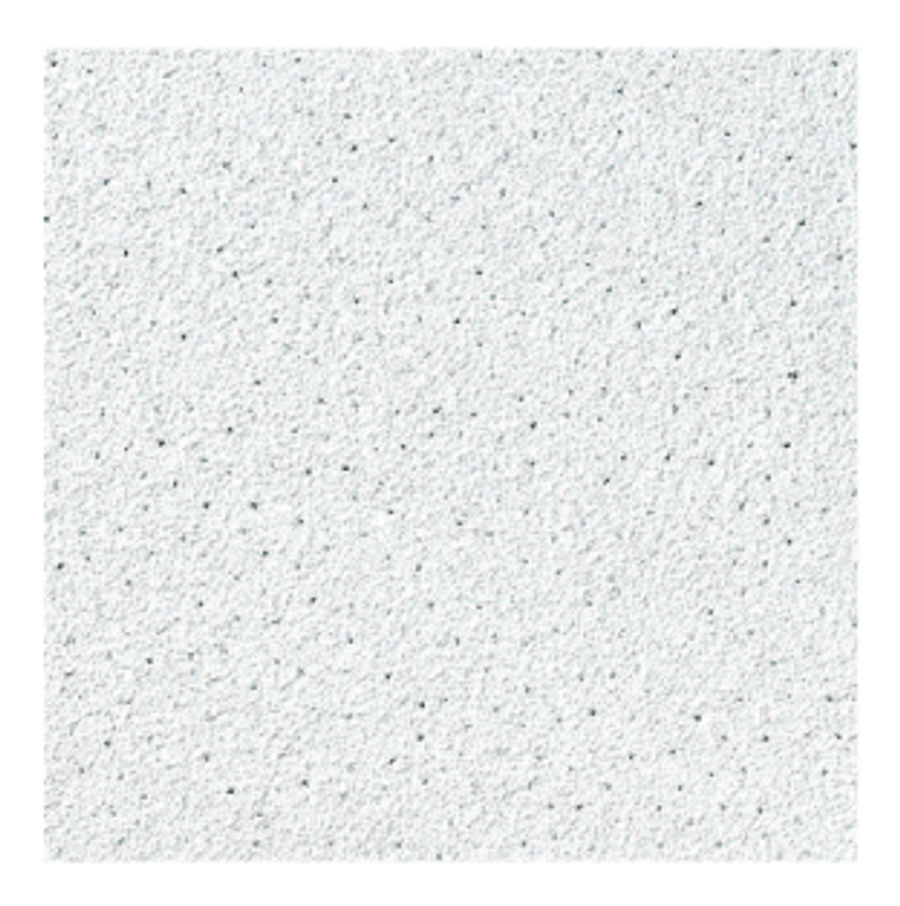

Armstrong DUNE MAX 20mm is a mineral acoustic ceiling tile in 20 mm and available in Board, Tegular 24 and Tegular 15 BE edge details. With its micro-perforated and finely sanded surface, it provides good acoustical performance. It has a good light reflectance and RH99 humidity resistance performance. This makes Armstrong DUNE MAX 20mm a good choice for offices, education, retail, leisure and hospitality.
LIGHT REFLECTANCE
85%
THERMAL CONDUCTIVITY
λ = 0.052 - 0.057 W/mK
VARIANTS & PACKAGING (ARMSTRONG DUNE MAX 20MM)
| MATERIAL NUMBER | EAN / GTIN | EDGE DETAIL | LENGTH | WIDTH | THICKNESS | COLOUR | SOUND ABSORPTION (NRC) | SOUND ATTENUATION CAC (DB) |
|---|---|---|---|---|---|---|---|---|
| 00687262 | - | Tegular 24 | 1.200 mm | 600 mm | 20 mm | White | 0.70 | 33 |
| 00687260 | - | Tegular 24 | 600 mm | 600 mm | 20 mm | White | 0.70 | 33 |
| 00687256 | - | Board | 1.200 mm | 600 mm | 20 mm | White | 0.70 | 33 |
| 00687254 | - | Board | 600 mm | 600 mm | 20 mm | White | 0.70 | 33 |
| 00687253 | - | Tegular 15 BE | 1.200 mm | 300 mm | 20 mm | White | 0.70 | 33 |
| 00687268 | 4044617290047 | Tegular 15 BE | 1.200 mm | 600 mm | 20 mm | White | 0.70 | 33 |
| 00687266 | - | Tegular 15 BE | 600 mm | 600 mm | 20 mm | White | 0.70 | 33 |
