Lindner Loop Prime
LOOP PRIME
LOOP PRIME
Refurbished Raised Floor
The raised floor system LOOP prime is the ideal product for nearly all applications with its excellent technical and building-physical characteristics.
INFORMATION
BRAND
Hotspring
PRODUCT TYPE
Floor Panels
PLATE THICKNESS
32 - 39 mm
STANDARD PEDESTAL HEIGHT
20 - 2.000 mm
STATICS
- Seismic safety : Possible
- Load and Deflection Class : DIN EN 12825 1 : 1A - 2A
- Point Load (Breaking Load): Din En 12825 P Breaking Load : 2 kN (4 kN) - 3 kN (6 kN)
COLLECTION
Loop Prime
CIRCULAR ECONOMY
Cradle To Cradle Possible
EPD (ENVIRONMENTAL PRODUCT DECLARATION)
EPD according to EN 15804 / ISO 14025 possible
DOWNLOAD
↓ Data Sheet
ISO 717-2(DIN EN ISO 717 1 2)
36 (∆L w)
EVIDENCE
- CO2 Savings : 70.10 %
- CO2 Balance : 7.20 kg/m²
- Water Saving : 92.70 %
FEATURE
- Non-combustible
- Water Saving : 92.7 %
- First-class Walking Comfort
- Very High Load-bearing Capacity
- Very Large Selection Of Surface Coverings
- Improvement Of The Co2 Balance To 7.2 Kg/m²
- Easy Removal And Replacement Of Individual Panels
EN 12825
Class 2
WEIGHT
52 - 60 kg/m²
FIRE BEHAVIOR(DIN EN 13501-1)
A2 - s1,d0
PRODUCT SELF-DECLARATION
Self-declaration According To Iso 14021 Possible
DETAIL
The raised floor panels being refurbished on five sides consist of fibre-reinforced calcium sulphate and a surrounding edge trim protection against damage and humidity. LOOP prime is configurable like a new raised floor panel. By machining used panels, it offers a carbon saving of 70,1 % in combination with a take-back guarantee compared with the equivalent new product.
PEDESTAL GRID
595 mm x 595 mm
EARTH RESISTANCE
≥ 1 x 106 Ω
ADDITIONAL EQUIPMENT
EXPANSION JOINTS PROFILES
In order to take up horizontal and vertical movements in a structural and inconspicuous manner, expansion joint profiles are used in the area of the raised access floor, adapted to the application.

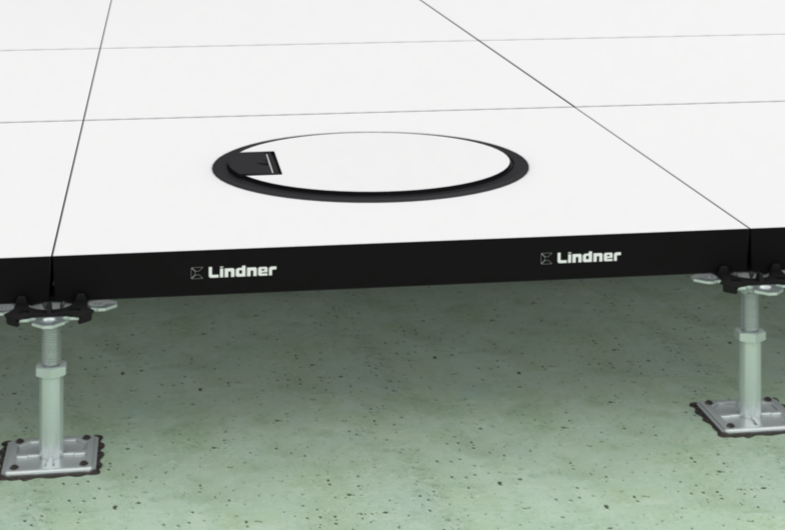

ELECTRICAL OUTLETS
As all electrical installations are laid under the raised access floor, electrical connections can be placed exactly where you want them by the insallation of electrical outlets.

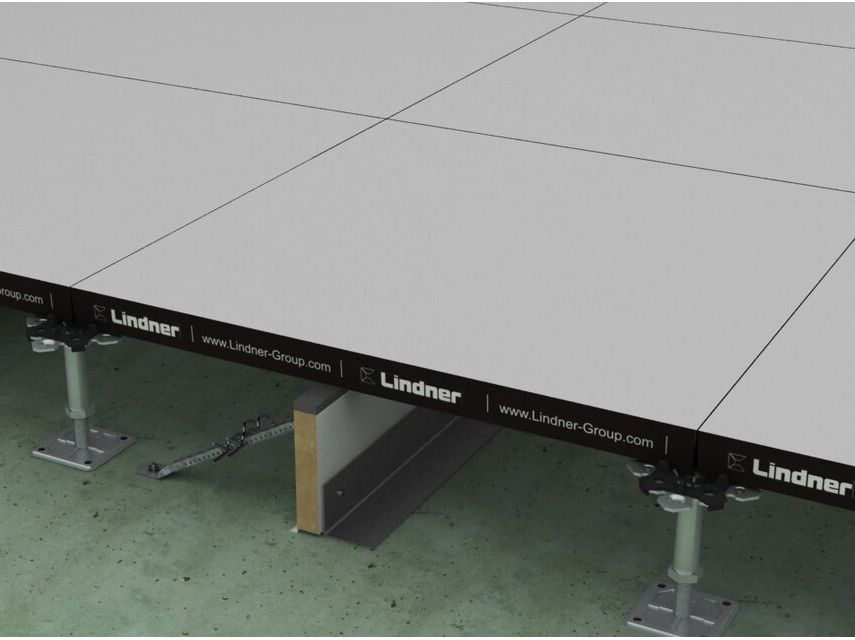

CAVITY BARRIERS
We supply three different types of partitions for floor systems to meet the different requirements: - ventilation partitions made of coated wood-based material - fire protection partitions made of aerated concrete (≥ 115 mm) - sound insulation partitions made of aerated concrete (≥ 100 mm)
BRIDGING PROFILES
Due to structural reasons bridging is required where pedestals cannot be installed. In such cases, special bridging profiles are available which are easy to install and improve at the same time dynamic and static load-bearing capacities.
AIR VENTILATION OUTLETS
Air ventilation outlets allow the room to be air-conditioned and ventilated without creating draughts. Various systems are available: - open system Ventilation takes place directly in the cavity for installations, which is designed as a pressure floor, through the corresponding air ventilation outlets or rather through the hexagonal ventilation outlets into the room. - closed system In a closed system, the air is fed through a pipe system or through cavity barriers with fixed connections to the air ventilation outlets.
REINFORCEMENT PROFILES
Standard Lindner floor systems already exhibit high load-bearing capacities. Should these still not be sufficient, the system can be upgraded by reinforcement profiles. Various options are possible, from the lightest stringer which increases lateral rigidity through to a C-profile.
FACINGS
Staircases, platforms, etc. need to be finished with a front cladding (facing). Where features such as free-standing borders are required, the top edges of the facing will be protected with a stair edging profile.
Angles screwed to the subfloor and bracing installed in the upper area of the facing ensure a stable structure.
