Alumil Smartia M450 Sliding And Lift & Slide Insulated System
SMARTIA M450 SLIDING AND LIFT & SLIDE INSULATED SYSTEM
SMARTIA M450 SLIDING AND LIFT & SLIDE INSULATED SYSTEM
SMARTIA M450 represents the next generation of advanced systems for minimal lift & slide and regular sliding doors.
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Windows & Doors
PERFORMANCE
- Water Tightness : 9Α
- Air Permeability : 4
- Sound Reduction : 40 Db
- Wind Load Resistance : C3
WINDOW TYPE
Lift & Sliding, Sliding
SASH WEIGHT
Up To 200 Kg Lift & Slide, Up To 180 Kg Sliding
PRODUCTION
Made in India
THERMAL INSULATION
Yes
FRAME DEPTH
113 mm
SASH DEPTH
45 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
25 mm
EXTERIOR SHAPE
Flat
GLAZING TYPE
Double - Triple
MAXIMUM GLAZING THICKNESS
36 mm
TYPES OF TYPOLOGY
Horizontal sliding sashes, Meeting stile, Combinations with fly-screen, Pocket typologies.
DETAIL
It meets the demanding requirements of contemporary residences for high thermal insulation and modern aesthetics.
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
124,5 mm lift & slide, 114 mm sliding
SEALING METHOD
Perimetrical with tri-fin brushes and/or EPDM gaskets
MECHANISM
Lift & slide mechanism Sliding mechanism
MINIMUM THRESHOLD HEIGHT
45 mm
UF
From 1,3 W/m²k
SECTIONS
ADVANTAGES
- Wide variety of typologies.
- Exceptional quality with certified performance.
- Great ease of use and high functionality.
- High energy savings thanks to the exceptional energy efficiency.
- Easy to clean frame, with invisible water evacuation and less visible depth.
- Minimal and innovative design with only 25 mm of visible aluminium face width at the interlocking profile, both for lift & slide and sliding typologies.

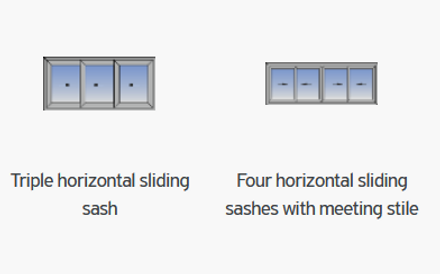

TYPOLOGIES
TYPOLOGIES
