Play makes plenty of atmosphere at home. Children love this super radiator.
The casing with rounded corners meets the strictest safety standards. He also finds his way to kindergartens or hospitals, and makes everybody happy.
INFORMATION
FEATURES
-Integrated valve with thermostat in the front panel. -Standard pencil-proof grille, to prevent small objects or waste falling into the casing.
-Completely pre-assembled and mounted casing, consisting of painted MDF panels with aluminium spacer rings -Low-H2O technology with super conductive and ultra fast heat exchanger for low energy consumption and maximum heat emission
PRODUCTION
Made in Belgium
GUARANTEE
30 Year
TECHNICAL DRAWING
HEAT EXCHANGER
Low-H2O heat exchanger with wall brackets and fixing kit, air vent 1/8" and drain plug 1/2"
MANUFACTURER
Jaga
GRILLE
Pencil-proof grille
OPTIONS
-Touch-sensitive base grille
-Brush for easy cleaning of the underside of the heat exchanger.
HOW TO INSTALL
The building services engineer chooses the heating elements considering the following conditions:
-A heat output calculation according to the standard. -Tables of heat outputs and dimensions according to EN 442. -The normal fitting position for the heating elements is under the window, and to achieve the most aesthetically pleasing appearance the casing should not be wider than the total width of the window. The height of the casing has to be a function of the heat loss calculations; aesthetically narrower types are preferable.
MATERIAL
Ccasing in MDF with polyurethane paint and anodized aluminium spacer rings easy to remove when required
PRESSURE TEST
20 bar
WORKING PRESSURE
10 bar
BRACKETS
Brackets: sendzimir, galvanized steel plate thickness 1 mm, dark grey lacquered, with a maximum intermediate distance of 86 cm
TEMPERATURE
Safe and low contact temperature
LACQUERED
Electrostatically lacquered with anthracite grey epoxy-polyester RAL 7024, gloss degree 70%.
CONSTRUCTION
Premounted and integrated control in the front panel in the top right hand corner, included valve and sleeve couplings for connection to the wall

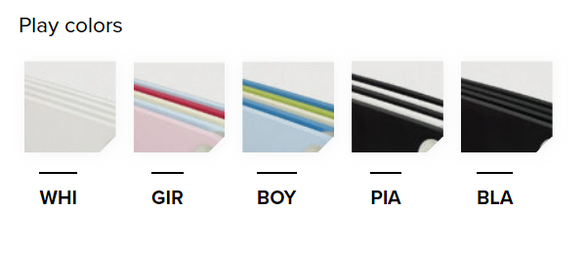

STANDARD COLOURS
