Refurbished Raised Floor Panels Made of Calcium Sulphate
Goodbye resource scarcity and pollution, hello circular economy! With our reclaimed raised access floor panels, we are making an important contribution to change in the construction industry: Our reclaimed raised floor systems are managed in a closed material cycle – thanks to reuse and recycling.
INFORMATION
BRAND
Hotspring
PRODUCT TYPE
Floor Panels
PLATE THICKNESS
30 - 39 mm
STANDARD PEDESTAL HEIGHT
20 - 2.000 mm
STATICS
- Seismic Safety : Possible
- Load and Deflection Class : DIN EN 12825 1(1A - 2A)
- Point Load (Breaking Load) : Din En 12825 P Breaking Load (2 kN (4 kN) - 3 kN (6 kN))
USE
Outdoor
COLLECTION
Loop
EVIDENCE
- CO2 Savings : 72.20 %
- CO2 Balance : 6.70 kg/m²
FIRE BEHAVIOR(DIN EN 13501-1)
A1/A2 - s1,d0
ISO 717-2(DIN EN ISO 717 1 2)
36 (∆L w)
DOWNLOADS
↓ Data Sheet
↓ Brochures
↓ User Guidelines
FEATURE
- Non-combustible
- High Loading Capacity
- First-class Walking Comfort
- Large Selection Of Surface Coverings
- Easy Removal And Replacement Of Individual Plates
- 75 % Improved Co2 Balance Compared To A New Product
DIMENSIONAL DEVIATION
Class 2
WEIGHT
47 - 65 kg/m²
WEIGHTED NORMALISED FLANKING LEVEL DIFFERENCE
D n,f,w (63)
DESIGNATION BY BUILDING AUTHORITIES
Non-combustible
ENERGY EFFICIENCY
The refurbished raised floor panels consist of a used gypsum fibre board and can optionally be provided with a surrounding edge protection. The recycled gypsum fibre boards are in no way inferior to the new ones – on the contrary: the refurbished boards have the same physical properties and boast a CO2 balance that is up to 75% better. Thanks to the excellent technical and physical properties, the floor system is suitable for almost all applications!
PEDESTAL GRID
599 mm x 599 mm
SURFACES
Surfacing Suitability : Loose-laid Tiles
ADDITIONAL EQUIPMENT
EXPANSION JOINTS PROFILES
In order to take up horizontal and vertical movements in a structural and inconspicuous manner, expansion joint profiles are used in the area of the raised access floor, adapted to the application.
ELECTRICAL OUTLETS
As all electrical installations are laid under the raised access floor, electrical connections can be placed exactly where you want them by the insallation of electrical outlets.

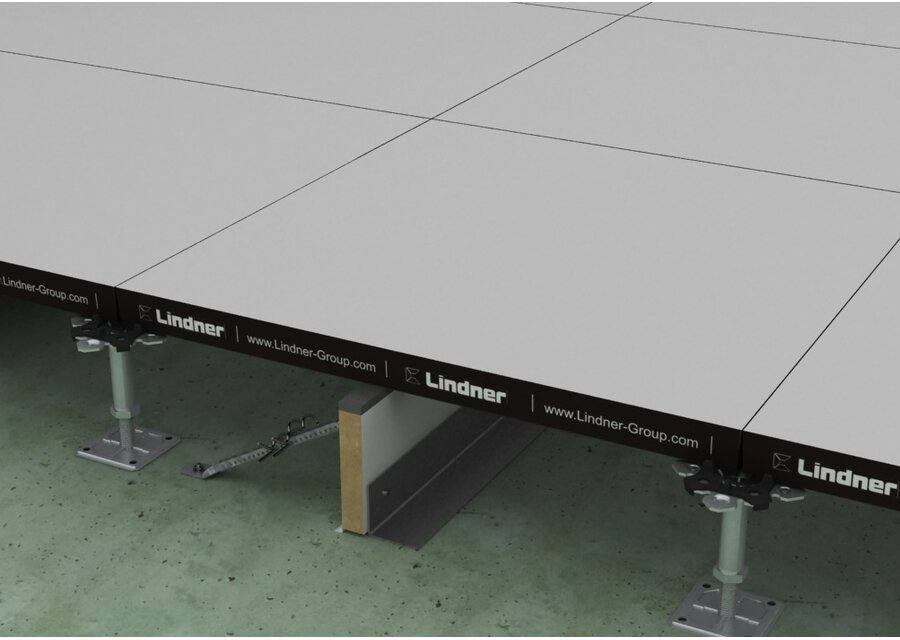

CAVITY BARRIERS
We supply three different types of partitions for floor systems to meet the different requirements: - ventilation partitions made of coated wood-based material - fire protection partitions made of aerated concrete (≥ 115 mm) - sound insulation partitions made of aerated concrete (≥ 100 mm)
BRIDGING PROFILES
Due to structural reasons bridging is required where pedestals cannot be installed. In such cases, special bridging profiles are available which are easy to install and improve at the same time dynamic and static load-bearing capacities.
AIR VENTILATION OUTLETS
Air ventilation outlets allow the room to be air-conditioned and ventilated without creating draughts. Various systems are available: - open system Ventilation takes place directly in the cavity for installations, which is designed as a pressure floor, through the corresponding air ventilation outlets or rather through the hexagonal ventilation outlets into the room. - closed system In a closed system, the air is fed through a pipe system or through cavity barriers with fixed connections to the air ventilation outlets.
REINFORCEMENT PROFILES
Standard Lindner floor systems already exhibit high load-bearing capacities. Should these still not be sufficient, the system can be upgraded by reinforcement profiles. Various options are possible, from the lightest stringer which increases lateral rigidity through to a C-profile.
FACINGS
Staircases, platforms, etc. need to be finished with a front cladding (facing). Where features such as free-standing borders are required, the top edges of the facing will be protected with a stair edging profile.
Angles screwed to the subfloor and bracing installed in the upper area of the facing ensure a stable structure.
