Alumil Smartia M4000 Polycarbonate Sheets
SMARTIA M4000 POLYCARBONATE SHEETS
SMARTIA M4000 POLYCARBONATE SHEETS

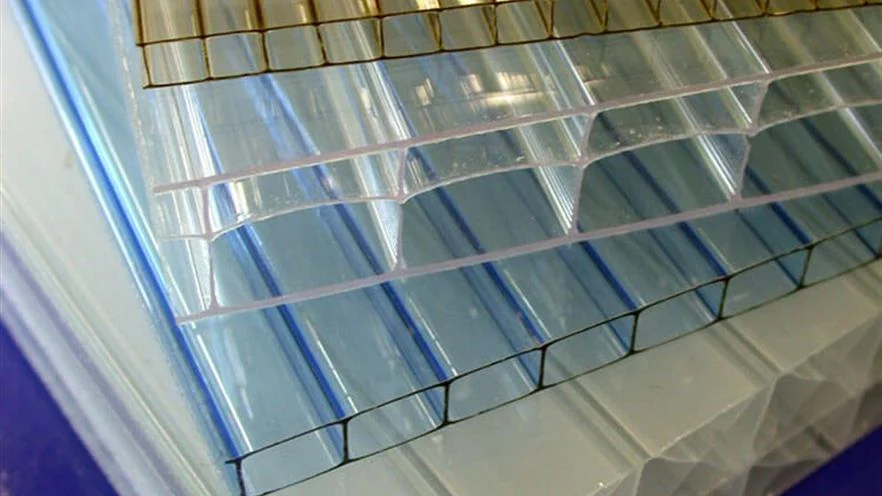

The Smartia M4000 Polycarbonate system offers a wide variety of polycarbonate sheets, hollow and solid, with the necessary aluminium framework.
Ideal for atriums, sun roofs, skylights, car shading, interior partitions, windows, greenhouses, sliding roofs and noise barriers, etc.
INFORMATION
BRAND
Alumil
PRODUCT TYPE
Sheet
PRODUCTION
Made in Greece
COLLECTION
Smartia
WEIGHT
0.8 – 3.2 Kg/m2
ENVIRONMENT
Outdoor
TYPES
Hollow And Solid
MATERIAL
Sabic Pc Resin
THICKNESS
4-40mm for hollow sheets, 2-10mm for solid
THERMAL TRANSFER
from 2.2 W/m2K for 20mm to 3.9 W/m2K for 4.0mm thickness
LAYERS
From 2 up to 7 layers
FIRE RESISTANCE
Class 1
CONSTRUCTIONS
Aluminium framework for fixed windows, with window sills, projected window
UV RADIATION
UV protection bonded at the material
ADVANTAGES
-Offered in various standard and customized dimensions -More suitable than other traditional materials, such as glass -Easily cleaned since dust hardly can settle and accumulate on them -Lightweight, flexible, virtually unbreakable, insulated, light transparent, soundproof and UV protective -Available in two basic types (chambered and solid) in various thicknesses, colors and number of chambers
ATTRIBUTES
Almost unbreakable, energy saving, sound reduction, water tightness, easy cleaning, easy handling, UV protection, no fire spreading
LINEAR DISTORTION
0.065mm/m°C
VARIETY OF COLORS
Transparent, Bronze, Green, Blue, White
STANDARD DIMENSIONS
2100 x 6000mm (hollow 4-20mm thick), 1250 x 6000mm (hollow 20-40mm thick), 2050 x 6100mm (solid)
