RABEL 3700 SLIM SUPER THERMAL SLIDING DOORS
RABEL 3700 SLIM SUPER THERMAL SLIDING DOORS
Slim Bi-Fold System

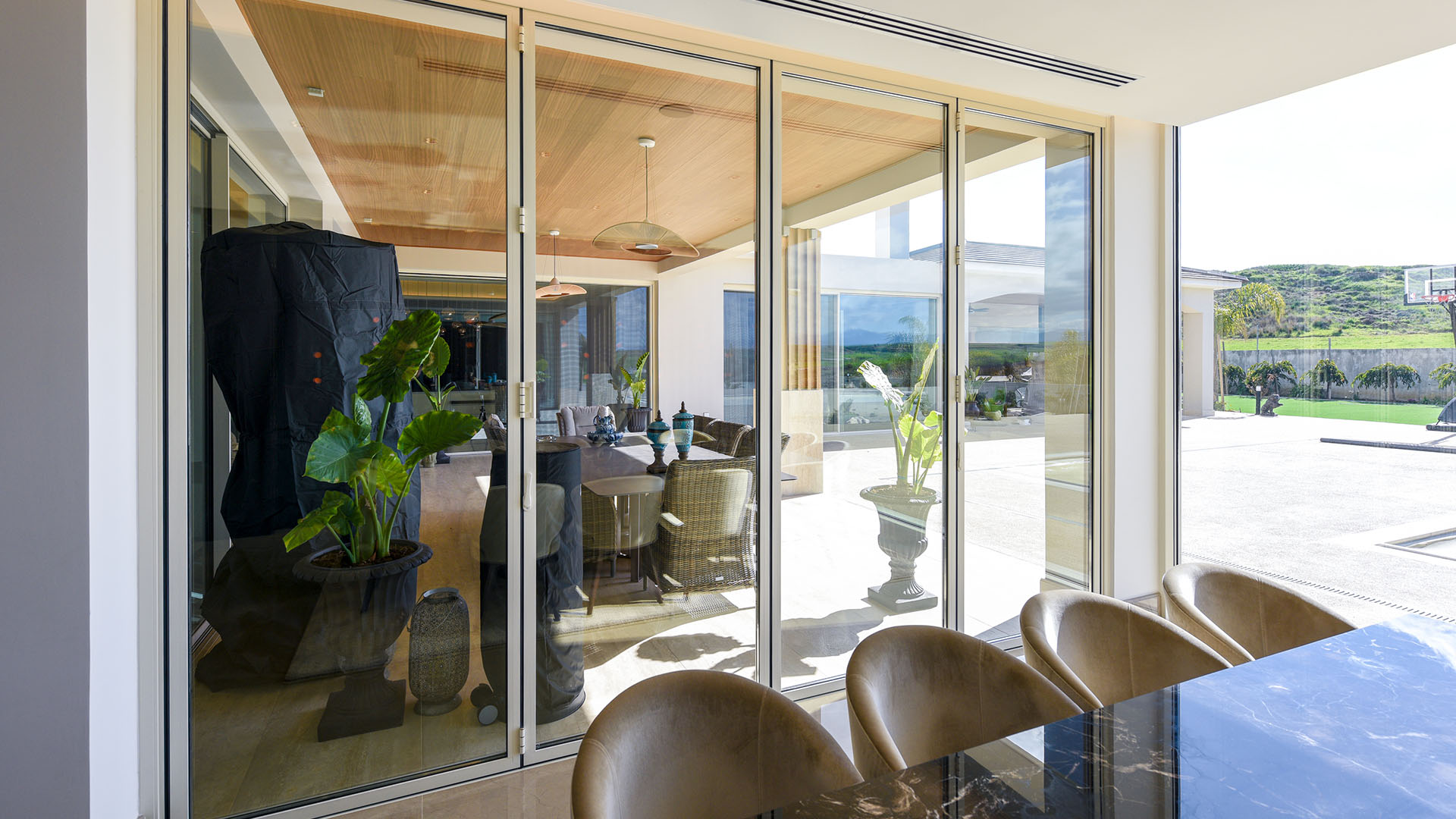

The system Rabel 3700 Slim Super Thermal has been designed for the fabrication of large fold and slide doors up to 3,0 meters height and 1,2 meters wide per leaf.
Its main application is for commercial and residential buildings, where high thermal insulation and Slim mullions are required. The system is based on a basic leaf width of 44mm
Seven different threshold designs are available in three different heights (35, 49, 71mm) making it possible to have a fully flat threshold as well as a high level of water tightness, fulfilling the needs of most projects.
Since the system is also available with gaskets along the whole perimeter as well as a drainage gutter, its performance in water tightness and air permeability is remarkable. It supports all typologies as well as corner fabrications.
INFORMATION
BRAND
Rabel
USE
Outdoor
FRAME VISIBLE WIDTH
60 mm
SASH HEIGHT
60 mm
PERFORMANCES
Fabrication Thermal Transmittance EN ISO 10077-2 (Uw) : ≥1.6 W/(m2K)
PRODUCTION
Made in Cyprus
PRODUCT TYPE
Sliding System
SASH VISIBLE WIDTH
60 mm
TYPE
Fold & Slide
MAX. SASH WIDTH
1.2 m
SASH DEPTH
60 mm
MAX. SASH HEIGHT
3 m
MAX. WEIGHT PER SASH
130 Kg
DOWNLOAD
↓ Brochure
THERMAL BREAK WIDTH
16-24 mm
SEALING TYPE
4 Gaskets
GLAZING WIDTH POSSIBILITIES
32 mm
MAXIMUM LOCKING POINTS
3
FRAME HEIGHT
- 35
- 49
- 71
- 90 mm
DETAIL
The Rabel 3700 Slim Super Thermal is characterized by its bottom sliding mechanism which offers by design the best performance in terms of smooth slide and reliable operation over time. Optionally the sliding system is protected from dirt and unwanted objects by two hard brushes which run along the track ensuring unobstructed sliding motion.
It also comes with stainless steel rollers as standard for enhanced durability.The availability of low bottom threshold, 35mm, makes it unnecessary to switch to top hang systems so as to accommodate specific project requirements.In the standard equipment a two point lock is included which can be upgraded into a multiple point burglary resistance system.
