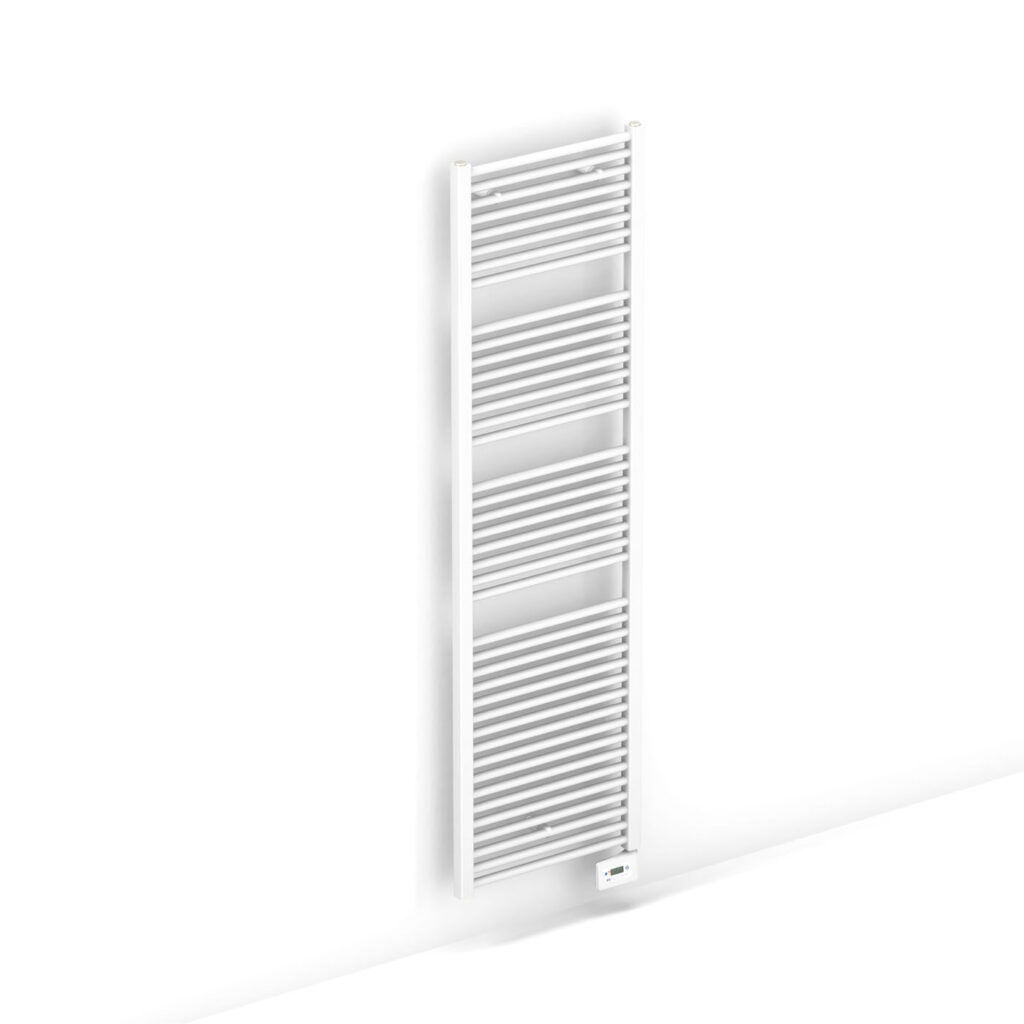

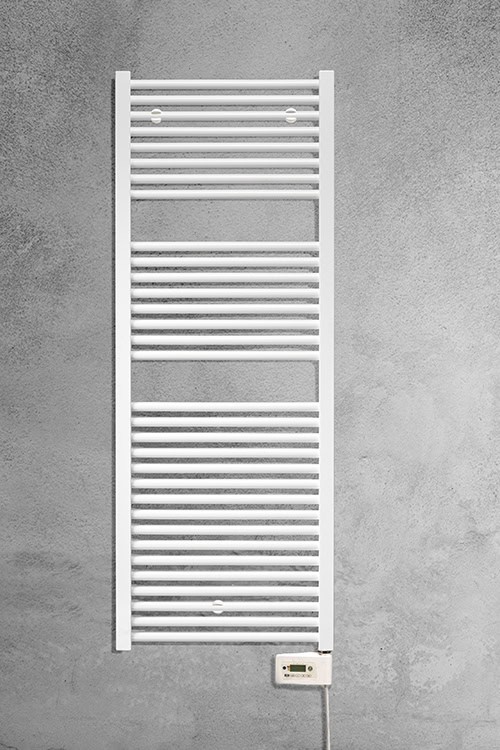

Jaga1 2sani Electric Radiators
2SANI ELECTRIC RADIATORS
2SANI ELECTRIC RADIATORS
The digital Ecodesign control ensures a stable and accurate temperature
INFORMATION
BRAND
Jaga
PRODUCT TYPE
Radiators
FEATURES
- Easy to use menu
- Preset program profiles
- Equipped with all possible energy-saving options
- Electrical safety class IP 44splash-proof, suitable for zone A
- The digital Ecodesign control ensures a stable and accurate temperature
PRODUCTION
Made in Belgium
FIXING
Wall Fixing
TECHNICAL DRAWING
VERTICAL
Vertical steel, square heating collectors 35 mm x 35 mm
WHITE CABLE
White Cable 1.2 M
PRE-FILLED
Pre-filled With Heating Fluid
INTEGRATED ELECTRICAL
Integrated electrical resistor with mountable controller
OPTIONS
Infrared Remote Control
STANDARD COLOURS
Traffic white ral 9016 (233) matte satin
TUBES
Round, horizontal radiant tubes Ø 22 mm
CONSTRUCTION
Round steel radiation tubes (ø 22 x 1.25 mm) with a spacing of 15 mm. Free opening: 100 mm. 3 wall mounts are supplied as standard for mounting on the wall. These supports become by means of Allen screws attached around the radiation tubes.
DETAIL
COLOUR
-Sani Ronda Eco Design is painted in traffic white 233 (RAL9016 smooth satin gloss). -The radiators are sandblasted, degreased, phosphated and passivated. The coating is a structured scratch-resistant polyester, electrostatically applied in powder form and baked at 200°C. UV resistant according to ASTM G53. This high-quality finish offers optimal scratch resistance and is very durable easy to maintain. Thickness of the paint layer: min 80 µ.
CONNECTIONS
Sani Ronda is standard equipped with one G1/2" sleeve on each collector end. The connecting sleeves on the the end of the collectors are recessed and therefore not visible. Equipped with chromed air vent G1/2”, 2 drain plugs G1/2”. In the connection sleeve at the bottom right there is an electrical resistance 300, 500, 750, 1000 or 1250 Watt mounted on which the supplied electronic control element must be installed mounted. The white control element is equipped with a white mains connection cable.
ENERGY EFFICIENT OPERATION
The digital Ecodesign control ensures a stable and accurate temperature and is equipped with all possible energy-saving options.
- Frost protection
- Open window detection
- Electronic temperature measurement and control
- Display of the amount of energy used in kwh/ 24h or since the last reset.
- Indication of the current energy consumption by using energy labels A/B/C
- Automatic switch-off of the boost function, programmable for up to 90 minutes.
EXECUTION OF THE INSTALLATION
The installer proposes the radiators, taking into account the following requirements:
- A heat loss calculation made in accordance with the standard.
- Heat release and size charts from Sani Ronda based on electrical power.
- They are attached to the wall with the corresponding supports.
- Sani Ronda Electric must be connected to the mains in a manner in accordance with the local electrical regulations taking into account the zone (A or B) where the electrical connection is made comes. The radiator may be installed in zone A as it is of insulation class II.
EASY TO SET
The smart Sani Electric has a user-friendly menu with preset programming profiles for each day of the week. These can easily be adjusted to your needs on the sloping interface with the large keys.
5 programming profiles
- Keyboard lock for children
- Sound-indications when operating
- Infrared remote control available as an option.
- Manual and temporary cancellation of a program.
- 4 operating modes: Auto (Program), Boost, Comfort, Eco (economy mode), Frost protection.
MATERIAL
The radiators are made up of vertical steel collectors (35 x 35 x 1.5 mm) and horizontal radiation tubes, with free openings of 100mm. The radiation tubes are attached to the outside of the collector by means of laser welded. Is pre-filled with an Ethylene glycol-water mixture and can be used from -20°C to 100°C.
Equipped with a electro-resistance at 230 V AC with double over-temperature protection, resistance adapted to the size and output of the radiator. Equipped with an electronic control element with control and adjustment of the ambient temperature, with weekly and daily program, with automatic open window detection, with Boost button, all this according to Eco Design. Suitable for electric heating, insulation class II and use in zone A in the bathroom, bill taking into account the applicable electrical regulations.
