Suys Gararol® Industrial Doors
Gararol® Industrial Doors

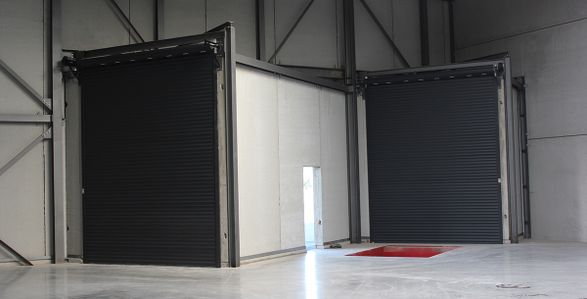

GARAROL® INDUSTRIAL DOORS
For larger surfaces, as much as till 45m², Gararol® offers the perfect solution for industrial doors. They are extra strong and heavy, equipped with steel or aluminium slats.
INFORMATION
BRAND
Suys
PRODUCT TYPE
Roller Shutters
BOX DESIGN
All boxes are manufactured in aluminium.
FINISH
Box, bottom slat, guide sections and curtain (slats) are available in any RAL-colour
APPLICATIONS
-New buildings - Renovation
-Montage: This roller door is built-in as standard, thus delivered without a box. Optionally we can provided a box, if required.
OPERATION
Standard electrical (motorization Motorol or Somfy), with safety brake
BOX DIMENSIONS
- Box design: chamfered 45°)
- Box dimensions:300mm of 360mm
COLLECTION
Gararol
PRODUCTION
Made in Belgium
IMPLEMENTATION
-Box: All boxes are manufactured in aluminium.
-Slats: The standard profile for a Gararol® industrial door is the BP77 or BP77FE, a firm and strong slat in steel (FE). This slat can also be combined with a perforated profile.
BP42RS IS THE STANDARD PROFILE FOR MINIROL®
-Because of the good roll-up diameter of this profile, only a small box is required. For a standard door or sliding window door height (2,3m under the box), the roller shutter rolls up in a box of only 180mm diameter. -The BP42RS-slat is considered to be a very strong profile. It reaches up to a 3,5m width. So with the most common sliding window doors an extra guide sections in the middle is unnecessary. -In most situations it’s possible to use one and the same type of slat for a home. The large maximum width combined with the compact roll up, ensures to use a small box, even for substantial window surfaces. For extra-large applications, the BP55RS-slat is most suitable (maximum 4,5m width and 12m²)
EXTRA
-A Minirol® SOLAR surface mounted roller shutter is burglar-resistant with the integration of extra safety springs. These ensure the shutter is pushed down at all times. -With the Minirol® there’s the option of a box closing bottom slat. A pure design guaranteed and no disruptive bottom bar in eye sight. -By choosing a motorization with solar panel, all the advantages of electrical control are maintained. In addition there’s no need to drill into the walls for the electrical wiring, the perfect solution when the house is already nicely finished and painted.
