GARAROL® ROLLER DOORS FOR SHOP WINDOWS SHUTTERS
Also for shop windows Gararol® has interesting solutions to offer. By using single-skinned perforated profiles (BP90), a shop can be perfectly locked up while keeping a certain view percentage.
INFORMATION
BRAND
Suys
PRODUCT TYPE
Roller Shutters
BOX DESIGN
All boxes are manufactured in aluminium.
FINISH
Box, bottom slat, guide sections and curtain (slats) are available in any RAL-colour
APPLICATIONS
-New buildings - Renovation
-Montage: The box can be mounted in front of the facade or at the inside. The roller door can also be integrated in the construction, in that case it will be delivered without a box.
OPERATION
Standard electrical (motorization Motorol or Somfy), with safety brake

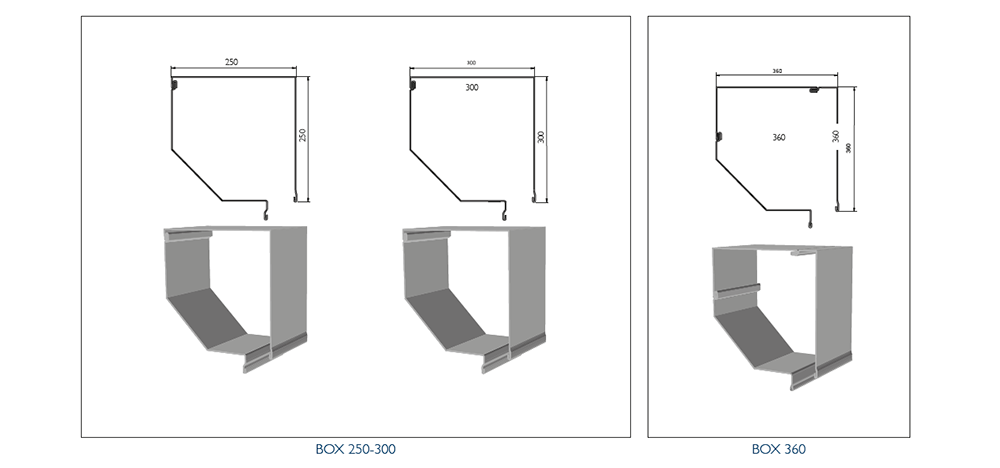

BOX DIMENSIONS
- Box design: chamfered 45°)
- Box dimensions: 125mm > 360mm
COLLECTION
Gararol
PRODUCTION
Made in Belgium
IMPLEMENTATION
-Box : All boxes are manufactured in aluminium
-Slats: The curtain consists of insulated aluminium profiles, different types of slats can be combined -EX44P – extruded aluminium slat – covers up to 10m² -EX77 – extruded aluminium slat – covers up to 20m² -BP90 – single-skinned perforated aluminium slat
BP42RS IS THE STANDARD PROFILE FOR MINIROL®
-Because of the good roll-up diameter of this profile, only a small box is required. For a standard door or sliding window door height (2,3m under the box), the roller shutter rolls up in a box of only 180mm diameter. -The BP42RS-slat is considered to be a very strong profile. It reaches up to a 3,5m width. So with the most common sliding window doors an extra guide sections in the middle is unnecessary. -In most situations it’s possible to use one and the same type of slat for a home. The large maximum width combined with the compact roll up, ensures to use a small box, even for substantial window surfaces. For extra-large applications, the BP55RS-slat is most suitable (maximum 4,5m width and 12m²)
EXTRA
-A Minirol® SOLAR surface mounted roller shutter is burglar-resistant with the integration of extra safety springs. These ensure the shutter is pushed down at all times. -With the Minirol® there’s the option of a box closing bottom slat. A pure design guaranteed and no disruptive bottom bar in eye sight. -By choosing a motorization with solar panel, all the advantages of electrical control are maintained. In addition there’s no need to drill into the walls for the electrical wiring, the perfect solution when the house is already nicely finished and painted.
