MCZ Plasma 75 Dx/sx Wood Fireplace
PLASMA 75 DX/SX WOOD FIREPLACE
PLASMA 75 DX/SX WOOD FIREPLACE
Corner Wood Fireplace
Wood-burning fireplace with innovative features. It offers high-performance and ease to use. The combustion air and glass cleaning inlets can be fully ducted to the outside (BE type appliance – Combustion air completely ductable, not hermetict).
INFORMATION
BRAND
MCZ
PRODUCT TYPE
Fireplace
COLLECTION
Plasma
PRODUCTION
Made in Italy
HEATABLE VOLUME
- 20W/m³ : 800.00 m3 (*)
- 35W/m³ : 457.00 m3 (*)
- 55W/m³ : 291.00 m3 (*)
SEASONAL SPACE HEATING ENERGY EFFICIENCY (ηs)
83.5 x 228.9 x 60.5 cm
TEMPERATURE OF EXHAUST SMOKE
200.00 °C
ENERGY EFFICIENCY CLASS (SCALE A++/G)
A+
TECHNICAL DRAWINGS
NET WEIGHT
361.00 kg
SMOKE OUTLET
200 mm
MASS OF SMOKE
10.10 g/s
ENVIRONMENT
Indoor
EFFICIENCY
- Max : 86.10 %
- Min : 85.10 %
DIMENSIONS
- Pitch : 60.5 cm
- Length : 83.5 cm
- Height : 228.9 cm
HOURLY CONSUMPTION
- Max : 4.10 kg/h (**)
- Min : 2.24 kg/h (**)
HEAT OUTPUT
- Nominal Heat Output : 16.00 kW
- Minimum Heat Output : 8.70 kW
CERTIFICATIONS
A+CLASS
This product is in the A+ energy efficiency class.
4 STAR (PULITA SCHEME)
This product guarantees high environmental performance, certified 4-star according to the emission and efficiency parameters of the Aria Pulita scheme.
CERTIFIED
This product has been certified 7 stars Flamme Verte.
ECODESIGN
This product is already compatible with EU Regulation Ecodesign 2022.
CONTO TERMICO
This product is eligible for a contribution from the Conto Termico, if installed to replace certain types of existing heating systems.
TEST STANDARDS
Test standards: EN 14785, BimSchV 2nd stage, Regensburger/ Aachener/ Münchener BStV (Germany), Art 15a B-VG (Austria), LRV (Switzerland).
DETAIL
“ENVIRONMENTALLY FRIENDLY” DESIGN
The new combustion is high-performing and efficient in accordance with the strictest regulations in terms of emissions (Ecodesign 2022).
SELF-CLEANING HEART IN ALUTEC®
Alutec® is the exclusive material developed and patented by MCZ for all its fireplaces. A patented formula of high alumina content achieved by processing at temperatures of up to 300 °C allows guaranteed self-cleaning of the combustion chamber through a chemical reaction. With its light colour, it makes the flame uniquely bright and even more beautiful.

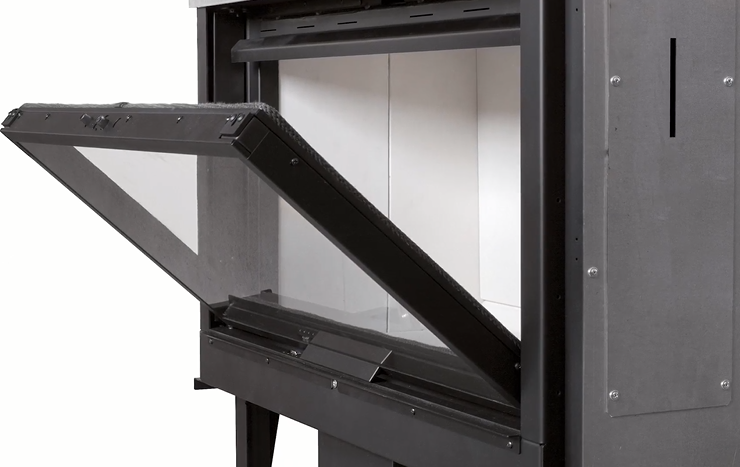

OPENING WITH HANDLE OR COOL HANDLE AT 90 OR 45°
The look of the fireplace can be customized by choosing the handle that blends in best with the room. The “Easy Switch” system offers in fact the option of using either the handle or the cool handle, prioritising ergonomics or very clean aesthetics, respectively. Without handle (cool handle) the doors opens at 90° for cleaning. With handle the door opening is at 45°.
VASTE RANGE OF SOLUTIONS
Plasma collection includes:
- Two corner models, 75 and 95 centimeters in width
- Four front models, 75, 85, 95 and 115 centimeters in width
- Two dual-faced models, 95 and 115 centimeters in width
- Two three sided models, 50 and 95 centimeters in width
MAKING THE MOST OF HEAT
Plasma fireplaces are designed to guarantee maximum exploitation of the heat, whether natural convection is used, or forced ventilation is the preferred choice. All Plasma fireplaces can be teamed with the patented COMFORT AIR® system, that makes it possible to convey the hot air to several rooms – even unconnected – at a distance of up to 8 metres.
NEW INTUITIVE AND SIMPLIFIED ADJUSTMENT SYSTEM
“Easy Going”, the new intuitive and simplified adjustment system, was designed with the user in mind: instead of technical concepts relating to the stages of combustion, there is a simple choice of 5 options corresponding to the actual situations of use of the fireplace:
- “Performance” for a better heat exchange of the fireplace
- “Comfort” for a lively flame with the right balance of primary and secondary air
- “Start” for a quick ignition of the flame
- “Clean”, the air option for the glass cleaning
- “Sleep” for a combustion with very little oxygen to increase the fuel duration
