MCZ VIVO 70 Q Wood Fireplace

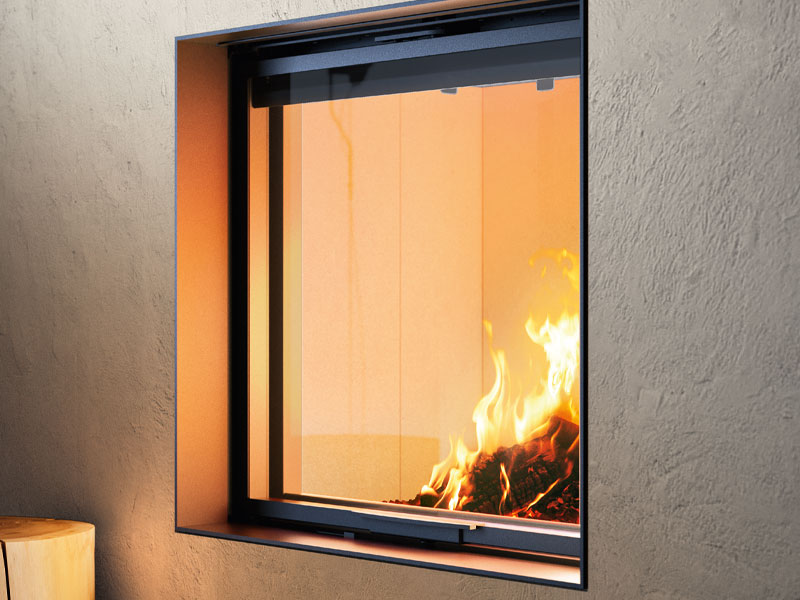

VIVO 70 Q WOOD FIREPLACE
VIVO 70 Q WOOD FIREPLACE
Wood-burning insert with Alutec® combustion chamber and a swing door with automatic soft closing, to facilitate cleaning and filling operations. Thanks to its compact size and light weight, this closed fireplace is especially suitable for application in existing fireplaces as well as in new installations.
INFORMATION
BRAND
MCZ
PRODUCT TYPE
Fireplace
HEATABLE VOLUME
- 20W/m³ : 580.00 m3 (*)
- 35W/m³ : 331.00 m3 (*)
- 55W/m³ : 211.00 m3 (*)
DIMENSIONS
- Pitch : 45.3 cm
- Length : 71.1 cm
- Height : 62 cm
ENERGY EFFICIENCY CLASS (SCALE A++/G)
A+
SEASONAL SPACE HEATING ENERGY EFFICIENCY (ηs)
75.00 %
USE
Heating
TEMPERATURE OF EXHAUST SMOKE
226.00 °C
MODEL
VIVO 70Q WOOD (5020001)
MASS OF SMOKE
8.00 g/s
EFFICIENCY
- Max : 85.10 %
- Min : 85.50 %
HEAT OUTPUT
- Nominal Heat Output : 11.60 kW
- Minimum Heat Output : 5.20 kW
PRODUCTION
Made in Italy
COLLECTION
VIVO 70Q
HOURLY CONSUMPTION
- Max : 3.10 kg/h (**)
- Min : 1.40 kg/h (**)
DOWNLOADS
NET WEIGHT
125.00 kg
SMOKE OUTLET
200 mm
EASY TO USE
The continuous fire and primary and secondary air adjustment with a single control make using Vivo everyday easy in all homes.
ERGONOMIC OPENING
Vivo Q models are equipped with a swing door with automatic soft closing, a solution which makes loading wood even easier and safer. With its ergonomic handle, opening the door is very easy.
COMBUSTION
Combustion is calibrated to ensure extreme cleanliness and efficiency and it is easily adjusted thanks to a unique and extremely straightforward mechanism.
DETAIL
IDEAL TO HEAT MORE ROOMS ALSO
In addition to operating through natural convection, this closed fireplace can be teamed with the patented Comfort Air system that makes it possible to convey the hot air to several rooms – even unconnected – at a distance of up to 8 metres.
SELF-CLEANING HEART IN ALUTEC®
Alutec® is the exclusive material developed and patented by MCZ for all its fireplaces. A patented formula of high alumina content achieved by processing at temperatures of up to 300 °C allows guaranteed self-cleaning of the combustion chamber through a chemical reaction. With its light colour, it makes the flame uniquely bright and even more beautiful.
CERTIFICATIONS
A+CLASS
This product is in the A+ energy efficiency class.
4 STAR (PULITA SCHEME)
This product guarantees high environmental performance, certified 4-star according to the emission and efficiency parameters of the Aria Pulita scheme.
CERTIFIED
This product has been certified 7 stars Flamme Verte.
ECODESIGN
This product is already compatible with EU Regulation Ecodesign 2022.
CONTO TERMICO
This product is eligible for a contribution from the Conto Termico, if installed to replace certain types of existing heating systems.
TEST STANDARDS
Test standards: EN 14785, BimSchV 2nd stage, Regensburger/ Aachener/ Münchener BStV (Germany), Art 15a B-VG (Austria), LRV (Switzerland).
