Carlisle Porch Swing Flooring
PORCH SWING FLOORING
PORCH SWING FLOORING

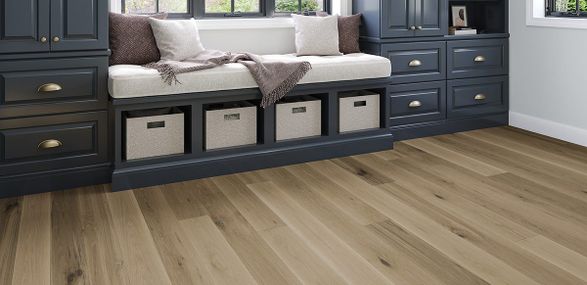

A grayish brown finish is subtly flecked with cream tones in the grain lines, creating the feel of wood that is ever-so-slightly weathered.
INFORMATION
BRAND
Carlisle
PRODUCT TYPE
Flooring
WIDTH
7"
LENGTH
2′ – 10′ Random
INSTALLATION
- Plywood
- Waterfront
- Residential
- Commercial
- Radiant Heat & Concrete Slab
ENGINEERED WOOD FLOORING
-9-11 Layers -Plywood substrate -Hardwood wear layer dry sawn veneer -California Air Resource Board (CARB2) compliant -Moisture content of wear layer at time of manufacture may be from 6-9% -Wear layer thickness of 4mm nominal (specified textures and finishing process may slightly alter finished thickness)
FINISH
Prefinished
EDGE
Softened
GRADE
Signature
USE
Indoor
PROFILE
Tongue & Groove
STRUCTURE
Engineered
SPECIES
White Oak
SHEEN
Super Matte
WOOD
-Wood subfloors that allow for nailing (at industry prescribed schedule) require at minimum; the use of a caulking gun (such as Wakol MS 265) adhesive bead, applied across the full width of the planks at intervals of 8-12” in addition to mechanical fastening. Full-spread wood flooring adhesive applied by trowel to the substrate surface is recommended and will provide the most optimal method of glue-assist. -Flooring should be installed in the direction recommended by the Architect or Designer or parallel to the longest wall.
TEXTURE
Brushed
MINIMUM ORDER
400 SQ FT
MANUFACTURING PROCESS
- Product must be made in the USA
- Hot glue process for engineered structure
- Multi-point individual board press laminating process
SOLID WOOD FLOORING
- Moisture content should be in the 6-9% range.
- Milling tolerance must meet or exceed NWFA Standards.
- Relief grooves 3/8” deep, every ¾” across the bottom of the planks.
DETAIL
Darker knotholes, along with their fills, contribute to Porch Swing’s casual appeal, mirroring the organic irregularities that surface in untreated wood over the course of years. Like its namesake, Porch Swing is a soothing backdrop for daily life.
INSTALLATION USING FULL-SPREAD GLUE REQUIRES
-Installation using full-spread glue requires the of use appropriate surface weight to properly set the individual board into the adhesive. Adhesive transfer of 95% or more to the bottom of the plank is required and must retain contact with the adhesive and substrate once dry and cured. 5 gallon buckets filled with sand or water are most commonly used for this purpose. Depending on adhesive requirement weights can typically be redistributed after 20 minutes. -Depending on subfloor conditions and nature of the adhe- sive the use of shims may be required to ensure flush edge and end joint configuration.
MATERIAL
- American White Oak.
- Super Matt Sheen 4-6o.
- 7 " wide planks, 2’-10' random lengths.
- T and G edge joints and end matched.
- NWFA/NOFMA Certified Manufacturer.
- 8” wide planks, 2’-12’ lengths with 6’-7’ average.
- Engineered or Solid Flooring is 3/4” total thickness.
- Softened edge on the 2 long sides of each plank of 1/32".
- Grade of material is a proprietary grade created by Carlisle. ژWood Filler is used in certain characterics within the plank face.
COLORS
COLORS
